Panasonic 50"55" Class 1080p Plasma Hdtv Tc P50gt50 Owners Manual

manual electrónico
Owner’s Manual
50”/55” Class 1080p Plasma HDTV
(49.9/55.1 inches measured diagonally)
Manual de usuario
Televisión de alta definición de 1080p y
clase 50”/55” de Plasma
(49,9/55,1 pulgadas medidas diagonalmente)
For assistance (U.S.A./Puerto Rico), please call:1-877-95-VIERA (958-4372)www.panasonic.com/help
For assistance (Canada), please call:1-866-330-0014concierge.panasonic.ca
Para solicitar ayuda (EE.UU./Puerto Rico), llame al:
1-877-95-VIERA (958-4372)www.panasonic.com/help...

2

■Do not display a still picture for a long timeThis causes the image to remain on the plasma screen
(“Image retention”). This is not considered a malfunction and is not covered by the warranty.
4 : 312 To prevent the “Image retention”, the screen saver is
automatically activated after a few minutes if no signals are
sent or no operations are performed.
Typical still images

●Channel number and other logos
●Image displayed in 4:3 mode
●SD Card photo     ●Video game     ●Computer image

■Set up...

3
VIERA Link™ is a trademark of
Panasonic Corporation.
HDMI, the HDMI logo and High-
Definition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC in the United
States and other countries.
SDXC Logo is a trademark of SD-
3C, LLC.
“AVCHD” and the “AVCHD” logo
are trademarks of Panasonic
Corporation and Sony Corporation.
“RealD 3D” is a trademark of RealD.
“Full HD 3D Glasses™” logo and
“Full HD 3D Glasses™” word are
trademark of Full HD 3D Glasses
Initiative....

4
Safety Precautions
WARNING:To reduce the risk of fire or electric shock, do not expose this apparatu\
s to rain or moisture.
Do not place liquid containers (flower vase, cups, cosmetics, etc.) ab\
ove the set
(including on shelves above, etc.).
Important Safety Instructions

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service p\
ersonnel.
The lightning flash...

5

●Do not place any objects on top of the Plasma TV.
  If water spills onto the Plasma TV or foreign objects get  inside it, a short-circuit may occur, which could result in
fire or electric shock. If any foreign objects get inside the
Plasma TV, please consult an Authorized Service Center.

● In the unlikely event that you receive a shock from this
product, it is possible that your household outlet may
be wired improperly.
  Have an electrician verify that the TV’s outlet is properly  wired. If...

6

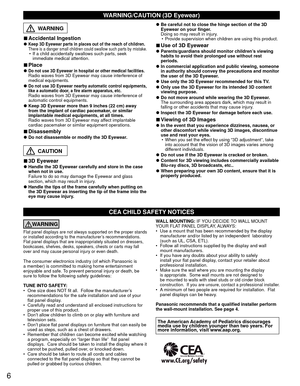

CEA CHILD SAFETY NOTICES
WARNING
Flat panel displays are not always supported on the proper stands
or installed according to the manufacturer’s recommendations.
Flat panel displays that are inappropriately situated on dressers,
bookcases, shelves, desks, speakers, chests or carts may fall
over and may cause personal injury or even death.

The consumer electronics industry (of which Panasonic is
a member) is committed to making home entertainment
enjoyable and safe. To prevent personal injury or...

7

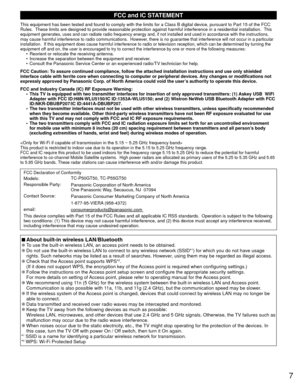

FCC and IC STATEMENT
This equipment has been tested and found to comply with the limits for a\
 Class B digital device, pursuant to Part 15 of the FCC
Rules.  These limits are designed to provide reasonable protection against harmf\
ul interference in a residential installation.  This
equipment generates, uses and can radiate radio frequency energy and, if\
 not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.  However, there is no...

8

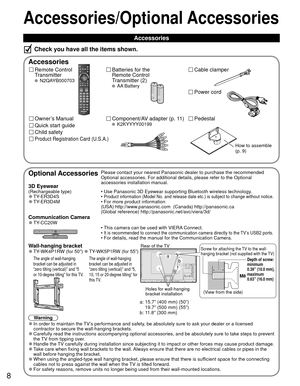

Accessories/Optional Accessories
 Accessories
Remote Control
Transmitter
 N2QAYB000703
Batteries for the
Remote Control
Transmitter (2)
 AA Battery
Accessories
Check you have all the items shown.
Cable clamper
Power cord
Component/AV adapter (p. 11) K2KYYYY00199Quick start guide
Owner’s Manual
Product Registration Card (U.S.A.)
Child safety
 Pedestal
How to assemble
(p. 9)
Optional AccessoriesPlease contact your nearest Panasonic dealer to purchase the recommended\

Optional accessories. For...

9
Accessories
Assembly screwsA
  XYN4+F10FNK  (Black)
  size (M4 x 10)
  (for 50” (5), for 55” (1))
B
  XYN5+F16FN  (silver)
  size (M5 x 16)
  (for 50” (7), for 55” (12))
Bracket (1)
  TBL5ZA3254 (for 50”)  TBL5ZA3200 (for 55”)
Neck (1)  TXFBL5Z0083 (for 50”)  TXFBL5Z0086 (for 55”)
Cover (1)  TXFBL5Z0091 (for 50”)  TXFBL5Z0056 (for 55”)
y
  Cover is in the same bag with Owner’s Manual
Base (1)
  TBL5ZX0313 (for 50”)  TBL5ZX0328 (for 55”)

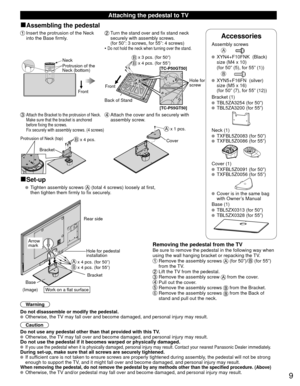

 Attaching the pedestal to TV
■Assembling the pedestal
 Insert...

10

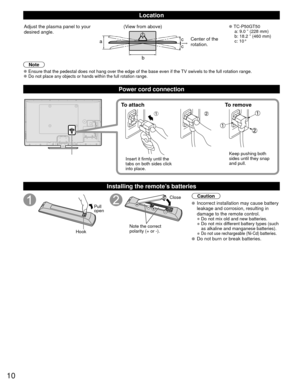

Location
a
b
cc
Adjust the plasma panel to your
desired angle. (View from above)
●TC-P50GT50
  a: 9.0 ” (228 mm)
  b: 18.2 ” (460 mm)
 c: 10°
Center of the
rotation.
Note

●Ensure that the pedestal does not hang over the edge of the base even if\
 the TV swivels to the full rotation range.
●Do not place any objects or hands within the full rotation range.
Power cord connection
To attach To remove
Insert it firmly until the
tabs on both sides click
into place. Keep pushing both
sides until...
