Panasonic 50"58" Class 1080p Plasma Hdtv Th 50pz750 Operating Instructions

51
FAQs, etc.
 Remote Control Operation/Code List
Hughes Network
Systems0739Philips 0739
Samsung 0739
ABS 1972
Alienware 1972
CyberPower 1972
Dell 1972
DirecTV 0739
Gateway 1972
Hewlett Packard 1972
Howard
Computers1972
HP 1972Hughes Network
Systems0739
Humax 0739
Hush 1972
iBUYPOWER 1972
Linksys 1972
Media Center PC 1972
Microsoft 1972
Mind 1972
Niveus Media 1972Northgate 1972
Panasonic 0616
Philips 0618, 0739
RCA 0880
ReplayTV 0614, 0616
Samsung 0739
Sonic Blue 0614, 0616
Sony 0636, 1972
Stack 9...

52
NRNO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie has not been rated or
rating does not apply.
GGENERAL AUDIENCES. All ages admitted.
PGPARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.
PG-13PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.
RRESTRICTED. Under 17 requires accompanying parent or adult guardian.
NC-17NO ONE 17 AND UNDER ADMITTED.
XADULTS ONLY.
Age-based
GroupAge-based
RatingsPossible Content...

53
FAQs, etc.
 Maintenance
 Ratings List for Lock
Maintenance
Display panel
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or
a soft, lint-free cloth.
• If the surface is particularly dirty, soak a soft, lint-free cloth in diluted neutral detergent (1 part detergent diluted by
100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface
of the display panel, then wipe it evenly...

54
Technical Information
Closed Caption (CC)
Aspect Ratio
Lets you choose the aspect depending on the format of the received signal and your preference. (p. 21)
(e.g.:  in case of 4:3 image)
• For viewing Closed Caption of digital broadcasting, set the aspect ratio to FULL.
(If viewing with H-FILL, JUST, ZOOM or 4:3, characters will be cut off.)
• The Closed Caption is not displayed when you use HDMI connection.
• If analog connected equipment is used for displaying or recording, Closed Caption (CC)...

55
FAQs, etc.
 Technical Information
DIGITAL AUDIO OUT terminals
You can enjoy your home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier to the DIGITAL AUDIO OUT terminals.
Caution
• Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical output.
• External speakers cannot be connected directly to PROG OUT terminals.
• When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will...

56
EZ SyncTM “HDAVI ControlTM”
HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 36)
• This function may not work normally depending on the equipment condition.
• The equipment can be operated by other remote controls with this function on even if TV is in Standby mode.
• Image or sound may not be available for the first few seconds when the playback starts.
• Image or sound may not be available for the first few seconds when Input mode is switched.
• Volume function...

57
FAQs, etc.
 Technical Information
1 678
39
45
1015 14 13 12 11
2
* Mark: Applicable input signal for Component (Y, PB, PR), HDMI and  PC
Input signal that can be displayed
horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI PC
525 (480) / 60i 15.73 59.94**
525 (480) /60p 31.47 59.94**
750 (720) /60p 45.00 59.94**
1,125 (1,080) /60i 33.75 59.94**
1,125 (1,080) /60p 67.43 59.94*
1,125 (1,080) /60p 67.50 60.00*
640 × 400 @70 31.47 70.08*
640 × 480 @60 31.47 59.94*
Macintosh13” (640 × 480)...

58
---
SUBSUBMENUMENU

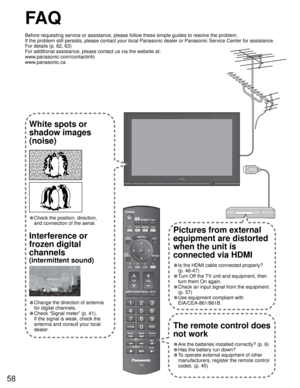

FA Q
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer or Panasonic Service Center for assistance.
For details (p. 62, 63)
For additional assistance, please contact us via the website at:
www.panasonic.com/contactinfo
www.panasonic.ca
White spots or
shadow images
(noise)
• Check the position, direction,
and connection of the aerial.
Interference or
frozen...

59
FAQs, etc.

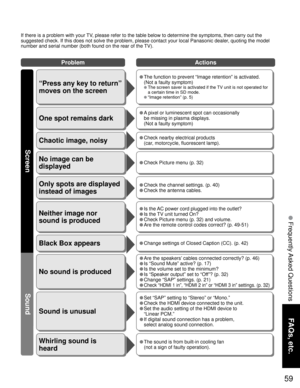

 Frequently Asked Questions
No sound is produced
Sound is unusual
• Are the speakers’ cables connected correctly? (p. 46)
• Is “Sound Mute” active? (p. 17)
• Is the volume set to the minimum?
• Is “Speaker output” set to “Off”? (p. 32)
• Change “SAP” settings. (p. 21)
• Check “HDMI 1 in”, “HDMI 2 in” or “HDMI 3 in” settings. (p. 32)
• Set “SAP” setting to “Stereo” or “Mono.”
• Check the HDMI device connected to the unit.
• Set the audio setting of the HDMI device to
“Linear PCM.”
• If...

60
TH-50PZ750U TH-58PZ750U
Power SourceAC 120 V, 60 HzPower
Consumption
Maximum705 W 745 W
Standby condition0.2 W 0.2 W
Plasma
Display panelDrive methodAC type
Aspect Ratio16:9
Visible screen size
(W × H × Diagonal)
(No. of pixels) 50” class (49.9 inches measured diagonally) 58” class (58.0 inches measured diagonally)
43.5 ” × 24.4 ” × 49.9 ”
(1,106 mm × 622 mm × 1,269 mm)50.5 ” × 28.4 ” × 58.0 ”
(1,284 mm × 723 mm × 1,474 mm)
2,073,600 (1,920 (W) × 1,080 (H))
[5,760 × 1,080 dots]
Sound
Audio...
