11 Removing a SIM card Push the card. It will come out of the slot a little bit. Pull the card all the way out.
Page 12

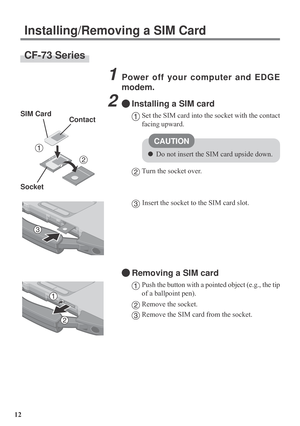

12 CF-73 Series Installing/Removing a SIM Card 1Power off your computer and EDGE modem. 2Installing a SIM card Set the SIM card into the socket with the contact facing upward. Turn the socket over. Insert the socket to the SIM card slot. Removing a SIM card Push the button with a pointed object (e.g., the tip of a ballpoint pen). Remove the socket. Remove the SIM card from the socket. CAUTION Do not insert the SIM card upside down. SIM Card Socket Contact
Page 13
![Page 13
13
A CD-ROM drive is necessary for the installation.
CAUTION
When using the internal modem, change the COM port with the following procedure
before installation.
1Select [start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hard-
ware] - [Device Manager] - [Modems] - [Panasonic V.92 MDC Modem] - [Ad-
vanced] - [Advanced Port Settings].
2Select [COM9] at [COM Port Number] and select [OK].
3Select [OK] and restart the computer.
1Turn on or restart the computer.
Press F2 while...](http://img.usermanuals.tech/thumb/58/59196/w300_cf-18-cf-29-cf-73-series-supplementary-instructions-12.png "Page 13
13
A CD-ROM drive is necessary for the installation.
CAUTION
When using the internal modem, change the COM port with the following procedure
before installation.
1Select [start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hard-
ware] - [Device Manager] - [Modems] - [Panasonic V.92 MDC Modem] - [Ad-
vanced] - [Advanced Port Settings].
2Select [COM9] at [COM Port Number] and select [OK].
3Select [OK] and restart the computer.
1Turn on or restart the computer.
Press F2 while...")

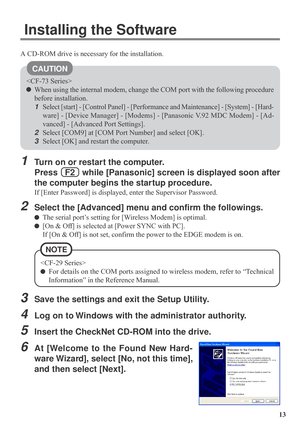

13 A CD-ROM drive is necessary for the installation. CAUTION When using the internal modem, change the COM port with the following procedure before installation. 1Select [start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hard- ware] - [Device Manager] - [Modems] - [Panasonic V.92 MDC Modem] - [Ad- vanced] - [Advanced Port Settings]. 2Select [COM9] at [COM Port Number] and select [OK]. 3Select [OK] and restart the computer. 1Turn on or restart the computer. Press F2 while...
Page 14
![Page 14
14
10Input [x:\setup\setup.exe]*2 in [start] -
[Run] and select [OK].
Follow the on-screen instructions.
*2“x:” is the drive letter of the CD-ROM drive. Change this to
match the drive letter on your own computer.
11Select [Yes, I want to restart my com-
puter now.], then select [Finish].
The computer will restart.
9Select [Finish].
7Select [Install from a list or specific lo-
cation (Advanced)], then select [Next].
8Select [Search for the best driver in
these locations], add the check mark for
[Include...](http://img.usermanuals.tech/thumb/58/59196/w300_cf-18-cf-29-cf-73-series-supplementary-instructions-13.png "Page 14
14
10Input [x:\setup\setup.exe]*2 in [start] -
[Run] and select [OK].
Follow the on-screen instructions.
*2“x:” is the drive letter of the CD-ROM drive. Change this to
match the drive letter on your own computer.
11Select [Yes, I want to restart my com-
puter now.], then select [Finish].
The computer will restart.
9Select [Finish].
7Select [Install from a list or specific lo-
cation (Advanced)], then select [Next].
8Select [Search for the best driver in
these locations], add the check mark for
[Include...")

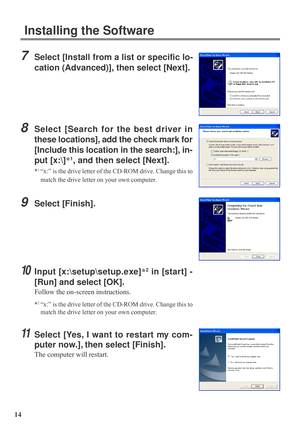

14 10Input [x:\setup\setup.exe]*2 in [start] - [Run] and select [OK]. Follow the on-screen instructions. *2“x:” is the drive letter of the CD-ROM drive. Change this to match the drive letter on your own computer. 11Select [Yes, I want to restart my com- puter now.], then select [Finish]. The computer will restart. 9Select [Finish]. 7Select [Install from a list or specific lo- cation (Advanced)], then select [Next]. 8Select [Search for the best driver in these locations], add the check mark for [Include...
Page 15
![Page 15
15
12Log on to Windows with the administrator authority.
13Making extra settings for the EDGE modem.
Select [start] - [Control Panel] - [Printers and Other Hardware] - [Phone and Mo-
dem Options] - [Modems], select your EDGE modem (Siemens AG WM USB Mo-
dem), and then select [Properties].
In [Advanced], enter the extra initialization commands as follows.
AT+CGDCONT=,,
Example: :1, :ip, :internet.t-d1.de
AT+CGDCONT=1,ip,internet.t-d1.de
(Note that the APN shown here represents the German network...](http://img.usermanuals.tech/thumb/58/59196/w300_cf-18-cf-29-cf-73-series-supplementary-instructions-14.png "Page 15
15
12Log on to Windows with the administrator authority.
13Making extra settings for the EDGE modem.
Select [start] - [Control Panel] - [Printers and Other Hardware] - [Phone and Mo-
dem Options] - [Modems], select your EDGE modem (Siemens AG WM USB Mo-
dem), and then select [Properties].
In [Advanced], enter the extra initialization commands as follows.
AT+CGDCONT=,,
Example: :1, :ip, :internet.t-d1.de
AT+CGDCONT=1,ip,internet.t-d1.de
(Note that the APN shown here represents the German network...")

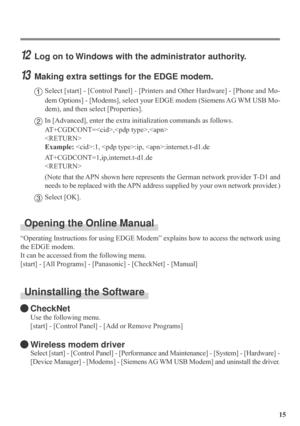

15 12Log on to Windows with the administrator authority. 13Making extra settings for the EDGE modem. Select [start] - [Control Panel] - [Printers and Other Hardware] - [Phone and Mo- dem Options] - [Modems], select your EDGE modem (Siemens AG WM USB Mo- dem), and then select [Properties]. In [Advanced], enter the extra initialization commands as follows. AT+CGDCONT=,, Example: :1, :ip, :internet.t-d1.de AT+CGDCONT=1,ip,internet.t-d1.de (Note that the APN shown here represents the German network...
Page 16
![Page 16
16
Setup Utility
The parameters for [Wireless Modem] have been added in [Advanced] menu of the Setup
Utility.
APN Access Point Name
CID Context Identity
EDGE Enhanced Data rates for Global Evolution
GPRS General Packet Radio Service
GSM Global System of Mobile Communication
IP Internet Protocol
PDP Packet Data Protocol
PIN Personal Identification Number
PLMNPublic Land Mobile Network
PPP Point to Point Protocol
QoS Quality of Service
SIM Subscriber Identity Module
TCP Transmission Control Protocol...](http://img.usermanuals.tech/thumb/58/59196/w300_cf-18-cf-29-cf-73-series-supplementary-instructions-15.png "Page 16
16
Setup Utility
The parameters for [Wireless Modem] have been added in [Advanced] menu of the Setup
Utility.
APN Access Point Name
CID Context Identity
EDGE Enhanced Data rates for Global Evolution
GPRS General Packet Radio Service
GSM Global System of Mobile Communication
IP Internet Protocol
PDP Packet Data Protocol
PIN Personal Identification Number
PLMNPublic Land Mobile Network
PPP Point to Point Protocol
QoS Quality of Service
SIM Subscriber Identity Module
TCP Transmission Control Protocol...")

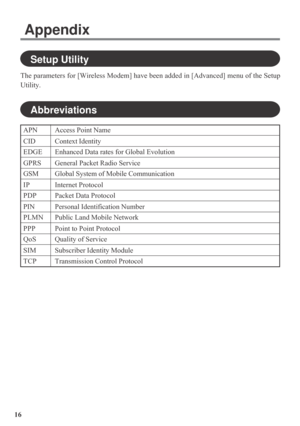

16 Setup Utility The parameters for [Wireless Modem] have been added in [Advanced] menu of the Setup Utility. APN Access Point Name CID Context Identity EDGE Enhanced Data rates for Global Evolution GPRS General Packet Radio Service GSM Global System of Mobile Communication IP Internet Protocol PDP Packet Data Protocol PIN Personal Identification Number PLMNPublic Land Mobile Network PPP Point to Point Protocol QoS Quality of Service SIM Subscriber Identity Module TCP Transmission Control Protocol...
Page 17

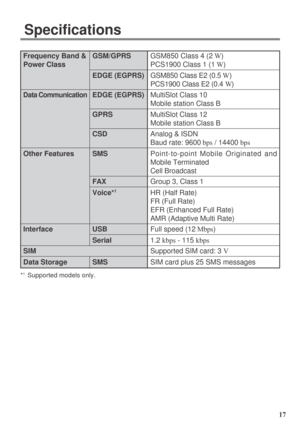

17 Specifications *1Supported models only. GSM850 Class 4 (2 W) PCS1900 Class 1 (1 W) GSM850 Class E2 (0.5 W) PCS1900 Class E2 (0.4 W) MultiSlot Class 10 Mobile station Class B MultiSlot Class 12 Mobile station Class B Analog & ISDN Baud rate: 9600 bps / 14400 bps Point-to-point Mobile Originated and Mobile Terminated Cell Broadcast Group 3, Class 1 HR (Half Rate) FR (Full Rate) EFR (Enhanced Full Rate) AMR (Adaptive Multi Rate) Full speed (12 Mbps) 1.2 kbps - 115 kbps Supported SIM card: 3 V SIM card...
Page 18
18 Memo
Page 19
