Panasonic Cf 18dhazxkm Owners Manual

11
Getting Started

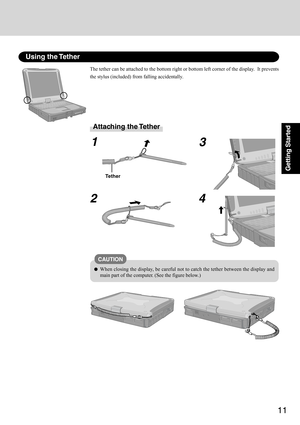

Using the Tether
The tether can be attached to the bottom right or bottom left corner of the display.  It prevents
the stylus (included) from falling accidentally.
Attaching the Tether
1
23
4
Tether
CAUTION
When closing the display, be careful not to catch the tether between the display and
main part of the computer. (See the figure below.)

12
Getting Started
1
First-time Operation
Read the steps below to help you learn what parts are included, and to gain an understanding of
some basic computer-related operations.
1Confirm the inclusion of all parts.
Make sure the parts shown in the figure have been supplied.  If any of these items are
missing or are not working properly, contact Panasonic Technical Support.
3Insert the battery pack.
Unlock the cover by sliding the latch to the right.1
CAUTION
Do not touch the terminals on the battery pack...

13

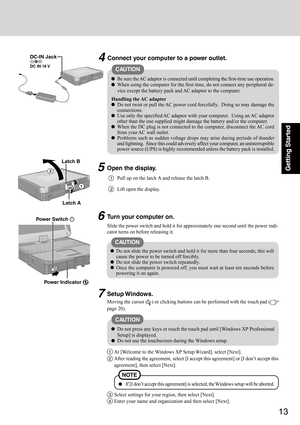

Getting Started5Open the display.
1Pull up on the latch A and release the latch B.
2Lift open the display.
Slide the power switch and hold it for approximately one second until the power indi-
cator turns on before releasing it.
CAUTION
Connect your computer to a power outlet.
CAUTION
Be sure the AC adaptor is connected until completing the first-time use operation.
When using the computer for the first time, do not connect any peripheral de-
vice except the battery pack and AC adaptor to the...

14
Getting Started
First-time Operation

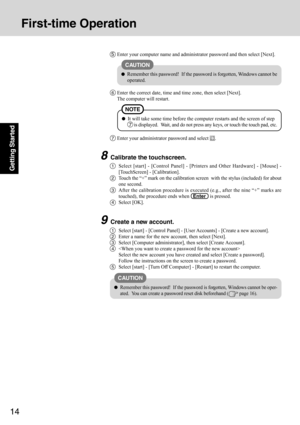

8Calibrate the touchscreen.
1Select [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse] -
[TouchScreen] - [Calibration].
2Touch the “+” mark on the calibration screen  with the stylus (included) for about
one second.
3After the calibration procedure is executed (e.g., after the nine “+” marks are
touched), the procedure ends when   Enter   is pressed.
4Select [OK].
1Select [start] - [Control Panel] - [User Accounts] - [Create a new account].
2Enter...

15
Getting Started

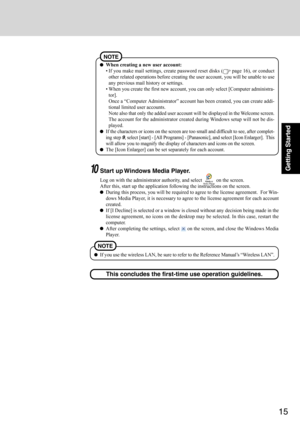

When creating a new user account:
 If you make mail settings, create password reset disks (
 page 16), or conduct
other related operations before creating the user account, you will be unable to use
any previous mail history or settings.
 When you create the first new account, you can only select [Computer administra-
tor].
Once a “Computer Administrator” account has been created, you can create addi-
tional limited user accounts.
Note also that only the added user account will be...

16
Getting Started

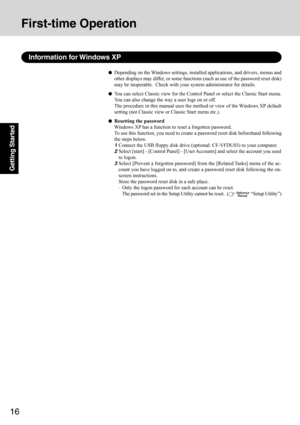

Depending on the Windows settings, installed applications, and drivers, menus and
other displays may differ, or some functions (such as use of the password reset disk)
may be inoperable.  Check with your system administrator for details.
You can select Classic view for the Control Panel or select the Classic Start menu.
You can also change the way a user logs on or off.
The procedure in this manual uses the method or view of the Windows XP default
setting (not Classic view or Classic...

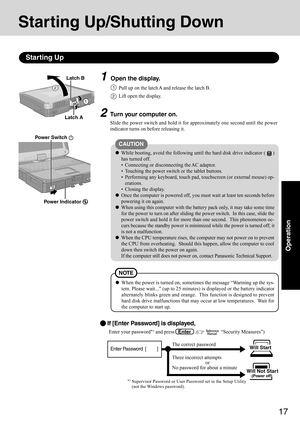

17
Operation
1Open the display.
Starting Up/Shutting Down
Starting Up
2Turn your computer on.
Slide the power switch and hold it for approximately one second until the power
indicator turns on before releasing it.
2
CAUTION
While booting, avoid the following until the hard disk drive indicator ()
has turned off.
 Connecting or disconnecting the AC adaptor.
 Touching the power switch or the tablet buttons.
 Performing any keyboard, touch pad, touchscreen (or external mouse) op-
erations.
 Closing the...

18
Operation
Starting Up/Shutting Down

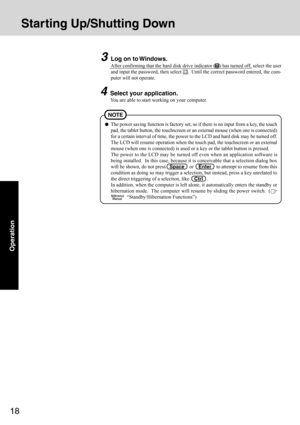

The power saving function is factory set, so if there is no input from a key, the touch
pad, the tablet button, the touchscreen or an external mouse (when one is connected)
for a certain interval of time, the power to the LCD and hard disk may be turned off.
The LCD will resume operation when the touch pad, the touchscreen or an external
mouse (when one is connected) is used or a key or the tablet button is pressed.
The power to the LCD may be turned off even when...

19
Operation

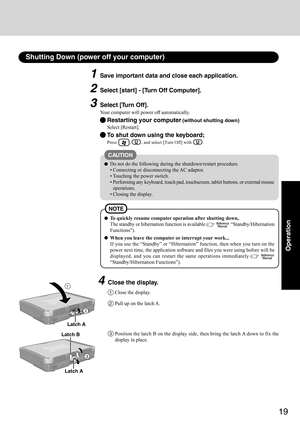

Shutting Down (power off your computer)
To quickly resume computer operation after shutting down,
The standby or hibernation function is available (
  “Standby/Hibernation
Functions”).
When you leave the computer or interrupt your work...
If you use the “Standby” or “Hibernation” function, then when you turn on the
power next time, the application software and files you were using before will be
displayed, and you can restart the same operations immediately (

“Standby/Hibernation...

20
Operation

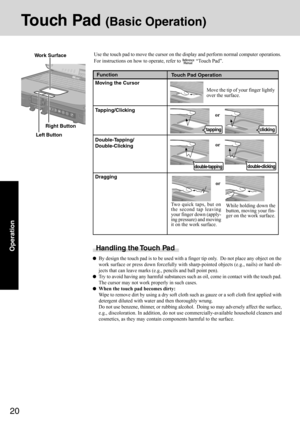

Touch Pad (Basic Operation)
Use the touch pad to move the cursor on the display and perform normal computer operations.
For instructions on how to operate, refer to
 “Touch Pad”.
Handling the Touch Pad
By design the touch pad is to be used with a finger tip only.  Do not place any object on the
work surface or press down forcefully with sharp-pointed objects (e.g., nails) or hard ob-
jects that can leave marks (e.g., pencils and ball point pen).
Try to avoid having any harmful substances...
