Panasonic Cf 18fdazxvm Owners Manual

21
Operation

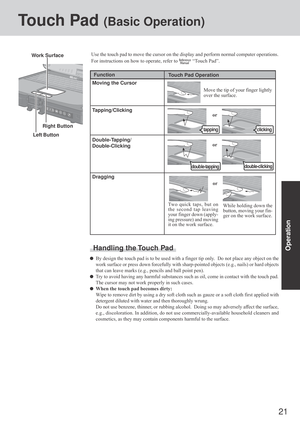

Touch Pad (Basic Operation)
Use the touch pad to move the cursor on the display and perform normal computer operations.
For instructions on how to operate, refer to
 “Touch Pad”.
Handling the Touch Pad
By design the touch pad is to be used with a finger tip only.  Do not place any object on the
work surface or press down forcefully with sharp-pointed objects (e.g., nails) or hard objects
that can leave marks (e.g., pencils and ball point pen).
Try to avoid having any harmful substances such...

22
Operation

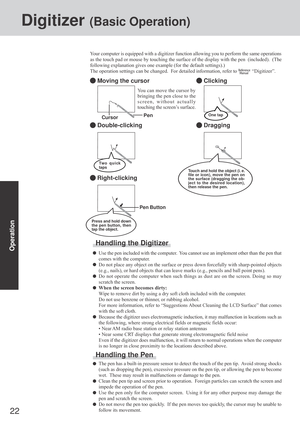

Digitizer (Basic Operation)
Your computer is equipped with a digitizer function allowing you to perform the same operations
as the touch pad or mouse by touching the surface of the display with the pen  (included).  (The
following explanation gives one example (for the default settings).)
The operation settings can be changed.  For detailed information, refer to
 “Digitizer”.
 Moving the cursor
 Double-clicking
 Clicking
 Dragging
Two quick
taps
One tap
 Right-clicking
Handling the...

23
Operation

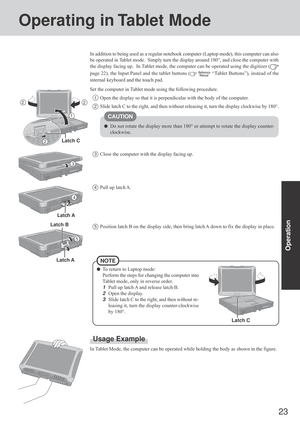

Operating in Tablet Mode
Usage Example
In Tablet Mode, the computer can be operated while holding the body as shown in the figure. In addition to being used as a regular notebook computer (Laptop mode), this computer can also
be operated in Tablet mode.  Simply turn the display around 180°, and close the computer with
the display facing up.  In Tablet mode, the computer can be operated using the digitizer (
page 22), the Input Panel and the tablet buttons (  “Tablet Buttons”), instead of...

24
Operation

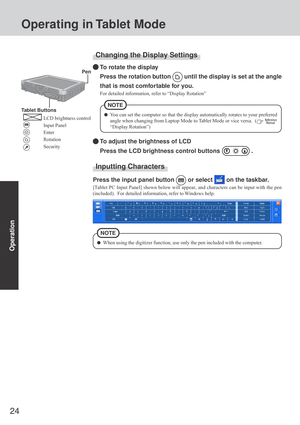

Changing the Display Settings
To rotate the display
Press the rotation button
 until the display is set at the angle
that is most comfortable for you.
For detailed information, refer to “Display Rotation”
To adjust the brightness of LCD
Press the LCD brightness control buttons
 .
You can set the computer so that the display automatically rotates to your preferred
angle when changing from Laptop Mode to Tablet Mode or vice versa.  (

“Display Rotation”)
NOTE
 Pen
Tablet Buttons
LCD...

25
Operation
Reference Manual
Illustrations may be difficult to view depending on the magnification.  If the illustration
is too small, magnify the display.
If a printer is connected, we recommend printing the pages required.  Depending on the
printer, the illustrations and display samples may not be printed with a high quality.
NOTE
The Reference Manual and the Important Battery Tips can be accessed on your computer. When
a printer is connected, these manuals can also be printed.
Reference Manual
The...

26
Operation

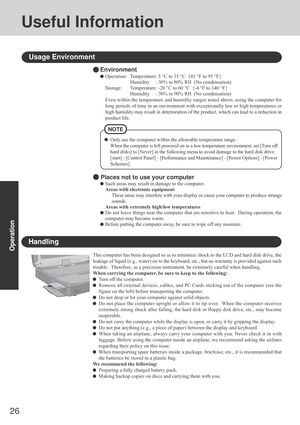

Useful Information
Environment
Operation: Temperature: 5 °C to 35 °C  {41 °F to 95 °F}
Humidity     : 30% to 80% RH  (No condensation)
Storage: Temperature: -20 °C to 60 °C  {-4 °F to 140 °F}
Humidity     : 30% to 90% RH  (No condensation)
Even within the temperature and humidity ranges noted above, using the computer for
long periods of time in an environment with exceptionally low or high temperatures or
high humidity may result in deterioration of the product, which can lead to a...

27
Operation
Touch Pad
 page 21

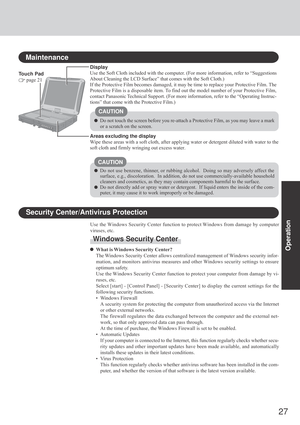

Maintenance
Areas excluding the display
Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the
soft cloth and firmly wringing out excess water. Display
Use the Soft Cloth included with the computer. (For more information, refer to “Suggestions
About Cleaning the LCD Surface” that comes with the Soft Cloth.)
If the Protective Film becomes damaged, it may be time to replace your Protective Film. The
Protective Film is a disposable...

28
Operation

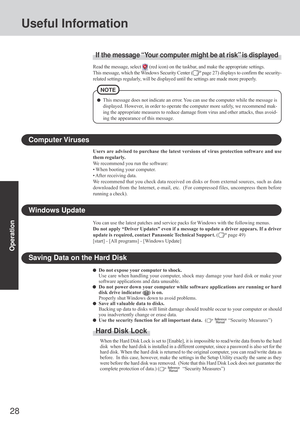

Saving Data on the Hard Disk
Do not expose your computer to shock.
Use care when handling your computer, shock may damage your hard disk or make your
software applications and data unusable.
Do not power down your computer while software applications are running or hard
disk drive indicator (
) is on.
Properly shut Windows down to avoid problems.
Save all valuable data to disks.
Backing up data to disks will limit damage should trouble occur to your computer or should
you inadvertently...

29
Operation

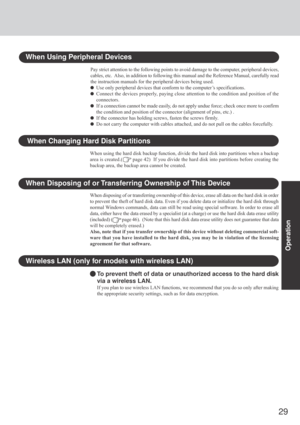

To prevent theft of data or unauthorized access to the hard disk
via a wireless LAN.
If you plan to use wireless LAN functions, we recommend that you do so only after making
the appropriate security settings, such as for data encryption.
Wireless LAN (only for models with wireless LAN)
When Disposing of or Transferring Ownership of This Device
When disposing of or transferring ownership of this device, erase all data on the hard disk in order
to prevent the theft of hard disk data. Even if...

30
Troubleshooting

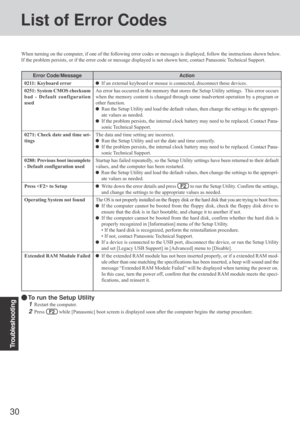

List of Error Codes
When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions shown below.
If the problem persists, or if the error code or message displayed is not shown here, contact Panasonic Technical Support.
Error Code/Message
0211: Keyboard error
0251: System CMOS checksum
bad - Default configuration
used
0271: Check date and time set-
tings
0280: Previous boot incomplete
- Default configuration used
Press  to Setup...
