Panasonic Cf 51pfvdebm Owners Manual

21
Getting Started
Useful Information
Troubleshooting
Appendix

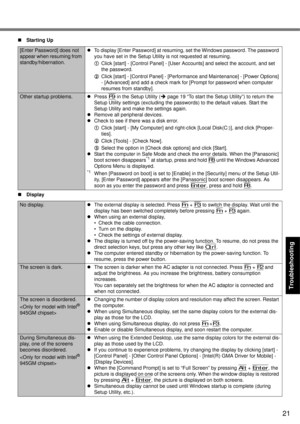

[Enter Password] does not
appear when resuming from
standby/hibernation. z
To display [Enter Password] at resuming, set the Windows password. The password
you have set in the Setup Utility is not requested at resuming.
AClick [start] - [Control Panel] - [User A ccounts] and select the account, and set
the password.
B Click [start] - [Control Panel] - [Performanc e and Maintenance] - [Power Options]
- [Advanced] and add a check mark for...

22
Getting Started
Useful Information
Troubleshooting
Appendix

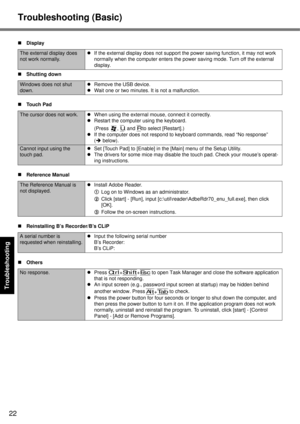

Troubleshooting (Basic)
The external display does
not work normally. z
If the external display does not support th e power saving function, it may not work
normally when the computer enters the power  saving mode. Turn off the external
display.
„ Shutting down
Windows does not shut
down. z
Remove the USB device.
z Wait one or two minutes. It is not a malfunction.
„ Touch Pad
The cursor does not work. zWhen using the external mouse,...

23
Getting Started
Useful Information
Troubleshooting
Appendix

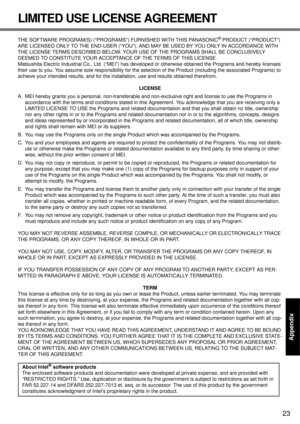

LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS” ) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-U SER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR  USE OF THE PROGRAMS SHALL BE CONCLUSIVELY
DEEMED TO CONSTITUTE YOUR ACCEPTA NCE OF THE TERMS OF THIS LICENSE.
Matsushita Electric Industrial Co., Ltd. (“MEI”) has develo ped or otherwise...

24
Getting Started
Useful Information
Troubleshooting
Appendix

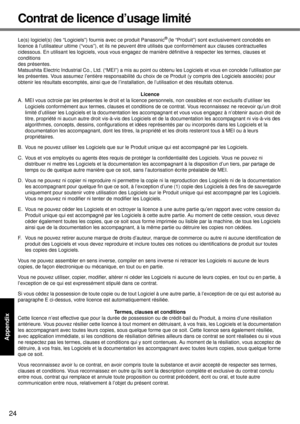

Contrat de licence d’usage limité
Le(s) logiciel(s) (les “Logiciels”)  fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en
licence à l’utilisateur ultime  (“vous”), et ils ne peuvent être utilisés que conformément aux clau ses contractuelles
cidessous. En utilisant les logiciels, vous vous engagez  de manière définitive à respecter les termes, clauses et
conditions
des présentes.
Matsushita Electric Industrial...

25
Getting Started
Useful Information
Troubleshooting
Appendix

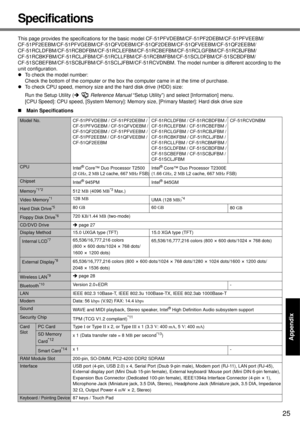

Specifications
This page provides the specific ations for the basic model CF-5 1PFVDEBM/CF-51PF2DEBM/CF-51PFVEEBM/
CF-51PF2EEBM/CF-51PFVGEBM/ CF-51QFVDEBM/CF-51QF2DEBM/CF-51QFVEEBM/CF-51QF2EEBM/
CF-51RCLDFBM/CF-51RCBDFBM/CF-51RCLEFBM/C F-51RCBEFBM/CF-51RCLGFBM/CF-51RCBJFBM/
CF-51RCBKFBM/CF-51RCLJFBM/C F-51RCLLFBM/CF-51RCBMFBM/CF-51SCLDFBM/CF-51SCBDFBM/
CF-51SCBEFBM/CF-51SCBJFBM/CF-51SCL JFBM/CF-51RCVDNBM. The model number is different...

26
Getting Started
Useful Information
Troubleshooting
Appendix
Specifications
*11 MB  = 1,048,576 bytes*2When expanding memory, remove the RAM module that was inse rted at the time of factory shipment, and insert two 2048 MB-RAM modules.*3You can physically expand the memory up to 4 GB, but the total amount of usable memory available will be less depending on the
actual system  configuration.
*4A segment of the main memory is allotted automatically dependi ng on the computer’s operating status. The...

27
Getting Started
Useful Information
Troubleshooting
Appendix

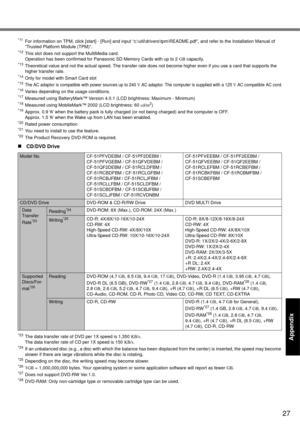

*11For information on TPM, click [start] - [Run] and input “c:\ut il\drivers	pm\README.pdf”, and refer to the Installation Manual  of
“Trusted Platform Module (TPM)”.
*12This slot does not support the MultiMedia card.
Operation has been confirmed for Panasonic SD Memory Cards with up to 2  GB capacity.
*13Theoretical value and not the actual speed. The transfer rate does  not become higher even if you use a card that supports the
higher...

28
Getting Started
Useful Information
Troubleshooting
Appendix
Specifications

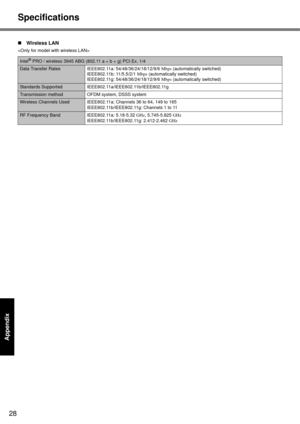

„ Wireless LAN

Intel® PRO / wireless 3945 ABG (802.11 a + b + g) PCI Ex. 1/4
Data Transfer Rates IEEE802.1 1a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)
IEEE802.11b: 11/5.5/2/1  Mbps (automatically switched)
IEEE802.11g: 54/48/ 36/24/18/12/9/6 Mbps (automatically switched)
Standards Supported IEEE802.11a/IEEE802.11b/IEEE802.11g
Transmission method OFDM system, DSSS system
Wireless Channels Used IEEE802.11a: Channels...

29
Getting Started
Useful Information
Troubleshooting
Appendix

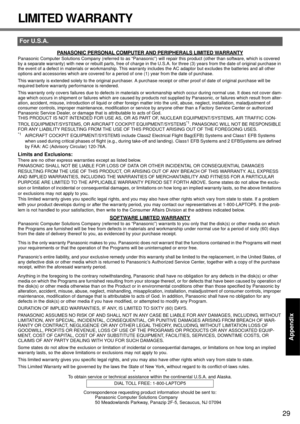

LIMITED WARRANTY
PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY
Panasonic Computer Solutions Company (referred to as “Panasonic”)  will repair this product (other than software, which is covered
by a separate warranty) with new or rebuilt parts, free of char ge in the U.S.A. for three (3) years from the date of original purchase in
the event of a defect in materials or workmanship. This warranty  includes the AC adaptor but...

30
Getting Started
Useful Information
Troubleshooting
Appendix

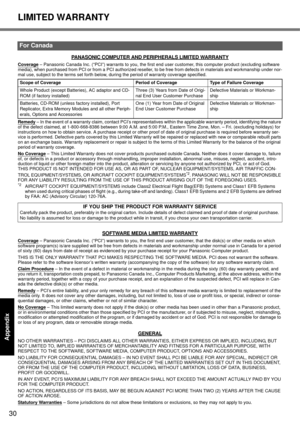

LIMITED WARRANTY
PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY
Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end  user customer, this computer product (excluding software
media), when purchased from PCI or from a PCI authorized reseller,  to be free from defects in materials and workmanship under nor-
mal use, subject to the terms set forth below,  during the period of warranty coverage specified.
Remedy
 – In...
