Panasonic Cf 74ccbaxbm Owners Manual

11
Getting Started
Useful Information
Troubleshooting
Appendix

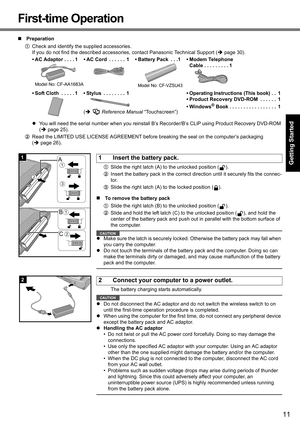

First-time Operation
„ Preparation
A Check and identify the supplied accessories.
If you do not find the described accessories, contact Panasonic Technical Support ( Îpage 30).
z You will need the serial number  when you reinstall B’s Recorder/B’s  CLiP using Product Recovery DVD-ROM
( Î page 25).
B Read the LIMITED USE LICENSE AG REEMENT before breaking the seal on the computer’s packaging
( Î page 26) .
ASlide the right latch (A) to  the...

12
Getting Started

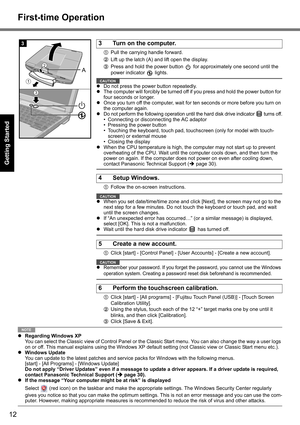

First-time Operation
APull the carrying handle forward.
BLift up the latch (A) and lift open the display.
CPress and hold the power button   for approximately one second until the
power indicator   lights.
CAUTION
zDo not press the power button repeatedly.
zThe computer will forcibly be turned off if you press and hold the power button for
four seconds or longer.
zOnce you turn off the computer, wait for ten seconds or more before you turn on
the computer again.
zDo not perform the...

13
Getting Started Useful Information Troubleshooting Appendix

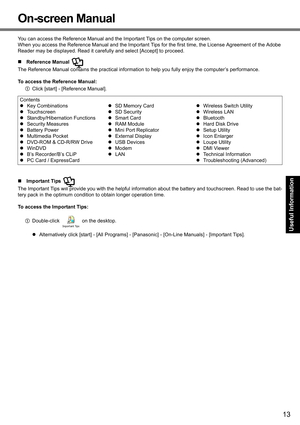

On-screen Manual
You can access the Reference Manual and the Important Tips on the computer screen.
When you access the Reference Manual and the Important Tips for the first time, the License Agreement of the Adobe
Reader may be displayed. Read it carefully and select [Accept] to proceed.
„Reference Manual
The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.
To access the Reference...

14
Getting Started
Useful Information
Troubleshooting
Appendix

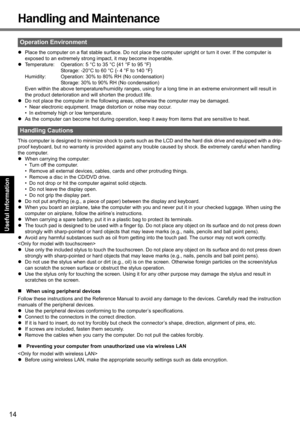

Handling and Maintenance
z Place the computer on a flat stable su rface. Do not place the computer uprigh t or turn it over. If the computer is
exposed to an extremely strong impact, it may become inoperable.
z Temperature: Operation: 5 °C to 35 °C {41 °F to 95 °F}
Storage: -20°C to 60 °C {- 4 °F to 140 °F}
Humidity: Operation: 30% to 80% RH (No condensation) Storage: 30% to 90% RH (No condensation)
Even within the above temperature/humidi...

15
Getting Started Useful Information Troubleshooting Appendix

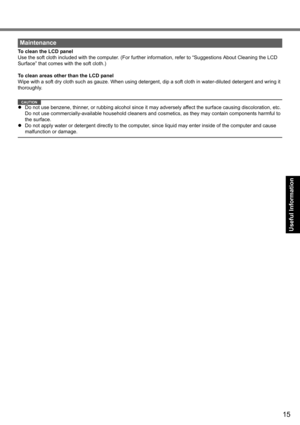

To clean the LCD panel
Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD
Surface” that comes with the soft cloth.)
To clean areas other than the LCD panel
Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it
thoroughly.
CAUTION
zDo not use benzene, thinner, or rubbing alcohol since it may adversely affect...

16
Getting Started Useful Information Troubleshooting Appendix

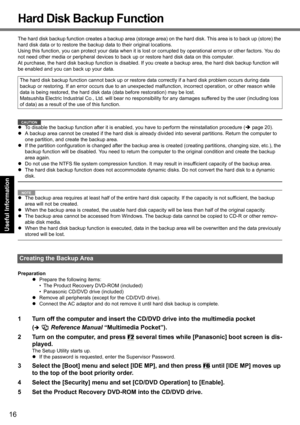

Hard Disk Backup Function
The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store) the
hard disk data or to restore the backup data to their original locations.
Using this function, you can protect your data when it is lost or corrupted by operational errors or other factors. You do
not need other media or peripheral devices to back up or restore hard disk data on this computer.
At...

17
Getting Started
Useful Information
Troubleshooting
Appendix

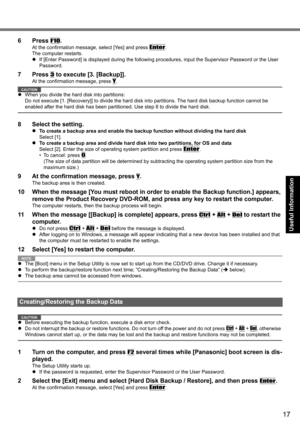

6 Press F10.
At the confirmation message, select [Yes] and press Enter.
The computer restarts.
z If [Enter Password] is displayed during the following  procedures, input the Supervisor Password or the User
Password.
7 Press 3 to execute [3. [Backup]].
At the confirmation message, press Y.
CAUTION
z When you divide the hard disk into partitions:
Do not execute [1. [Recovery]] to divide the hard disk  into partitions. The hard disk backup...

18
Getting Started
Useful Information
Troubleshooting
Appendix

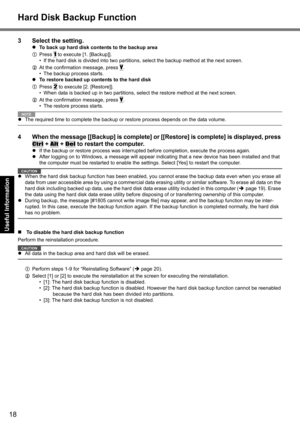

Hard Disk Backup Function
3 Select the setting.
z To back up hard disk contents to the backup area
A Press
1 to execute [1. [Backup]].
• If the hard disk is divided into two partitions , select the backup method at the next screen.
B At the confirmation message, press
Y.
• The backup process starts.
z To restore backed up contents to the hard disk
A Press
2 to execute [2. [Restore]].
• When data is backed up in two partitions, se lect the...

19
Getting Started
Useful Information
Troubleshooting
Appendix

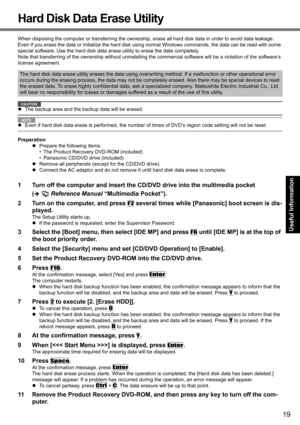

Hard Disk Data Erase Utility
When disposing the computer or transferring the ownership,  erase all hard disk data in order to avoid data leakage.
Even if you erase the data or initialize the hard disk usin g normal Windows commands, the data can be read with some
special software. Use the hard disk data er ase utility to erase the data completely.
Note that transferring of the  ownership without uninstalling the commercial software will be...

20
Getting Started Useful Information Troubleshooting Appendix
Reinstalling Software
Preparation
zPrepare the following items:
• The Product Recovery DVD-ROM (included)
• Panasonic CD/DVD drive (included)
zRemove all peripherals (except for the CD/DVD drive).
zConnect the AC adaptor and do not remove it until reinstallation is complete.
NOTE
zEven if reinstallation is performed, the number of times of DVD’s region code setting will not be reset.
1 Turn off the computer and insert the CD/DVD drive into...
