Panasonic Color Television Ct 32fsx32 Operating Instructions

OPTIONAL EQUIPMENT CONNECTIONS
9 l

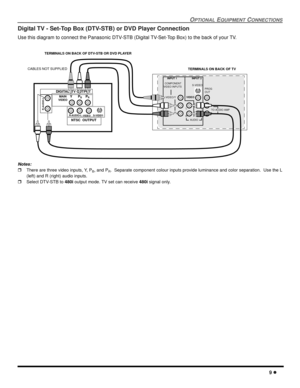

Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection
Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your TV.

Notes:
rThere are three video inputs, Y, PB, and PR.  Separate component colour inputs provide luminance and color separation.  Use the L
(left) and R (right) audio inputs.
rSelect DTV-STB to 480i output mode. TV set can receive 480i signal only.
 TERMINALS ON BACK OF DTV-STB OR DVD PLAYER
DIGITAL  TV OUTPUT...

10 l
OPTIONAL EQUIPMENT CONNECTIONS

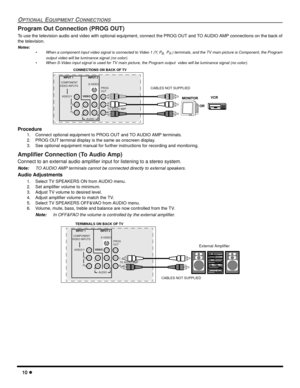

Program Out Connection (PROG OUT)
To use the television audio and video with optional equipment, connect the PROG OUT and TO AUDIO AMP connections on the back of
the television.
Notes:
• When a component input video signal is connected to Video 1 (Y, P
B,  PR ) terminals, and the TV main picture is Component, the Program
output video will be luminance signal (no color).
• When S-Video input signal is used for TV main picture, the Program output  video will be...

PIP FUNCTION BUTTONS
11 l

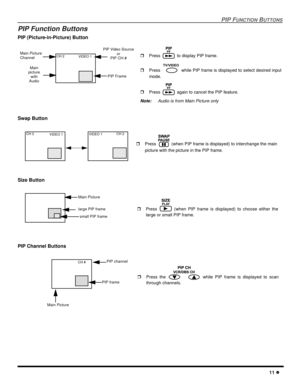

PIP Function Buttons
PIP (Picture-in-Picture) Button
Swap Button
Size Button
PIP Channel Buttons
CH 2
 VIDEO 1
Main
with
Audio
PIP Frame
PIP Video Source
or
PIP CH #Main Picture
ChannelrPress   to display PIP frame.
rPress   while PIP frame is displayed to select desired input
mode.
rPress   again to cancel the PIP feature.
Note:Audio is from Main Picture only
PIPFF
TV/VIDEO
PIPFF
CH 2
 VIDEO 1VIDEO 1CH 2
rPress   (when PIP frame is displayed) to interchange the...

12 l
PIP FUNCTION BUTTONS

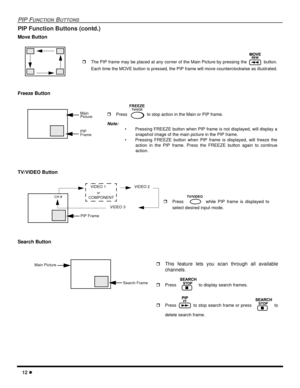

PIP Function Buttons (contd.)
Move Button
Freeze Button
TV/VIDEO Button

Search Button

rThe PIP frame may be placed at any corner of the Main Picture by pressing the   button.
Each time the MOVE button is pressed, the PIP frame will move counterclockwise as illustrated.
MOVEREW
Main
PIP
FramerPress   to stop action in the Main or PIP frame.
Note:
• Pressing FREEZE button when PIP frame is not displayed, will display a
snapshot image of the main picture in the PIP...

REMOTE CONTROL OPERATION
13 l

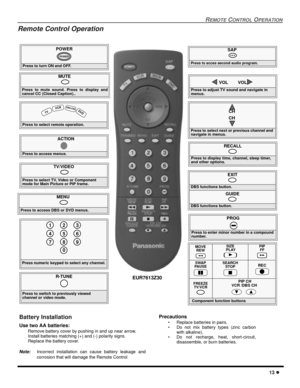

Remote Control Operation
               POWER
Press to turn ON and OFF.
POWER
MUTE

Press to mute sound. Press to display and
cancel CC (Closed Caption)..
SAP

Press to acces second audio program.
TV/VIDEO

Press to select TV, Video or Component
mode for Main Picture or PIP frame.
Press to select remote operation.

 TV
VC
RDBS
/C
BL D
VD
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and...

14 l
REMOTE CONTROL OPERATION

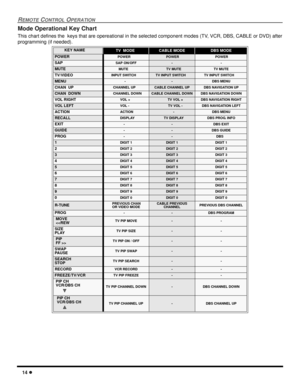

Mode Operational Key Chart
This chart defines the  keys that are opereational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).

KEY NAME TV  MODECABLE MODEDBS MODE
POWER   POWER POWER POWER
SAPSAP ON/OFF--
MUTE    MUTETV MUTETV MUTE
TV/VIDEO INPUT SWITCHTV INPUT SWITCHTV INPUT SWITCH
MENU --DBS MENU
CHAN  UP CHANNEL UPCABLE CHANNEL UPDBS NAVIGATION UP
CHAN  DOWN CHANNEL DOWNCABLE CHANNEL DOWNDBS NAVIGATION DOWN
VOL RIGHT VOL +TV...

REMOTE CONTROL OPERATION
15 l

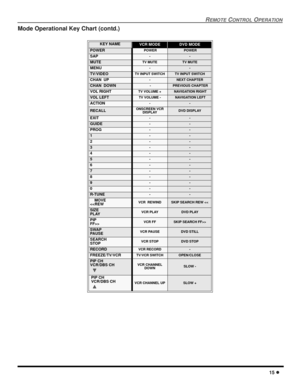

Mode Operational Key Chart (contd.)

KEY NAME VCR MODEDVD MODE
POWER POWER POWER
SAP--
MUTETV MUTETV MUTE
MENU--
TV/VIDEOTV INPUT SWITCHTV INPUT SWITCH
CHAN  UP-NEXT CHAPTER
CHAN  DOWN - PREVIOUS CHAPTER
VOL RIGHT    TV VOLUME + NAVIGATION RIGHT
VOL LEFTTV VOLUME - NAVIGATION LEFT
ACTION--
RECALLONSCREEN VCR
DISPLAYDVD DISPLAY
EXIT--
GUIDE--
PROG--
1--
2--
3--
4--
5--
6--
7--
8--
9--
0--
R-TUNE--
    MOVE
>
SWAP
PAUSEVCR PAUSEDVD STILL
SEARCH
STOPVCR STOPDVD STOP
RECORDVCR...

16 l
REMOTE CONTROL OPERATION
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
Programming With a Code
Procedure
• Confirm that the external component is plugged in and operating.
• Turn the...

REMOTE CONTROL OPERATION
17 l
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.

Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.
VCR
 DVD DBS CABLE
BrandCode
Admiral335
Aiwa332
Akai314, 315,...

18 l
REMOTE CONTROL OPERATION

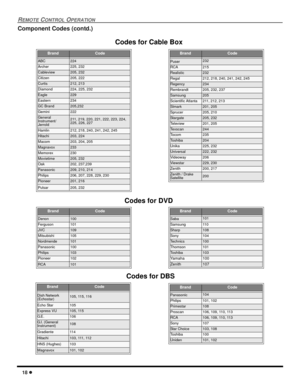

Component Codes (contd.)
BrandCode
ABC224
Archer225, 232
Cableview205, 232
Citizen205, 222
Curtis212, 213
Diamond224, 225, 232
Eagle229
Eastern234
GC Brand205,232
Gemini222
General
Instrument/
Jerrold211, 219, 220, 221, 222, 223, 224,
225, 226, 227
Hamlin212, 218, 240, 241, 242, 245
Hitachi203, 224
Macom203, 204, 205
Magnavox233
Memorex230
Movietime205, 232
Oak202, 237,239
Panasonic209, 210, 214
Philips206, 207, 228, 229, 230
Pioneer201, 216
Pulsar205, 232
BrandCode...
