Panasonic Color Television Ct 32hx40 Operating Instructions

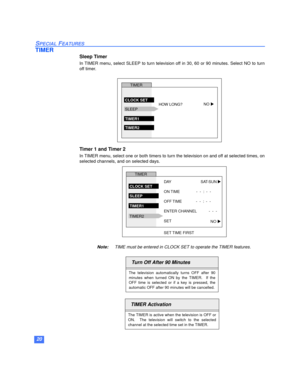

20
SPECIAL FEATURES
TIMER
Sleep Timer
In TIMER menu, select SLEEP to turn television off in 30, 60 or 90 minutes. Select NO to turn
off timer.
Timer 1 and Timer 2
In TIMER menu, select one or both timers to turn the television on and off at selected times, on
selected channels, and on selected days.
Note:TIME must be entered in CLOCK SET to operate the TIMER features.
  Turn Off After 90 Minutes
The television automatically turns OFF after 90
minutes when turned ON by the TIMER.  If the
OFF time is...

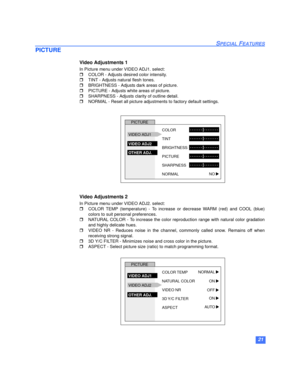

21
SPECIAL FEATURES
Video Adjustments 1
In Picture menu under VIDEO ADJ1. select:
rCOLOR - Adjusts desired color intensity.
rTINT - Adjusts natural flesh tones.
rBRIGHTNESS - Adjusts dark areas of picture.
rPICTURE - Adjusts white areas of picture.
rSHARPNESS - Adjusts clarity of outline detail.
rNORMAL - Reset all picture adjustments to factory default settings.
Video Adjustments 2
In Picture menu under VIDEO ADJ2. select:
rCOLOR TEMP (temperature) - To increase or decrease WARM (red) and COOL...

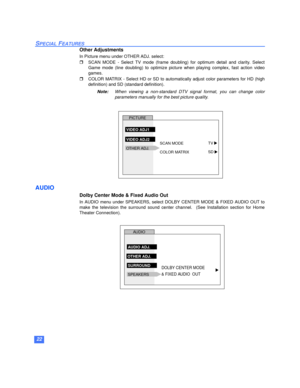

22
SPECIAL FEATURES
Other Adjustments
In Picture menu under OTHER ADJ. select:
rSCAN MODE - Select TV mode (frame doubling) for optimum detail and clarity. Select
Game mode (line doubling) to optimize picture when playing complex, fast action video
games.
rCOLOR MATRIX - Select HD or SD to automatically adjust color parameters for HD (high
definition) and SD (standard definition).
Note:When viewing a non-standard DTV signal format, you can change color
parameters manually for the best picture quality....

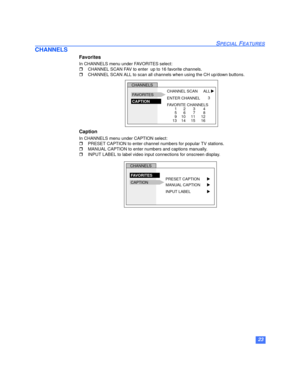

23
SPECIAL FEATURES
CHANNELS
Favorites
In CHANNELS menu under FAVORITES select:
rCHANNEL SCAN FAV to enter  up to 16 favorite channels.
rCHANNEL SCAN ALL to scan all channels when using the CH up/down buttons.
Caption
In CHANNELS menu under CAPTION select:
rPRESET CAPTION to enter channel numbers for popular TV stations.
rMANUAL CAPTION to enter numbers and captions manually.
rINPUT LABEL to label video input connections for onscreen display.
CHANNELS
CHANNEL SCAN
ENTER CHANNEL
FAVORITE CHANNELSALL...

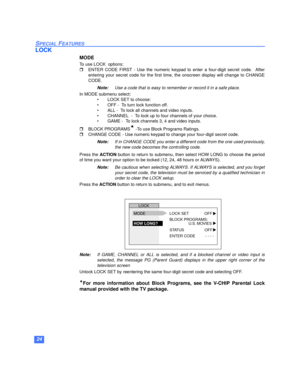

24
SPECIAL FEATURES
LOCK
MODE
To use LOCK  options:
rENTER CODE FIRST - Use the numeric keypad to enter a four-digit secret code.  After
entering your secret code for the first time, the onscreen display will change to CHANGE
CODE.
Note:Use a code that is easy to remember or record it in a safe place.
In MODE submenu select:
• LOCK SET to choose:
• OFF -  To turn lock function off.
• ALL -  To lock all channels and video inputs.
• CHANNEL  -  To lock up to four channels of your choice.
• GAME -  To lock...

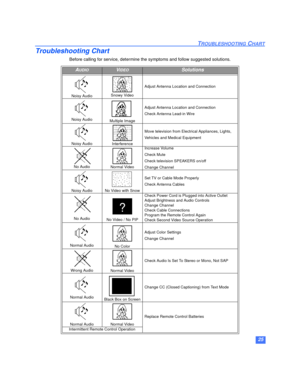

25
TROUBLESHOOTING CHART
Troubleshooting Chart
Before calling for service, determine the symptoms and follow suggested solutions.
AUDIOVIDEOSolutions
Noisy Audio Snowy Video
Adjust Antenna Location and Connection
Noisy AudioMultiple Image
Adjust Antenna Location and Connection
Check Antenna Lead-in Wire
Noisy AudioInterference
Move television from Electrical Appliances, Lights,
Vehicles and Medical Equipment
No Audio Normal Video
Increase Volume
Check Mute
Check television SPEAKERS on/off
Change Channel...

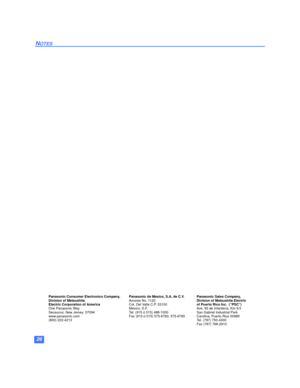

26
NOTES
Panasonic Consumer Electronics Company,
Division of Matsushita
Electric Corporation of America
One Panasonic Way
Secaucus, New Jersey  07094
www.panasonic.com
(800) 222-4213 Panasonic de Mexico, S.A, de C.V.
Amores No. 1120
Col. Del Valle C.P. 03100
México, D.F.
Tel. (915 ó 015) 488-1000
Fax (915 ó 015) 575-6763, 575-6765Panasonic Sales Company,
Division of Matsushita Electric
of Puerto Rico Inc.  (“PSC”)
Ave. 65 de Infantería, Km 9.5
San Gabriel Industrial Park
Carolina, Puerto Rico 00985...

®
®
Color Television
Operating Instructions
CT-32HX40 CT-36HX40
TQB2AA0337-1 00619
PRINTED IN USA

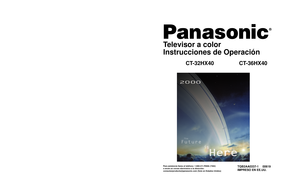

Televisor a color
Instrucciones de Operación
CT-32HX40 CT-36HX40
TQB2AA0337-1 00619
IMPRESO EN EE.UU.
For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: [email protected] (USA only)
Para asistencia llame al teléfono: 1-800-211-PANA (7262)
o envíe un correo electrónico a la dirección:
[email protected] (Solo en Estados Unidos)
0337-1 Cover.fm  Page 1  Wednesday,...

Ciertas funciones de audio de este producto son fabricadas bajo licencia de Desper Products, Inc.
Spatializer® es una marca comercial propiedad de Desper Products, Inc.

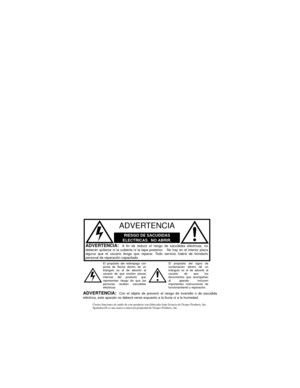

RIESGO DE SACUDIDAS
ELECTRICAS.  NO ABRIR.
ADVERTENCIA
ADVERTENCIA:  A fin de reducir el riesgo de sacudidas eléctricas, no
deberán quitarse ni la cubierta ni la tapa posterior.   No hay en el interior pieza
alguna que el usuario tenga que reparar. Todo servicio habrá de brindarlo
personal de reparación capacitado.
El propósito del...

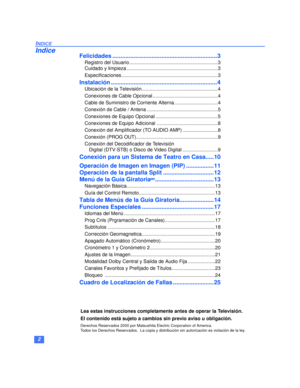

2
INDICE
Indice
Felicidades ................................................................3
Registro del Usuario .................................................................3
Cuidado y limpieza ...................................................................3
Especificaciones.......................................................................3
Instalación .................................................................4
Ubicación de la...
