ROLLER GUIDE MENU NAVIGATION
29 l
Roller Guide Menu Navigation (contd.)
Pressto select desired
submenu feature.
Pressto select or adjust.
Press twice to return to
the roller guide.
Press to exit roller guide.
Contd.
NORMAL PICTURE
CCSETUP
CC ON MUTE
CC MODE IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
NO u
OFF u
CCSETUP
CC ON MUTE
CC MODE IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
NO u
C1 u

30 l

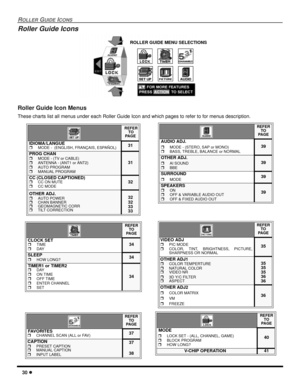

ROLLER GUIDE ICONS
Roller Guide Icon Menus
These charts list all menus under each Roller Guide Icon and which pages to refer to for menus description.

 REFER
 TO
PA G E
IDIOMA/LANGUErMODE -  (ENGLISH, FRANÇAIS, ESPAÑOL)31
PROG CHANrMODE - (TV or CABLE)rANTENNA - (ANT1 or ANT2)rAUTO PROGRAMrMANUAL PROGRAM
31
CC (CLOSED CAPTIONED)
rCC ON MUTErCC MODE32
OTHER ADJ.rAUTO POWER rCHAN BANNERrGEOMAGNETIC CORRrTILT CORRECTION
32
32
33
33
REFER
TO
PA G E
CLOCK SETrTIMErDAY34
SLEEPrHOW LONG?34
TIMER1 or...

ROLLER GUIDE ICON MENU OPERATION
31 l
Roller Guide Icon Menu Operation
SET UP
Note:Refer to page 28 for Roller Guide Menu Navigation procedures.
IDIOMA/LANGUE (Menu Languages)
rIn SET UP Menu, select IDIOMA/LANGUE to change menu language to ENGLISH, ESPAÑOL (Spanish) or
FRANÇAIS (French).
Prog Chan (Program Channels)
rMODE - To select TV (antenna) or CABLE mode depending on the signal source.
rANTENNA -  To select either ANT1 or ANT2.
rAUTO PROGRAM - To automatically program all channels with a...

32 l
ROLLER GUIDE ICON MENU OPERATION
 (Closed Captioning)
This television contains a built-in decoder that displays   (Closed Captioned) text across the screen (white or colored
letters on black background). It allows the viewer to read the dialogue of a television program or other information. The
program viewed must include Closed Captioning for the feature to work.
r On Mute - Activates the onscreen Closed Caption feature when the MUTE button on the remote control is
pressed. To deactivate press MUTE...

ROLLER GUIDE ICON MENU OPERATION
33 l
Other Adjustments (contd.)
rGEOMAGNETIC CORRECTION - This feature is used to adjust discoloration of the picture due to  earth’s magnetic
field in the area.

rTILT CORRECTION -
This feature is used to adjust the tilt of the picture due to earth’s magnetic field in the area.
OTHER ADJ.SET UP
 AUTO POWER ON IDIOMA/
LANGUE
PROG CHAN
CC
             SET  u           CHAN BANNER             ON    u
             GEOMAGNETIC CORR          u
     TILT CORRECTION...

34 l
ROLLER GUIDE ICON MENU OPERATION
TIMER
Note:Refer to page 28 for Roller Guide Menu Navigation procedures.
Clock Set
r Time  - Set the time and of the day week.
Sleep
rIn TIMER menu, select SLEEP to turn television off in 30, 60 or 90 minutes. Select NO to turn off timer.
Timer 1 and Timer 2 - In TIMER menu, select one or both timers to turn the television on and off at selected times, on
selected channels, and on selected days.
Nota:TIME must be entered in CLOCK SET to operate the TIMER...

ROLLER GUIDE ICON MENU OPERATION
35 l
Note:Refer to page 28 for Roller Guide Menu Navigation procedures.
Video Adj.
rPIC MODE -  Lets you choose one of three pre-set Picture Modes that best suit the program you are viewing.
rCOLOR - Adjusts desired color intensity.
rTINT - Adjusts natural flesh tones.
rBRIGHTNESS - Adjusts dark areas of picture.
rPICTURE - Adjusts white areas of picture.
rSHARPNESS - Adjusts clarity of outline detail.
rNORMAL - Reset selected PIC mode adjustments to factory...

36 l
ROLLER GUIDE ICON MENU OPERATION
Video Adj1 (contd.)
r3D Y/C FILTER - Minimizes noise and cross color in the picture.
rASPECT - Select picture size (ratio) to match programming format.
Other Adj2
rCOLOR MATRIX - Select HD or SD to automatically adjust color parameters for HD (high definition) and SD
(standard definition). This feature is not selectable when viewing regular TV (NTSC) programs.
Note:When viewing a non-standard DTV signal format, you can change color parameters manually for the...

ROLLER GUIDE ICON MENU OPERATION
37 l
CHANNELS
Favorites
rCHANNEL SCAN FAV - To enter up to 16 favorite channels.
rCHANNEL SCAN ALL - To scan all channels when using the CH up/down buttons.
Caption
rPRESET CAPTION -  To enter channel numbers for popular TV stations.
rMANUAL CAPTION -  To enter numbers and captions manually.
CHANNELS
CHANNEL SCAN
ENTER CHANNEL
FAVORITE CHANNELS CAPTIONu
2
185
25810
FAVORITES
3 ALL
u
TO ADD
TO DELETE t
rPress VOL u to select FAV or ALL.
rIf FAV is selected, press CH...

38 l
ROLLER GUIDE ICON MENU OPERATION

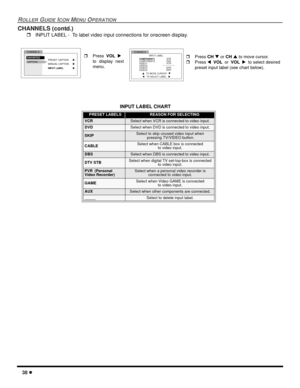

CHANNELS (contd.)
rINPUT LABEL -  To label video input connections for onscreen display.

CHANNELS
PRESET CAPTION
MANUAL CAPTION FAVORITES
u
u
INPUT LABEL
u
CAPTION
rPressVOLu
to display next
menu.rPress CH q or CH p to move cursor.
rPress tVOLorVOLuto select desired
preset input label (see chart below). CHANNELS
INPUT LABEL
tTO SELECT LABEL   u p   TO MOVE CURSOR   q
COMPONENT1
COMPONENT2
VIDEO1
VIDEO2
VIDEO3
VIDEO4STB
DV D
VCR
SKIP
SKIP __________
INPUT LABEL...
