10

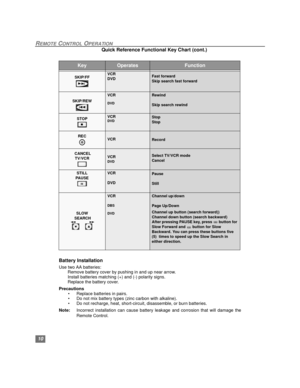

REMOTE CONTROL OPERATION
Quick Reference Functional Key Chart (cont.)

Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon with alkaline).
• Do not recharge, heat, short-circuit, disassemble, or burn batteries.
Note:Incorrect installation can cause battery leakage and corrosion that will...

REMOTE CONTROL OPERATION
11
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’
components, using the component function buttons for CABLE, DBS, VCR, or DVD.  Follow the
procedures for programming your Remote Control with or without codes for the component.
Determine the manufacturer of the component and look in the table for the code.
With A Code
• Confirm that the external component is plugged in and on.
• Turn the component off.
• Press the ACTION and...

12

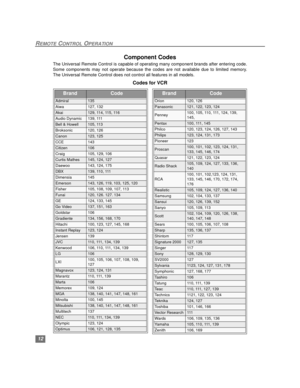

REMOTE CONTROL OPERATION
Component Codes
The Universal Remote Control is capable of operating many component brands after entering code.
Some components may not operate because the codes are not available due to limited memory.
The Universal Remote Control does not control all features in all models.
Codes for VCR
BrandCode
Admiral135
Aiwa127, 132
Akai129, 114, 115, 116
Audio Dynamic139, 111
Bell & Howell105, 113
Broksonic120, 126
Canon123, 125
CCE143
Citizen106
Craig105, 129, 106
Curtis Mathes145,...

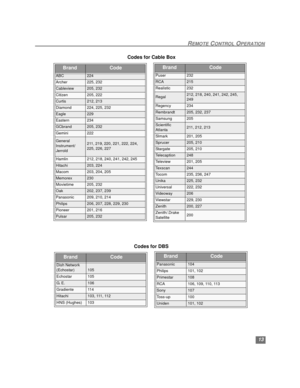

REMOTE CONTROL OPERATION
13
Puser232
RCA215
Realistic232
Regal212, 218, 240, 241, 242, 245,
249
Regency234
Rembrandt205, 232, 237
Samsung205
Scientific
Atlanta211, 212, 213
Slmark201, 205
Sprucer205, 210
Stargate205, 210
Telecaption248
Te l e v i e w201, 205
Texscan244
To c o m235, 236, 247
Unika225, 232
Universal222, 232
Videoway206
Viewstar229, 230
Zenith200, 227
Zenith/.Drake
Satellite200
BrandCodeBrandCode
ABC224
Archer225, 232
Cableview205, 232
Citizen205, 222
Curtis212, 213
Diamond224, 225, 232...

14

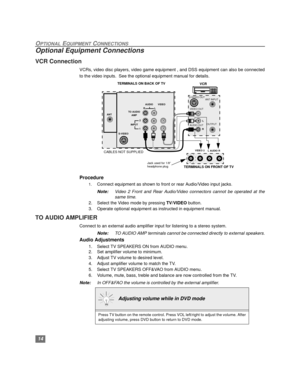

OPTIONAL EQUIPMENT CONNECTIONS
Optional Equipment Connections
VCR Connection
VCRs, video disc players, video game equipment , and DSS equipment can also be connected
to the video inputs.  See the optional equipment manual for details.
Procedure
1.Connect equipment as shown to front or rear Audio/Video input jacks.
Note:Video 2 Front and Rear Audio/Video connectors cannot be operated at the
same time.
2. Select the Video mode by pressing TV/VIDEO button.
3. Operate optional equipment as instructed in...

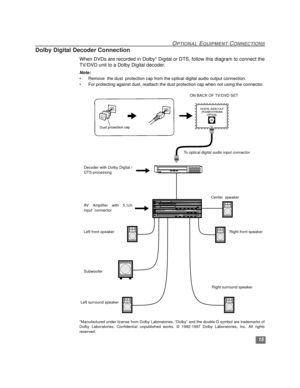

OPTIONAL EQUIPMENT CONNECTIONS
15
Dolby Digital Decoder Connection
When DVDs are recorded in Dolby* Digital or DTS, follow this diagram to connect the
TV/DVD unit to a Dolby Digital decoder.
Note:
• Remove  the dust  protection cap from the optical digital audio output connection.
• For protecting against dust, reattach the dust protection cap when not using the connector.
*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories....

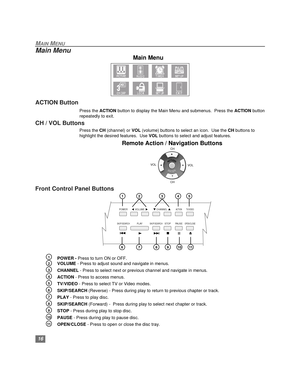

16
MAIN MENU
Main Menu
ACTION Button
Press the ACTION button to display the Main Menu and submenus.  Press the ACTION button
repeatedly to exit.
CH / VOL Buttons
Press the CH (channel) or VOL (volume) buttons to select an icon.  Use the CH buttons to
highlight the desired features.  Use VOL buttons to select and adjust features.
Remote Action / Navigation Buttons
Front Control Panel Buttons
Main Menu
VOL VOLCH
CH
POWER VOLUME CHANNELACTION TV/VIDEO
PLAY STOP PAUSESKIP/SEARCH SKIP/SEARCHOPEN/CLOSE
=
1...

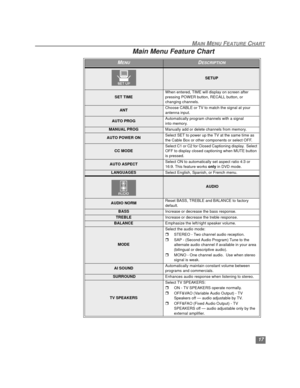

MAIN MENU FEATURE CHART
17
Main Menu Feature Chart
MENUDESCRIPTION
SETUP
SET TIMEWhen entered, TIME will display on screen after
pressing POWER button, RECALL button, or
changing channels.
ANTChoose CABLE or TV to match the signal at your
antenna input.
AUTO PROGAutomatically program channels with a signal
into memory.
MANUAL PROGManually add or delete channels from memory.
AUTO POWER ONSelect SET to power up the TV at the same time as
the Cable Box or other components or select OFF.
CC...

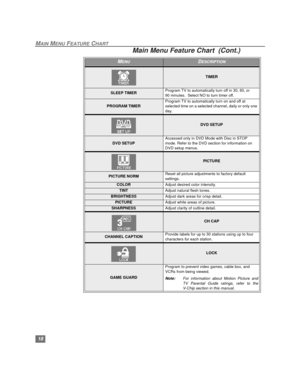

18
MAIN MENU FEATURE CHART
TIMER
SLEEP TIMERProgram TV to automatically turn off in 30, 60, or
90 minutes.  Select NO to turn timer off.
PROGRAM TIMERProgram TV to automatically turn on and off at
selected time on a selected channel, daily or only one
day.
DVD SETUP
DVD SETUPAccessed only in DVD Mode with Disc in STOP
mode. Refer to the DVD section for information on
DVD setup menus.
PICTURE NORMReset all picture adjustments to factory default
settings.
COLORAdjust desired color...

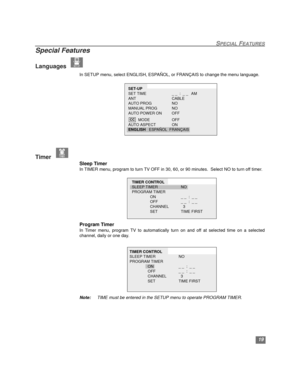

SPECIAL FEATURES
19
Special Features
Languages
In SETUP menu, select ENGLISH, ESPAÑOL, or FRANÇAIS to change the menu language.

Timer
Sleep Timer
In TIMER menu, program to turn TV OFF in 30, 60, or 90 minutes.  Select NO to turn off timer.
Program Timer
In Timer menu, program TV to automatically turn on and off at selected time on a selected
channel, daily or one day.
Note:TIME must be entered in the SETUP menu to operate PROGRAM TIMER.
SET-UP
SET TIME _ _  :  _ _ AM
ANT CABLE
AUTO PROG NO...
