Panasonic Digital Camera Dmc G85 Owners Manual
Here you can view all the pages of manual Panasonic Digital Camera Dmc G85 Owners Manual . The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 131
![Page 131
131
5. 4K Photo and Drive Settings
∫Limitations on the Post Focus function
•Since recording is performed in the same image quality as 4K ph otos, certain limitations apply
to recording functions and menu settings. For details, refer to
“The camera’s setup for the 4K
Photo function” on P123.•In addition to the limitations of the 4K Photo function, the fo llowing limitations apply to the Post
Focus function:
–Focus Mode is fixed to [AFS].–Auto Focus Mode is disabled.
–Motion pictures cannot be...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-130.png "Page 131
131
5. 4K Photo and Drive Settings
∫Limitations on the Post Focus function
•Since recording is performed in the same image quality as 4K ph otos, certain limitations apply
to recording functions and menu settings. For details, refer to
“The camera’s setup for the 4K
Photo function” on P123.•In addition to the limitations of the 4K Photo function, the fo llowing limitations apply to the Post
Focus function:
–Focus Mode is fixed to [AFS].–Auto Focus Mode is disabled.
–Motion pictures cannot be...")
131 5. 4K Photo and Drive Settings ∫Limitations on the Post Focus function •Since recording is performed in the same image quality as 4K ph otos, certain limitations apply to recording functions and menu settings. For details, refer to “The camera’s setup for the 4K Photo function” on P123.•In addition to the limitations of the 4K Photo function, the fo llowing limitations apply to the Post Focus function: –Focus Mode is fixed to [AFS].–Auto Focus Mode is disabled. –Motion pictures cannot be...
Page 132
![Page 132
5. 4K Photo and Drive Settings
132
1Select an image with the [ ] icon on the playback screen, and
press 3.
•
You can also perform the same operation by touching the icon [ ].
2Touch the desired focus area.
•If a picture that is in focus is not available for the selected
area, a red frame will be disp layed. You cannot save a
picture in this case.
•You cannot select the edges of the screen.
•You can fine-adjust the focus by dragging the slide bar
during enlarged display. (You can also perform the...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-131.png "Page 132
5. 4K Photo and Drive Settings
132
1Select an image with the [ ] icon on the playback screen, and
press 3.
•
You can also perform the same operation by touching the icon [ ].
2Touch the desired focus area.
•If a picture that is in focus is not available for the selected
area, a red frame will be disp layed. You cannot save a
picture in this case.
•You cannot select the edges of the screen.
•You can fine-adjust the focus by dragging the slide bar
during enlarged display. (You can also perform the...")
5. 4K Photo and Drive Settings 132 1Select an image with the [ ] icon on the playback screen, and press 3. • You can also perform the same operation by touching the icon [ ]. 2Touch the desired focus area. •If a picture that is in focus is not available for the selected area, a red frame will be disp layed. You cannot save a picture in this case. •You cannot select the edges of the screen. •You can fine-adjust the focus by dragging the slide bar during enlarged display. (You can also perform the...
Page 133
![Page 133
133
5. 4K Photo and Drive Settings
Merge multiple pictures extracted from images recorded with the Post Focus function into
a single picture with a wider focus range.
A Focus: closer
B Focus: farther away
1Touch [ ] in step 2 of “Selecting the desired focus area and saving a picture”.
•You can also perform the same operation by pressing [Fn1].
2Touch the merging method.
Merging multiple pictures to widen the focus range (Focus Stack ing)
[Auto Merging]
Automatically selects pictures that are suited to...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-132.png "Page 133
133
5. 4K Photo and Drive Settings
Merge multiple pictures extracted from images recorded with the Post Focus function into
a single picture with a wider focus range.
A Focus: closer
B Focus: farther away
1Touch [ ] in step 2 of “Selecting the desired focus area and saving a picture”.
•You can also perform the same operation by pressing [Fn1].
2Touch the merging method.
Merging multiple pictures to widen the focus range (Focus Stack ing)
[Auto Merging]
Automatically selects pictures that are suited to...")

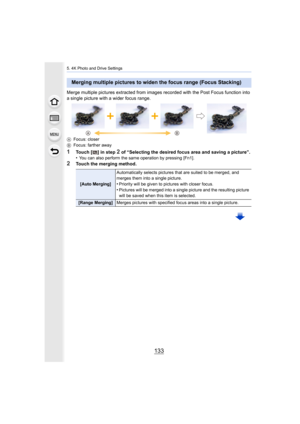

133 5. 4K Photo and Drive Settings Merge multiple pictures extracted from images recorded with the Post Focus function into a single picture with a wider focus range. A Focus: closer B Focus: farther away 1Touch [ ] in step 2 of “Selecting the desired focus area and saving a picture”. •You can also perform the same operation by pressing [Fn1]. 2Touch the merging method. Merging multiple pictures to widen the focus range (Focus Stack ing) [Auto Merging] Automatically selects pictures that are suited to...
Page 134
![Page 134
5. 4K Photo and Drive Settings
134
3(When [Range Merging] is selected)
Touch the desired focus area.
•
Touch the focus area again to cancel the selection.•Dragging the screen allows you to select multiple areas.
4Touch [ ] to merge the pictures and save the resulting picture.
•The picture will be saved in JPEG format. Recording information (Exif information) of the
original picture with the closest focus distance, including the shutter speed, aperture, and ISO
sensitivity, will also be rec orded to...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-133.png "Page 134
5. 4K Photo and Drive Settings
134
3(When [Range Merging] is selected)
Touch the desired focus area.
•
Touch the focus area again to cancel the selection.•Dragging the screen allows you to select multiple areas.
4Touch [ ] to merge the pictures and save the resulting picture.
•The picture will be saved in JPEG format. Recording information (Exif information) of the
original picture with the closest focus distance, including the shutter speed, aperture, and ISO
sensitivity, will also be rec orded to...")
5. 4K Photo and Drive Settings 134 3(When [Range Merging] is selected) Touch the desired focus area. • Touch the focus area again to cancel the selection.•Dragging the screen allows you to select multiple areas. 4Touch [ ] to merge the pictures and save the resulting picture. •The picture will be saved in JPEG format. Recording information (Exif information) of the original picture with the closest focus distance, including the shutter speed, aperture, and ISO sensitivity, will also be rec orded to...
Page 135
![Page 135
135
5. 4K Photo and Drive Settings
Taking Pictures with the Self-timer
Applicable modes:
1Set the drive mode dial to [ ] .
2Press the shutter button halfway to focus and
then press it fully to take the picture.
•Focus and exposure will be set when the shutter button
is pressed halfway.
•After the self-timer indicator flashes, recording starts.
∫Setting the self-timer
Select the menu. (P51)
•
We recommend using a tripod when recording with the self-timer.
Not available in these cases:
•
It cannot be...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-134.png "Page 135
135
5. 4K Photo and Drive Settings
Taking Pictures with the Self-timer
Applicable modes:
1Set the drive mode dial to [ ] .
2Press the shutter button halfway to focus and
then press it fully to take the picture.
•Focus and exposure will be set when the shutter button
is pressed halfway.
•After the self-timer indicator flashes, recording starts.
∫Setting the self-timer
Select the menu. (P51)
•
We recommend using a tripod when recording with the self-timer.
Not available in these cases:
•
It cannot be...")
135 5. 4K Photo and Drive Settings Taking Pictures with the Self-timer Applicable modes: 1Set the drive mode dial to [ ] . 2Press the shutter button halfway to focus and then press it fully to take the picture. •Focus and exposure will be set when the shutter button is pressed halfway. •After the self-timer indicator flashes, recording starts. ∫Setting the self-timer Select the menu. (P51) • We recommend using a tripod when recording with the self-timer. Not available in these cases: • It cannot be...
Page 136
![Page 136
5. 4K Photo and Drive Settings
136
Taking Pictures with Time Lapse Shot/Stop
Motion Animation
Applicable modes:
You can take pictures with Time Lapse Shot or Stop Motion
Animation. In addition, the pictures taken can be combined
into a motion picture.
•
Set the date and time settings in advance. (P34)•Recorded pictures are displayed as group pictures. (P182)
∫To display the setup screen before recording
1Set the drive mode dial to [ ] .
2Display the setup screen.
¢ The screen selected with [Time...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-135.png "Page 136
5. 4K Photo and Drive Settings
136
Taking Pictures with Time Lapse Shot/Stop
Motion Animation
Applicable modes:
You can take pictures with Time Lapse Shot or Stop Motion
Animation. In addition, the pictures taken can be combined
into a motion picture.
•
Set the date and time settings in advance. (P34)•Recorded pictures are displayed as group pictures. (P182)
∫To display the setup screen before recording
1Set the drive mode dial to [ ] .
2Display the setup screen.
¢ The screen selected with [Time...")
5. 4K Photo and Drive Settings 136 Taking Pictures with Time Lapse Shot/Stop Motion Animation Applicable modes: You can take pictures with Time Lapse Shot or Stop Motion Animation. In addition, the pictures taken can be combined into a motion picture. • Set the date and time settings in advance. (P34)•Recorded pictures are displayed as group pictures. (P182) ∫To display the setup screen before recording 1Set the drive mode dial to [ ] . 2Display the setup screen. ¢ The screen selected with [Time...
Page 137
![Page 137
137
5. 4K Photo and Drive Settings
•Recording may not be consistent with the set recording interval or the set number of
pictures depending on recording conditions.
3Press the shutter button halfway.
•The recording screen will be displayed. You can also
perform the same operation by pressing and holding
[ ] until the recording screen is displayed.
4Press the shutter button fully.
•The recording starts automatically.•During recording standby, the power will turn off automatically if no operation is...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-136.png "Page 137
137
5. 4K Photo and Drive Settings
•Recording may not be consistent with the set recording interval or the set number of
pictures depending on recording conditions.
3Press the shutter button halfway.
•The recording screen will be displayed. You can also
perform the same operation by pressing and holding
[ ] until the recording screen is displayed.
4Press the shutter button fully.
•The recording starts automatically.•During recording standby, the power will turn off automatically if no operation is...")
137 5. 4K Photo and Drive Settings •Recording may not be consistent with the set recording interval or the set number of pictures depending on recording conditions. 3Press the shutter button halfway. •The recording screen will be displayed. You can also perform the same operation by pressing and holding [ ] until the recording screen is displayed. 4Press the shutter button fully. •The recording starts automatically.•During recording standby, the power will turn off automatically if no operation is...
Page 138
![Page 138
5. 4K Photo and Drive Settings
138
•This function is not for use in a security camera.
•[Time Lapse Shot] is paused in the following cases.–When the charge on the battery runs out–Turning the camera off
During [Time Lapse Shot], you can replace the battery and the c ard, and then restart by turning
on this unit. (Note that picture s taken after the restart will be saved as a separate set of group
pictures) Turn off this unit when replacing the battery or the card.
•When [Shooting Interval] is set to a...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-137.png "Page 138
5. 4K Photo and Drive Settings
138
•This function is not for use in a security camera.
•[Time Lapse Shot] is paused in the following cases.–When the charge on the battery runs out–Turning the camera off
During [Time Lapse Shot], you can replace the battery and the c ard, and then restart by turning
on this unit. (Note that picture s taken after the restart will be saved as a separate set of group
pictures) Turn off this unit when replacing the battery or the card.
•When [Shooting Interval] is set to a...")
5. 4K Photo and Drive Settings 138 •This function is not for use in a security camera. •[Time Lapse Shot] is paused in the following cases.–When the charge on the battery runs out–Turning the camera off During [Time Lapse Shot], you can replace the battery and the c ard, and then restart by turning on this unit. (Note that picture s taken after the restart will be saved as a separate set of group pictures) Turn off this unit when replacing the battery or the card. •When [Shooting Interval] is set to a...
Page 139
![Page 139
139
5. 4K Photo and Drive Settings
4Press the shutter button fully.
•Up to 9999 frames can be recorded.
5Move the subject to decide on the composition.
•Repeat recording in the same way.•If this unit is turned off while recording, a message for
resuming the recording is displayed when the camera is
turned on. Selecting [Yes] allows you to continue the
recording from the interruption point.
6Touch [ ] to end the recording.
•It can also be ended by selecting [Time Lapse/Animation]
from the [Rec] menu...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-138.png "Page 139
139
5. 4K Photo and Drive Settings
4Press the shutter button fully.
•Up to 9999 frames can be recorded.
5Move the subject to decide on the composition.
•Repeat recording in the same way.•If this unit is turned off while recording, a message for
resuming the recording is displayed when the camera is
turned on. Selecting [Yes] allows you to continue the
recording from the interruption point.
6Touch [ ] to end the recording.
•It can also be ended by selecting [Time Lapse/Animation]
from the [Rec] menu...")
139 5. 4K Photo and Drive Settings 4Press the shutter button fully. •Up to 9999 frames can be recorded. 5Move the subject to decide on the composition. •Repeat recording in the same way.•If this unit is turned off while recording, a message for resuming the recording is displayed when the camera is turned on. Selecting [Yes] allows you to continue the recording from the interruption point. 6Touch [ ] to end the recording. •It can also be ended by selecting [Time Lapse/Animation] from the [Rec] menu...
Page 140
![Page 140
5. 4K Photo and Drive Settings
140
•Automatic recording may not take place at set intervals because recording takes time under
certain recording conditions, such as when the flash is used fo r recording.
•A picture cannot be selected from [Add to Picture Group] when i t is the only one that was
taken.
Not available in these cases:
•
This function is not available in the following cases:
–[Panorama Shot] (Scene Guide Mode)–When using [Multi Exp.]•[Auto Shooting] in [Stop Motion Animation] is not...](http://img.usermanuals.tech/thumb/58/64982/w300_dmc-g85_en_adv_om_d-139.png "Page 140
5. 4K Photo and Drive Settings
140
•Automatic recording may not take place at set intervals because recording takes time under
certain recording conditions, such as when the flash is used fo r recording.
•A picture cannot be selected from [Add to Picture Group] when i t is the only one that was
taken.
Not available in these cases:
•
This function is not available in the following cases:
–[Panorama Shot] (Scene Guide Mode)–When using [Multi Exp.]•[Auto Shooting] in [Stop Motion Animation] is not...")
5. 4K Photo and Drive Settings 140 •Automatic recording may not take place at set intervals because recording takes time under certain recording conditions, such as when the flash is used fo r recording. •A picture cannot be selected from [Add to Picture Group] when i t is the only one that was taken. Not available in these cases: • This function is not available in the following cases: –[Panorama Shot] (Scene Guide Mode)–When using [Multi Exp.]•[Auto Shooting] in [Stop Motion Animation] is not...
