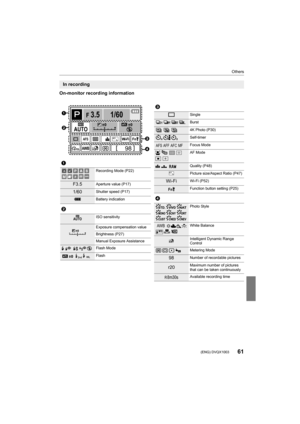

Page 61
61 Others (ENG) DVQX1003 On-monitor recording information In recording 1 Recording Mode (P22) F3.5Aperture value (P17) 1/60Shutter speed (P17) Battery indication 2 ISO sensitivity Exposure compensation value Brightness (P27) Manual Exposure Assistance ‰ŒFlash Mode Flash F 3.5 98AW B 1/60 000 Fn ISOAUTO Wi-FiL4:3AFS AFS C11EXPS EXPS ISOAUTO 00 WL 3 Single Burst 4K Photo (P30) Self-timer Focus Mode š ØAF Mode A›Quality (P48) Picture size/Aspect Ratio (P47) Wi-FiWi-Fi (P52) Function button setting...

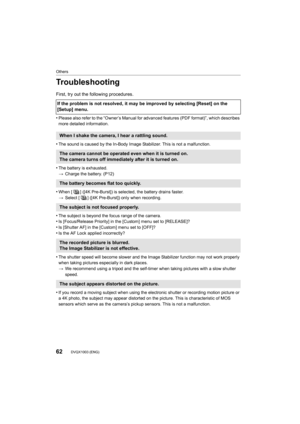

Page 62
![Page 62
Others
62DVQX1003 (ENG)
Troubleshooting
First, try out the following procedures.
•
Please also refer to the “Owner’s Manual for advanced features (PDF format)”, which describes
more detailed information.
•The sound is caused by the In-Body Image Stabilizer. This is not a malfunction.
•The battery is exhausted.
> Charge the battery. (P12)
•When [ ] ([4K Pre-Burst]) is selected, the battery drains faster .
> Select [ ] ([4K Pre-Burst]) only when recording.
•The subject is beyond the focus range of the...](http://img.usermanuals.tech/thumb/58/64983/w300_dmc-g85_en_om_d-61.png "Page 62
Others
62DVQX1003 (ENG)
Troubleshooting
First, try out the following procedures.
•
Please also refer to the “Owner’s Manual for advanced features (PDF format)”, which describes
more detailed information.
•The sound is caused by the In-Body Image Stabilizer. This is not a malfunction.
•The battery is exhausted.
> Charge the battery. (P12)
•When [ ] ([4K Pre-Burst]) is selected, the battery drains faster .
> Select [ ] ([4K Pre-Burst]) only when recording.
•The subject is beyond the focus range of the...")
Others 62DVQX1003 (ENG) Troubleshooting First, try out the following procedures. • Please also refer to the “Owner’s Manual for advanced features (PDF format)”, which describes more detailed information. •The sound is caused by the In-Body Image Stabilizer. This is not a malfunction. •The battery is exhausted. > Charge the battery. (P12) •When [ ] ([4K Pre-Burst]) is selected, the battery drains faster . > Select [ ] ([4K Pre-Burst]) only when recording. •The subject is beyond the focus range of the...

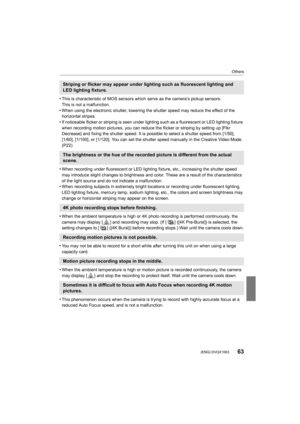

Page 63
![Page 63
63
Others
(ENG) DVQX1003
•This is characteristic of MOS sensors which serve as the camera’s pickup sensors.
This is not a malfunction.
•When using the electronic shutter, lowering the shutter speed m ay reduce the effect of the
horizontal stripes.
•If noticeable flicker or striping is seen under lighting such as a fluorescent or LED lighting fixture
when recording motion pictures, you can reduce the flicker or s triping by setting up [Flkr
Decrease] and fixing the shutter speed. It is possible to...](http://img.usermanuals.tech/thumb/58/64983/w300_dmc-g85_en_om_d-62.png "Page 63
63
Others
(ENG) DVQX1003
•This is characteristic of MOS sensors which serve as the camera’s pickup sensors.
This is not a malfunction.
•When using the electronic shutter, lowering the shutter speed m ay reduce the effect of the
horizontal stripes.
•If noticeable flicker or striping is seen under lighting such as a fluorescent or LED lighting fixture
when recording motion pictures, you can reduce the flicker or s triping by setting up [Flkr
Decrease] and fixing the shutter speed. It is possible to...")
63 Others (ENG) DVQX1003 •This is characteristic of MOS sensors which serve as the camera’s pickup sensors. This is not a malfunction. •When using the electronic shutter, lowering the shutter speed m ay reduce the effect of the horizontal stripes. •If noticeable flicker or striping is seen under lighting such as a fluorescent or LED lighting fixture when recording motion pictures, you can reduce the flicker or s triping by setting up [Flkr Decrease] and fixing the shutter speed. It is possible to...

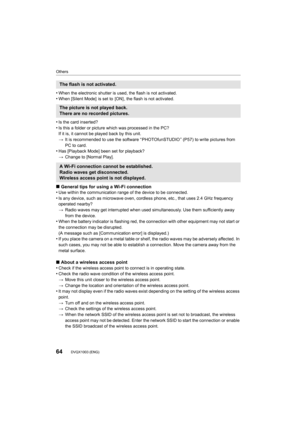

Page 64
![Page 64
Others
64DVQX1003 (ENG)
•When the electronic shutter is used, the flash is not activated.•When [Silent Mode] is set to [ON] , the flash is not activated.
•Is the card inserted?
•Is this a folder or picture which was processed in the PC?
If it is, it cannot be played back by this unit.
>It is recommended to use the software “ PHOTOfunSTUDIO ” (P57) to write pictures from
PC to card.
•Has [Playback Mode] been set for playback?
> Change to [Normal Play].
∫General tips for using a Wi-Fi connection
•Use...](http://img.usermanuals.tech/thumb/58/64983/w300_dmc-g85_en_om_d-63.png "Page 64
Others
64DVQX1003 (ENG)
•When the electronic shutter is used, the flash is not activated.•When [Silent Mode] is set to [ON] , the flash is not activated.
•Is the card inserted?
•Is this a folder or picture which was processed in the PC?
If it is, it cannot be played back by this unit.
>It is recommended to use the software “ PHOTOfunSTUDIO ” (P57) to write pictures from
PC to card.
•Has [Playback Mode] been set for playback?
> Change to [Normal Play].
∫General tips for using a Wi-Fi connection
•Use...")
Others 64DVQX1003 (ENG) •When the electronic shutter is used, the flash is not activated.•When [Silent Mode] is set to [ON] , the flash is not activated. •Is the card inserted? •Is this a folder or picture which was processed in the PC? If it is, it cannot be played back by this unit. >It is recommended to use the software “ PHOTOfunSTUDIO ” (P57) to write pictures from PC to card. •Has [Playback Mode] been set for playback? > Change to [Normal Play]. ∫General tips for using a Wi-Fi connection •Use...

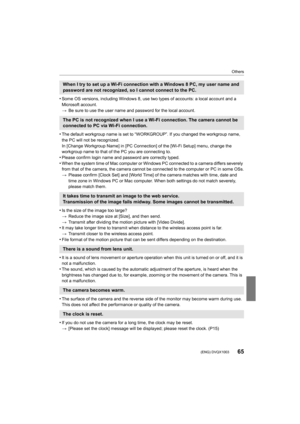

Page 65
![Page 65
65
Others
(ENG) DVQX1003
•Some OS versions, including Windows 8, use two types of accounts: a local account and a
Microsoft account.
> Be sure to use the user name and password for the local account .
•The default workgroup name is set to “WORKGROUP”. If you change d the workgroup name,
the PC will not be recognized.
In [Change Workgroup Name] in [PC Connection] of the [Wi-Fi Set up] menu, change the
workgroup name to that of the PC you are connecting to.
•Please confirm login name and password are...](http://img.usermanuals.tech/thumb/58/64983/w300_dmc-g85_en_om_d-64.png "Page 65
65
Others
(ENG) DVQX1003
•Some OS versions, including Windows 8, use two types of accounts: a local account and a
Microsoft account.
> Be sure to use the user name and password for the local account .
•The default workgroup name is set to “WORKGROUP”. If you change d the workgroup name,
the PC will not be recognized.
In [Change Workgroup Name] in [PC Connection] of the [Wi-Fi Set up] menu, change the
workgroup name to that of the PC you are connecting to.
•Please confirm login name and password are...")
65 Others (ENG) DVQX1003 •Some OS versions, including Windows 8, use two types of accounts: a local account and a Microsoft account. > Be sure to use the user name and password for the local account . •The default workgroup name is set to “WORKGROUP”. If you change d the workgroup name, the PC will not be recognized. In [Change Workgroup Name] in [PC Connection] of the [Wi-Fi Set up] menu, change the workgroup name to that of the PC you are connecting to. •Please confirm login name and password are...

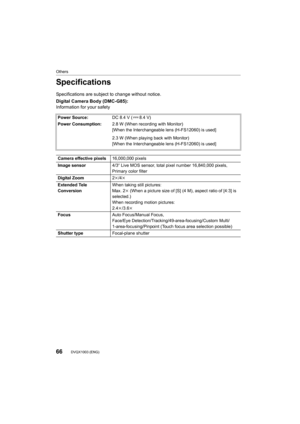

Page 66
![Page 66
Others
66DVQX1003 (ENG)
Specifications
Specifications are subject to change without notice.
Digital Camera Body (DMC-G85):
Information for your safety
Power Source:DC 8.4V ( 8.4V)
Power Consumption: 2.8 W (When recording with Monitor)
[When the Interchangeable lens (H-FS12060) is used]
2.3 W (When playing back with Monitor)
[When the Interchangeable lens (H-FS12060) is used]
Camera effective pixels 16,000,000 pixels
Image sensor 4/3q Live MOS sensor, total pixel number 16,840,000 pixels,
Primary color...](http://img.usermanuals.tech/thumb/58/64983/w300_dmc-g85_en_om_d-65.png "Page 66
Others
66DVQX1003 (ENG)
Specifications
Specifications are subject to change without notice.
Digital Camera Body (DMC-G85):
Information for your safety
Power Source:DC 8.4V ( 8.4V)
Power Consumption: 2.8 W (When recording with Monitor)
[When the Interchangeable lens (H-FS12060) is used]
2.3 W (When playing back with Monitor)
[When the Interchangeable lens (H-FS12060) is used]
Camera effective pixels 16,000,000 pixels
Image sensor 4/3q Live MOS sensor, total pixel number 16,840,000 pixels,
Primary color...")
Others 66DVQX1003 (ENG) Specifications Specifications are subject to change without notice. Digital Camera Body (DMC-G85): Information for your safety Power Source:DC 8.4V ( 8.4V) Power Consumption: 2.8 W (When recording with Monitor) [When the Interchangeable lens (H-FS12060) is used] 2.3 W (When playing back with Monitor) [When the Interchangeable lens (H-FS12060) is used] Camera effective pixels 16,000,000 pixels Image sensor 4/3q Live MOS sensor, total pixel number 16,840,000 pixels, Primary color...

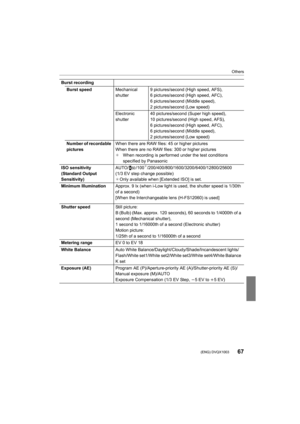

Page 67
67 Others (ENG) DVQX1003 Burst recordingBurst speed Mechanical shutter9 pictures/second (High speed, AFS), 6 pictures/second (High speed, AFC), 6 pictures/second (Middle speed), 2 pictures/second (Low speed) Electronic shutter 40 pictures/second (Super high speed), 10 pictures/second (High speed, AFS), 6 pictures/second (High speed, AFC), 6 pictures/second (Middle speed), 2 pictures/second (Low speed) Number of recordable pictures When there are RAW files: 45 or higher pictures When there are no RAW...

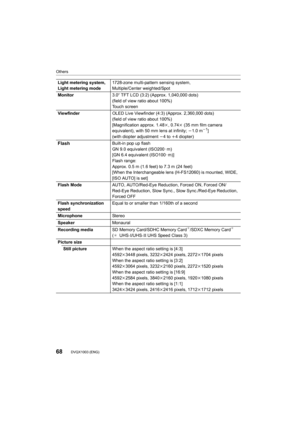

Page 68
![Page 68
Others
68DVQX1003 (ENG)
Light metering system,
Light metering mode1728-zone multi-pattern sensing system,
Multiple/Center weighted/Spot
Monitor 3.0q TFT LCD (3:2) (Approx. 1,040,000 dots)
(field of view ratio about 100%)
Touch screen
Viewfinder OLED Live Viewfinder (4:3) (Approx. 2,360,000 dots)
(field of view ratio about 100%)
[Magnification approx. 1.48k, 0.74 k (35 mm film camera
equivalent), with 50 mm lens at infinity; j1.0 m
j1]
(with diopter adjustment j4 to i4 diopter)
FlashBuilt-in pop up...](http://img.usermanuals.tech/thumb/58/64983/w300_dmc-g85_en_om_d-67.png "Page 68
Others
68DVQX1003 (ENG)
Light metering system,
Light metering mode1728-zone multi-pattern sensing system,
Multiple/Center weighted/Spot
Monitor 3.0q TFT LCD (3:2) (Approx. 1,040,000 dots)
(field of view ratio about 100%)
Touch screen
Viewfinder OLED Live Viewfinder (4:3) (Approx. 2,360,000 dots)
(field of view ratio about 100%)
[Magnification approx. 1.48k, 0.74 k (35 mm film camera
equivalent), with 50 mm lens at infinity; j1.0 m
j1]
(with diopter adjustment j4 to i4 diopter)
FlashBuilt-in pop up...")
Others 68DVQX1003 (ENG) Light metering system, Light metering mode1728-zone multi-pattern sensing system, Multiple/Center weighted/Spot Monitor 3.0q TFT LCD (3:2) (Approx. 1,040,000 dots) (field of view ratio about 100%) Touch screen Viewfinder OLED Live Viewfinder (4:3) (Approx. 2,360,000 dots) (field of view ratio about 100%) [Magnification approx. 1.48k, 0.74 k (35 mm film camera equivalent), with 50 mm lens at infinity; j1.0 m j1] (with diopter adjustment j4 to i4 diopter) FlashBuilt-in pop up...

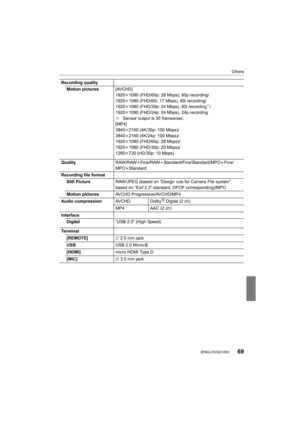

Page 69
![Page 69
69
Others
(ENG) DVQX1003
Recording qualityMotion pictures [AVCHD]
1920k1080 (FHD/60p: 28 Mbps), 60p recording/
1920k 1080 (FHD/60i: 17 Mbps), 60i recording/
1920k 1080 (FHD/30p: 24 Mbps), 60i recording
¢/
1920k 1080 (FHD/24p: 24 Mbps), 24p recording
¢ Sensor output is 30 frames/sec.
[MP4]
3840k 2160 (4K/30p: 100 Mbps)/
3840k 2160 (4K/24p: 100 Mbps)/
1920k 1080 (FHD/60p: 28 Mbps)/
1920k 1080 (FHD/30p: 20 Mbps)/
1280k 720 (HD/30p: 10 Mbps)
Quality RAW/RAWiFine/RAW iStandard/Fine/Standard/MPO iFine/
MPO...](http://img.usermanuals.tech/thumb/58/64983/w300_dmc-g85_en_om_d-68.png "Page 69
69
Others
(ENG) DVQX1003
Recording qualityMotion pictures [AVCHD]
1920k1080 (FHD/60p: 28 Mbps), 60p recording/
1920k 1080 (FHD/60i: 17 Mbps), 60i recording/
1920k 1080 (FHD/30p: 24 Mbps), 60i recording
¢/
1920k 1080 (FHD/24p: 24 Mbps), 24p recording
¢ Sensor output is 30 frames/sec.
[MP4]
3840k 2160 (4K/30p: 100 Mbps)/
3840k 2160 (4K/24p: 100 Mbps)/
1920k 1080 (FHD/60p: 28 Mbps)/
1920k 1080 (FHD/30p: 20 Mbps)/
1280k 720 (HD/30p: 10 Mbps)
Quality RAW/RAWiFine/RAW iStandard/Fine/Standard/MPO iFine/
MPO...")
69 Others (ENG) DVQX1003 Recording qualityMotion pictures [AVCHD] 1920k1080 (FHD/60p: 28 Mbps), 60p recording/ 1920k 1080 (FHD/60i: 17 Mbps), 60i recording/ 1920k 1080 (FHD/30p: 24 Mbps), 60i recording ¢/ 1920k 1080 (FHD/24p: 24 Mbps), 24p recording ¢ Sensor output is 30 frames/sec. [MP4] 3840k 2160 (4K/30p: 100 Mbps)/ 3840k 2160 (4K/24p: 100 Mbps)/ 1920k 1080 (FHD/60p: 28 Mbps)/ 1920k 1080 (FHD/30p: 20 Mbps)/ 1280k 720 (HD/30p: 10 Mbps) Quality RAW/RAWiFine/RAW iStandard/Fine/Standard/MPO iFine/ MPO...

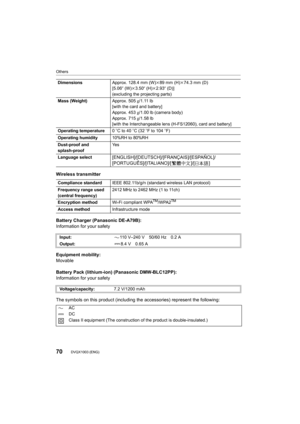

Page 70
![Page 70
Others
70DVQX1003 (ENG)
Wireless transmitter
Battery Charger (Panasonic DE-A79B):
Information for your safety
Equipment mobility:
Movable
Battery Pack (lithium-ion) (Panasonic DMW-BLC12PP):
Information for your safety
The symbols on this product (including the accessories) represent the following:
DimensionsApprox. 128.4 mm (W)k89 mm (H)k 74.3 mm (D)
[5.06 q (W) k3.50 q (H) k2.93 q (D)]
(excluding the projecting parts)
Mass (Weight) Approx. 505g/1.11 lb
[with the card and battery]
Approx. 453 g/1.00 lb...](http://img.usermanuals.tech/thumb/58/64983/w300_dmc-g85_en_om_d-69.png "Page 70
Others
70DVQX1003 (ENG)
Wireless transmitter
Battery Charger (Panasonic DE-A79B):
Information for your safety
Equipment mobility:
Movable
Battery Pack (lithium-ion) (Panasonic DMW-BLC12PP):
Information for your safety
The symbols on this product (including the accessories) represent the following:
DimensionsApprox. 128.4 mm (W)k89 mm (H)k 74.3 mm (D)
[5.06 q (W) k3.50 q (H) k2.93 q (D)]
(excluding the projecting parts)
Mass (Weight) Approx. 505g/1.11 lb
[with the card and battery]
Approx. 453 g/1.00 lb...")
Others 70DVQX1003 (ENG) Wireless transmitter Battery Charger (Panasonic DE-A79B): Information for your safety Equipment mobility: Movable Battery Pack (lithium-ion) (Panasonic DMW-BLC12PP): Information for your safety The symbols on this product (including the accessories) represent the following: DimensionsApprox. 128.4 mm (W)k89 mm (H)k 74.3 mm (D) [5.06 q (W) k3.50 q (H) k2.93 q (D)] (excluding the projecting parts) Mass (Weight) Approx. 505g/1.11 lb [with the card and battery] Approx. 453 g/1.00 lb...
