Panasonic Digital Camera Dmc Gf1c Gf1k Gf1 Operating Instructions

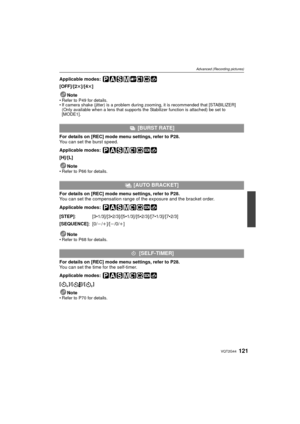

121VQT2G44
Advanced (Recording pictures)
Applicable modes:
[OFF]/[2t]/[4 t]
Note
 Refer to P49 for details.
 If camera shake (jitter) is a problem during zooming, it is recommended that [STABILIZER]
(Only available when a lens that supports t he Stabilizer function is attached) be set to
[MODE1].
For details on [REC] mode menu settings, refer to P28.
You can set the burst speed.
Applicable modes:

[H]/[L]
Note
Refer to P66 for details.
For details on [REC] mode menu settings, refer to P28.
You can...

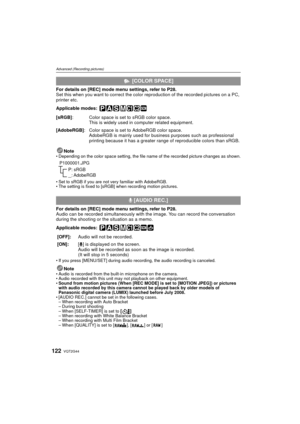

VQT2G44122
Advanced (Recording pictures)
For details on [REC] mode menu settings, refer to P28.
Set this when you want to correct the color reproduction of the recorded pictures on a PC,
printer etc.
Applicable modes:

NoteDepending on the color space setting, the file name of the recorded picture changes as shown.
 Set to sRGB if you are not very familiar with AdobeRGB.
 The setting is fixed to [sRGB] when recording motion pictures.
For details on [REC] mode menu settings, refer to P28.
Audio can be...

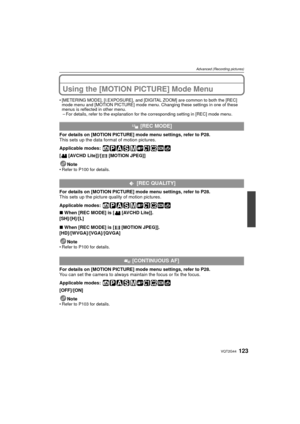

123VQT2G44
Advanced (Recording pictures)
Using the [MOTION PICTURE] Mode Menu
[METERING MODE], [I.EXPOSURE], and [DIGITAL ZOOM] are common to both the [REC]
mode menu and [MOTION PICTURE] mode menu. Changing these settings in one of these
menus is reflected in other menu.
– For details, refer to the explanation for the corresponding setting in [REC] mode menu.
For details on [MOTION PICTURE] mode menu settings, refer to P28.
This sets up the data format of motion pictures.
Applicable modes:

[ [AVCHD...

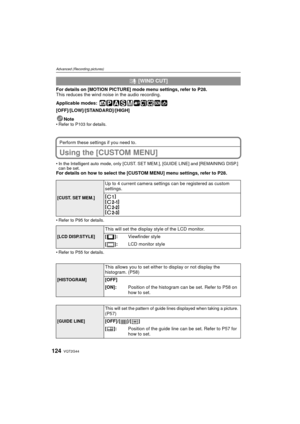

VQT2G44124
Advanced (Recording pictures)
For details on [MOTION PICTURE] mode menu settings, refer to P28.
This reduces the wind noise in the audio recording.
Applicable modes:

[OFF]/[LOW]/[STANDARD]/[HIGH]Note
Refer to P103 for details.
Perform these settings if you need to.
Using the [CUSTOM MENU]
In the Intelligent auto mode, only [CUST. SET MEM.], [GUIDE LINE] and [REMAINING DISP.]
can be set.
For details on how to select the [CUSTOM MENU] menu settings, refer to P28.
Refer to P95 for details....

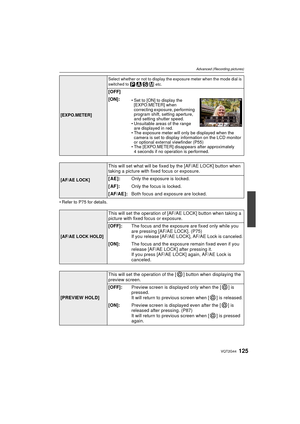

125VQT2G44
Advanced (Recording pictures)
Refer to P75 for details.
[EXPO.METER]
Select whether or not to display the exposure meter when the mode dial is
switched to ³/±/´/² etc.
[OFF]
[ON]:
 Set to [ON] to display the
[EXPO.METER] when
correcting exposure, performing
program shift, setting aperture,
and setting shutter speed.
 Unsuitable areas of the range
are displayed in red.
 The exposure meter will only  be displayed when the
camera is set to display information on the LCD monitor
or...

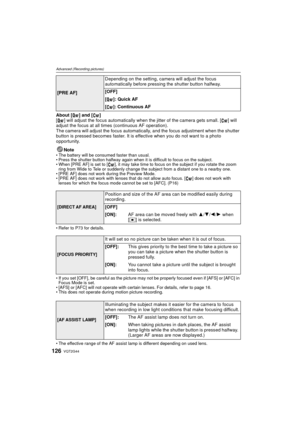

VQT2G44126
Advanced (Recording pictures)
About [ ] and [ ]
[ ] will adjust the focus automatically when the jitter of the camera gets small. [ ] will
adjust the focus at all times (continuous AF operation).
The camera will adjust the focus automatically, and the focus adjustment when the shutter
button is pressed becomes faster. It is effective when you do not want to a photo
opportunity.Note
The battery will be consumed faster than usual.
 Press the shutter button halfway again when it is difficult...

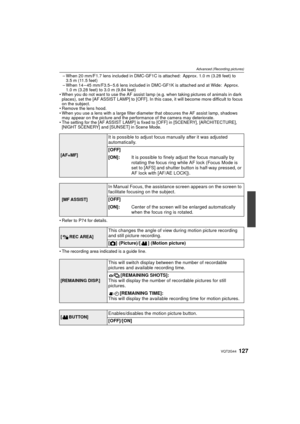

127VQT2G44
Advanced (Recording pictures)
–When 20 mm/F1.7 lens included in DMC-GF1C is attached: Approx. 1.0 m (3.28 feet) to
3.5 m (11.5 feet)
– When 14 – 45 mm/F3.5– 5.6 lens included in DMC-GF1K is attached and at Wide: Approx.
1.0m (3.28feet) to 3.0m (9.84feet)
 When you do not want to use the AF assist lamp  (e.g. when taking pictures of animals in dark
places), set the [AF ASSIST LAMP] to [OFF]. In this case, it will become more difficult to focus
on the subject.
 Remove the lens hood.
 When...

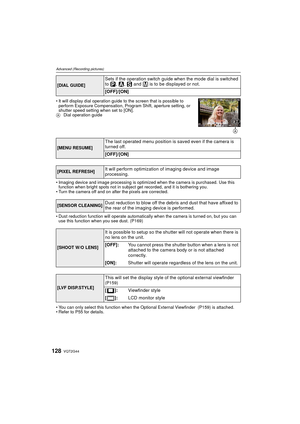

VQT2G44128
Advanced (Recording pictures)
It will display dial operation guide to the screen that is possible to
perform Exposure Compensation, Program Shift, aperture setting, or
shutter speed setting when set to [ON].
A Dial operation guide
 Imaging device and image processing is optimized when the camera is purchased. Use this
function when bright spots not in subject get recorded, and it is bothering you.
 Turn the camera off and on after the pixels are corrected.
 Dust reduction function will...

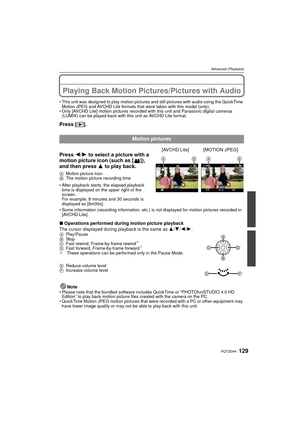

129VQT2G44
Advanced (Playback)
Advanced (Playback)Playing Back Motion Pictures/Pictures with Audio
This unit was designed to play motion pictures and still pictures with audio using the QuickTime
Motion JPEG and AVCHD Lite formats that were taken with this model (only).
 Only [AVCHD Lite] motion pictures recorded with this unit and Panasonic digital cameras
(LUMIX) can be played back with this unit as AVCHD Lite format.
Press [ (].
∫Operations performed during motion picture playback
The cursor...

VQT2G44130
Advanced (Playback)
NoteSound can be heard through the speaker. Refer  to [VOLUME] (P34) for information about how
to adjust the volume in the [SETUP] menu.
 Pictures with audio recorded with other equipment may not playback on this unit.
 When using a high capacity card, it is possible that fast rewinding may be slower than usual.
Using the [PLAYBACK] mode menu
You can use various functions in playback mode to rotate pictures, set protection for them
etc.
With [TEXT STAMP], [RESIZE],...
