Panasonic Digital Camera Dmc Gh2h Gh2k Gh2 Operating Instructions

191VQT3A36
Others

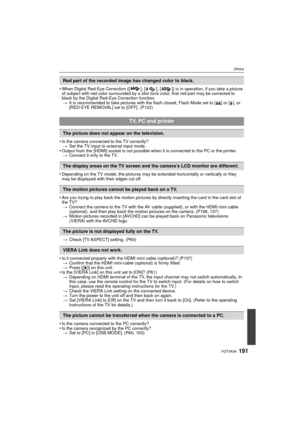

•When Digital Red-Eye Correction ([], [], []) is in operation, if you take a picture
of subject with red color surrounded by a skin tone color, that red part may be corrected to
black by the Digital Red-Eye Correction function. > It is recommended to take pictures with the flash closed, Flash Mode set to [ ‡] or [ ‰], or
[RED-EYE REMOVAL] set to [OFF]. (P122)
•Is the camera connected to the TV correctly? > Set the TV input to external input mode.
•Output from the  [HDMI] socket is...

VQT3A36192
Others
>Disconnect the USB connection cable. Connect it  again while the card is inserted in the
camera.
> Check if your PC is compat ible with SDXC memory cards.
http://panasonic.net/avc/sdcard/information/SDXC.html
> A message prompting to format the card may be displayed when connecting, but do not
format.
> If the [ACCESS] displayed on the LCD monitor does not disappear, disconnect the
USB
connection cable after turning off the power.
•Pictures cannot be printed using a printer which...

193VQT3A36
Others

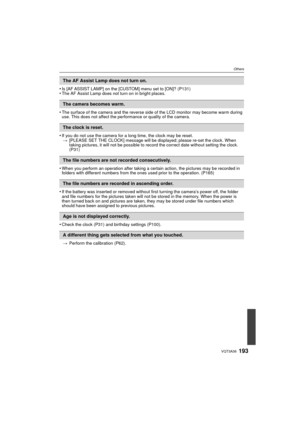

•Is [AF ASSIST LAMP] on the [CUSTOM] menu set to [ON]? (P131)•The AF Assist Lamp does not turn on in bright places.
•The surface of the camera and the reverse side of the LCD monitor may become warm during
use. This does not affect the performance or quality of the camera.
•If you do not use the camera for a long time, the clock may be reset.> [PLEASE SET THE CLOCK] message will be disp layed; please re-set the clock. When
taking pictures, it will not be possible to record the correct...

VQT3A36194
Others

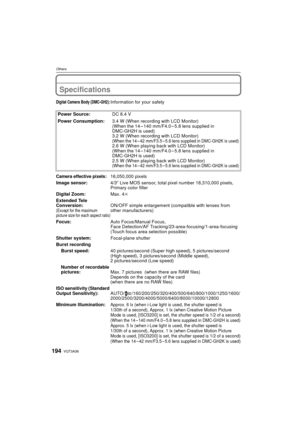

OthersSpecifications
Digital Camera Body (DMC-GH2):Information for your safety
Power Source: DC 8.4 V
Power Consumption: 3.4 W (When recording with LCD Monitor)
(When the 14 – 140 mm/F4.0 – 5.8 lens supplied in
DMC-GH2H is used)
3.2 W (When recording with LCD Monitor)
(When the 14 – 42 mm/F3.5 – 5.6 lens supplied in DMC-GH2K is used)2.6 W (When playing back with LCD Monitor)
(When the 14 – 140 mm/F4.0 – 5.8 lens supplied in
DMC-GH2H is used)
2.5 W (When playing back with LCD Monitor)...

195VQT3A36
Others
Shutter speed:B (Bulb) (Max. approx. 120 seconds), 60 seconds to 1/4000th
of a second
Taking still pictures during motion picture recording
Motion picture priorities: 1/30th of a second to 1/16000th of a secondStill picture priorities: B (Bul b) (Max. approx. 120 seconds),
60 seconds to 1/4000th of a second
Metering range: EV 0 to EV 18
White Balance: Auto White Balance/Daylight/Cloudy/Shade/Incandescent
lights/Flash/White set1/White set2/White set3/White set4/White
Balance K set...

VQT3A36196
Others

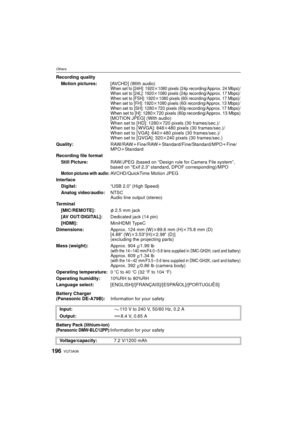

Recording qualityMotion pictures: [AVCHD] (With audio)
When set to [24H]: 1920k1080 pixels (24p recording/Approx. 24 Mbps)/
When set to [24L]: 1920k1080 pixels (24p recording/Approx. 17 Mbps)/
When set to [FSH]: 1920k1080 pixels (60i recording/Approx. 17 Mbps)/When set to [FH]: 1920k1080 pixels (60i recording/Approx. 13 Mbps)/
When set to [SH]: 1280k720 pixels (60p recording/Approx. 17 Mbps)/When set to [H]: 1280k720 pixels (60p recording/Approx. 13 Mbps)[MOTION JPEG] (With audio)
When...

197VQT3A36
Others

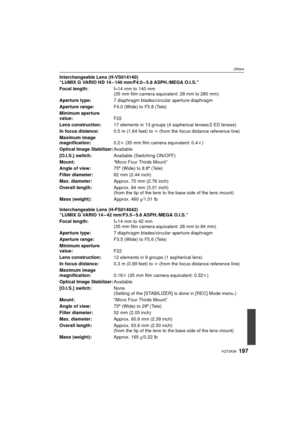

Interchangeable Lens (H-VS014140)
“LUMIX G VARIO HD 14 – 140 mm/F4.0 – 5.8 ASPH./MEGA O.I.S.”
Interchangeable Lens (H-FS014042)
“LUMIX G VARIO 14 – 42 mm/F3.5 – 5.6 ASPH./MEGA O.I.S.” Focal length:f=14 mm to 140 mm
(35 mm film camera equivalent: 28 mm to 280 mm)
Aperture type: 7 diaphragm blades/circular aperture diaphragm
Aperture range: F4.0 (Wide) to F5.8 (Tele)
Minimum aperture
value: F22
Lens construction: 17 elements in 13 groups (4 aspherical lenses/2 ED lenses)
In focus...

VQT3A36198
Others

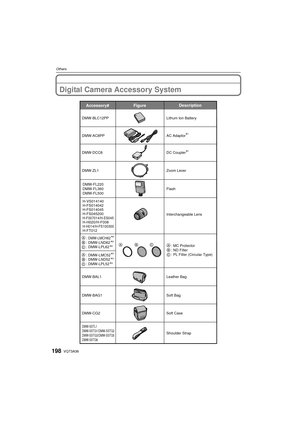

OthersDigital Camera Accessory System
Shoulder Strap
DMW-SSTL1
DMW-SSTG1/DMW-SSTG2
DMW-SSTG3/DMW-SSTG5
DMW-SSTG6
DMW-BAG1Soft Bag
DMW-BAL1Leather Bag
Accessory#Description
Figure
DMW-BLC12PP Lithum Ion Battery
Interchangeable Lens
DMW-FL220
DMW-FL360
DMW-FL500Flash
Soft Case : MC Protector
: ND Filter
: PL Filter (Circular Type)
: DMW-LMCH62: DMW-LND62
: DMW-LPL62
222
: DMW-LMC52
: DMW-LND52
: DMW-LPL52333
DMW-CG2 DMW-AC8PP
DMW-DCC8
1DC Coupler
1AC Adaptor
DMW-ZL1 Zoom Lever
H-VS014140...

199VQT3A36
Others

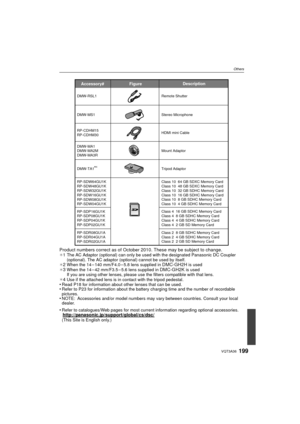

Product numbers correct as of October 2010. These may be subject to change.¢1 The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler
(optional). The AC adaptor (optional) cannot be used by itself.
¢
2When the 14 – 140 mm/F4.0 – 5.8 lens supplied in DMC-GH2H is used
¢3When the 14 – 42 mm/F3.5 – 5.6 lens supplied in DMC-GH2K is used
If you are using other lenses, please use the filters compatible with that lens.
¢
4Use if the attached lens is in contact with...

VQT3A36200
Others
Digital Camera Accessory Order Form
(For USA and Puerto Rico Customers)
In CANADA, please contact your local Dealer for more information about accessories.
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER  OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368  [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA....
