Panasonic Digital Camera Dmc Gh2h Gh2k Gh2 Operating Instructions

21VQT3A36
Preparation

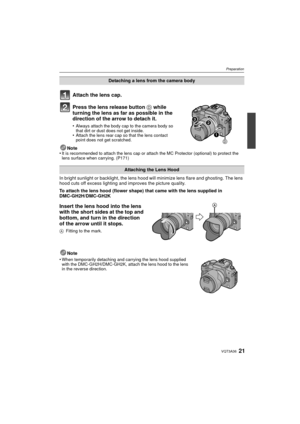

Attach the lens cap.
Press the lens release button D while
turning the lens as far as possible in the
direction of the arrow to detach it.
•Always attach the body cap to the camera body so
that dirt or dust does not get inside.
•Attach the lens rear cap so that the lens contact
point does not get scratched.
Note
•It is recommended to attach the lens cap or attach the MC Protector (optional) to protect the
lens surface when carrying. (P171)
In bright sunlight or backlight, the...

VQT3A3622
Preparation

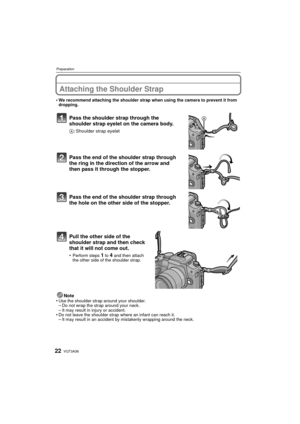

Attaching the Shoulder Strap
•We recommend attaching the shoulder strap when using the camera to prevent it from
dropping.
Pass the shoulder strap through the
shoulder strap eyelet on the camera body.
A: Shoulder strap eyelet
Pass the end of the shoulder strap through
the ring in the direction of the arrow and
then pass it through the stopper.
Pass the end of the shoulder strap through
the hole on the other side of the stopper.
Pull the other side of the
shoulder strap and...

23VQT3A36
Preparation

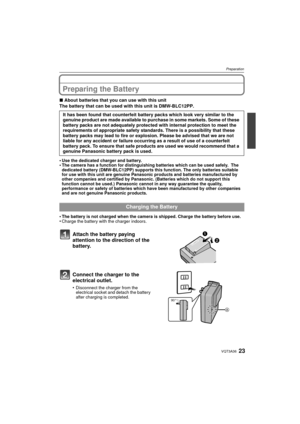

Preparing the Battery
∫About batteries that you can use with this unit
The battery that can be used with this unit is DMW-BLC12PP.
•
Use the dedicated charger and battery.•The camera has a function for distinguishing batteries which can be used safely.  The
dedicated battery (DMW-BLC12PP) supports this function. The only batteries suitable
for use with this unit are genuine Panasonic products and batteries manufactured by
other companies and certified by Panasonic. (Batteries...

VQT3A3624
Preparation

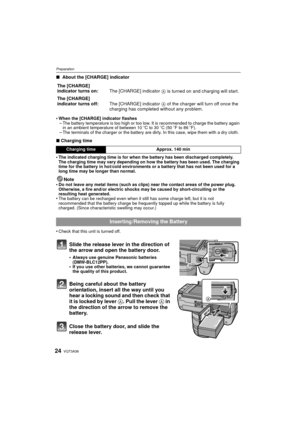

∫ About the [CHARGE] indicator
•
When the [CHARGE] indicator flashes–The battery temperature is too high or too low. It is recommended to charge the battery again
in an ambient temperature of between 10 oC to 30 oC (50 oF to 86 oF).
–The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.
∫ Charging time
•
The indicated charging time is for when the battery has been discharged completely.
The charging time may vary depending on how the...

25VQT3A36
Preparation
Note
•Remove the battery after use. Store the removed battery in the battery case (supplied).•The battery will be exhausted if left for a long period of time after being charged.•Before removing the battery, turn the camera off, and wait until the status indicator has g one off
completely. (Otherwise, this unit may no longer  operate normally and the card itself may be
damaged or the recorded pictures may be lost.)
•The supplied battery is designed only for the camera. Do not use...

VQT3A3626
Preparation

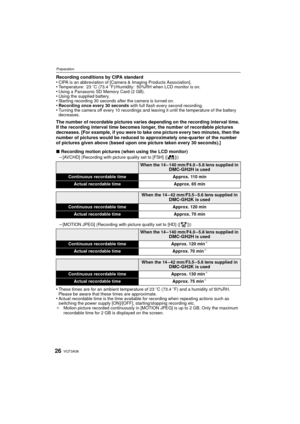

Recording conditions by CIPA standard
•CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23oC (73.4oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (2 GB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on.•Recording once every 30 seconds  with full flash every second recording.•Turning the camera off every 10 recordings and leaving it until the temperature of the battery
decreases.
The...

27VQT3A36
Preparation

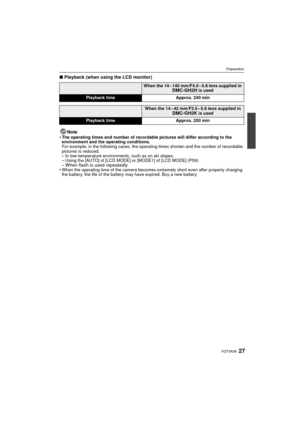

∫Playback (when using the LCD monitor)
Note
•
The operating times and number of recordable pictures will differ according to the
environment and the operating conditions.
For example, in the following cases, the operating times shorten and the number of recordable
pictures is reduced.
–In low-temperature environments, such as on ski slopes.–Using the [AUTO] of [LCD MODE] or [MODE1] of [LCD MODE] (P59).– When flash is used repeatedly.•When the operating time of the camera becomes...

VQT3A3628
Preparation

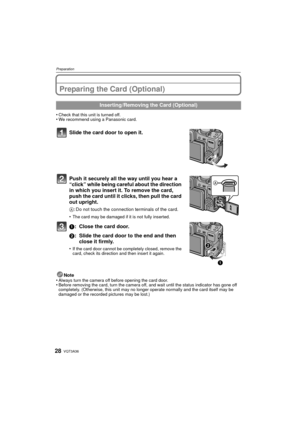

Preparing the Card (Optional)
•Check that this unit is turned off.•We recommend using a Panasonic card.
Slide the card door to open it.
Push it securely all the way until you hear a
“click” while being careful about the direction
in which you insert it. To remove the card,
push the card until it clicks, then pull the card
out upright.
A: Do not touch the connection terminals of the card.
•
The card may be damaged if it is not fully inserted.
1: Close the card door.
2: Slide the...

29VQT3A36
Preparation

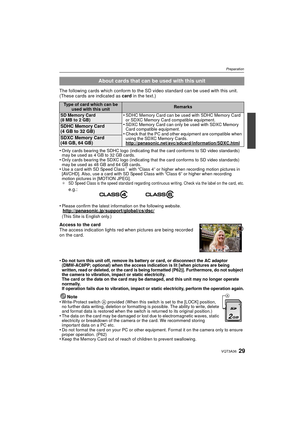

The following cards which conform to the SD video standard can be used with this unit.
(These cards are indicated as card in the text.)
•
Only cards bearing the SDHC logo (indicating that the card conforms to SD video standards)
may be used as 4 GB to 32 GB cards.
•Only cards bearing the SDXC logo (indicating th at the card conforms to SD video standards)
may be used as 48 GB and 64 GB cards.
•Use a card with SD Speed Class¢ with “Class 4” or higher when recording motion pictures...

VQT3A3630
Preparation
∫About the display of the number of recordable pictures and operating time
•
Switching between the display of number of recordable
pictures and operating time can be performed in the
[REMAINING DISP.] (P133) in the [CUSTOM] menu.
A Number of recordable pictures
B Available recording time
∫Number of recordable pictures
•[9999 i] is displayed if there are more than 10000 pictures remaining.
Number of recordable pictures for more than 10000 can be checked in the LCD recording...
