10. Using the Wi-Fi/NFC Function
Images can be sent to the AV device of relatives and acquaintances via “LUMIX CLUB”.
1Select the menu.  (P54)
2Select [Add new device].3Enter the address number.
4Enter the access code.5Enter any name.
•A maximum of 28 characters can be entered. A two-byte character is treated as two
characters.
•Exit the menu after it is set.
•Refer to “Entering Text” (P57)  for information on how to enter text.
Information on AV device that has already been saved can be changed or...

10. Using the Wi-Fi/NFC Function
292
About Connections
You can select a connection method after selecting a Wi-Fi function and a destination.
Performing a direct connection is convenient fo r when you are in a place away from home
where wireless access points are not available or for when connecting temporarily to a
device you do not usually use.
When connecting with the same settings as the previous ones, you can use the Wi-Fi
function quickly by connecting via [Select  a destination from History] or...

293
10. Using the Wi-Fi/NFC Function
You can select the method for connecting to a wireless
access point.
¢ WPS refers to a function that allows you to easily configure
the settings related to the connection and security of wireless
LAN devices.
To check if the wireless access point you are using is
compatible with WPS, refer to the manual of the wireless
access point.
Connecting from your house (via the network)
[WPS (Push-Button)] Save push button type wireless access point that is compatible...

10. Using the Wi-Fi/NFC Function
294
Search for available wireless access points.
•Confirm encryption key of the selected wireless access point if the network authentication is
encrypted.
•When connecting by [Manual Input], confirm SSID, encryption type, encryption key of the
wireless access point you are using.
1Select the wireless access point you are connecting
to.
•
Pressing [DISP. ]  will search for a wireless access point
again.
•If no wireless access point is found, refer to “When
connecting...

295
10. Using the Wi-Fi/NFC Function
4Select the encryption type.
•The type of settings that can be changed may vary depending on the details of network
authentication settings.
5(When an option other than [No Encryption] is selected)
Enter the encryption key.
•
Check the wireless access points instruction manual and settings when saving a wireless
access point.
•If no connection can be established, the wireless access point’s radio waves may be too weak.
Refer to “Message Display”  (P364)  and...

10. Using the Wi-Fi/NFC Function
296
You can select the method for connecting to the device you
are using.
Select the connection method  supported by your device.
Connecting from a location away from your house (direct connection)
[Wi-Fi Direct]
1Set the device to Wi-Fi DirectTM mode.2Select [Wi-Fi Direct].3Select the device to connect to.
•Read the operating instructions of your device for details.
[WPS Connection][WPS (Push-Button)]
1Select [WPS (Push-Button)].2Set the device to WPS mode.
•You can...

297
10. Using the Wi-Fi/NFC Function
When the Wi-Fi function is used, a record is saved in the history. You can register records
as favorites.
Connecting from the history or favorites a llows you to easily connect with the same
settings as the previous ones.
1Press [Wi-Fi].
2Select [Select a destination from History] or
[Select a destination from Favorite].
3Select item.
1Press [Wi-Fi].2Select [Select a destination from History].3Select the item you want to register to favorites, and then press  1....

10. Using the Wi-Fi/NFC Function
298
1Press [Wi-Fi].
2Select [Select a destination from Favorite].3Select the favorite item you want to edit, and then press  1.4Select the item.
•
Performing [Reset Wi-Fi Settings] clears the history and the contents saved in [Select a
destination from Favorite].
•When connecting to a network to which many PCs are connected by using [Select a destination
from History] or [Select a destination from Favorite], a connection attempt may fail because the
previously-conn...

299
10. Using the Wi-Fi/NFC Function
When sending images, select the method for sending them after selecting [New
Connection].
After the connection has been completed, settings for sending, such as the image size for
sending, can also be changed.
∫Images that can be sent
¢1 Sending by [Send Images While Recording] is not available.
¢ 2 A motion picture recorded in [AVCHD] can be sent to [PC] if the file size is 4 GB or smaller. It
cannot be sent if the size is greater than 4 GB.
¢ 3 Excluding motion...

10. Using the Wi-Fi/NFC Function
300

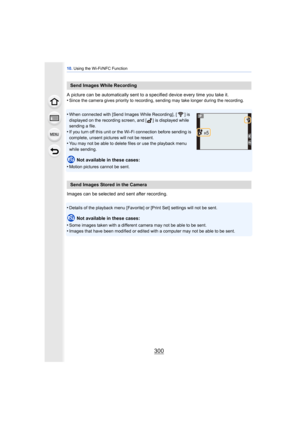

A picture can be automatically sent to a  specified device every time you take it.
•Since the camera gives priority to recording,  sending may take longer during the recording.
•When connected with [Send Images While Recording], [ ] is
displayed on the recording screen, and [ ] is displayed while
sending a file.
•If you turn off this unit or the Wi-Fi connection before sending is
complete, unsent pictures will not be resent.
•You may not be able to delete files or...
