151
6. Focus and Brightness (Exposure) Settings
Technique for Manual Focus
1 Press the cursor button or rotate the focus
ring to focus.
2 Press the cursor button a few more times
or rotate the focus ring further in the same
direction.
3 Operate the cursor button or the focus
ring slightly in the opposite direction to
fine tune the focus.
•
If you zoom in/out after focusing on a subject, the focus may lose its accuracy. In that case,
re-adjust the focus.
•After canceling Sleep Mode, focus on the...

152
6. Focus and Brightness (Exposure) Settings
∫About the focus distance reference mark
The focus distance reference mark is a mark used to measure the focus distance.
Use this when taking pictures with Manual Focus or taking close-up pictures. Focus range
AFocus distance reference mark
B Focus distance reference line
C 0.2 m (0.66 feet) (focal length 12 mm to 20 mm)
[When the interchangeable lens (H-FS12032) is used]
D 0.3 m (0.98 feet) (focal length 21 mm to 32 mm)
[When the interchangeable lens...

153
6. Focus and Brightness (Exposure) Settings
Using the [Custom] menu, you can make advanced MF Assist settings.
Setting the display method of the MF Assist (enlarged screen)
•
Available settings vary depending on the lens used.
Changing the display of the MF Assist
Making the desired changes to MF Assist settings
[MENU] > [Custom]  > [MF Assist]
When an interchangeable lens with no focus ring (H-FS12032) is used
[ON] Focus can be adjusted when
2( ) is pressed and the MF area setting screen is...

154
6. Focus and Brightness (Exposure) Settings
Setting the initial magnification level of MF Assist
An initial MF Assist magnification level between 3 and 10 times can be set.
•
When [MF Assist Display] is set to [PIP], the display can be enlarged only up to 6 times
regardless of this setting.
•The magnification level from the last MF Assist session is saved as the initial magnification
level.
•These items can be set only when an interchangeable lens with no focus ring (H-FS12032) is
used.
Changing...

155
6. Focus and Brightness (Exposure) Settings
Fixing the Focus and the Exposure (AF/AE Lock)
Applicable modes:
This is useful when you want to take a picture of a subject outside the AF area or the
contrast is too strong and you cannot achieve appropriate exposure.
1Set a function button to [AF/AE LOCK]. (P43)
•[AF/AE LOCK] can only be assigned to [Fn1].
2Align the screen with the subject.
3Press [Fn1] to fix the focus or exposure.
•AF/AE Lock is canceled by pressing [Fn1] button again.
•Only the...

156

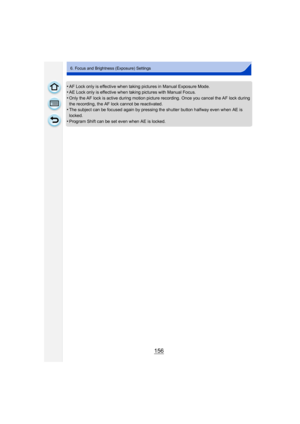

6. Focus and Brightness (Exposure) Settings
•AF Lock only is effective when taking pictures in Manual Exposure Mode.•AE Lock only is effective when taking pictures with Manual Focus.
•Only the AF lock is active during motion picture recording. Once you cancel the AF lock during
the recording, the AF lock cannot be reactivated.
•The subject can be focused again by pressing the shutter button halfway even when AE is
locked.
•Program Shift can be set even when AE is locked.

157
6. Focus and Brightness (Exposure) Settings

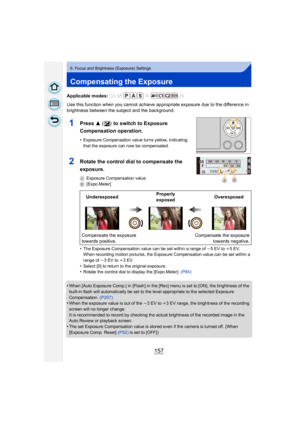

Compensating the Exposure
Applicable modes:
Use this function when you cannot achieve appropriate exposure due to the difference in
brightness between the subject and the background.•
The Exposure Compensation value can be set within a range of  j5 EV to  i5EV.
When recording motion pictures, the Exposure Compensation value can be set within a
range of  j3EV to i 3EV.
•Select [0] to return to the original exposure.•Rotate the control dial to display the...

158
6. Focus and Brightness (Exposure) Settings
Setting the Light Sensitivity
Applicable modes:
This allows the sensitivity to light (ISO sensitivity) to be set.
Setting to a higher figure enables pictures to be taken even in dark places without the
resulting pictures coming out dark.
1Select the menu. (P37)
2Select the ISO sensitivity by rotating the
control dial.
3Press [MENU/SET] to set.
•Exit the menu after it is set.
¢ 1 When the [ISO Limit Set]  (P159) of [Rec] menu is set to anything except...

159
6. Focus and Brightness (Exposure) Settings
Characteristics of the ISO sensitivity
•
For the focus range of flash when [AUTO] is set, refer to  P201.
•In Shutter-Priority AE Mode, [ ] cannot be used; in Manual Exposure Mode, [AUTO] and
[ ] cannot be used.
•When [Multi Exp.] is set, the maximum setting is [ISO3200].
•Setting items below will be selectable in Creative Video Mode.
[AUTO]/[200] to [3200]
•Those menu items are shared by the [Rec] menu and the [Motion Picture] menu. When the
setting for...

160
6. Focus and Brightness (Exposure) Settings
Applicable modes:
You can adjust the ISO sensitivity settings for every 1/3 EV.
¢Only available when [Extended ISO] is set.
•When the setting is changed from [1/3 EV] to [1 EV], [Sensitivity] will be set to value closest to
the value set during the [1/3 EV].
Applicable modes:
ISO sensitivity can be set up to minimum [ISO125].
Settings: [ON]/[OFF]
Setting the step increment of ISO sensitivity
[MENU] >  [Rec] > [ISO Increments]
[1/3 EV] [L.125]...
