Panasonic Digital Camera Dmc L10 Operating Instructions

Others
131VQT1G28

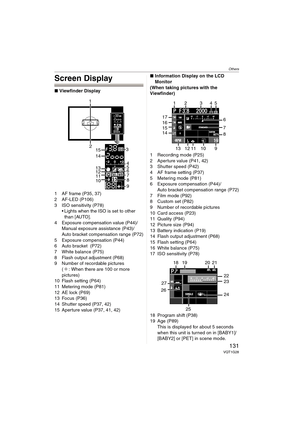

Screen Display
∫Viewfinder Display
1 AF frame (P35, 37)
2 AF-LED (P106)
3 ISO sensitivity (P78)
 Lights when the ISO is set to other
than [AUTO].
4 Exposure compensation value (P44)/
Manual exposure assistance (P43)/
Auto bracket compensation range (P72)
5 Exposure compensation (P44)
6 Auto bracket  (P72)
7 White balance (P75)
8 Flash output adjustment (P68)
9 Number of recordable pictures
(
_: When there are 100 or more
pictures)
10 Flash setting (P64)
11 Metering mode (P81)
12 AE...

Others
132VQT1G28

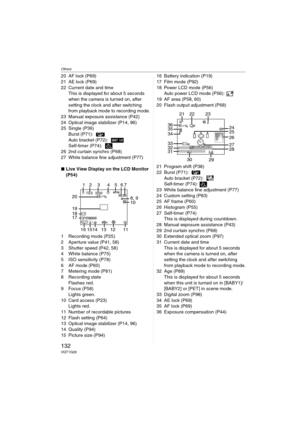

20 AF lock (P69)
21 AE lock (P69)
22 Current date and time
This is displayed for about 5 seconds
when the camera is turned on, after
setting the clock and after switching
from playback mode to recording mode.
23 Manual exposure assistance (P42)
24 Optical image stabilizer (P14, 96)
25 Single (P36)
Burst (P71):
Auto bracket (P72):
Self-timer (P74):
26 2nd curtain synchro (P68)
27 White balance fine adjustment (P77)
∫Live View Display on the LCD Monitor
(P54)
1 Recording mode (P25)
2...

Others
133VQT1G28

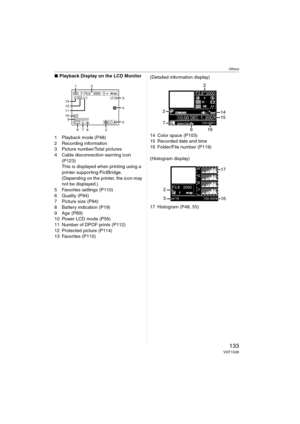

∫Playback Display on the LCD Monitor
1 Playback mode (P48)
2 Recording information
3 Picture number/Total pictures
4 Cable disconnection warning icon
(P123)
This is displayed when printing using a
printer supporting PictBridge.
(Depending on the printer, the icon may
not be displayed.)
5 Favorites settings (P110)
6 Quality (P94)
7 Picture size (P94)
8 Battery indication (P19)
9Age (P89)
10 Power LCD mode (P56)
11 Number of DPOF prints (P112)
12 Protected picture (P114)
13 Favorites...

Others
134VQT1G28
Cautions for Use
∫Optimal use of the camera
Take care not to drop or knock the unit
or put a lot of pressure on it.
Take care not to knock or drop the bag/
case that you inserted the camera in as
the shock may cause damage to the
camera, lens or LCD monitor.
Do not use a paper bag as it can easily rip
causing the camera to fall and be
damaged.
We strongly recommend you purchase a
good camera bag/case from your local
dealer to protect your camera.
Keep the camera as far away as...

Others
135VQT1G28

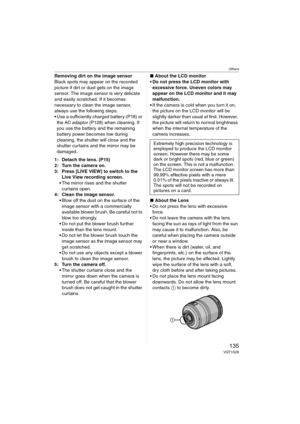

Removing dirt on the image sensor
Black spots may appear on the recorded
picture if dirt or dust gets on the image
sensor. The image sensor is very delicate
and easily scratched. If it becomes
necessary to clean the image sensor,
always use the following steps.
 Use a sufficiently charged battery (P18) or
the AC adaptor (P128) when cleaning. If
you use the battery and the remaining
battery power becomes low during
cleaning, the shutter will close and the
shutter curtains and...

Others
136VQT1G28

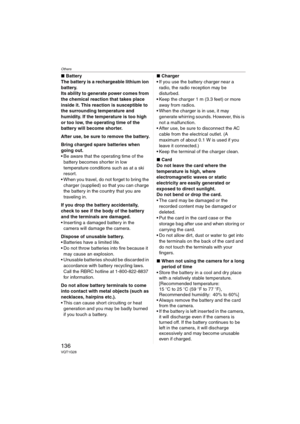

∫Battery
The battery is a rechargeable lithium ion
battery.
Its ability to generate power comes from
the chemical reaction that takes place
inside it. This reaction is susceptible to
the surrounding temperature and
humidity. If the temperature is too high
or too low, the operating time of the
battery will become shorter.
After use, be sure to remove the battery.
Bring charged spare batteries when
going out.
 Be aware that the operating time of the
battery becomes shorter in low...

Others
137VQT1G28

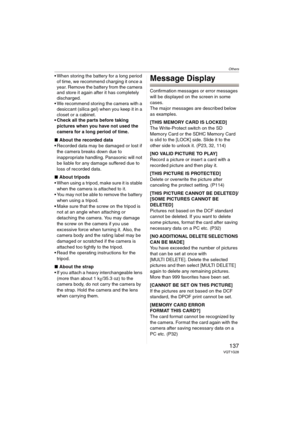

 When storing the battery for a long period
of time, we recommend charging it once a
year. Remove the battery from the camera
and store it again after it has completely
discharged.
 We recommend storing the camera with a
desiccant (silica gel) when you keep it in a
closet or a cabinet.
 Check all the parts before taking
pictures when you have not used the
camera for a long period of time.
∫About the recorded data
 Recorded data may be damaged or lost if
the camera breaks down...

Others
138VQT1G28

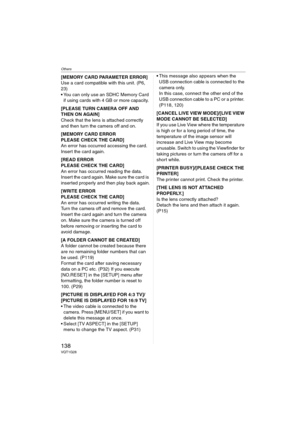

[MEMORY CARD PARAMETER ERROR]
Use a card compatible with this unit. (P6,
23)
You can only use an SDHC Memory Card
if using cards with 4 GB or more capacity.
[PLEASE TURN CAMERA OFF AND
THEN ON AGAIN]
Check that the lens is attached correctly
and then turn the camera off and on.
[MEMORY CARD ERROR
PLEASE CHECK THE CARD]
An error has occurred accessing the card.
Insert the card again.
[READ ERROR
PLEASE CHECK THE CARD]
An error has occurred reading the data.
Insert the card again....

Others
139VQT1G28

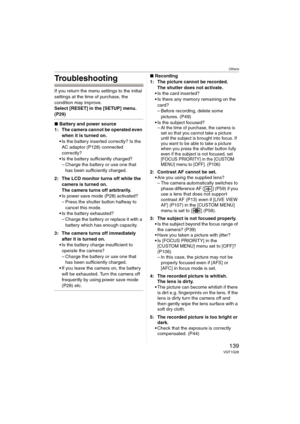

Troubleshooting
If you return the menu settings to the initial
settings at the time of purchase, the
condition may improve.
Select [RESET] in the [SETUP] menu.
(P29)
∫Battery and power source
1: The camera cannot be operated even
when it is turned on.
Is the battery inserted correctly? Is the
AC adaptor (P128) connected
correctly?
Is the battery sufficiently charged?
– Charge the battery or use one that
has been sufficiently charged.
2: The LCD monitor turns off while the...

Others

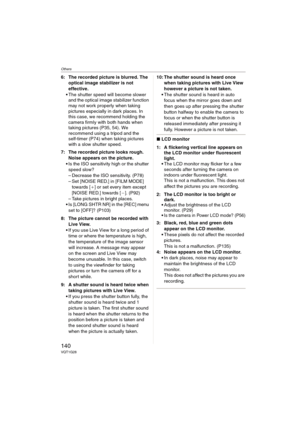

140VQT1G28
6: The recorded picture is blurred. The
optical image stabilizer is not
effective.
The shutter speed will become slower
and the optical image stabilizer function
may not work properly when taking
pictures especially in dark places. In
this case, we recommend holding the
camera firmly with both hands when
taking pictures (P35, 54). We
recommend using a tripod and the
self-timer (P74) when taking pictures
with a slow shutter speed.
7: The recorded picture looks rough.
Noise...
