Panasonic Digital Camera Dmc Ls80 Operating Instructions
Here you can view all the pages of manual Panasonic Digital Camera Dmc Ls80 Operating Instructions . The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

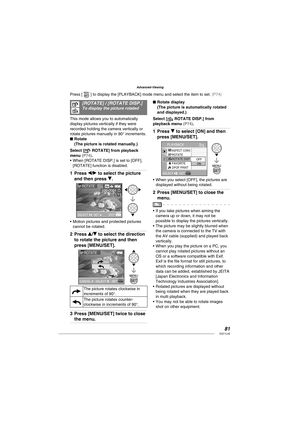

Page 81
![Page 81
81VQT1L50
Advanced-Viewing
Press [ ] to display the [PLAYBACK] mode menu and select the item to set. ( P74 )
j
b
[ ROTATE] / [ ROTATE DISP.]To display the picture rotated
This mode allows you to automatically
display pictures vertically if they were
recorded holding the camera vertically or
rotate pictures manually in 90° increments.
Rotate
(The picture is rotated manually.)
Select [
b ROTATE] from playback
menu ( P74 ).
When [ROTATE DISP.] is set to [OFF],
[ROTATE] function is disabled.
Press...](http://img.usermanuals.tech/thumb/58/64831/w300_dmc-ls80_en_om_d-80.png "Page 81
81VQT1L50
Advanced-Viewing
Press [ ] to display the [PLAYBACK] mode menu and select the item to set. ( P74 )
j
b
[ ROTATE] / [ ROTATE DISP.]To display the picture rotated
This mode allows you to automatically
display pictures vertically if they were
recorded holding the camera vertically or
rotate pictures manually in 90° increments.
Rotate
(The picture is rotated manually.)
Select [
b ROTATE] from playback
menu ( P74 ).
When [ROTATE DISP.] is set to [OFF],
[ROTATE] function is disabled.
Press...")
81VQT1L50 Advanced-Viewing Press [ ] to display the [PLAYBACK] mode menu and select the item to set. ( P74 ) j b [ ROTATE] / [ ROTATE DISP.]To display the picture rotated This mode allows you to automatically display pictures vertically if they were recorded holding the camera vertically or rotate pictures manually in 90° increments. Rotate (The picture is rotated manually.) Select [ b ROTATE] from playback menu ( P74 ). When [ROTATE DISP.] is set to [OFF], [ROTATE] function is disabled. Press...

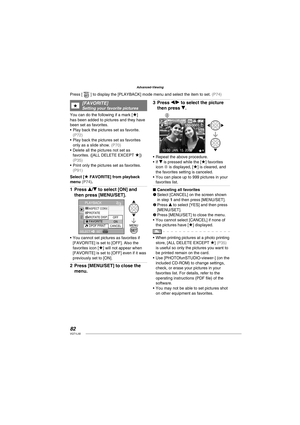

Page 82
![Page 82
82VQT1L50
Advanced-Viewing
★
[ FAVORITE]Setting your favorite pictures
You can do the following if a mark [★]
has been added to pictures and they have
been set as favorites.
Play back the pictures set as favorite.
( P72 )Play back the pictures set as favorites
only as a slide show. ( P70 )Delete all the pictures not set as
favorites. ([ALL DELETE EXCEPT ★]) ( P35 )Print only the pictures set as favorites. ( P91 )
Select [★ FAVORITE] from playback
menu ( P74 ).
Press e/r to select [ON] and
then...](http://img.usermanuals.tech/thumb/58/64831/w300_dmc-ls80_en_om_d-81.png "Page 82
82VQT1L50
Advanced-Viewing
★
[ FAVORITE]Setting your favorite pictures
You can do the following if a mark [★]
has been added to pictures and they have
been set as favorites.
Play back the pictures set as favorite.
( P72 )Play back the pictures set as favorites
only as a slide show. ( P70 )Delete all the pictures not set as
favorites. ([ALL DELETE EXCEPT ★]) ( P35 )Print only the pictures set as favorites. ( P91 )
Select [★ FAVORITE] from playback
menu ( P74 ).
Press e/r to select [ON] and
then...")
82VQT1L50 Advanced-Viewing ★ [ FAVORITE]Setting your favorite pictures You can do the following if a mark [★] has been added to pictures and they have been set as favorites. Play back the pictures set as favorite. ( P72 )Play back the pictures set as favorites only as a slide show. ( P70 )Delete all the pictures not set as favorites. ([ALL DELETE EXCEPT ★]) ( P35 )Print only the pictures set as favorites. ( P91 ) Select [★ FAVORITE] from playback menu ( P74 ). Press e/r to select [ON] and then...

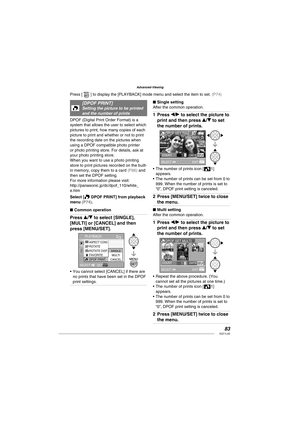

Page 83
![Page 83
83VQT1L50
Advanced-Viewing
l
[ DPOF PRINT]Setting the picture to be printed
and the number of prints
DPOF (Digital Print Order Format) is a
system that allows the user to select which
pictures to print, how many copies of each
picture to print and whether or not to print
the recording date on the pictures when
using a DPOF compatible photo printer
or photo printing store. For details, ask at
your photo printing store.
When you want to use a photo printing
store to print pictures recorded on...](http://img.usermanuals.tech/thumb/58/64831/w300_dmc-ls80_en_om_d-82.png "Page 83
83VQT1L50
Advanced-Viewing
l
[ DPOF PRINT]Setting the picture to be printed
and the number of prints
DPOF (Digital Print Order Format) is a
system that allows the user to select which
pictures to print, how many copies of each
picture to print and whether or not to print
the recording date on the pictures when
using a DPOF compatible photo printer
or photo printing store. For details, ask at
your photo printing store.
When you want to use a photo printing
store to print pictures recorded on...")
83VQT1L50 Advanced-Viewing l [ DPOF PRINT]Setting the picture to be printed and the number of prints DPOF (Digital Print Order Format) is a system that allows the user to select which pictures to print, how many copies of each picture to print and whether or not to print the recording date on the pictures when using a DPOF compatible photo printer or photo printing store. For details, ask at your photo printing store. When you want to use a photo printing store to print pictures recorded on...

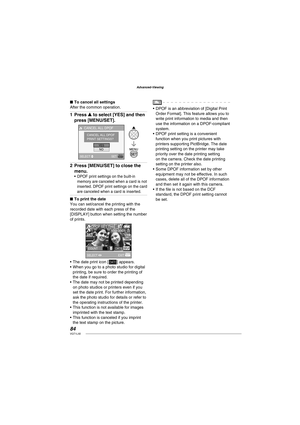

Page 84
![Page 84
84VQT1L50
Advanced-Viewing
To cancel all settings
After the common operation.
Press e to select [YES] and then
press [MENU/SET].
CANCEL ALL DPOF
CANCEL ALL DPOF
PRINT SETTINGS?
YES
NO
SELECT SET
Press [MENU/SET] to close the
menu.
DPOF print settings on the built-in
memory are canceled when a card is not
inserted. DPOF print settings on the card
are canceled when a card is inserted.
To print the date
You can set/cancel the printing with the
recorded date with each press of the...](http://img.usermanuals.tech/thumb/58/64831/w300_dmc-ls80_en_om_d-83.png "Page 84
84VQT1L50
Advanced-Viewing
To cancel all settings
After the common operation.
Press e to select [YES] and then
press [MENU/SET].
CANCEL ALL DPOF
CANCEL ALL DPOF
PRINT SETTINGS?
YES
NO
SELECT SET
Press [MENU/SET] to close the
menu.
DPOF print settings on the built-in
memory are canceled when a card is not
inserted. DPOF print settings on the card
are canceled when a card is inserted.
To print the date
You can set/cancel the printing with the
recorded date with each press of the...")
84VQT1L50 Advanced-Viewing To cancel all settings After the common operation. Press e to select [YES] and then press [MENU/SET]. CANCEL ALL DPOF CANCEL ALL DPOF PRINT SETTINGS? YES NO SELECT SET Press [MENU/SET] to close the menu. DPOF print settings on the built-in memory are canceled when a card is not inserted. DPOF print settings on the card are canceled when a card is inserted. To print the date You can set/cancel the printing with the recorded date with each press of the...

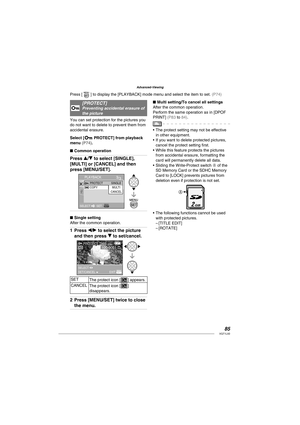

Page 85
![Page 85
85VQT1L50
Advanced-Viewing
g
[ PROTECT]Preventing accidental erasure of
the picture
You can set protection for the pictures you
do not want to delete to prevent them from
accidental erasure.
Select [
g PROTECT] from playback
menu ( P74 ).
Common operation
Press e/r to select [SINGLE],
[MULTI] or [CANCEL] and then
press [MENU/SET].
SINGLE
MULTI
CANCEL
PLAYBACK
SELECT SET
PROTECT
COPY
Single setting
After the common operation.
Press w/q to select the picture
and then press r to set/cancel....](http://img.usermanuals.tech/thumb/58/64831/w300_dmc-ls80_en_om_d-84.png "Page 85
85VQT1L50
Advanced-Viewing
g
[ PROTECT]Preventing accidental erasure of
the picture
You can set protection for the pictures you
do not want to delete to prevent them from
accidental erasure.
Select [
g PROTECT] from playback
menu ( P74 ).
Common operation
Press e/r to select [SINGLE],
[MULTI] or [CANCEL] and then
press [MENU/SET].
SINGLE
MULTI
CANCEL
PLAYBACK
SELECT SET
PROTECT
COPY
Single setting
After the common operation.
Press w/q to select the picture
and then press r to set/cancel....")
85VQT1L50 Advanced-Viewing g [ PROTECT]Preventing accidental erasure of the picture You can set protection for the pictures you do not want to delete to prevent them from accidental erasure. Select [ g PROTECT] from playback menu ( P74 ). Common operation Press e/r to select [SINGLE], [MULTI] or [CANCEL] and then press [MENU/SET]. SINGLE MULTI CANCEL PLAYBACK SELECT SET PROTECT COPY Single setting After the common operation. Press w/q to select the picture and then press r to set/cancel....

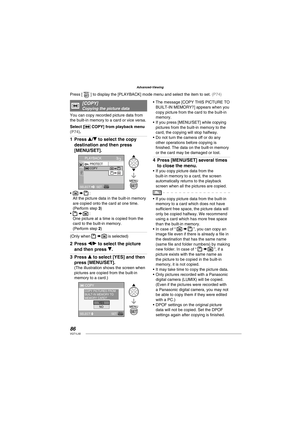

Page 86
![Page 86
86VQT1L50
Advanced-Viewing
[ COPY]Copying the picture data
You can copy recorded picture data from
the built-in memory to a card or vice versa.
Select [
COPY] from playback menu ( P74 ).
Press e/r to select the copy
destination and then press
[MENU/SET].
PLAYBACK
SELECT
SET
PROTECT
COPY
:
All the picture data in the built-in memory
are copied onto the card at one time.
(Perform step 3)
:
One picture at a time is copied from the
card to the built-in memory.
(Perform step 2)
(Only when is...](http://img.usermanuals.tech/thumb/58/64831/w300_dmc-ls80_en_om_d-85.png "Page 86
86VQT1L50
Advanced-Viewing
[ COPY]Copying the picture data
You can copy recorded picture data from
the built-in memory to a card or vice versa.
Select [
COPY] from playback menu ( P74 ).
Press e/r to select the copy
destination and then press
[MENU/SET].
PLAYBACK
SELECT
SET
PROTECT
COPY
:
All the picture data in the built-in memory
are copied onto the card at one time.
(Perform step 3)
:
One picture at a time is copied from the
card to the built-in memory.
(Perform step 2)
(Only when is...")
86VQT1L50 Advanced-Viewing [ COPY]Copying the picture data You can copy recorded picture data from the built-in memory to a card or vice versa. Select [ COPY] from playback menu ( P74 ). Press e/r to select the copy destination and then press [MENU/SET]. PLAYBACK SELECT SET PROTECT COPY : All the picture data in the built-in memory are copied onto the card at one time. (Perform step 3) : One picture at a time is copied from the card to the built-in memory. (Perform step 2) (Only when is...

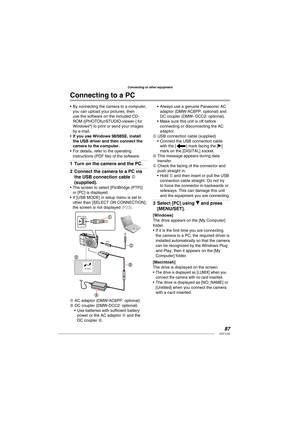

Page 87
![Page 87
87VQT1L50
Connecting to other equipment
Connecting to a PC
By connecting the camera to a computer,
you can upload your pictures, then
use the software on the included CD-
ROM ([PHOTOfunSTUDIO-viewer-] for
Windows
®) to print or send your images
by e-mail.
If you use Windows 98/98SE, install
the USB driver and then connect the
camera to the computer.
For details, refer to the operating
instructions (PDF fi le) of the software.
Turn on the camera and the PC.
Connect the camera to a PC via
the...](http://img.usermanuals.tech/thumb/58/64831/w300_dmc-ls80_en_om_d-86.png "Page 87
87VQT1L50
Connecting to other equipment
Connecting to a PC
By connecting the camera to a computer,
you can upload your pictures, then
use the software on the included CD-
ROM ([PHOTOfunSTUDIO-viewer-] for
Windows
®) to print or send your images
by e-mail.
If you use Windows 98/98SE, install
the USB driver and then connect the
camera to the computer.
For details, refer to the operating
instructions (PDF fi le) of the software.
Turn on the camera and the PC.
Connect the camera to a PC via
the...")
87VQT1L50 Connecting to other equipment Connecting to a PC By connecting the camera to a computer, you can upload your pictures, then use the software on the included CD- ROM ([PHOTOfunSTUDIO-viewer-] for Windows ®) to print or send your images by e-mail. If you use Windows 98/98SE, install the USB driver and then connect the camera to the computer. For details, refer to the operating instructions (PDF fi le) of the software. Turn on the camera and the PC. Connect the camera to a PC via the...

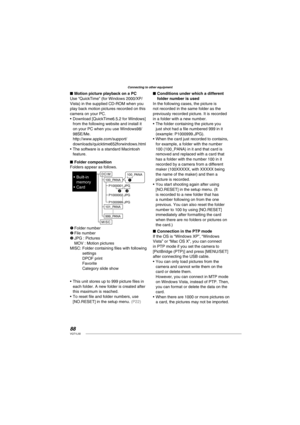

Page 88
![Page 88
88VQT1L50
Connecting to other equipment
Motion picture playback on a PC
Use “QuickTime” (for Windows 2000/XP/
Vista) in the supplied CD-ROM when you
play back motion pictures recorded on this
camera on your PC.
Download [QuickTime6.5.2 for Windows]
from the following website and install it
on your PC when you use Windows98/
98SE/Me.
http://www.apple.com/support/
downloads/quicktime652forwindows.html
The software is a standard Macintosh
feature.
Folder composition
Folders appear as follows....](http://img.usermanuals.tech/thumb/58/64831/w300_dmc-ls80_en_om_d-87.png "Page 88
88VQT1L50
Connecting to other equipment
Motion picture playback on a PC
Use “QuickTime” (for Windows 2000/XP/
Vista) in the supplied CD-ROM when you
play back motion pictures recorded on this
camera on your PC.
Download [QuickTime6.5.2 for Windows]
from the following website and install it
on your PC when you use Windows98/
98SE/Me.
http://www.apple.com/support/
downloads/quicktime652forwindows.html
The software is a standard Macintosh
feature.
Folder composition
Folders appear as follows....")
88VQT1L50 Connecting to other equipment Motion picture playback on a PC Use “QuickTime” (for Windows 2000/XP/ Vista) in the supplied CD-ROM when you play back motion pictures recorded on this camera on your PC. Download [QuickTime6.5.2 for Windows] from the following website and install it on your PC when you use Windows98/ 98SE/Me. http://www.apple.com/support/ downloads/quicktime652forwindows.html The software is a standard Macintosh feature. Folder composition Folders appear as follows....

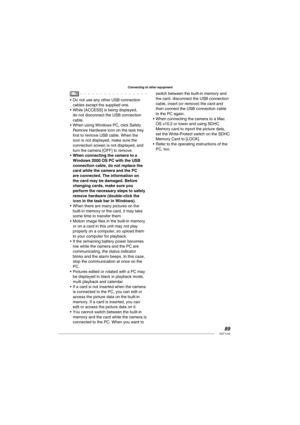

Page 89
![Page 89
89VQT1L50
Connecting to other equipment
Do not use any other USB connection
cables except the supplied one.
While [ACCESS] is being displayed,
do not disconnect the USB connection
cable.
When using Windows PC, click Safety
Remove Hardware icon on the task trey
fi rst to remove USB cable. When the
icon is not displayed, make sure the
connection screen is not displayed, and
turn the camera [OFF] to remove.
When connecting the camera to a
Windows 2000 OS PC with the USB
connection cable, do not...](http://img.usermanuals.tech/thumb/58/64831/w300_dmc-ls80_en_om_d-88.png "Page 89
89VQT1L50
Connecting to other equipment
Do not use any other USB connection
cables except the supplied one.
While [ACCESS] is being displayed,
do not disconnect the USB connection
cable.
When using Windows PC, click Safety
Remove Hardware icon on the task trey
fi rst to remove USB cable. When the
icon is not displayed, make sure the
connection screen is not displayed, and
turn the camera [OFF] to remove.
When connecting the camera to a
Windows 2000 OS PC with the USB
connection cable, do not...")
89VQT1L50 Connecting to other equipment Do not use any other USB connection cables except the supplied one. While [ACCESS] is being displayed, do not disconnect the USB connection cable. When using Windows PC, click Safety Remove Hardware icon on the task trey fi rst to remove USB cable. When the icon is not displayed, make sure the connection screen is not displayed, and turn the camera [OFF] to remove. When connecting the camera to a Windows 2000 OS PC with the USB connection cable, do not...

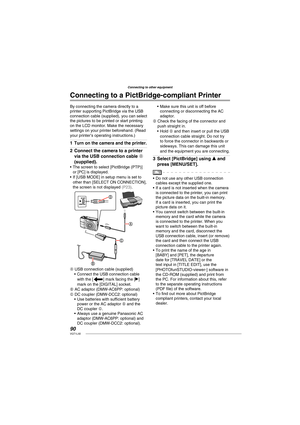

Page 90
90VQT1L50 Connecting to other equipment Connecting to a PictBridge-compliant Printer By connecting the camera directly to a printer supporting PictBridge via the USB connection cable (supplied), you can select the pictures to be printed or start printing on the LCD monitor. Make the necessary settings on your printer beforehand. (Read your printer’s operating instructions.) Turn on the camera and the printer. Connect the camera to a printer via the USB connection cable A (supplied). The...
