Playback (basic)

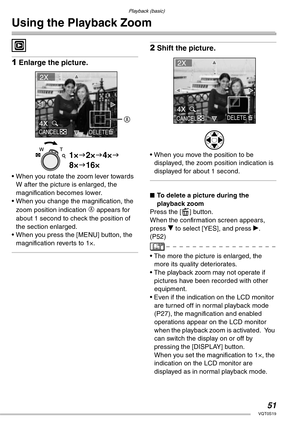

51VQT0S19
Using the Playback Zoom

1Enlarge the picture.
• When you rotate the zoom lever towards
W after the picture is enlarged, the
magnification becomes lower.
• When you change the magnification, the
zoom position indication
A appears for
about 1 second to check the position of
the section enlarged.
• When you press the [MENU] button, the
magnification reverts to 1×.
2Shift the picture.
• When you move the position to be
displayed, the zoom position indication is
displayed...

Playback (basic)

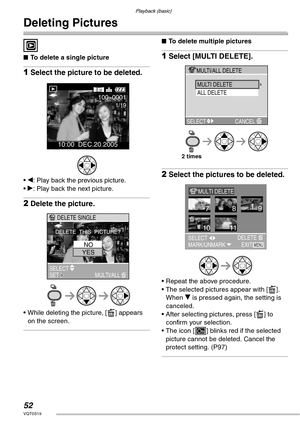

52VQT0S19
Deleting Pictures

nTo delete a single picture
1Select the picture to be deleted.
• w: Play back the previous picture.
• q: Play back the next picture.
2Delete the picture.
• While deleting the picture, [A] appears
on the screen.
nTo delete multiple pictures
1Select [MULTI DELETE].
2Select the pictures to be deleted.
• Repeat the above procedure.
• The selected pictures appear with [A].
When r is pressed again, the setting is
canceled.
• After selecting pictures, press [A]...

Playback (basic)

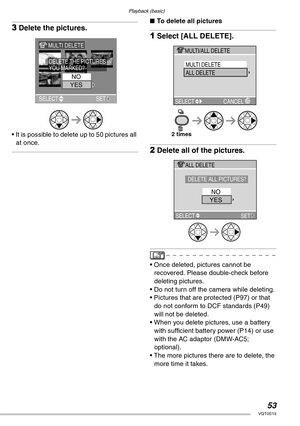

53VQT0S19
3Delete the pictures.
• It is possible to delete up to 50 pictures all
at once.
nTo delete all pictures
1Select [ALL DELETE].
2Delete all of the pictures.
• Once deleted, pictures cannot be
recovered. Please double-check before
deleting pictures.
• Do not turn off the camera while deleting.
• Pictures that are protected (P97) or that
do not conform to DCF standards (P49)
will not be deleted.
• When you delete pictures, use a battery
with sufficient battery power (P14) or...

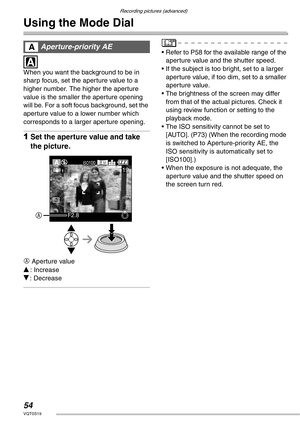

54VQT0S19
Recording pictures (advanced)
Using the Mode Dial


When you want the background to be in
sharp focus, set the aperture value to a
higher number. The higher the aperture
value is the smaller the aperture opening
will be. For a soft focus background, set the
aperture value to a lower number which
corresponds to a larger aperture opening.
1Set the aperture value and take
the picture.
A
 Aperture value
e: Increase
r: Decrease
• Refer to P58 for the available range of the
aperture value...

Recording pictures (advanced)

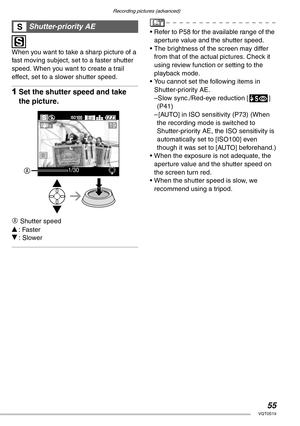

55VQT0S19


When you want to take a sharp picture of a
fast moving subject, set to a faster shutter
speed. When you want to create a trail
effect, set to a slower shutter speed.
1Set the shutter speed and take
the picture.
A
 Shutter speed
e: Faster
r: Slower
• Refer to P58 for the available range of the
aperture value and the shutter speed.
• The brightness of the screen may differ
from that of the actual pictures. Check it
using review function or setting to the...

Recording pictures (advanced)

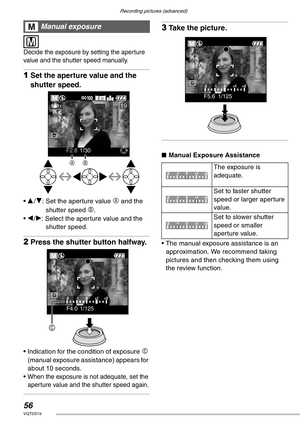

56VQT0S19


Decide the exposure by setting the aperture
value and the shutter speed manually.
1Set the aperture value and the
shutter speed.
• e/r: Set the aperture value A and the
shutter speed
B.
• w/q: Select the aperture value and the
shutter speed.
2Press the shutter button halfway.
• Indication for the condition of exposure C
(manual exposure assistance) appears for
about 10 seconds.
•
When the exposure is not adequate, set the
aperture value and the shutter...

Recording pictures (advanced)

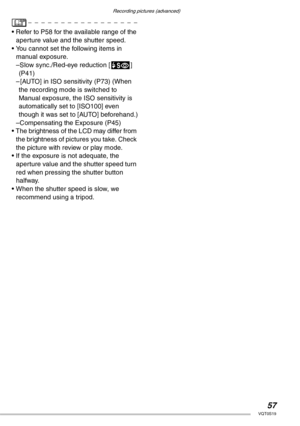

57VQT0S19
• Refer to P58 for the available range of the
aperture value and the shutter speed.
• You cannot set the following items in
manual exposure.
–Slow sync./Red-eye reduction [u]
(P41)
– [AUTO] in ISO sensitivity (P73) (When
the recording mode is switched to
Manual exposure, the ISO sensitivity is
automatically set to [ISO100] even
though it was set to [AUTO] beforehand.)
–Compensating the Exposure (P45)
• The brightness of the LCD may differ from
the...

Recording pictures (advanced)
58VQT0S19
nAperture Value and Shutter Speed
Aperture-priority AE
Shutter-priority AE
Manual exposure
• The aperture values in the table above are the values when the zoom lever is rotated to
Wide at maximum.
• Some of the aperture values cannot be selected depending on the zoom magnification.
Available Aperture Value
(Per 1/3 EV)Shutter Speed (Sec.)
F8.0 8 to 1/2000
F7.1 F6.3 F5.6 8 to 1/1600
F4.9 F4.5 F4.0 8 to 1/1300
F3.6 F3.2 F2.8 8 to 1/1000
Available Shutter Speed...

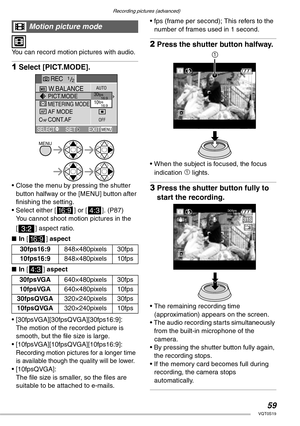

Recording pictures (advanced)
59VQT0S19


You can record motion pictures with audio.
1Select [PICT.MODE].
• Close the menu by pressing the shutter
button halfway or the [MENU] button after
finishing the setting.
• Select either [j] or [h]. (P87)
You cannot shoot motion pictures in the
[ ] aspect ratio.
nIn [j] aspect
nIn [h] aspect
• [30fpsVGA][30fpsQVGA][30fps16:9]:
The motion of the recorded picture is
smooth, but the file size is large.
• [10fpsVGA][10fpsQVGA][10fps16:9]:
Recording motion...

Recording pictures (advanced)

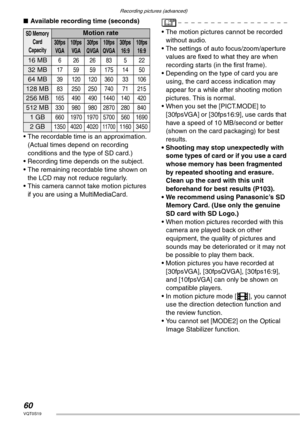

60VQT0S19
nAvailable recording time (seconds)
• The recordable time is an approximation.
(Actual times depend on recording
conditions and the type of SD card.)
• Recording time depends on the subject.
• The remaining recordable time shown on
the LCD may not reduce regularly.
• This camera cannot take motion pictures
if you are using a MultiMediaCard.• The motion pictures cannot be recorded
without audio.
• The settings of auto focus/zoom/aperture
values are fixed to...
