Panasonic Digital Camera Dmc Lx100 Owners Manual For Advanced Features

181SQW0021
Stabilizer, Zoom and Flash
Taking pictures using the flash (supplied)

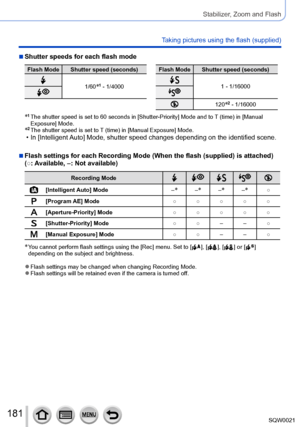

 ■Shutter speeds for each flash mode
Flash Mode Shutter speed (seconds)
1/60*1 - 1/4000
Flash Mode Shutter speed (seconds)
1 - 1/16000
120*2 - 1/16000
*1  The shutter speed is set to 60 seconds in [Shutter-Priority] Mode and to T (time) in [Manual
Exposure] Mode.
*2  The shutter speed is set to T  (time) in [Manual Exposure] Mode. • In [Intelligent Auto] Mode, shutter speed changes depending on the identified scene.
 ■Flash...

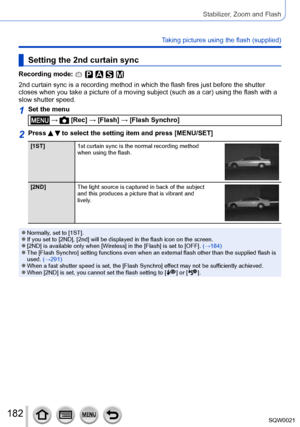

182SQW0021
Stabilizer, Zoom and Flash
Taking pictures using the flash (supplied)
Setting the 2nd curtain sync
Recording mode:
2nd curtain sync is a recording method in which the flash fires just before the shutter
closes when you take a picture of a moving subject (such as a car) using the flash with a
slow shutter speed.
1Set the menu
 →  [Rec] → [Flash] → [Flash Synchro]
2Press   to select the setting item and press [MENU/SET]
[1ST]1st curtain sync is the normal recording method
when using the...

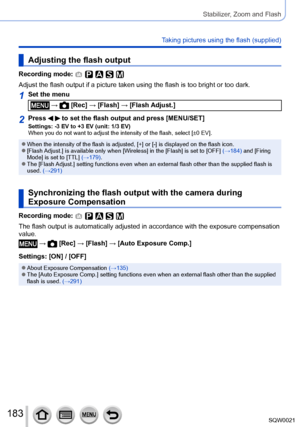

183SQW0021
Stabilizer, Zoom and Flash
Taking pictures using the flash (supplied)
Adjusting the flash output
Recording mode:
Adjust the flash output if a picture taken using the flash is too bright or too dark.
1Set the menu
 →  [Rec] → [Flash] → [Flash Adjust.]
2Press   to set the flash output and press [MENU/SET]Settings: -3 EV to +3 EV (unit: 1/3 EV)
When you do not want to adjust the intensity of the flash, select [±0 EV].
 ●When the intensity of the flash is adjusted, [+] or [-] is displayed on the...

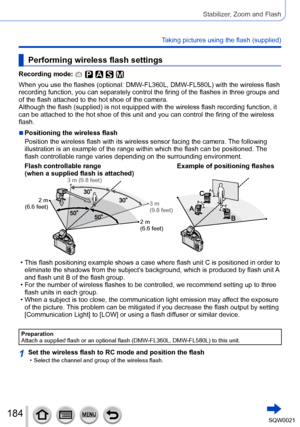

184SQW0021
Stabilizer, Zoom and Flash
Taking pictures using the flash (supplied)
Performing wireless flash settings
Recording mode:
When you use the flashes (optional: DMW-FL360L, DMW-FL580L) with the wireless flash
recording function, you can separately control the firing of the flashes in three groups and
of the flash attached to the hot shoe of the camera.
Although the flash (supplied) is not equipped with the wireless flash recording function, it
can be attached to the hot shoe of this unit and...

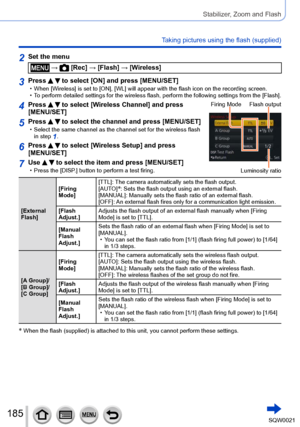

185SQW0021
Stabilizer, Zoom and Flash
Taking pictures using the flash (supplied)
2Set the menu
 →  [Rec] → [Flash] → [Wireless]
3Press   to select [ON] and press [MENU/SET] • When [Wireless] is set to [ON], [WL] will appear with the flash icon on the recording screen. • To perform detailed settings for the wireless flash, perform the following settings from the [Flash].
4Press   to select [Wireless Channel] and press
[MENU/SET]Firing Mode Flash output
Luminosity ratio
5Press   to select the channel and...

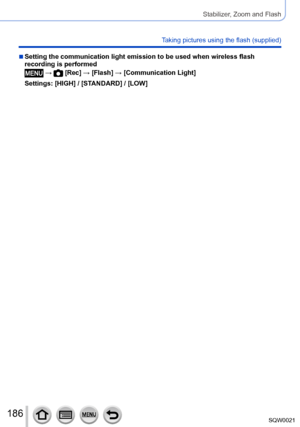

186SQW0021
Stabilizer, Zoom and Flash
Taking pictures using the flash (supplied)
 ■Setting the communication light emission to be used when wireless flash
recording is performed
 →  [Rec] → [Flash] → [Communication Light]
Settings: [HIGH] / [STANDARD] / [LOW]

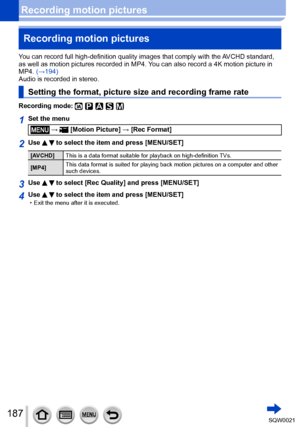

187SQW0021
Recording motion picturesRecording motion pictures
You can record full high-definition quality images that comply with the AVCHD standard,
as well as motion pictures recorded in MP4. You can also record a 4K motion picture in
MP4. (→194)
Audio is recorded in stereo.
Setting the format, picture size and recording frame rate
Recording mode:
1Set the menu
 →  [Motion Picture] → [Rec Format]
2Use   to select the item and press [MENU/SET]
[AVCHD] This is a data format suitable for playback on...

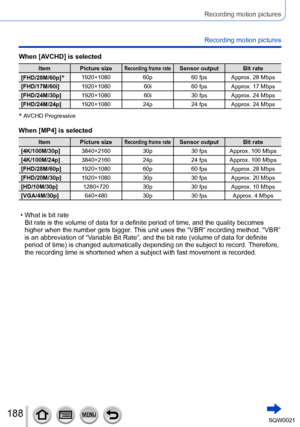

188SQW0021
Recording motion pictures
Recording motion pictures
When [AVCHD] is selected
Item Picture sizeRecording frame rateSensor output Bit rate
[FHD/28M/60p]
*1920×1080 60p60 fps Approx. 28 Mbps
[FHD/17M/60i] 1920×1080 60i60 fps Approx. 17 Mbps
[FHD/24M/30p] 1920×1080 60i30 fps Approx. 24 Mbps
[FHD/24M/24p] 1920×1080 24p24 fps Approx. 24 Mbps
* AVCHD Progressive
When [MP4] is selected
ItemPicture sizeRecording frame rateSensor output Bit rate
[4K/100M/30p] 3840×2160 30p30 fps Approx. 100 Mbps...

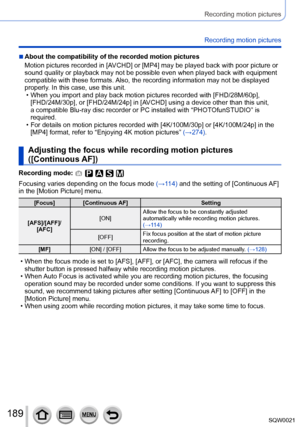

189SQW0021
Recording motion pictures
Recording motion pictures
 ■About the compatibility of the recorded motion pictures
Motion pictures recorded in [AVCHD] or [MP4] may be played back with poor picture or
sound quality or playback may not be possible even when played back with equipment
compatible with these formats. Also, the recording information may not be displayed
properly. In this case, use this unit.
 • When you import and play back motion pictures recorded with [FHD/28M/60p], [FHD/24M/30p],...

190SQW0021
Recording motion pictures
Recording motion pictures

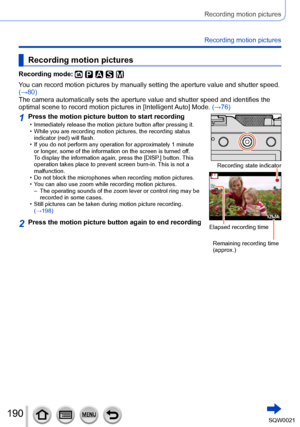

Recording motion pictures
Recording mode:
You can record motion pictures by manually setting the aperture value and shutter speed.
(→80)
The camera automatically sets the aperture value and shutter speed and identifies the
optimal scene to record motion pictures in [Intelligent Auto] Mode. (→76)
1Press the motion picture button to start recording • Immediately release the motion picture button after pressing it. • While you are recording...
