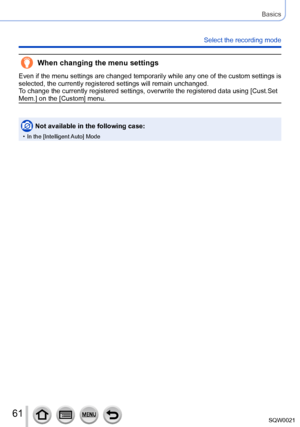

Page 61
![Page 61
61SQW0021
Basics
Select the recording mode
When changing the menu settings
Even if the menu settings are changed temporarily while any one of the custom settings is
selected, the currently registered settings will remain unchanged.
To change the currently registered settings, overwrite the registered data using [Cust.Set
Mem.] on the [Custom] menu.
Not available in the following case:
• In the [Intelligent Auto] Mode](http://img.usermanuals.tech/thumb/58/64835/w300_dmc-lx100_adv_en_om_d-60.png "Page 61
61SQW0021
Basics
Select the recording mode
When changing the menu settings
Even if the menu settings are changed temporarily while any one of the custom settings is
selected, the currently registered settings will remain unchanged.
To change the currently registered settings, overwrite the registered data using [Cust.Set
Mem.] on the [Custom] menu.
Not available in the following case:
• In the [Intelligent Auto] Mode")
61SQW0021 Basics Select the recording mode When changing the menu settings Even if the menu settings are changed temporarily while any one of the custom settings is selected, the currently registered settings will remain unchanged. To change the currently registered settings, overwrite the registered data using [Cust.Set Mem.] on the [Custom] menu. Not available in the following case: • In the [Intelligent Auto] Mode
Page 62

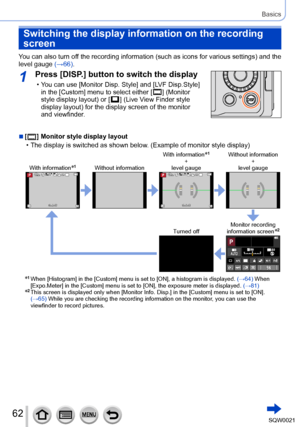

![Page 62
62SQW0021
Basics
Switching the display information on the recording
screen
You can also turn off the recording information (such as icons for various settings) and the
level gauge (→66).
1Press [DISP.] button to switch the display
• You can use [Monitor Disp. Style] and [LVF Disp.Style]
in the [Custom] menu to select either [ ] (Monitor
style display layout) or [ ] (Live View Finder style
display layout) for the display screen of the monitor
and viewfinder
.
■[ ] Monitor style display layout...](http://img.usermanuals.tech/thumb/58/64835/w300_dmc-lx100_adv_en_om_d-61.png "Page 62
62SQW0021
Basics
Switching the display information on the recording
screen
You can also turn off the recording information (such as icons for various settings) and the
level gauge (→66).
1Press [DISP.] button to switch the display
• You can use [Monitor Disp. Style] and [LVF Disp.Style]
in the [Custom] menu to select either [ ] (Monitor
style display layout) or [ ] (Live View Finder style
display layout) for the display screen of the monitor
and viewfinder
.
■[ ] Monitor style display layout...")
62SQW0021 Basics Switching the display information on the recording screen You can also turn off the recording information (such as icons for various settings) and the level gauge (→66). 1Press [DISP.] button to switch the display • You can use [Monitor Disp. Style] and [LVF Disp.Style] in the [Custom] menu to select either [ ] (Monitor style display layout) or [ ] (Live View Finder style display layout) for the display screen of the monitor and viewfinder . ■[ ] Monitor style display layout...

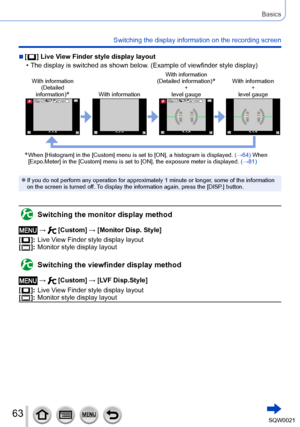

Page 63
![Page 63
63SQW0021
Basics
Switching the display information on the recording screen
■[ ] Live View Finder style display layout
• The display is switched as shown below. (Example of viewfinder style display)
With information(Detailed
information)
*With information With information
(Detailed information)
*+
level gauge With information
+
level gauge
0077007100AA0077007100AA
* When [Histogram] in the [Custom] menu is set to [ON], a histogram is displayed. (→64) When
[Expo.Meter] in the [Custom] menu is set...](http://img.usermanuals.tech/thumb/58/64835/w300_dmc-lx100_adv_en_om_d-62.png "Page 63
63SQW0021
Basics
Switching the display information on the recording screen
■[ ] Live View Finder style display layout
• The display is switched as shown below. (Example of viewfinder style display)
With information(Detailed
information)
*With information With information
(Detailed information)
*+
level gauge With information
+
level gauge
0077007100AA0077007100AA
* When [Histogram] in the [Custom] menu is set to [ON], a histogram is displayed. (→64) When
[Expo.Meter] in the [Custom] menu is set...")
63SQW0021 Basics Switching the display information on the recording screen ■[ ] Live View Finder style display layout • The display is switched as shown below. (Example of viewfinder style display) With information(Detailed information) *With information With information (Detailed information) *+ level gauge With information + level gauge 0077007100AA0077007100AA * When [Histogram] in the [Custom] menu is set to [ON], a histogram is displayed. (→64) When [Expo.Meter] in the [Custom] menu is set...

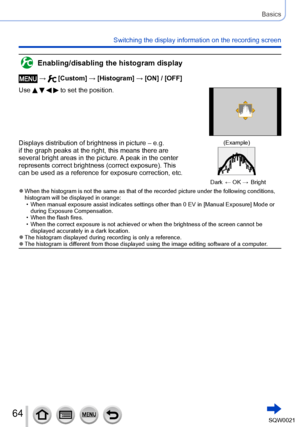

Page 64
![Page 64
64SQW0021
Basics
Switching the display information on the recording screen
Enabling/disabling the histogram display
→ [Custom] → [Histogram] → [ON] / [OFF]
Use
to set the position.
Displays distribution of brightness in picture – e.g.
if the graph peaks at the right, this means there are
several bright areas in the picture. A peak in the center
represents correct brightness (correct exposure). This
can be used as a reference for exposure correction, etc.(Example)
Dark ← OK → Bright
●When the...](http://img.usermanuals.tech/thumb/58/64835/w300_dmc-lx100_adv_en_om_d-63.png "Page 64
64SQW0021
Basics
Switching the display information on the recording screen
Enabling/disabling the histogram display
→ [Custom] → [Histogram] → [ON] / [OFF]
Use
to set the position.
Displays distribution of brightness in picture – e.g.
if the graph peaks at the right, this means there are
several bright areas in the picture. A peak in the center
represents correct brightness (correct exposure). This
can be used as a reference for exposure correction, etc.(Example)
Dark ← OK → Bright
●When the...")
64SQW0021
Basics
Switching the display information on the recording screen
Enabling/disabling the histogram display
→ [Custom] → [Histogram] → [ON] / [OFF]
Use
to set the position.
Displays distribution of brightness in picture – e.g.
if the graph peaks at the right, this means there are
several bright areas in the picture. A peak in the center
represents correct brightness (correct exposure). This
can be used as a reference for exposure correction, etc.(Example)
Dark ← OK → Bright
●When the...
Page 65
![Page 65
65SQW0021
Basics
Switching the display information on the recording screen
Enabling/disabling the guideline display
→ [Custom] → [Guide Line] → [ ] / [ ] / [ ] / [OFF]
• The guideline is not displayed during panorama picture recording.
When you select [
], you can use to set the
position.
Turning on/off the recording information screen of the monitor
→ [Custom] → [Monitor Info. Disp.] → [ON] / [OFF]](http://img.usermanuals.tech/thumb/58/64835/w300_dmc-lx100_adv_en_om_d-64.png "Page 65
65SQW0021
Basics
Switching the display information on the recording screen
Enabling/disabling the guideline display
→ [Custom] → [Guide Line] → [ ] / [ ] / [ ] / [OFF]
• The guideline is not displayed during panorama picture recording.
When you select [
], you can use to set the
position.
Turning on/off the recording information screen of the monitor
→ [Custom] → [Monitor Info. Disp.] → [ON] / [OFF]")
65SQW0021 Basics Switching the display information on the recording screen Enabling/disabling the guideline display → [Custom] → [Guide Line] → [ ] / [ ] / [ ] / [OFF] • The guideline is not displayed during panorama picture recording. When you select [ ], you can use to set the position. Turning on/off the recording information screen of the monitor → [Custom] → [Monitor Info. Disp.] → [ON] / [OFF]

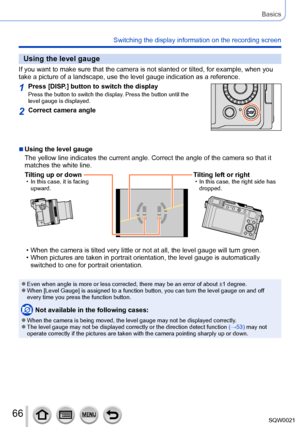

Page 66
![Page 66
66SQW0021
Basics
Switching the display information on the recording screen
Using the level gauge
If you want to make sure that the camera is not slanted or tilted, for example, when you
take a picture of a landscape, use the level gauge indication as a reference.
1Press [DISP.] button to switch the displayPress the button to switch the display. Press the button until the
level gauge is displayed.
2Correct camera angle
■Using the level gauge
The yellow line indicates the current angle. Correct the...](http://img.usermanuals.tech/thumb/58/64835/w300_dmc-lx100_adv_en_om_d-65.png "Page 66
66SQW0021
Basics
Switching the display information on the recording screen
Using the level gauge
If you want to make sure that the camera is not slanted or tilted, for example, when you
take a picture of a landscape, use the level gauge indication as a reference.
1Press [DISP.] button to switch the displayPress the button to switch the display. Press the button until the
level gauge is displayed.
2Correct camera angle
■Using the level gauge
The yellow line indicates the current angle. Correct the...")
66SQW0021 Basics Switching the display information on the recording screen Using the level gauge If you want to make sure that the camera is not slanted or tilted, for example, when you take a picture of a landscape, use the level gauge indication as a reference. 1Press [DISP.] button to switch the displayPress the button to switch the display. Press the button until the level gauge is displayed. 2Correct camera angle ■Using the level gauge The yellow line indicates the current angle. Correct the...

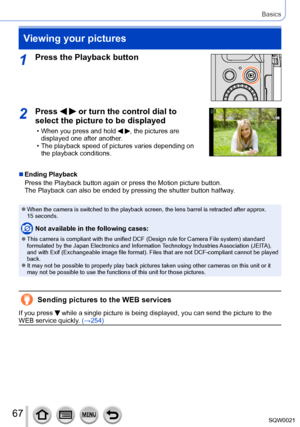

Page 67
67SQW0021 Basics Viewing your pictures 1Press the Playback button 2Press or turn the control dial to select the picture to be displayed • When you press and hold , the pictures are displayed one after another. • The playback speed of pictures varies depending on the playback conditions. ■Ending Playback Press the Playback button again or press the Motion picture button. The Playback can also be ended by pressing the shutter button halfway . ●When the camera is switched to the playback screen,...

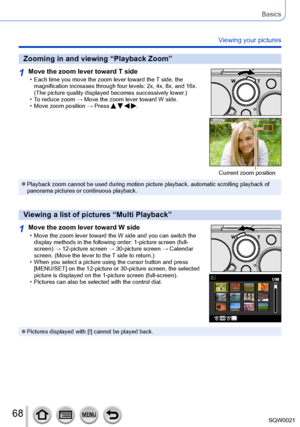

Page 68
68SQW0021 Basics Viewing your pictures Zooming in and viewing “Playback Zoom” 1Move the zoom lever toward T side • Each time you move the zoom lever toward the T side, the magnification increases through four levels: 2x, 4x, 8x, and 16x. (The picture quality displayed becomes successively lower.) • To reduce zoom → Move the zoom lever toward W side. • Move zoom position → Press . Current zoom position ●Playback zoom cannot be used during motion picture playback, automatic scrolling playback of...

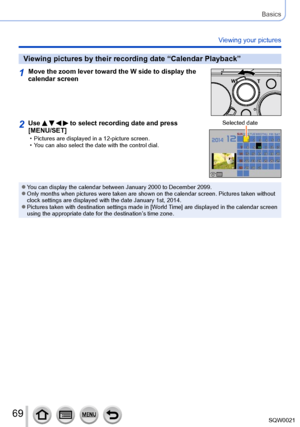

Page 69
![Page 69
69SQW0021
Basics
Viewing your pictures
Viewing pictures by their recording date “Calendar Playback”
1Move the zoom lever toward the W side to display the
calendar screen
2Use to select recording date and press
[MENU/SET]
• Pictures are displayed in a 12-picture screen. • You can also select the date with the control dial. Selected date
●You can display the calendar between January 2000 to December 2099. ●Only months when pictures were taken are shown on the calendar screen. Pictures taken without...](http://img.usermanuals.tech/thumb/58/64835/w300_dmc-lx100_adv_en_om_d-68.png "Page 69
69SQW0021
Basics
Viewing your pictures
Viewing pictures by their recording date “Calendar Playback”
1Move the zoom lever toward the W side to display the
calendar screen
2Use to select recording date and press
[MENU/SET]
• Pictures are displayed in a 12-picture screen. • You can also select the date with the control dial. Selected date
●You can display the calendar between January 2000 to December 2099. ●Only months when pictures were taken are shown on the calendar screen. Pictures taken without...")
69SQW0021 Basics Viewing your pictures Viewing pictures by their recording date “Calendar Playback” 1Move the zoom lever toward the W side to display the calendar screen 2Use to select recording date and press [MENU/SET] • Pictures are displayed in a 12-picture screen. • You can also select the date with the control dial. Selected date ●You can display the calendar between January 2000 to December 2099. ●Only months when pictures were taken are shown on the calendar screen. Pictures taken without...

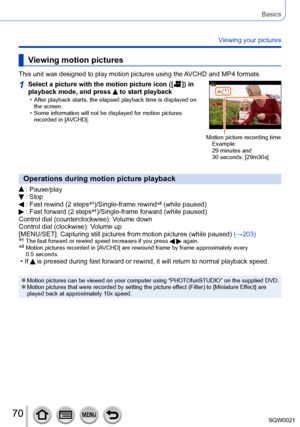

Page 70
![Page 70
70SQW0021
Basics
Viewing your pictures
Viewing motion pictures
This unit was designed to play motion pictures using the AVCHD and MP4 formats.
1Select a picture with the motion picture icon ([ ]) in
playback mode, and press to start playback • After playback starts, the elapsed playback time is displayed on
the screen.
• Some information will not be displayed for motion pictures recorded in [AVCHD].
Motion picture recording time Example:
29 minutes and
30
seconds: [29m30s]
Operations during...](http://img.usermanuals.tech/thumb/58/64835/w300_dmc-lx100_adv_en_om_d-69.png "Page 70
70SQW0021
Basics
Viewing your pictures
Viewing motion pictures
This unit was designed to play motion pictures using the AVCHD and MP4 formats.
1Select a picture with the motion picture icon ([ ]) in
playback mode, and press to start playback • After playback starts, the elapsed playback time is displayed on
the screen.
• Some information will not be displayed for motion pictures recorded in [AVCHD].
Motion picture recording time Example:
29 minutes and
30
seconds: [29m30s]
Operations during...")
70SQW0021 Basics Viewing your pictures Viewing motion pictures This unit was designed to play motion pictures using the AVCHD and MP4 formats. 1Select a picture with the motion picture icon ([ ]) in playback mode, and press to start playback • After playback starts, the elapsed playback time is displayed on the screen. • Some information will not be displayed for motion pictures recorded in [AVCHD]. Motion picture recording time Example: 29 minutes and 30 seconds: [29m30s] Operations during...
