Preparations
Using the [Setup] menu
- 41 -VQT4J11
 • For the setting procedures of the menu. (→ 25)

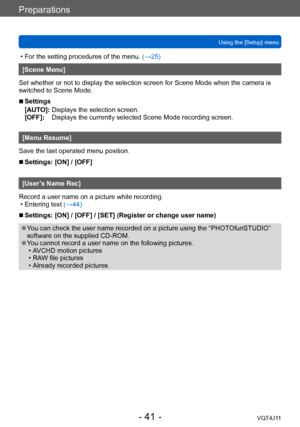

[Scene Menu]
Set whether or not to display the selection screen for Scene Mode when the camera is
switched to Scene Mode.
 ■Settings
[AUTO]:
Displays the selection scree

n.
[OFF]:

Displays

the currently selected Scene Mode recording screen.
[Menu Resume]
Save the last operated menu position.
 ■Settings: [ON] / [OFF]
[User’s Name Rec]
Record a user name on a picture while recording.
 •...

Preparations
Using the [Setup] menu
- 42 -VQT4J11
 • For the setting procedures of the menu. (→ 25)

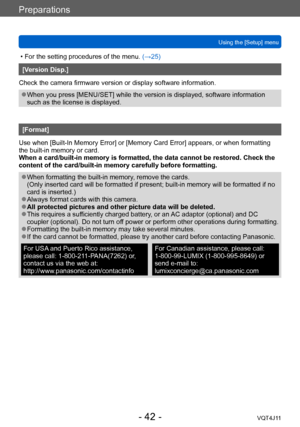

[Version Disp.]
Check the camera firmware version or display software information.
 ●When you press [MENU/SET] while the version is displayed, software information
such as the license is displayed.
[Format]
Use when [Built-In Memory Error] or [Memory Card Error] appears, or when formatting
the built-in memory or card.
When a card/built-in memory is formatted, the data cannot be restored. Check the...

Preparations
Using the [Setup] menu
- 43 -VQT4J11
 • For the setting procedures of the menu. (→ 25)
[Language]
Change display language.
Set the language displayed on the screen.
[Demo Mode]
[Stabilizer Demo.]: Extent of jitter is shown on graph (Guide)
Extent of jitter
Extent of jitter after correction
 ●During demo screen display, the Optical Image Stabilizer switches ON and OFF every
time [MENU/SET] is pressed.
 ●Cannot display during playback mode.
[Auto Demo]: View introductory Slide Show...

Preparations
Entering Text
- 44 -VQT4J11
Use the cursor button to enter names with the Face Recognition function and in Scene
Modes [Baby] and [Pet], or to register locations in [Travel Date] etc.
Use cursor button to select characters
Press [MENU/SET] until the desired character is displayed
Cursor position
Text is inserted at the cursor position. • To change the character type
→ Select
, and press [MENU/SET].
 ■Editing text
  Use cursor button to select   and press [MENU/SET]. Then, move the...

Application (Record)
Sequence of operations
- 45 -VQT4J11
Before using the camera, remove the lens cap.
Turn on the power
Status indicator illuminated for
approx.  1 second.
Rotate the mode dial to select the
recording mode
Align the mode dial correctly to
the mode that you want to use.
Use the zoom lever to adjust
the range of the picture to be
captured
Capture a
wider area
(wide-angle)Enlarge the
subject
(telephoto)
Application (Record)
Status indicator
(Continued on the next page)

Application (Record)
Sequence of operations
- 46 -VQT4J11

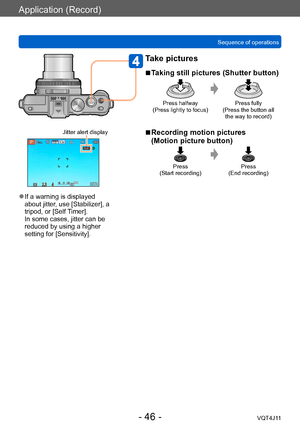

Take pictures
 ■Taking still pictures (Shutter button)
Press halfway
(Press lightly to focus)Press fully
(Press the button all  the way to record)
 ■Recording motion pictures
(Motion picture button)
Press
(Start recording) Press
(End recording)
Jitter alert display
 ●If a warning is displayed
about jitter, use [Stabilizer], a
tripod, or [Self Timer].
In some cases, jitter can be
reduced by using a higher
setting for [Sensitivity].

Application (Record)
Sequence of operations
- 47 -VQT4J11

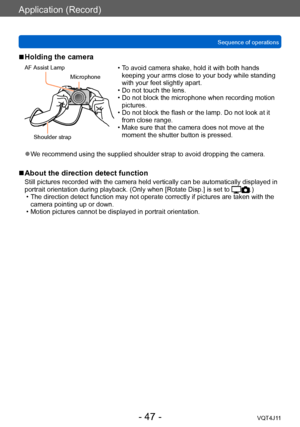

 ■Holding the camera
AF Assist Lamp
Shoulder strap
Microphone
 • To avoid camera shake, hold it with both hands keeping your arms close to your body while standing
with your feet slightly apart.
 • Do not touch the lens. • Do not block the microphone when recording motion  pictures.
 • Do not block the flash or the lamp. Do not look at it from close range.
 • Make sure that the camera does not move at the moment the shutter button is pressed....

Application (Record)

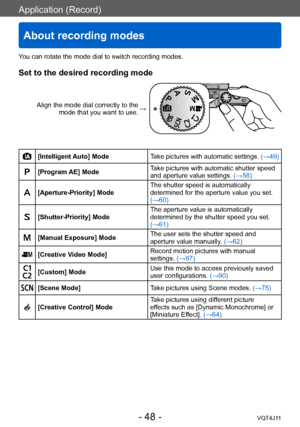

About recording modes
- 48 -VQT4J11
You can rotate the mode dial to switch recording modes.
Set to the desired recording mode
Align the mode dial correctly to the mode that you want to use. →
[Intelligent Auto] Mode
Take pictures with automatic settings. (→49)
[Program AE] Mode Take pictures with automatic shutter speed
and aperture value settings.
(→58)
[Aperture-Priority] Mode The shutter speed is automatically
determined for the aperture value you set.
(→60)
[Shutter-Priority]...

Application (Record)

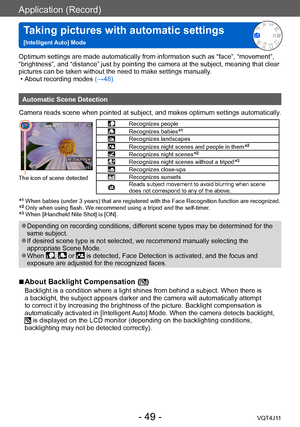

Taking pictures with automatic settings
[Intelligent Auto] Mode
- 49 -VQT4J11
Optimum settings are made automatically from information such as “face”, “movement”,
“brightness”, and “distance” just by pointing the camera at the subject, meaning that clear
pictures can be taken without the need to make settings manually.
 • About recording modes (→

48)
Automatic Scene Detection
Camera reads scene when pointed at subject, and makes optimum settings automatically .
The icon of...

Application (Record)
Taking pictures with automatic settings  [Intelligent Auto] Mode
- 50 -VQT4J11

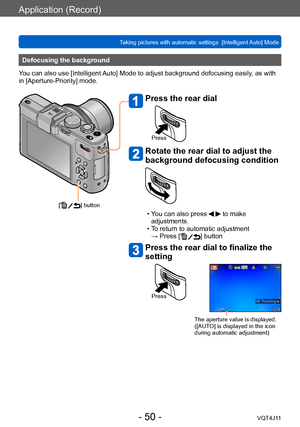

Defocusing the background
You can also use [Intelligent Auto] Mode to adjust background defocusing easily, as with
in [Aperture-Priority] mode.
Press the rear dial
Press
Rotate the rear dial to adjust the
background defocusing condition
 • You can also press   to make
adjustments.
 • T

o return to automatic adjustment
→ Press [
] button
Press the rear dial to finalize the
setting
Press
The aperture...
