- 21 -
Preparation
∫About the display of the number of recordable pictures and available recording time
∫ Number of recordable pictures
•
[ i 99999] is displayed if there are more than 100,000 pictures remaining.
Quality [ A]
∫ Available recording time (when recording motion pictures)
•
“h” is an abbreviation for hour, “m” for minute and “s” for second.
•The recordable time is the total time of all the motion pictures which have been recorded.
•Motion pictures can be recorded continuously up to 2 GB.
The...

- 22 -
Preparation
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.•Before turning on the camera, remove the lens cap.
1Press camera [ON/OFF] button.
•If the language select screen is not displayed,
proceed to step
4.
2Press [MENU/SET].
3Press 3/4 to select the language, and press [MENU/SET].
4Press [MENU/SET].
5Press 2/1 to select the items (year, month,
day, hour, minute, display sequence or time
display format), and press  3/4 to set.
A: Time at the home area
B : Time...

- 23 -
Preparation
Select [Clock Set] on the [Setup] menu and then press [MENU/SET]. (P38)
•The clock can be reset as shown in steps 5 and 6.•The clock setting is maintained for about 120 hours using the built-in clock battery even
without the battery.
(Leave the charged battery in the unit for about 2 hours to charge the built-in battery.)
•If the clock is not set, the correct date cannot be printed when you order a photo studio to print the
picture, or when you stamp the dat e on the pictures with...

- 24 -
Preparation
Tips for taking good pictures
When the Jitter alert [ ] appears, use [Stabilizer] (P86), a tripod or the Self-timer (P55) .
•Shutter speed will be slower particularly in the following cases. Keep the camera still from the
moment the shutter button is pressed until the picture appears on the screen.
–Slow sync./Red-Eye Reduction
–[Night Portrait]/[Night Scenery]/[Starry Sky] (Scene Mode)
Hold the camera gently with both hands, keep
your arms still at your side and stand with
your...

- 25 -
Basic

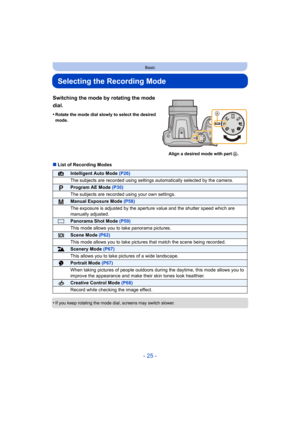

Selecting the Recording Mode
∫List of Recording Modes
•
If you keep rotating the mode dial, screens may switch slower.
Switching the mode by rotating the mode
dial.
•Rotate the mode dial slowly to select the desired
mode. Align a desired mode with part A.
¦Intelligent Auto Mode (P26)
The subjects are recorded using settings automatically selected by the camera.
Program AE Mode  (P30)
The subjects are recorded using your own settings.
Manual Exposure Mode  (P58)
The exposure is adjusted by...

- 26 -
Basic
Taking pictures using the automatic function
(Intelligent Auto Mode)
Recording Mode:
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the settings
to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene Detection–Backlight Compensation
–Intelligent ISO sensitivity control–Auto White Balance
–Face...

- 27 -
Basic
2Press the shutter button halfway to focus.
•The focus indication A (green) lights when the subject is
focused.
•The AF area  B is displayed around the subject’s face by
the Face Detection function. In other cases, it is displayed
at the point on the subject which is in focus.
• The minimal distance (how close you can be to the  subject) will change depending on the zoom factor.
Please check with the recordable range display on the
screen.
 (P31)•If you press  3 while [AF Tracking] is...

- 28 -
Basic
When the camera identifies the optimum scene, the icon of the scene concerned is displayed in
blue for 2 seconds, after which its color changes to the usual red.
When taking pictures
•
[¦] is set if none of the scenes are applicable, and the standard settings are set.•When [ ] or [ ] is selected, the camera automatically detects a person’s face, and it will adjust
the focus and exposure. (Face Detection)
•Due to conditions such as the ones below, a different scene may be identified for the...

- 29 -
Basic
Following menus can be set.
•
For the setting method of the menu, refer to P38.
¢ Available settings may be differ ent from other Recording Modes.
Press [ ] to open the flash.
•When [ ] is selected, [ ], [ ], [ ] or [ ] is set depending on the type of subject and
brightness.
•When [ ], [ ] is set, [Red-Eye Removal] is enabled.•Shutter speed will be slower during [ ] or [ ].
Changing the settings
MenuItem
[Rec] [Picture Size]
¢/[Burst]¢
[Motion Picture][Rec Quality]
[Setup] [Online...

- 30 -
Basic
Taking Pictures with Your Favorite Settings
(Program AE Mode)
Recording Mode:
The camera automatically sets the shutter speed and the aperture value according to the
brightness of the subject.
You can take pictures with greater freedom by changing various settings in the [Rec] menu.
1Set the mode dial to [ ].
2Aim the AF area at the point you want to focus on.
3Press the shutter button halfway to focus and
then press it fully to take the picture.
AISO sensitivity
B Aperture value
C...
