Panasonic Digital Camera Dmc Lz7 Operating Instructions

Preparation
11VQT1C39

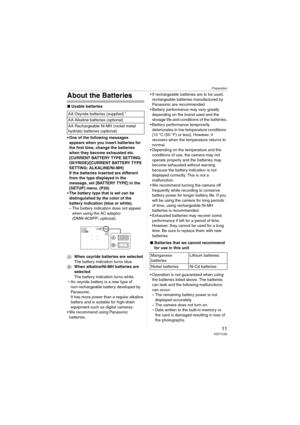

About the Batteries
∫Usable batteries
 One of the following messages
appears when you insert batteries for
the first time, change the batteries
when they become exhausted etc.
[CURRENT BATTERY TYPE SETTING:
OXYRIDE]/[CURRENT BATTERY TYPE
SETTING: ALKALINE/Ni-MH]
If the batteries inserted are different
from the type displayed in the
message, set [BATTERY TYPE] in the
[SETUP] menu. (P20)
 The battery type that is set can be
distinguished by the color of the
battery...

Preparation
12VQT1C39

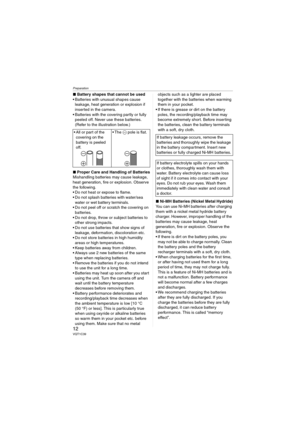

∫Battery shapes that cannot be used
 Batteries with unusual shapes cause
leakage, heat generation or explosion if
inserted in the camera.
 Batteries with the covering partly or fully
peeled off. Never use these batteries.
(Refer to the illustration below.)
∫Proper Care and Handling of Batteries
Mishandling batteries may cause leakage,
heat generation, fire or explosion. Observe
the following.
 Do not heat or expose to flame.
 Do not splash batteries with water/sea
water or...

Preparation
13VQT1C39

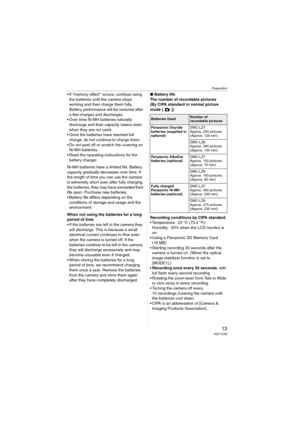

 If “memory effect” occurs, continue using
the batteries until the camera stops
working and then charge them fully.
Battery performance will be restored after
a few charges and discharges.
 Over time Ni-MH batteries naturally
discharge and their capacity lowers even
when they are not used.
 Once the batteries have reached full
charge, do not continue to charge them.
 Do not peel off or scratch the covering on
Ni-MH batteries.
 Read the operating instructions for the...

Preparation
14VQT1C39

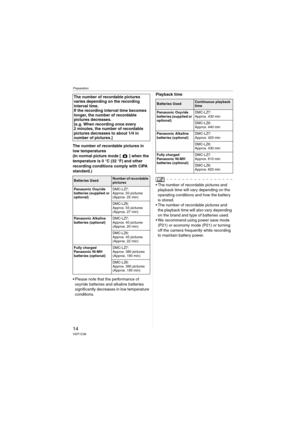

The number of recordable pictures in
low temperatures
(In normal picture mode [ ] when the
temperature is 0 °C (32 °F) and other
recording conditions comply with CIPA
standard.)
 Please note that the performance of
oxyride batteries and alkaline batteries
significantly decreases in low temperature
conditions.Playback time
 The number of recordable pictures and
playback time will vary depending on the
operating conditions and how the battery
is stored.
 The number of...

Preparation
15VQT1C39

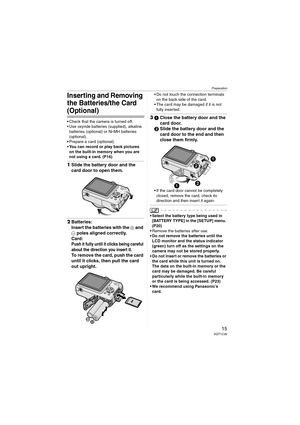

Inserting and Removing
the Batteries/the Card
(Optional)
 Check that the camera is turned off.
 Use oxyride batteries (supplied), alkaline
batteries (optional) or Ni-MH batteries
(optional).
 Prepare a card (optional).
 You can record or play back pictures
on the built-in memory when you are
not using a card. (P16)
1Slide the battery door and the
card door to open them.
2Batteries:
Insert the batteries with the
+ and
- poles aligned correctly.
Card:
Push it fully until it...

Preparation
16VQT1C39

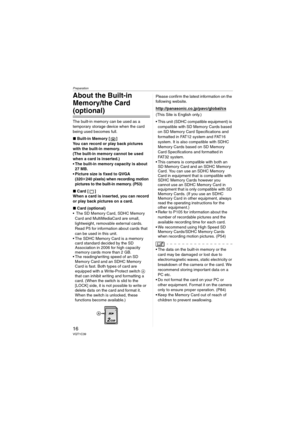

About the Built-in
Memory/the Card
(optional)
The built-in memory can be used as a
temporary storage device when the card
being used becomes full.
∫Built-in Memory [ ]
You can record or play back pictures
with the built-in memory.
(The built-in memory cannot be used
when a card is inserted.)
 The built-in memory capacity is about
27 MB.
 Picture size is fixed to QVGA
(320k240 pixels) when recording motion
pictures to the built-in memory. (P53)
∫Card [ ]
When a card is...

Preparation
17VQT1C39

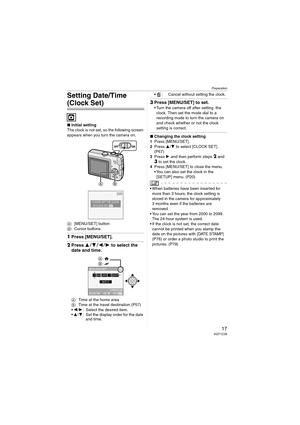

Setting Date/Time
(Clock Set)
∫Initial setting
The clock is not set, so the following screen
appears when you turn the camera on.
A: [MENU/SET] button
B: Cursor buttons
1Press [MENU/SET].
2Press 3421 to select the
date and time.
A: Time at the home area
B: Time at the travel destination (P57)
2/1: Select the desired item
.3/4: Set the display order for the date
and time. :     Cancel without setting the clock.
3Press [MENU/SET] to set.
 Turn the camera off after setting  the...

Preparation
18VQT1C39

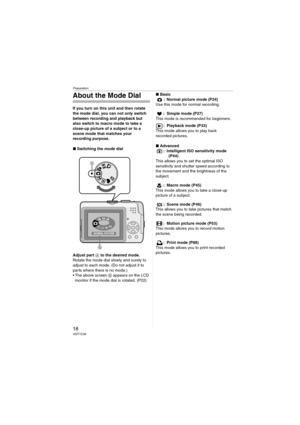

About the Mode Dial
If you turn on this unit and then rotate
the mode dial, you can not only switch
between recording and playback but
also switch to macro mode to take a
close-up picture of a subject or to a
scene mode that matches your
recording purpose.
∫Switching the mode dial
Adjust part A to the desired mode.
Rotate the mode dial slowly and surely to
adjust to each mode. (Do not adjust it to
parts where there is no mode.)
 The above screen B appears on the LCD...

Preparation
19VQT1C39

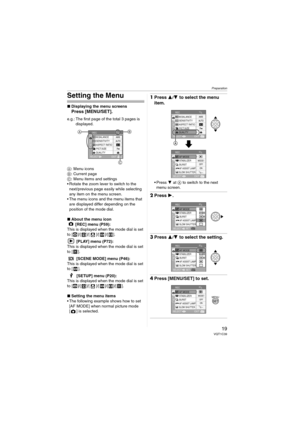

Setting the Menu
∫Displaying the menu screens
Press [MENU/SET].
e.g.: The first page of the total 3 pages is
displayed.
A: Menu icons
B: Current page
C: Menu items and settings
 Rotate the zoom lever to switch to the
next/previous page easily while selecting
any item on the menu screen.
 The menu icons and the menu items that
are displayed differ depending on the
position of the mode dial.
∫About the menu icon

[REC] menu (P59):
This is displayed when the mode dial is set
to [...

Preparation
20VQT1C39
∫Closing the menu screen
Press [MENU/SET].
 When the mode dial is set to [ ]/[ ]/
[ ]/[ ]/[ ], you can also close the
menu screen by pressing the shutter
button halfway.
∫Switching to the [SETUP] menu
1Press 2 on the menu screen.
2Press 4 to select the [SETUP]
menu icon.
3Press 1.
 Select a menu item next and set it.
About the Setup Menu
 Set items as required. (Refer to P20  to 22
for each menu item.)
 Select [RESET] to return the settings to the
initial settings at the time...
