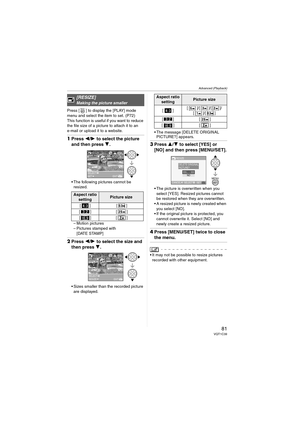

Advanced (Playback)
81VQT1C39
Press [ ] to display the [PLAY] mode
menu and select the item to set. (P72)
This function is useful if you want to reduce
the file size of a picture to attach it to an
e-mail or upload it to a website.
1Press 2/1 to select the picture
and then press 4.
 The following pictures cannot be
resized.
– Motion pictures
– Pictures stamped with
[DATE STAMP]
2Press 2/1 to select the size and
then press 4.
 Sizes smaller than the recorded picture
are displayed. The message...

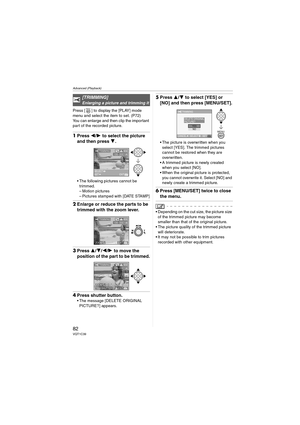

Advanced (Playback)
82VQT1C39
Press [ ] to display the [PLAY] mode
menu and select the item to set. (P72)
You can enlarge and then clip the important
part of the recorded picture.
1Press 2/1 to select the picture
and then press 4.
 The following pictures cannot be
trimmed.
– Motion pictures
– Pictures stamped with [DATE STAMP]
2Enlarge or reduce the parts to be
trimmed with the zoom lever.
3Press 3/4/2/1 to move the
position of the part to be trimmed.
4Press shutter button.
 The message [DELETE...

Advanced (Playback)
83VQT1C39
Press [ ] to display the [PLAY] mode
menu and select the item to set. (P72)
You can copy recorded picture data from
the built-in memory to a card or vice versa.
1Press 3/4 to select the copy
destination and then press
[MENU/SET].

All the picture data in the built-in
memory are copied onto the card at
one time. > step
3
One picture at a time is copied from the
card to the built-in memory. > step
2
2Press 2/1 to select the picture
and then press 4.
(Only when   is...

Advanced (Playback)
84VQT1C39
Press [ ] to display the [PLAY] mode
menu and select the item to set. (P72)
Usually, it is not necessary to format the
built-in memory and the card. Format them
when the message [BUILT-IN MEMORY
ERROR] or [MEMORY CARD ERROR]
appears.
Press 3 to select [YES] and then
press [MENU/SET].
(The illustration shows the screen when
the built-in memory is formatted.)
 When a card is not inserted, you can
format the built-in memory. When a
card is inserted, you can format the...

Connecting to other equipment
85VQT1C39

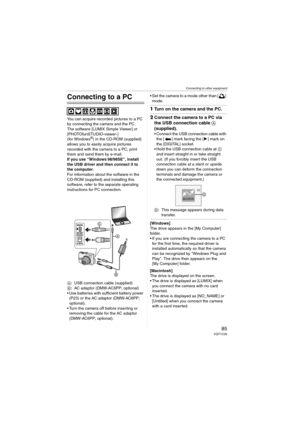

Connecting to other equipment
Connecting to a PC
You can acquire recorded pictures to a PC
by connecting the camera and the PC.
The software [LUMIX Simple Viewer] or
[PHOTOfunSTUDIO-viewer-]
(for Windows
®) in the CD-ROM (supplied)
allows you to easily acquire pictures
recorded with the camera to a PC, print
them and send them by e-mail.
If you use “Windows
 98/98SE”, install
the USB driver and then connect it to
the computer.
For information about the...

Connecting to other equipment

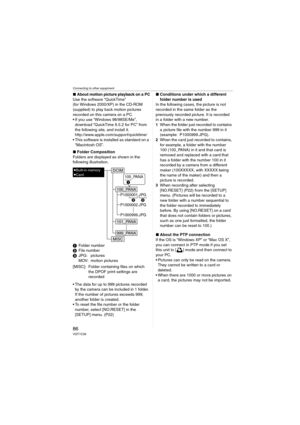

86VQT1C39
∫About motion picture playback on a PC
Use the software “QuickTime”
(for Windows 2000/XP) in the CD-ROM
(supplied) to play back motion pictures
recorded on this camera on a PC.
 If you use “Windows 98/98SE/Me”,
download “QuickTime 6.5.2 for PC” from
the following site, and install it.
http://www.apple.com/support/quicktime/
 This software is installed as standard on a
“Macintosh OS”.
∫Folder Composition
Folders are displayed as shown in the
following...

Connecting to other equipment
87VQT1C39
 Do not use any other USB connection
cables except the supplied one.
 Do not disconnect the USB connection
cable while [ACCESS] is displayed.
 When there are many pictures on the
built-in memor y or a card, it may take
some time to transfer them.
 It may not be possible to playback the
motion pictures on the built-in memory or
a card normally when this unit and the PC
are connected. Import the motion picture
files to the PC and then play them back.
 If...

Connecting to other equipment
88VQT1C39

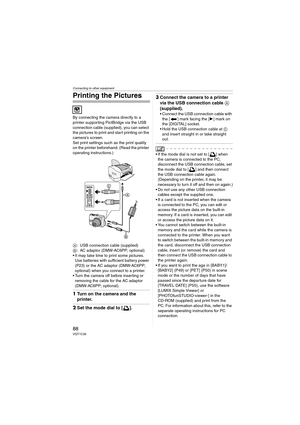

Printing the Pictures
By connecting the camera directly to a
printer supporting PictBridge via the USB
connection cable (supplied), you can select
the pictures to print and start printing on the
camera’s screen.
Set print settings such as the print quality
on the printer beforehand. (Read the printer
operating instructions.)
A: USB connection cable (supplied)
B: AC adaptor (DMW-AC6PP; optional)
 It may take time to print some pictures.
Use batteries with...

Connecting to other equipment

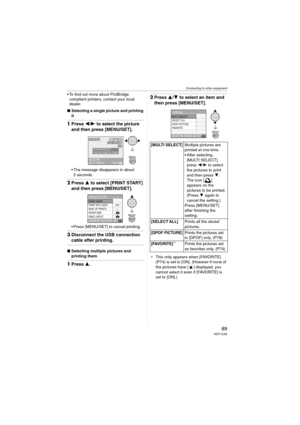

89VQT1C39
 To find out more about PictBridge
compliant printers, contact your local
dealer.
∫Selecting a single picture and printing
it
1Press 2/1 to select the picture
and then press [MENU/SET].
 The message disappears in about
2 seconds.
2Press 3 to select [PRINT START]
and then press [MENU/SET].
 Press [MENU/SET] to cancel printing.
3Disconnect the USB connection
cable after printing.
∫Selecting multiple pictures and
printing them
1Press 3.
2Press 3/4 to select an...

Connecting to other equipment

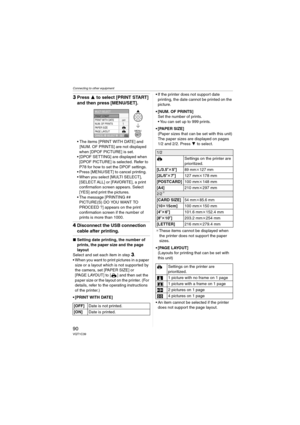

90VQT1C39
3Press 3 to select [PRINT START]
and then press [MENU/SET].
 The items [PRINT WITH DATE] and
[NUM. OF PRINTS] are not displayed
when [DPOF PICTURE] is set.
 [DPOF SETTING] are displayed when
[DPOF PICTURE] is selected. Refer to
P78 for how to set the DPOF settings.
 Press [MENU/SET] to cancel printing.
 When you select [MULTI SELECT],
[SELECT ALL] or [FAVORITE], a print
confirmation screen appears. Select
[YES] and print the pictures.
 The message [PRINTING...
