Panasonic Digital Camera Dmc Sz9 Owners Manual For Advanced Features

- 71 -
Recording
Taking panorama pictures (Panorama Shot Mode)
Recording Mode:
Pictures are recorded continuously while moving the camera horizontally or vertically, and are
combined to make a single panorama picture.
1Press [MODE].
2Press 3/ 4/2/1 to select [Panorama Shot], and then press [MENU/SET].
3Press 3/ 4 to select the recording direction and then
press [MENU/SET].
4Press 3/ 4 to select image effects and then press
[MENU/SET].
•You can add the same image effect as the Creative Control Mode...

- 72 -
Recording
7Press the shutter button fully and record a picture while moving the
camera in a small circle in the direction selected in Step
3.
8Press the shutter button once again to end the still picture recording.
•Recording can also be ended by keeping the camera still while recording.
∫Technique for Panorama Shot Mode Recording from left to right
Move the camera in a single panning motion for about 8 seconds.•Move the camera at a constant speed.
Pictures may not be able to be recorded...

- 73 -
Recording

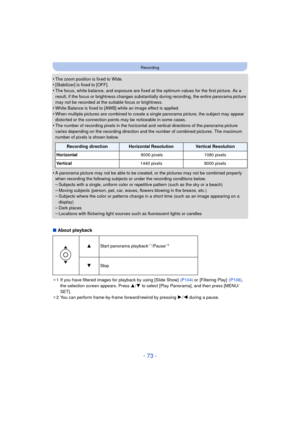

•The zoom position is fixed to Wide.•[Stabilizer] is fixed to [OFF].•The focus, white balance, and exposure are fixed at the optimum values for the first picture. As a
result, if the focus or brightness changes substantially during recording, the entire panorama picture
may not be recorded at the suitable focus or brightness.
•White Balance is fixed to [AWB] while an image effect is applied.
•When multiple pictures are combined to create a single panorama picture, the subject may...

- 74 -
Recording
Taking pictures that match the scene being
recorded
(Scene Mode)
Recording Mode:
When you select a Scene Mode to match the subject and recording situation, the camera sets
the optimal exposure and hue to obtain the desired picture.
1Press [MODE].
2Press 3/4/2/1 to select [Scene Mode], and then press [MENU/SET].
3Press 3/ 4/2/1 to select the Scene Mode and then
press [MENU/SET].
•To change the Scene Mode, press [MENU/SET], select [Scene Mode] using  3/4/ 2/1, and then
press...

- 75 -
Recording
When taking pictures of people outdoors during the daytime, this mode allows you to improve
the appearance and make their skin tones look healthier.
∫ Technique for Portrait Mode
To make this mode more effective:
1 Rotate the zoom lever as far as possible to Tele.
2 Move close to the subject to make this mode more effective.
When taking pictures of people outdoors during the  daytime, this mode enables the texture of
their skin to appear even softer than with [Portrai t]. (It is...

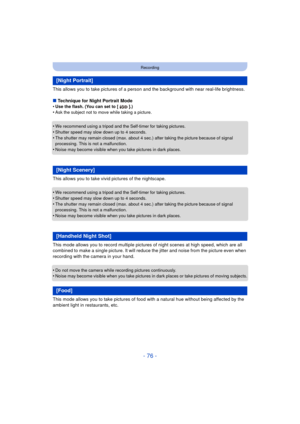

- 76 -
Recording
This allows you to take pictures of a person and the background with near real-life brightness.
∫ Technique for Night Portrait Mode
•
Use the flash. (You can set to [ ].)•Ask the subject not to move while taking a picture.
•We recommend using a tripod and the Self-timer for taking pictures.•Shutter speed may slow down up to 4 seconds.
•The shutter may remain closed (max. about 4 sec.) after taking the picture because of signal
processing. This is not a malfunction.
•Noise may become...

- 77 -
Recording
This takes pictures of a baby with a healthy complexion. When you use the flash, the light from
it is weaker than usual.
It is possible to set different birthdays and names for [Baby1] and [Baby2]. You can select to
have these appear at the time of playback, or have them stamped on the recorded image using
[Text Stamp]  (P116).
∫ Birthday/Name setting
1Press  3/4  to select [Age] or [Name] and then press  [MENU/SET].2Press  3/4  to select [SET] and then press [MENU/SET].3Enter the...

- 78 -
Recording

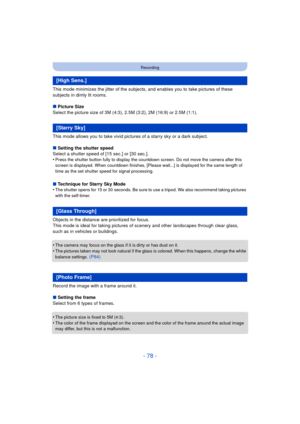

This mode minimizes the jitter of the subjects, and enables you to take pictures of these
subjects in dimly lit rooms.
∫Picture Size
Select the picture size of 3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1).
This mode allows you to take vivid pictures of a starry sky or a dark subject.
∫ Setting the shutter speed
Select a shutter speed of [15 sec.] or [30 sec.].
•
Press the shutter button fully to display the countdown screen. Do not move the camera after this
screen is displayed. When...

- 79 -
Recording
Pictures are recorded continuously while moving the camera horizontally, and two pictures
selected automatically are combined to make a single 3D picture.
To view 3D pictures, a television that supports 3D is required. (This unit will play back in 2D)
Refer to P174 for details about the playback method.
∫ Technique for 3D Photo Mode
Start the recording and then slide the camera horizontally
straight from left to right.
•
A guide is displayed while recording.
•Move the camera...

- 80 -
Recording
Entering Text
It is possible to enter babies’ and pets’ names and the locations when
recording. When a screen that looks like the one on the right is displayed,
you can enter characters. (Only alphabetical characters and symbols can
be entered.)
1Press 3/ 4/2/1 to select text and then press [MENU/SET] to register.
•Move the cursor to [ ] and then press [MENU/SET] to switch text between [A] (capitals), [a]
(lower case), [1] (numbers) and [&] (special characters).
•To enter the same...
