Page 41

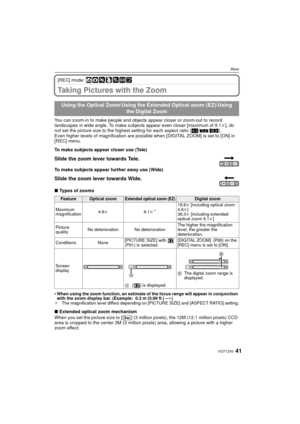

![Page 41
41VQT1Z45
Basic
[REC] mode: ñ· ¿¨
Taking Pictures with the Zoom
You can zoom-in to make people and objects appear closer or zoom-out to record
landscapes in wide angle. To make subjects appear even closer [maximum of 9.1k], do
not set the picture size to the highest setting for each aspect ratio ( X/Y /W ).
Even higher levels of magnification are possible when [DIGITAL ZOOM] is set to [ON] in
[REC] menu.
∫ Types of zooms
•
When using the zoom function, an estimate of the focus range will appear in...](http://img.usermanuals.tech/thumb/58/66176/w300_dmc-ts1_en_om_d-40.png "Page 41
41VQT1Z45
Basic
[REC] mode: ñ· ¿¨
Taking Pictures with the Zoom
You can zoom-in to make people and objects appear closer or zoom-out to record
landscapes in wide angle. To make subjects appear even closer [maximum of 9.1k], do
not set the picture size to the highest setting for each aspect ratio ( X/Y /W ).
Even higher levels of magnification are possible when [DIGITAL ZOOM] is set to [ON] in
[REC] menu.
∫ Types of zooms
•
When using the zoom function, an estimate of the focus range will appear in...")
41VQT1Z45 Basic [REC] mode: ñ· ¿¨ Taking Pictures with the Zoom You can zoom-in to make people and objects appear closer or zoom-out to record landscapes in wide angle. To make subjects appear even closer [maximum of 9.1k], do not set the picture size to the highest setting for each aspect ratio ( X/Y /W ). Even higher levels of magnification are possible when [DIGITAL ZOOM] is set to [ON] in [REC] menu. ∫ Types of zooms • When using the zoom function, an estimate of the focus range will appear in...
Page 42
![Page 42
VQT1Z4542
Basic
Note
•The digital zoom cannot be set when õ, or ¨ has been selected.•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended optical Zoom”.•The optical zoom is set to Wide (1 k) when the camera is turned on.•If you use the zoom function after focusing on the subject, focus on the subject again.•When using the digital zoom, [STABILIZER] may not be effective.•When using the digital zoom, we recommend using a tripod and the self-timer (P54) for taking...](http://img.usermanuals.tech/thumb/58/66176/w300_dmc-ts1_en_om_d-41.png "Page 42
VQT1Z4542
Basic
Note
•The digital zoom cannot be set when õ, or ¨ has been selected.•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended optical Zoom”.•The optical zoom is set to Wide (1 k) when the camera is turned on.•If you use the zoom function after focusing on the subject, focus on the subject again.•When using the digital zoom, [STABILIZER] may not be effective.•When using the digital zoom, we recommend using a tripod and the self-timer (P54) for taking...")
VQT1Z4542 Basic Note •The digital zoom cannot be set when õ, or ¨ has been selected.•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended optical Zoom”.•The optical zoom is set to Wide (1 k) when the camera is turned on.•If you use the zoom function after focusing on the subject, focus on the subject again.•When using the digital zoom, [STABILIZER] may not be effective.•When using the digital zoom, we recommend using a tripod and the self-timer (P54) for taking...
Page 43

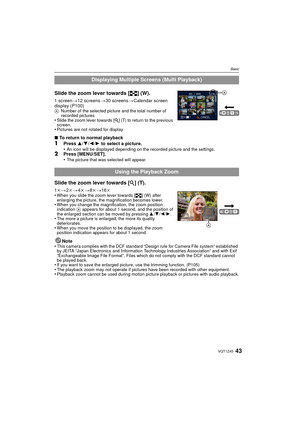

![Page 43
43VQT1Z45
Basic
Slide the zoom lever towards [L] (W).
1 screen >12 screens >30 screens >Calendar screen
display (P100)
A Number of the selected picture and the total number of
recorded pictures
•Slide the zoom lever towards [ Z] (T) to return to the previous
screen.
•Pictures are not rotated for display.
∫ To return to normal playback1Press 3/4/2 /1 to select a picture.
•An icon will be displayed depending on the recorded picture and the settings.2Press [MENU/SET].
•The picture that was selected...](http://img.usermanuals.tech/thumb/58/66176/w300_dmc-ts1_en_om_d-42.png "Page 43
43VQT1Z45
Basic
Slide the zoom lever towards [L] (W).
1 screen >12 screens >30 screens >Calendar screen
display (P100)
A Number of the selected picture and the total number of
recorded pictures
•Slide the zoom lever towards [ Z] (T) to return to the previous
screen.
•Pictures are not rotated for display.
∫ To return to normal playback1Press 3/4/2 /1 to select a picture.
•An icon will be displayed depending on the recorded picture and the settings.2Press [MENU/SET].
•The picture that was selected...")
43VQT1Z45 Basic Slide the zoom lever towards [L] (W). 1 screen >12 screens >30 screens >Calendar screen display (P100) A Number of the selected picture and the total number of recorded pictures •Slide the zoom lever towards [ Z] (T) to return to the previous screen. •Pictures are not rotated for display. ∫ To return to normal playback1Press 3/4/2 /1 to select a picture. •An icon will be displayed depending on the recorded picture and the settings.2Press [MENU/SET]. •The picture that was selected...
Page 44

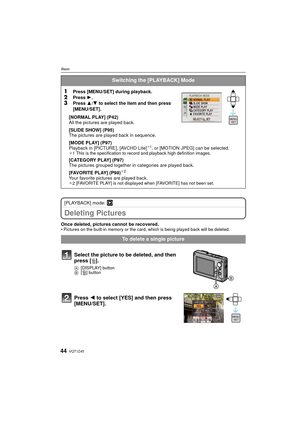

![Page 44
VQT1Z4544
Basic
[PLAYBACK] mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which is being played back will be deleted.
Switching the [PLAYBACK] Mode
1
Press [MENU/SET] during playback.
2Press 1.3Press 3/4 to select the item and then press
[MENU/SET].
[NORMAL PLAY] (P42)
All the pictures are played back.
[SLIDE SHOW] (P95)
The pictures are played back in sequence.
[MODE PLAY] (P97)
Playback in [PICTURE], [AVCHD Lite]
¢ 1, or [MOTION...](http://img.usermanuals.tech/thumb/58/66176/w300_dmc-ts1_en_om_d-43.png "Page 44
VQT1Z4544
Basic
[PLAYBACK] mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which is being played back will be deleted.
Switching the [PLAYBACK] Mode
1
Press [MENU/SET] during playback.
2Press 1.3Press 3/4 to select the item and then press
[MENU/SET].
[NORMAL PLAY] (P42)
All the pictures are played back.
[SLIDE SHOW] (P95)
The pictures are played back in sequence.
[MODE PLAY] (P97)
Playback in [PICTURE], [AVCHD Lite]
¢ 1, or [MOTION...")
VQT1Z4544 Basic [PLAYBACK] mode: ¸ Deleting Pictures Once deleted, pictures cannot be recovered. •Pictures on the built-in memory or the card, which is being played back will be deleted. Switching the [PLAYBACK] Mode 1 Press [MENU/SET] during playback. 2Press 1.3Press 3/4 to select the item and then press [MENU/SET]. [NORMAL PLAY] (P42) All the pictures are played back. [SLIDE SHOW] (P95) The pictures are played back in sequence. [MODE PLAY] (P97) Playback in [PICTURE], [AVCHD Lite] ¢ 1, or [MOTION...
Page 45

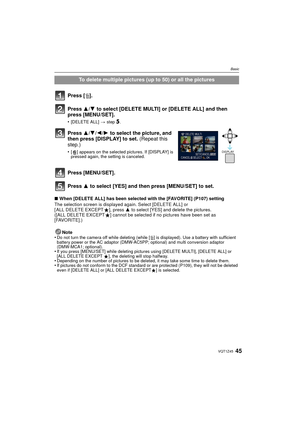

![Page 45
45VQT1Z45
Basic
∫When [DELETE ALL] has been selected with the [FAVORITE] (P107) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with sufficient
battery power or the AC adaptor (DMW-AC5PP; optional) and multi conversion adaptor...](http://img.usermanuals.tech/thumb/58/66176/w300_dmc-ts1_en_om_d-44.png "Page 45
45VQT1Z45
Basic
∫When [DELETE ALL] has been selected with the [FAVORITE] (P107) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with sufficient
battery power or the AC adaptor (DMW-AC5PP; optional) and multi conversion adaptor...")
45VQT1Z45 Basic ∫When [DELETE ALL] has been selected with the [FAVORITE] (P107) setting The selection screen is displayed again. Select [DELETE ALL] or [ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures. ([ALL DELETE EXCEPT Ü] cannot be selected if no pictures have been set as [FAVORITE].) Note • Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with sufficient battery power or the AC adaptor (DMW-AC5PP; optional) and multi conversion adaptor...
Page 46

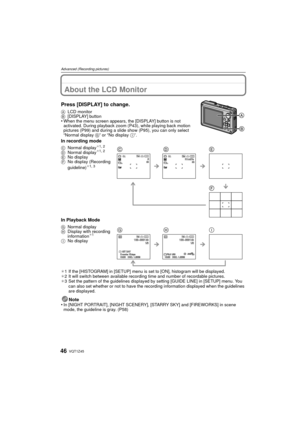

![Page 46
VQT1Z4546
Advanced (Recording pictures)
Advanced (Recording pictures)About the LCD Monitor
Press [DISPLAY] to change.
ALCD monitor
B [DISPLAY] button
•When the menu screen appears, the [DISPLAY] button is not
activated. During playback zoom (P43), while playing back motion
pictures (P99) and during a slide show (P95), you can only select
“Normal display G” or “No display I”.
In recording mode
In Playback Mode
¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON], histogram will be displayed.
¢ 2 It...](http://img.usermanuals.tech/thumb/58/66176/w300_dmc-ts1_en_om_d-45.png "Page 46
VQT1Z4546
Advanced (Recording pictures)
Advanced (Recording pictures)About the LCD Monitor
Press [DISPLAY] to change.
ALCD monitor
B [DISPLAY] button
•When the menu screen appears, the [DISPLAY] button is not
activated. During playback zoom (P43), while playing back motion
pictures (P99) and during a slide show (P95), you can only select
“Normal display G” or “No display I”.
In recording mode
In Playback Mode
¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON], histogram will be displayed.
¢ 2 It...")
VQT1Z4546 Advanced (Recording pictures) Advanced (Recording pictures)About the LCD Monitor Press [DISPLAY] to change. ALCD monitor B [DISPLAY] button •When the menu screen appears, the [DISPLAY] button is not activated. During playback zoom (P43), while playing back motion pictures (P99) and during a slide show (P95), you can only select “Normal display G” or “No display I”. In recording mode In Playback Mode ¢1 If the [HISTOGRAM] in [SETUP] menu is set to [ON], histogram will be displayed. ¢ 2 It...

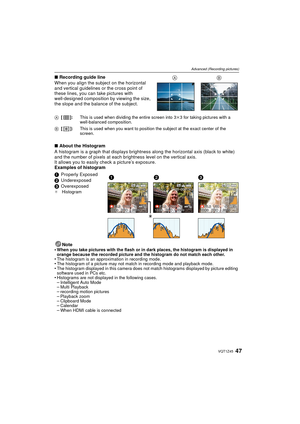

Page 47
47VQT1Z45 Advanced (Recording pictures) ∫Recording guide line When you align the subject on the horizontal and vertical guidelines or the cross point of these lines, you can take pictures with well-designed composition by viewing the size, the slope and the balance of the subject. ∫ About the Histogram A histogram is a graph that displays brightness along the horizontal axis (black to white) and the number of pixels at each br ightness level on the vertical axis. It allows you to easily c heck a...
Page 48

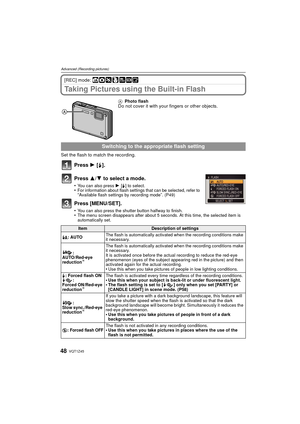

![Page 48
VQT1Z4548
Advanced (Recording pictures)
[REC] mode: ñ· ¿¨
Taking Pictures using the Built-in Flash
Set the flash to match the recording.
Press 1 [‰].
Press 3/ 4 to select a mode.
•You can also press 1 [‰ ] to select.•For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P49)
Press [MENU/SET].
•You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is...](http://img.usermanuals.tech/thumb/58/66176/w300_dmc-ts1_en_om_d-47.png "Page 48
VQT1Z4548
Advanced (Recording pictures)
[REC] mode: ñ· ¿¨
Taking Pictures using the Built-in Flash
Set the flash to match the recording.
Press 1 [‰].
Press 3/ 4 to select a mode.
•You can also press 1 [‰ ] to select.•For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P49)
Press [MENU/SET].
•You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is...")
VQT1Z4548 Advanced (Recording pictures) [REC] mode: ñ· ¿¨ Taking Pictures using the Built-in Flash Set the flash to match the recording. Press 1 [‰]. Press 3/ 4 to select a mode. •You can also press 1 [‰ ] to select.•For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P49) Press [MENU/SET]. •You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is...

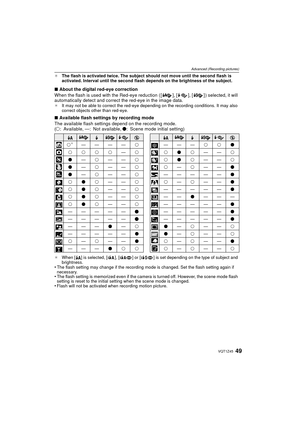

Page 49
![Page 49
49VQT1Z45
Advanced (Recording pictures)
¢The flash is activated twice. The subject should not move until the second flash is
activated. Interval until the second flash depends on the brightness of the subject.
∫About the digital red-eye correction
When the flash is used with the Red-eye reduction ( [ ], [ ], [ ] ) selected, it will
automatically detect and correct the red-eye in the image data.
¢ It may not be able to correct the red-eye depending on the recording conditions. It may also
correct...](http://img.usermanuals.tech/thumb/58/66176/w300_dmc-ts1_en_om_d-48.png "Page 49
49VQT1Z45
Advanced (Recording pictures)
¢The flash is activated twice. The subject should not move until the second flash is
activated. Interval until the second flash depends on the brightness of the subject.
∫About the digital red-eye correction
When the flash is used with the Red-eye reduction ( [ ], [ ], [ ] ) selected, it will
automatically detect and correct the red-eye in the image data.
¢ It may not be able to correct the red-eye depending on the recording conditions. It may also
correct...")
49VQT1Z45 Advanced (Recording pictures) ¢The flash is activated twice. The subject should not move until the second flash is activated. Interval until the second flash depends on the brightness of the subject. ∫About the digital red-eye correction When the flash is used with the Red-eye reduction ( [ ], [ ], [ ] ) selected, it will automatically detect and correct the red-eye in the image data. ¢ It may not be able to correct the red-eye depending on the recording conditions. It may also correct...
Page 50

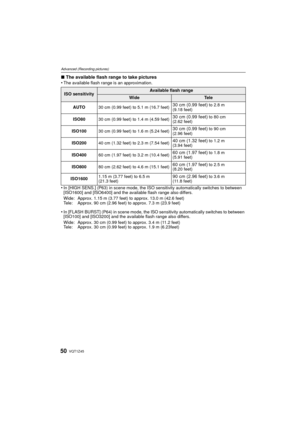

![Page 50
VQT1Z4550
Advanced (Recording pictures)
∫The available flash range to take pictures
•The available flash range is an approximation.
•In [HIGH SENS.] (P63) in scene mode, the ISO sensitivity automatically switches to between
[ISO1600] and [ISO6400] and the available flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to approx. 13.0 m (42.6 feet)
Tele: Approx. 90 cm (2.96 feet) to approx. 7.3 m (23.9 feet)
•In [FLASH BURST] (P64) in scene mode, the ISO sensitivity automatically switches to between...](http://img.usermanuals.tech/thumb/58/66176/w300_dmc-ts1_en_om_d-49.png "Page 50
VQT1Z4550
Advanced (Recording pictures)
∫The available flash range to take pictures
•The available flash range is an approximation.
•In [HIGH SENS.] (P63) in scene mode, the ISO sensitivity automatically switches to between
[ISO1600] and [ISO6400] and the available flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to approx. 13.0 m (42.6 feet)
Tele: Approx. 90 cm (2.96 feet) to approx. 7.3 m (23.9 feet)
•In [FLASH BURST] (P64) in scene mode, the ISO sensitivity automatically switches to between...")
VQT1Z4550 Advanced (Recording pictures) ∫The available flash range to take pictures •The available flash range is an approximation. •In [HIGH SENS.] (P63) in scene mode, the ISO sensitivity automatically switches to between [ISO1600] and [ISO6400] and the available flash range also differs. Wide: Approx. 1.15 m (3.77 feet) to approx. 13.0 m (42.6 feet) Tele: Approx. 90 cm (2.96 feet) to approx. 7.3 m (23.9 feet) •In [FLASH BURST] (P64) in scene mode, the ISO sensitivity automatically switches to between...
