Page 21

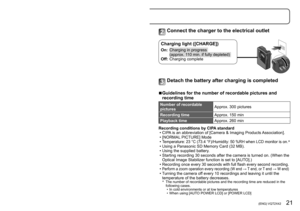

20 VQT2X42 (ENG) (ENG) VQT2X42 21 Charging the battery ■About batteries that you can use with this unit The battery that can be used with this unit is DMW-BCH7PP. It has been found that counterfeit battery packs which look very similar to the genuine products are made available to purchase in some markets. Some of these battery packs are not adequately protected with internal protection to meet the requirements of appropriate safety standards. There is a possibility that these battery packs may...
Page 22

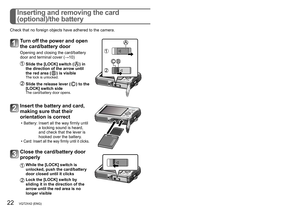

22 VQT2X42 (ENG) (ENG) VQT2X42 23 Inserting and removing the card (optional)/the battery ■ To remove •To remove battery: move lever in direction of arrow . •To remove card: press down in center . Lever ●Always use genuine Panasonic batteries (DMW-BCH7PP). ●If you use other batteries, we cannot guarantee the quality of this product. ●The card may be damaged if it is not fully inserted. Picture save destination (cards and built-in memory) ■Built-in memory (approx. 40 MB) ●The built-in memory can...
Page 23

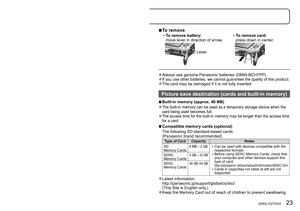

22 VQT2X42 (ENG) (ENG) VQT2X42 23 Inserting and removing the card (optional)/the battery ■ To remove •To remove battery: move lever in direction of arrow . •To remove card: press down in center . Lever ●Always use genuine Panasonic batteries (DMW-BCH7PP). ●If you use other batteries, we cannot guarantee the quality of this product. ●The card may be damaged if it is not fully inserted. Picture save destination (cards and built-in memory) ■Built-in memory (approx. 40 MB) ●The built-in memory can...
Page 24
![Page 24
24 VQT2X42 (ENG) (ENG) VQT2X42 25
Setting the menu
Setting the Clock
Refer to the procedure example below when operating the [SETUP]
menu, [REC] menu and [PLAYBACK] menu.
Example:
Setting [LCD MODE] from [OFF] to in the [NORMAL
PICTURE] Mode
Press [MENU/SET] to display the menu
Switching to the [SETUP] menu
1 Press ◄.
2
Press ▼ to select the [SETUP] menu
icon [ ].
3
Press ►.
• Select a menu item next and set it.
Press ▲▼ to select [LCD MODE]
and then press ►
• Depending on the item,...](http://img.usermanuals.tech/thumb/58/66174/w300_dmc-ts10_en_om_d-23.png "Page 24
24 VQT2X42 (ENG) (ENG) VQT2X42 25
Setting the menu
Setting the Clock
Refer to the procedure example below when operating the [SETUP]
menu, [REC] menu and [PLAYBACK] menu.
Example:
Setting [LCD MODE] from [OFF] to in the [NORMAL
PICTURE] Mode
Press [MENU/SET] to display the menu
Switching to the [SETUP] menu
1 Press ◄.
2
Press ▼ to select the [SETUP] menu
icon [ ].
3
Press ►.
• Select a menu item next and set it.
Press ▲▼ to select [LCD MODE]
and then press ►
• Depending on the item,...")

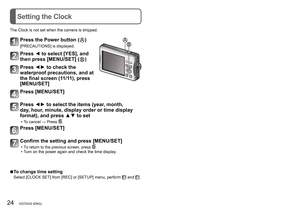

24 VQT2X42 (ENG) (ENG) VQT2X42 25 Setting the menu Setting the Clock Refer to the procedure example below when operating the [SETUP] menu, [REC] menu and [PLAYBACK] menu. Example: Setting [LCD MODE] from [OFF] to in the [NORMAL PICTURE] Mode Press [MENU/SET] to display the menu Switching to the [SETUP] menu 1 Press ◄. 2 Press ▼ to select the [SETUP] menu icon [ ]. 3 Press ►. • Select a menu item next and set it. Press ▲▼ to select [LCD MODE] and then press ► • Depending on the item,...
Page 25
![Page 25
24 VQT2X42 (ENG) (ENG) VQT2X42 25
Setting the menu
Setting the Clock
Refer to the procedure example below when operating the [SETUP]
menu, [REC] menu and [PLAYBACK] menu.
Example:
Setting [LCD MODE] from [OFF] to in the [NORMAL
PICTURE] Mode
Press [MENU/SET] to display the menu
Switching to the [SETUP] menu
1 Press ◄.
2
Press ▼ to select the [SETUP] menu
icon [ ].
3
Press ►.
• Select a menu item next and set it.
Press ▲▼ to select [LCD MODE]
and then press ►
• Depending on the item,...](http://img.usermanuals.tech/thumb/58/66174/w300_dmc-ts10_en_om_d-24.png "Page 25
24 VQT2X42 (ENG) (ENG) VQT2X42 25
Setting the menu
Setting the Clock
Refer to the procedure example below when operating the [SETUP]
menu, [REC] menu and [PLAYBACK] menu.
Example:
Setting [LCD MODE] from [OFF] to in the [NORMAL
PICTURE] Mode
Press [MENU/SET] to display the menu
Switching to the [SETUP] menu
1 Press ◄.
2
Press ▼ to select the [SETUP] menu
icon [ ].
3
Press ►.
• Select a menu item next and set it.
Press ▲▼ to select [LCD MODE]
and then press ►
• Depending on the item,...")

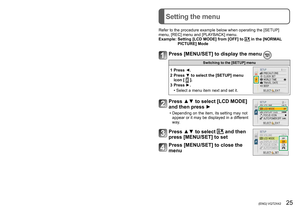

24 VQT2X42 (ENG) (ENG) VQT2X42 25 Setting the menu Setting the Clock Refer to the procedure example below when operating the [SETUP] menu, [REC] menu and [PLAYBACK] menu. Example: Setting [LCD MODE] from [OFF] to in the [NORMAL PICTURE] Mode Press [MENU/SET] to display the menu Switching to the [SETUP] menu 1 Press ◄. 2 Press ▼ to select the [SETUP] menu icon [ ]. 3 Press ►. • Select a menu item next and set it. Press ▲▼ to select [LCD MODE] and then press ► • Depending on the item,...
Page 26
![Page 26
26 VQT2X42 (ENG) (ENG) VQT2X42 27
Taking pictures with automatic settings[INTELLIGENT AUTO] Mode
Recording Mode:
Optimum settings are made automatically from information such as ‘face,’
‘movement,’ ‘brightness,’ and ‘distance’ just by pointing the camera at
the subject, meaning that clear pictures can be taken without the need to
make settings manually.
Press the Power button ()
The power is turned on.
Press button ()
Take pictures
: Shutter button
Press halfway
(press lightly and focus) Press...](http://img.usermanuals.tech/thumb/58/66174/w300_dmc-ts10_en_om_d-25.png "Page 26
26 VQT2X42 (ENG) (ENG) VQT2X42 27
Taking pictures with automatic settings[INTELLIGENT AUTO] Mode
Recording Mode:
Optimum settings are made automatically from information such as ‘face,’
‘movement,’ ‘brightness,’ and ‘distance’ just by pointing the camera at
the subject, meaning that clear pictures can be taken without the need to
make settings manually.
Press the Power button ()
The power is turned on.
Press button ()
Take pictures
: Shutter button
Press halfway
(press lightly and focus) Press...")
26 VQT2X42 (ENG) (ENG) VQT2X42 27 Taking pictures with automatic settings[INTELLIGENT AUTO] Mode Recording Mode: Optimum settings are made automatically from information such as ‘face,’ ‘movement,’ ‘brightness,’ and ‘distance’ just by pointing the camera at the subject, meaning that clear pictures can be taken without the need to make settings manually. Press the Power button () The power is turned on. Press button () Take pictures : Shutter button Press halfway (press lightly and focus) Press...

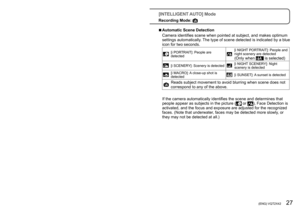

Page 27
![Page 27
26 VQT2X42 (ENG) (ENG) VQT2X42 27
Taking pictures with automatic settings[INTELLIGENT AUTO] Mode
Recording Mode:
Optimum settings are made automatically from information such as ‘face,’
‘movement,’ ‘brightness,’ and ‘distance’ just by pointing the camera at
the subject, meaning that clear pictures can be taken without the need to
make settings manually.
Press the Power button ()
The power is turned on.
Press button ()
Take pictures
: Shutter button
Press halfway
(press lightly and focus) Press...](http://img.usermanuals.tech/thumb/58/66174/w300_dmc-ts10_en_om_d-26.png "Page 27
26 VQT2X42 (ENG) (ENG) VQT2X42 27
Taking pictures with automatic settings[INTELLIGENT AUTO] Mode
Recording Mode:
Optimum settings are made automatically from information such as ‘face,’
‘movement,’ ‘brightness,’ and ‘distance’ just by pointing the camera at
the subject, meaning that clear pictures can be taken without the need to
make settings manually.
Press the Power button ()
The power is turned on.
Press button ()
Take pictures
: Shutter button
Press halfway
(press lightly and focus) Press...")
26 VQT2X42 (ENG) (ENG) VQT2X42 27 Taking pictures with automatic settings[INTELLIGENT AUTO] Mode Recording Mode: Optimum settings are made automatically from information such as ‘face,’ ‘movement,’ ‘brightness,’ and ‘distance’ just by pointing the camera at the subject, meaning that clear pictures can be taken without the need to make settings manually. Press the Power button () The power is turned on. Press button () Take pictures : Shutter button Press halfway (press lightly and focus) Press...
Page 28
![Page 28
28 VQT2X42 (ENG) (ENG) VQT2X42 29
Taking motion pictures [MOTION PICTURE] Mode
Recording Mode: Selecting the Recording Mode
Record motion picture with audio as follows. (Note that recording without
audio is not possible.)
Press the [MODE] button
Press ▲ or ▼ to select [MOTION PICTURE] Mode
Press [MENU/SET]
Start recording
Elapsed recording time
Remaining recording time
(approx.)
Press halfway
(adjust the focus)Press fully
(start recording)
End recording
Press fully
●The focus and zoom will remain...](http://img.usermanuals.tech/thumb/58/66174/w300_dmc-ts10_en_om_d-27.png "Page 28
28 VQT2X42 (ENG) (ENG) VQT2X42 29
Taking motion pictures [MOTION PICTURE] Mode
Recording Mode: Selecting the Recording Mode
Record motion picture with audio as follows. (Note that recording without
audio is not possible.)
Press the [MODE] button
Press ▲ or ▼ to select [MOTION PICTURE] Mode
Press [MENU/SET]
Start recording
Elapsed recording time
Remaining recording time
(approx.)
Press halfway
(adjust the focus)Press fully
(start recording)
End recording
Press fully
●The focus and zoom will remain...")

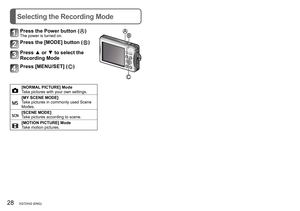

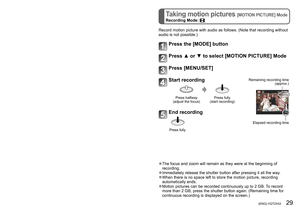

28 VQT2X42 (ENG) (ENG) VQT2X42 29 Taking motion pictures [MOTION PICTURE] Mode Recording Mode: Selecting the Recording Mode Record motion picture with audio as follows. (Note that recording without audio is not possible.) Press the [MODE] button Press ▲ or ▼ to select [MOTION PICTURE] Mode Press [MENU/SET] Start recording Elapsed recording time Remaining recording time (approx.) Press halfway (adjust the focus)Press fully (start recording) End recording Press fully ●The focus and zoom will remain...
Page 29
![Page 29
28 VQT2X42 (ENG) (ENG) VQT2X42 29
Taking motion pictures [MOTION PICTURE] Mode
Recording Mode: Selecting the Recording Mode
Record motion picture with audio as follows. (Note that recording without
audio is not possible.)
Press the [MODE] button
Press ▲ or ▼ to select [MOTION PICTURE] Mode
Press [MENU/SET]
Start recording
Elapsed recording time
Remaining recording time
(approx.)
Press halfway
(adjust the focus)Press fully
(start recording)
End recording
Press fully
●The focus and zoom will remain...](http://img.usermanuals.tech/thumb/58/66174/w300_dmc-ts10_en_om_d-28.png "Page 29
28 VQT2X42 (ENG) (ENG) VQT2X42 29
Taking motion pictures [MOTION PICTURE] Mode
Recording Mode: Selecting the Recording Mode
Record motion picture with audio as follows. (Note that recording without
audio is not possible.)
Press the [MODE] button
Press ▲ or ▼ to select [MOTION PICTURE] Mode
Press [MENU/SET]
Start recording
Elapsed recording time
Remaining recording time
(approx.)
Press halfway
(adjust the focus)Press fully
(start recording)
End recording
Press fully
●The focus and zoom will remain...")
28 VQT2X42 (ENG) (ENG) VQT2X42 29 Taking motion pictures [MOTION PICTURE] Mode Recording Mode: Selecting the Recording Mode Record motion picture with audio as follows. (Note that recording without audio is not possible.) Press the [MODE] button Press ▲ or ▼ to select [MOTION PICTURE] Mode Press [MENU/SET] Start recording Elapsed recording time Remaining recording time (approx.) Press halfway (adjust the focus)Press fully (start recording) End recording Press fully ●The focus and zoom will remain...
Page 30
![Page 30
30 VQT2X42 (ENG) (ENG) VQT2X42 31
Reading the Operating Instructions
(PDF format)
Viewing your pictures [NORMAL PLAY]
Playback Mode:
Deleting pictures
Playback Mode:
Press the Playback button ()
Press ◄► to select the picture
●To play back a motion picture, select an image with ◄ or ►, and then
press ▲ to start playback.
Deleted pictures cannot be recovered.
Press the (Delete) button ()
to delete the displayed picture
Press ◄ to select [YES] and
then press [MENU/SET] (
)
• You have practiced...](http://img.usermanuals.tech/thumb/58/66174/w300_dmc-ts10_en_om_d-29.png "Page 30
30 VQT2X42 (ENG) (ENG) VQT2X42 31
Reading the Operating Instructions
(PDF format)
Viewing your pictures [NORMAL PLAY]
Playback Mode:
Deleting pictures
Playback Mode:
Press the Playback button ()
Press ◄► to select the picture
●To play back a motion picture, select an image with ◄ or ►, and then
press ▲ to start playback.
Deleted pictures cannot be recovered.
Press the (Delete) button ()
to delete the displayed picture
Press ◄ to select [YES] and
then press [MENU/SET] (
)
• You have practiced...")

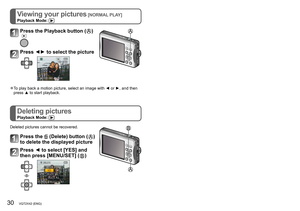

30 VQT2X42 (ENG) (ENG) VQT2X42 31 Reading the Operating Instructions (PDF format) Viewing your pictures [NORMAL PLAY] Playback Mode: Deleting pictures Playback Mode: Press the Playback button () Press ◄► to select the picture ●To play back a motion picture, select an image with ◄ or ►, and then press ▲ to start playback. Deleted pictures cannot be recovered. Press the (Delete) button () to delete the displayed picture Press ◄ to select [YES] and then press [MENU/SET] ( ) • You have practiced...
