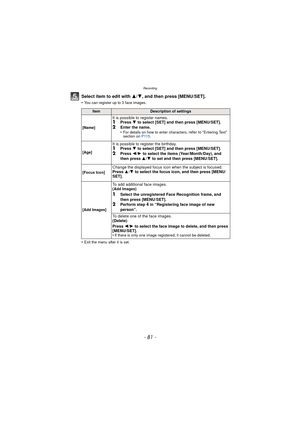

Page 81
![Page 81
Recording
- 81 -
Select item to edit with 3/4, and then press [MENU/SET].
•You can register up to 3 face images.
•Exit the menu after it is set.
ItemDescription of settings
[Name]
It is possible to register names.1Press 4 to select [SET] and then press [MENU/SET].2Enter the name.
•For details on how to enter characters, refer to “Entering Text”
section on P115.
[Age]
It is possible to register the birthday.1Press 4 to select [SET] and then press [MENU/SET].
2Press 2/1 to select the items...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-80.png "Page 81
Recording
- 81 -
Select item to edit with 3/4, and then press [MENU/SET].
•You can register up to 3 face images.
•Exit the menu after it is set.
ItemDescription of settings
[Name]
It is possible to register names.1Press 4 to select [SET] and then press [MENU/SET].2Enter the name.
•For details on how to enter characters, refer to “Entering Text”
section on P115.
[Age]
It is possible to register the birthday.1Press 4 to select [SET] and then press [MENU/SET].
2Press 2/1 to select the items...")
Recording - 81 - Select item to edit with 3/4, and then press [MENU/SET]. •You can register up to 3 face images. •Exit the menu after it is set. ItemDescription of settings [Name] It is possible to register names.1Press 4 to select [SET] and then press [MENU/SET].2Enter the name. •For details on how to enter characters, refer to “Entering Text” section on P115. [Age] It is possible to register the birthday.1Press 4 to select [SET] and then press [MENU/SET]. 2Press 2/1 to select the items...

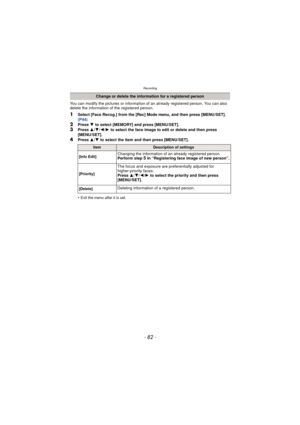

Page 82
![Page 82
- 82 -
Recording
You can modify the pictures or information of an already registered person. You can also
delete the information of the registered person.
1Select [Face Recog.] from the [Rec] Mode menu, and then press [MENU/SET].
(P44)
2Press 4 to select [MEMORY] and press [MENU/SET].
3Press 3/4 /2 /1 to select the face image to edit or delete and then press
[MENU/SET].
4Press 3/4 to select the item and then press [MENU/SET].
•
Exit the menu after it is set.
Change or delete the information for a...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-81.png "Page 82
- 82 -
Recording
You can modify the pictures or information of an already registered person. You can also
delete the information of the registered person.
1Select [Face Recog.] from the [Rec] Mode menu, and then press [MENU/SET].
(P44)
2Press 4 to select [MEMORY] and press [MENU/SET].
3Press 3/4 /2 /1 to select the face image to edit or delete and then press
[MENU/SET].
4Press 3/4 to select the item and then press [MENU/SET].
•
Exit the menu after it is set.
Change or delete the information for a...")
- 82 - Recording You can modify the pictures or information of an already registered person. You can also delete the information of the registered person. 1Select [Face Recog.] from the [Rec] Mode menu, and then press [MENU/SET]. (P44) 2Press 4 to select [MEMORY] and press [MENU/SET]. 3Press 3/4 /2 /1 to select the face image to edit or delete and then press [MENU/SET]. 4Press 3/4 to select the item and then press [MENU/SET]. • Exit the menu after it is set. Change or delete the information for a...

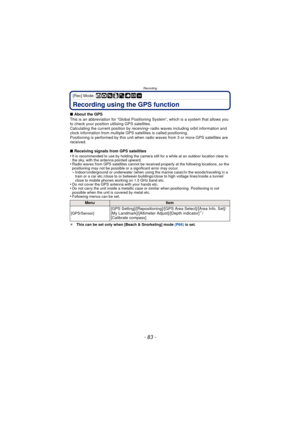

Page 83
![Page 83
Recording
- 83 -
[Rec] Mode: ñ· ¿
Recording using the GPS function
∫About the GPS
This is an abbreviation for “Global Positioning System”, which is a system that allows you
to check your position utilising GPS satellites.
Calculating the current position by receiving
radio waves including orbit information and
clock information from multiple GPS satellites is called positioning.
Positioning is performed by this unit when radio waves from 3 or more GPS satellites are
received.
∫ Receiving signals...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-82.png "Page 83
Recording
- 83 -
[Rec] Mode: ñ· ¿
Recording using the GPS function
∫About the GPS
This is an abbreviation for “Global Positioning System”, which is a system that allows you
to check your position utilising GPS satellites.
Calculating the current position by receiving
radio waves including orbit information and
clock information from multiple GPS satellites is called positioning.
Positioning is performed by this unit when radio waves from 3 or more GPS satellites are
received.
∫ Receiving signals...")
Recording - 83 - [Rec] Mode: ñ· ¿ Recording using the GPS function ∫About the GPS This is an abbreviation for “Global Positioning System”, which is a system that allows you to check your position utilising GPS satellites. Calculating the current position by receiving radio waves including orbit information and clock information from multiple GPS satellites is called positioning. Positioning is performed by this unit when radio waves from 3 or more GPS satellites are received. ∫ Receiving signals...

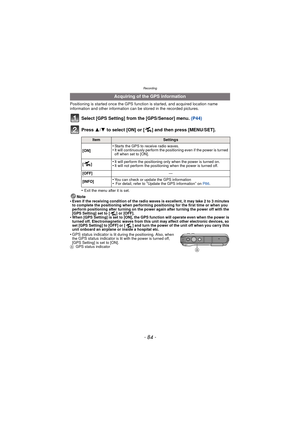

Page 84
![Page 84
- 84 -
Recording
Positioning is started once the GPS function is started, and acquired location name
information and other information can be stored in the recorded pictures.
Select [GPS Setting] from the [GPS/Sensor] menu. (P44)
Press 3/4 to select [ON] or [ ] and then press [MENU/SET].
•Exit the menu after it is set.
Note
•Even if the receiving condition of the radio waves is excellent, it may take 2 to 3 minutes
to complete the positioning when performing positioning for the first time or when you...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-83.png "Page 84
- 84 -
Recording
Positioning is started once the GPS function is started, and acquired location name
information and other information can be stored in the recorded pictures.
Select [GPS Setting] from the [GPS/Sensor] menu. (P44)
Press 3/4 to select [ON] or [ ] and then press [MENU/SET].
•Exit the menu after it is set.
Note
•Even if the receiving condition of the radio waves is excellent, it may take 2 to 3 minutes
to complete the positioning when performing positioning for the first time or when you...")
- 84 - Recording Positioning is started once the GPS function is started, and acquired location name information and other information can be stored in the recorded pictures. Select [GPS Setting] from the [GPS/Sensor] menu. (P44) Press 3/4 to select [ON] or [ ] and then press [MENU/SET]. •Exit the menu after it is set. Note •Even if the receiving condition of the radio waves is excellent, it may take 2 to 3 minutes to complete the positioning when performing positioning for the first time or when you...

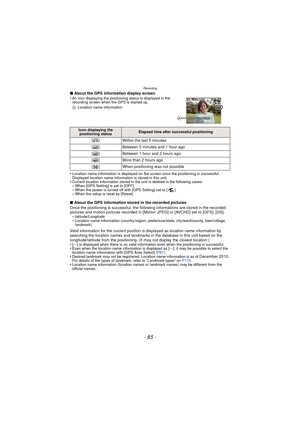

Page 85
![Page 85
Recording
- 85 -
∫About the GPS information display screen
•An icon displaying the positioning status is displayed in the
recording screen when the GPS is started up.
A Location name information
•Location name information is displayed on the screen once the positioning is successful.
Displayed location name information is stored in this unit.
•Current location information stored in the unit is deleted in the following cases:–When [GPS Setting] is set to [OFF]–When the power is turned off with [GPS...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-84.png "Page 85
Recording
- 85 -
∫About the GPS information display screen
•An icon displaying the positioning status is displayed in the
recording screen when the GPS is started up.
A Location name information
•Location name information is displayed on the screen once the positioning is successful.
Displayed location name information is stored in this unit.
•Current location information stored in the unit is deleted in the following cases:–When [GPS Setting] is set to [OFF]–When the power is turned off with [GPS...")
Recording - 85 - ∫About the GPS information display screen •An icon displaying the positioning status is displayed in the recording screen when the GPS is started up. A Location name information •Location name information is displayed on the screen once the positioning is successful. Displayed location name information is stored in this unit. •Current location information stored in the unit is deleted in the following cases:–When [GPS Setting] is set to [OFF]–When the power is turned off with [GPS...

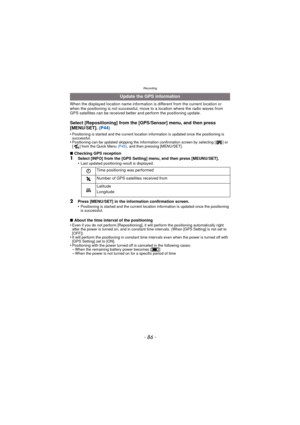

Page 86
![Page 86
- 86 -
Recording
When the displayed location name information is different from the current location or
when the positioning is not successful, move to a location where the radio waves from
GPS satellites can be received better and perform the positioning update.
Select [Repositioning] from the [GPS/Sensor] menu, and then press
[MENU/SET]. (P44)
•Positioning is started and the current location information is updated once the positioning is
successful.
•Positioning can be updated skipping the...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-85.png "Page 86
- 86 -
Recording
When the displayed location name information is different from the current location or
when the positioning is not successful, move to a location where the radio waves from
GPS satellites can be received better and perform the positioning update.
Select [Repositioning] from the [GPS/Sensor] menu, and then press
[MENU/SET]. (P44)
•Positioning is started and the current location information is updated once the positioning is
successful.
•Positioning can be updated skipping the...")
- 86 - Recording When the displayed location name information is different from the current location or when the positioning is not successful, move to a location where the radio waves from GPS satellites can be received better and perform the positioning update. Select [Repositioning] from the [GPS/Sensor] menu, and then press [MENU/SET]. (P44) •Positioning is started and the current location information is updated once the positioning is successful. •Positioning can be updated skipping the...

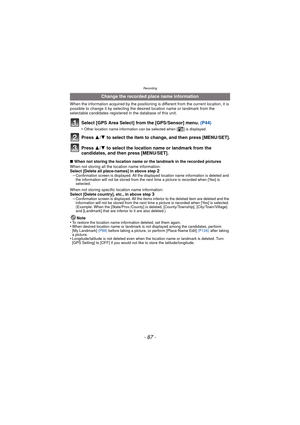

Page 87
![Page 87
Recording
- 87 -
When the information acquired by the positioning is different from the current location, it is
possible to change it by selecting the desired location name or landmark from the
selectable candidates registered in the database of this unit.
Select [GPS Area Select] from the [GPS/Sensor] menu. (P44)
•Other location name information can be selected when [ ] is displayed.
Press 3/4 to select the item to change, and then press [MENU/SET].
Press 3/4 to select the location name or landmark...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-86.png "Page 87
Recording
- 87 -
When the information acquired by the positioning is different from the current location, it is
possible to change it by selecting the desired location name or landmark from the
selectable candidates registered in the database of this unit.
Select [GPS Area Select] from the [GPS/Sensor] menu. (P44)
•Other location name information can be selected when [ ] is displayed.
Press 3/4 to select the item to change, and then press [MENU/SET].
Press 3/4 to select the location name or landmark...")
Recording - 87 - When the information acquired by the positioning is different from the current location, it is possible to change it by selecting the desired location name or landmark from the selectable candidates registered in the database of this unit. Select [GPS Area Select] from the [GPS/Sensor] menu. (P44) •Other location name information can be selected when [ ] is displayed. Press 3/4 to select the item to change, and then press [MENU/SET]. Press 3/4 to select the location name or landmark...

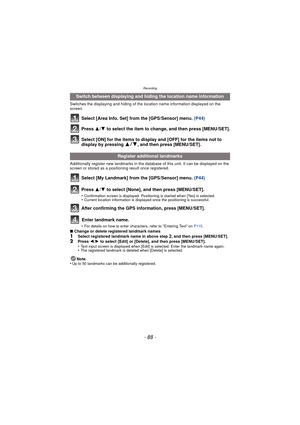

Page 88
![Page 88
- 88 -
Recording
Switches the displaying and hiding of the location name information displayed on the
screen.
Select [Area Info. Set] from the [GPS/Sensor] menu. (P44)
Press 3/4 to select the item to change, and then press [MENU/SET].
Select [ON] for the items to display and [OFF] for the items not to
display by pressing
3 4, and then press [MENU/SET].
Additionally register new landmarks in the database of this unit. It can be displayed on the
screen or stored as a positioning result once...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-87.png "Page 88
- 88 -
Recording
Switches the displaying and hiding of the location name information displayed on the
screen.
Select [Area Info. Set] from the [GPS/Sensor] menu. (P44)
Press 3/4 to select the item to change, and then press [MENU/SET].
Select [ON] for the items to display and [OFF] for the items not to
display by pressing
3 4, and then press [MENU/SET].
Additionally register new landmarks in the database of this unit. It can be displayed on the
screen or stored as a positioning result once...")
- 88 - Recording Switches the displaying and hiding of the location name information displayed on the screen. Select [Area Info. Set] from the [GPS/Sensor] menu. (P44) Press 3/4 to select the item to change, and then press [MENU/SET]. Select [ON] for the items to display and [OFF] for the items not to display by pressing 3 4, and then press [MENU/SET]. Additionally register new landmarks in the database of this unit. It can be displayed on the screen or stored as a positioning result once...

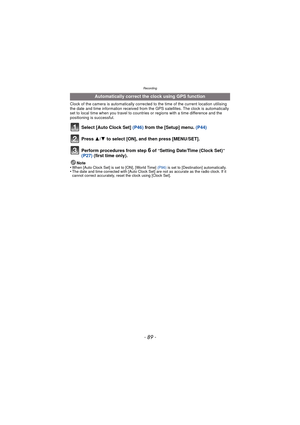

Page 89
![Page 89
Recording
- 89 -
Clock of the camera is automatically corrected to the time of the current location utilising
the date and time information received from the GPS satellites. The clock is automatically
set to local time when you travel to countries or regions with a time difference and the
positioning is successful.
Select [Auto Clock Set] (P46) from the [Setup] menu. (P44)
Press 3/4 to select [ON], and then press [MENU/SET].
Perform procedures from step
6 of “Setting Date/Time (Clock Set)”
(P27)...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-88.png "Page 89
Recording
- 89 -
Clock of the camera is automatically corrected to the time of the current location utilising
the date and time information received from the GPS satellites. The clock is automatically
set to local time when you travel to countries or regions with a time difference and the
positioning is successful.
Select [Auto Clock Set] (P46) from the [Setup] menu. (P44)
Press 3/4 to select [ON], and then press [MENU/SET].
Perform procedures from step
6 of “Setting Date/Time (Clock Set)”
(P27)...")
Recording - 89 - Clock of the camera is automatically corrected to the time of the current location utilising the date and time information received from the GPS satellites. The clock is automatically set to local time when you travel to countries or regions with a time difference and the positioning is successful. Select [Auto Clock Set] (P46) from the [Setup] menu. (P44) Press 3/4 to select [ON], and then press [MENU/SET]. Perform procedures from step 6 of “Setting Date/Time (Clock Set)” (P27)...

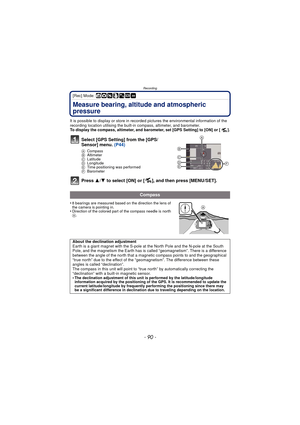

Page 90
![Page 90
- 90 -
Recording
[Rec] Mode: ñ· ¿
Measure bearing, altitude and atmospheric
pressure
It is possible to display or store in recorded pictures the environmental information of the
recording location utilising the built-in compass, altimeter, and barometer.
To display the compass, altimeter, and barometer, set [GPS Setting] to [ON] or [ ].
Select [GPS Setting] from the [GPS/
Sensor] menu. (P44)
ACompass
B Altimeter
C Latitude
D Longitude
E Time positioning was performed
F Barometer
Press 3/4 to select...](http://img.usermanuals.tech/thumb/58/66064/w300_dmc-ts3_adv_en_om_d-89.png "Page 90
- 90 -
Recording
[Rec] Mode: ñ· ¿
Measure bearing, altitude and atmospheric
pressure
It is possible to display or store in recorded pictures the environmental information of the
recording location utilising the built-in compass, altimeter, and barometer.
To display the compass, altimeter, and barometer, set [GPS Setting] to [ON] or [ ].
Select [GPS Setting] from the [GPS/
Sensor] menu. (P44)
ACompass
B Altimeter
C Latitude
D Longitude
E Time positioning was performed
F Barometer
Press 3/4 to select...")
- 90 - Recording [Rec] Mode: ñ· ¿ Measure bearing, altitude and atmospheric pressure It is possible to display or store in recorded pictures the environmental information of the recording location utilising the built-in compass, altimeter, and barometer. To display the compass, altimeter, and barometer, set [GPS Setting] to [ON] or [ ]. Select [GPS Setting] from the [GPS/ Sensor] menu. (P44) ACompass B Altimeter C Latitude D Longitude E Time positioning was performed F Barometer Press 3/4 to select...
