Panasonic Digital Camera Dmc Ts30 Basic Owners Manual

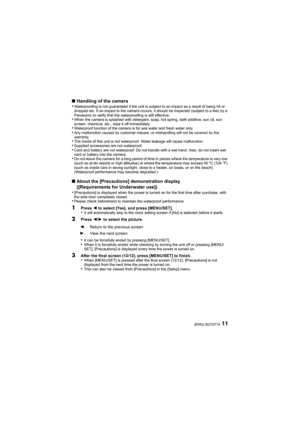

11(ENG) SQT0718
∫Handling of the camera
•Waterproofing is not guaranteed if the unit is subject to an impact as a result of being hit or
dropped etc. If an impact to the camera occurs, it should be inspected (subject to a fee) by a
Panasonic to verify that the waterproofing is still effective.
•When the camera is splashed with detergent, soap, hot spring, bath additive, sun oil, sun
screen, chemical, etc., wipe it off immediately.
•Waterproof function of the camera is for sea water and fresh water...

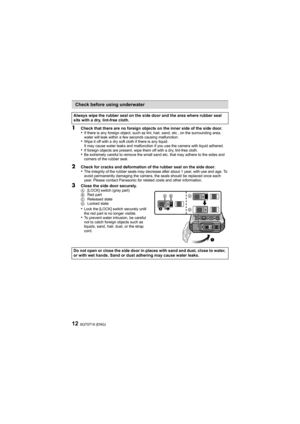

SQT0718 (ENG)12
1Check that there are no foreign objects on the inner side of the side door.•If there is any foreign object, such as lint, hair, sand, etc., on the surrounding area,
water will leak within a few seconds causing malfunction.
•Wipe it off with a dry soft cloth if there is any liquid.
It may cause water leaks and malfunction if you use the camera with liquid adhered.
•If foreign objects are present, wipe them off with a dry, lint-free cloth.•Be extremely careful to remove the small sand...

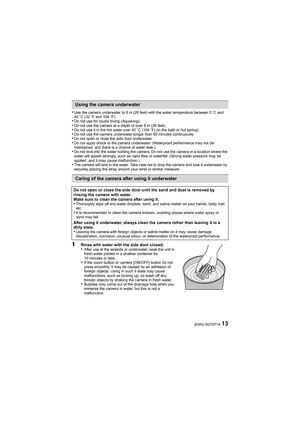

13(ENG) SQT0718
•Use the camera underwater to 8 m (26 feet) with the water temperature between 0oC and
40 oC (32 oF and 104 oF).
•Do not use for scuba diving (Aqualung).•Do not use the camera at a depth of over 8 m (26 feet).•Do not use it in the hot water over 40 oC (104oF) (in the bath or hot spring).•Do not use the camera underwater longer than 60 minutes continuo usly.•Do not open or close the side door underwater.•Do not apply shock to the camera underwater. (Waterproof performance may not be...

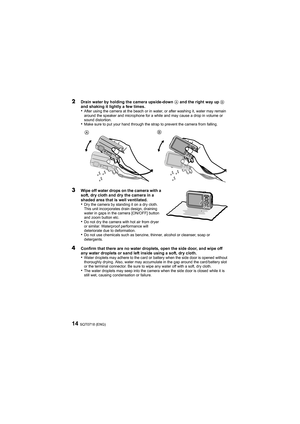

SQT0718 (ENG)14
2Drain water by holding the camera upside-down A and the right way up  B
and shaking it lightly a few times.
•After using the camera at the beach or in water, or after washi ng it, water may remain
around the speaker and microphone for a while and may cause a d rop in volume or
sound distortion.
•Make sure to put your hand through the strap to prevent the cam era from falling.
3Wipe off water drops on the camera with a
soft, dry cloth and dry the camera in a
shaded area that is well...

15(ENG) SQT0718

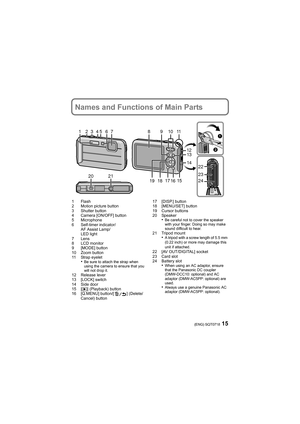

Names and Functions of Main Parts
1Flash
2 Motion picture button
3 Shutter button
4 Camera [ON/OFF] button
5 Microphone
6 Self-timer indicator/AF Assist Lamp/
LED light
7Lens
8 LCD monitor
9 [MODE] button
10 Zoom button
11 Strap eyelet
•Be sure to attach the strap when
using the camera to ensure that you
will not drop it.
12 Release lever
13 [LOCK] switch
14 Side door
15 [ (] (Playback) button
16 [Q.MENU] button/[ ] (Delete/
Cancel) button 17 [DISP.] button
18 [MENU/SET] button
19...

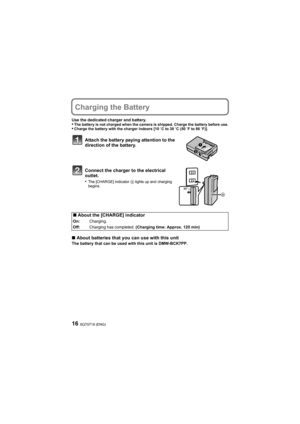

SQT0718 (ENG)16
Charging the Battery
Use the dedicated charger and battery.•The battery is not charged when the camera is shipped. Charge the battery before use.•Charge the battery with the charger indoors [10oC to 30oC (50oF to 86 oF)].
∫About batteries that you can use with this unitThe battery that can be used with this unit is DMW-BCK7PP.
Attach the battery paying attention to the
direction of the battery.
Connect the charger to the electrical
outlet.
•
The [CHARGE] indicator  A lights up and...

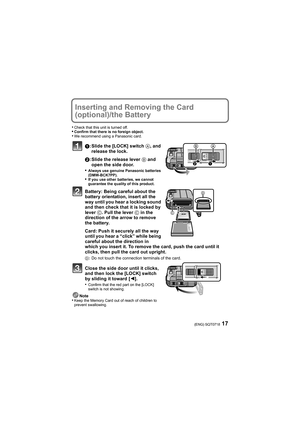

17(ENG) SQT0718
Inserting and Removing the Card
(optional)/the Battery
•Check that this unit is turned off.•Confirm that there is no foreign object.•We recommend using a Panasonic card.
1: Slide the [LOCK] switch  A, and
release the lock.
2 : Slide the release lever  B and
open the side door.
•
Always use genuine Panasonic batteries
(DMW-BCK7PP).
•If you use other batteries, we cannot
guarantee the quality of this product.
Battery: Being careful about the
battery orientation, insert all the
way...

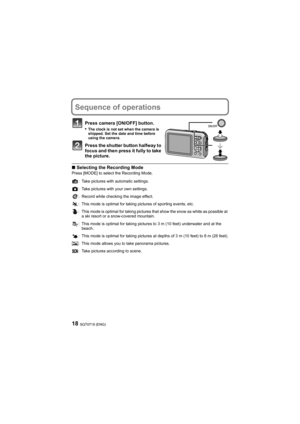

SQT0718 (ENG)18
Sequence of operations
Press camera [ON/OFF] button.
•
The clock is not set when the camera is
shipped. Set the date and time before
using the camera.
Press the shutter button halfway to
focus and then press it fully to take
the picture.
∫Selecting the Recording ModePress [MODE] to select the Recording Mode.
: Take pictures with automatic settings.
: Take pictures with your own settings.
: Record while checking the image effect.
: This mode is optimal for taking pictures of sporting...

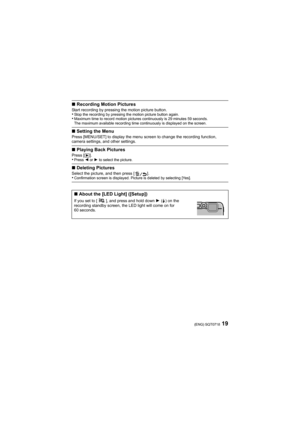

19(ENG) SQT0718
∫Recording Motion PicturesStart recording by pressing the motion picture button.•Stop the recording by pressing the motion picture button again.•Maximum time to record motion pictures continuously is 29 minute s 59 seconds.
The maximum available recording time continuously is displayed  on the screen.
∫Setting the MenuPress [MENU/SET] to display the menu screen to change the recor ding function,
camera settings, and other settings.
∫ Playing Back PicturesPress [ (].•Press  2 or 1 to...

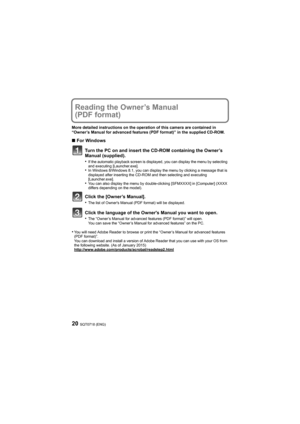

SQT0718 (ENG)20
Reading the Owner’s Manual
(PDF format)
More detailed instructions on the operation of this camera are contained in
“Owner’s Manual for advanced features (PDF format)” in the supplied CD-ROM.
∫For Windows
Turn the PC on and insert the CD-ROM containing the Owner’s
Manual (supplied).
•
If the automatic playback screen is displayed, you can display the menu by selecting
and executing [Launcher.exe].
•In Windows 8/Windows 8.1, you can display the menu by clicking a message that is...
