- 121 -

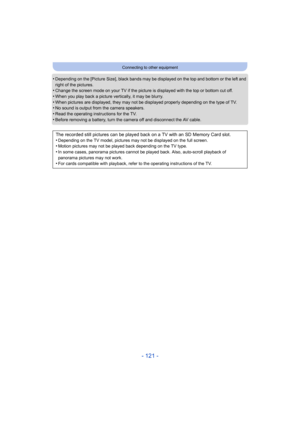

Connecting to other equipment
•Depending on the [Picture Size], black bands may be displayed on the top and bottom or the left and
right of the pictures.
•Change the screen mode on your TV if the picture is displayed w ith the top or bottom cut off.
•When you play back a picture vertically, it may be blurry.•When pictures are displayed, they may not be displayed properly  depending on the type of TV.•No sound is output from the camera speakers.
•Read the operating instructions for the TV.•Before...

- 122 -
Connecting to other equipment
Saving still pictures and motion pictures on your
PC
You can transfer the pictures in the camera to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message prompting you
to format may appear. (Doing so will cause recorded images to b e erased so do not choose to
format.)
If the...

- 123 -
Connecting to other equipment
∫Installing supplied software
•Before inserting the CD-ROM, close all running applications.
Check the environment of your PC.
•Operating environment of “PHOTOfunSTUDIO 9.0 SE”–OS:
Windows VistaR (32bit) SP2,
WindowsR 7 (32bit/64bit) or SP1,
WindowsR 8 (32bit/64bit),
WindowsR 8.1 (32 bit/64 bit)
–CPU:
PentiumR III 800 MHz or higher (Windows VistaR),
PentiumR III 1 GHz or higher (WindowsR 7/WindowsR 8/WindowsR 8.1)
–Display:
1024k768 pixels or more (1920 k1080 pixels...

- 124 -
Connecting to other equipment
∫Transferring pictures to a PC
Connect the computer and camera with the USB connection cable
(supplied).
Press 3/ 4 to select [PC], and then press [MENU/SET].
Copy the images to a PC using “ PHOTOfunSTUDIO ”.
•Do not delete or move copied files or folders in Windows Explor er. When viewing in
“ PHOTOfunSTUDIO ”, you will not be able to play back or edit.
•Use a battery with sufficient battery power or the AC adaptor ( optional). If the remaining battery
power...

- 125 -
Connecting to other equipment
∫Copying to a PC without using “ PHOTOfunSTUDIO ”
If the installation of “ PHOTOfunSTUDIO ” fails, you can copy fil es and folders to your PC by
dragging and dropping them from the camera after connecting to  your PC.
Directory structure of built-in  memory/card of this unit is sho wn by the figure below.
•
A new folder is created when pictures are taken in the followin g situations.
–After [No.Reset] (P48) in the [Setup] menu has been executed–When a card...

- 126 -
Connecting to other equipment
Saving still pictures and motion pictures on a
Recorder
If you insert card holding content recorded with this unit into a Panasonic recorder, you can dub
the content to a Blu-ray Disc or DVD etc.
•
See the operating instructions for the recorder about the detai ls about copying and playing back.
∫Dubbing with non-compatible equipment
You can dub the content played back using this unit to non-comp atible equipment such as
recorders and video players by connecting...

- 127 -
Connecting to other equipment
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to be
printed out and instruct that printing be started on the camera’s LCD monitor.
•
Some printers can print directly from the card removed from the  camera. For details, refer to the
operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures from the built-in  memory.
Check...

- 128 -
Connecting to other equipment
Press 3.
Press 3/4 to select an item and then press [MENU/SET].
Press 3  to select [Print start] and then press [MENU/SET].
•If the print check screen has appeared, select [Yes], and print  the pictures.
•Refer to P129 for the items which can be set before starting to print the pi ctures.•Disconnect the USB connection cable after printing.
Selecting a single picture and printing it
Press 2/ 1 to select the picture and then press [MENU/
SET].
Press 3 to select [Print...

- 129 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the “Selecting a single picture
and printing it” and in step
3 of the “Selecting multiple pictures and printing them”
procedures.
•
When you want to print pictures in a paper size or a layout whi ch is not supported by the camera, set
[Paper Size] or [Page Layout] to [ {] and then set the paper size or the layout on the printer. (Fo r
details, refer to the operating instructions of the printer.)
•When...

- 130 -
Connecting to other equipment
•Paper sizes not supported by the printer will not be displayed.
[Paper Size]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10q ] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm
