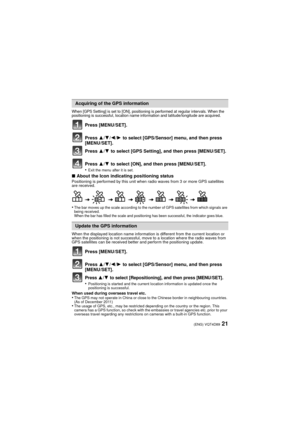

21(ENG) VQT4D89
When [GPS Setting] is set to [ON], positioning is performed at regular intervals. When the
positioning is successful, location name information and latitude/longitude are acquired.
Press [MENU/SET].
Press 3/4 /2 /1  to select [GPS/Sensor] menu, and then press
[MENU/SET].
Press  3/4  to select [GPS Setting], and then press [MENU/SET].
Press  3/4  to select [ON], and then press [MENU/SET].
•
Exit the menu after it is set.
∫ About the Icon indicating positioning statusPositioning is...

VQT4D89 (ENG)22

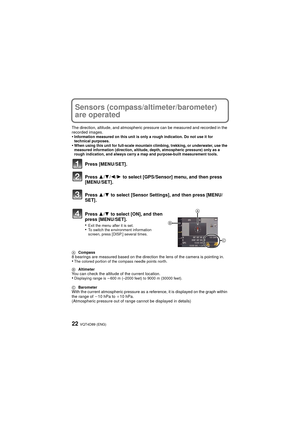

Sensors (compass/altimeter/barometer)
are operated
The direction, altitude, and atmospheric pressure can be measured and recorded in the
recorded images.
•Information measured on this unit is only a rough indication. Do not use it for
technical purposes.
•When using this unit for full-scale mountain climbing, trekking, or underwater, use the
measured information (direction, altitude, depth, atmospheric pressure) only as a
rough indication, and always carry a map and purpose-built...

23(ENG) VQT4D89

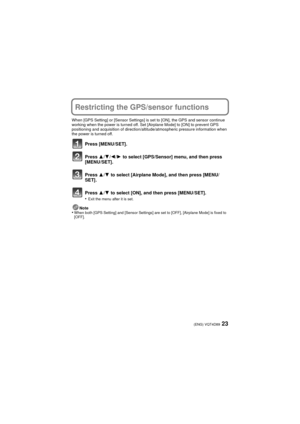

Restricting the GPS/sensor functions
When [GPS Setting] or [Sensor Settings] is set to [ON], the GPS and sensor continue
working when the power is turned off. Set [Airplane Mode] to [ON] to prevent GPS
positioning and acquisition of direction/altitude/atmospheric pressure information when
the power is turned off.
Press [MENU/SET].
Press  3/4 /2 /1  to select [GPS/Sensor] menu, and then press
[MENU/SET].
Press  3/4  to select [Airplane Mode], and then press [MENU/
SET].
Press  3/4  to...

VQT4D89 (ENG)24

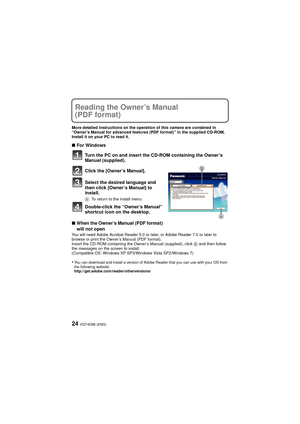

Reading the Owner’s Manual
(PDF format)
More detailed instructions on the operation of this camera are contained in
“Owner’s Manual for advanced features (PDF format)” in the supplied CD-ROM.
Install it on your PC to read it.
∫For Windows
Turn the PC on and insert the CD-ROM containing the Owner’s
Manual (supplied).
Click the [Owner’s Manual].
Select the desired language and
then click [Owner’s Manual] to
install.
ATo return to the install menu.
Double-click the “Owner’s Manual”...

25(ENG) VQT4D89

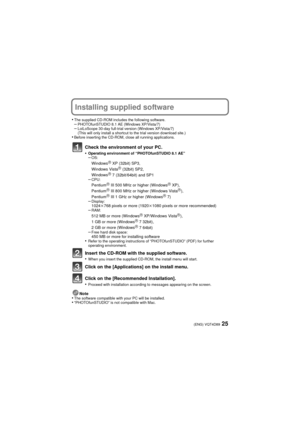

Installing supplied software
•The supplied CD-ROM includes the following software.–PHOTOfunSTUDIO 8.1 AE (Windows XP/Vista/7)–LoiLoScope 30-day full-trial version (Windows XP/Vista/7)
(This will only install a shortcut to the trial version download site.)
•Before inserting the CD-ROM, close all running applications.
Check the environment of your PC.
•Operating environment of “PHOTOfunSTUDIO 8.1 AE”–OS:WindowsR XP (32bit) SP3,
Windows VistaR (32bit) SP2,
WindowsR 7 (32bit/64bit) and...

VQT4D89 (ENG)26

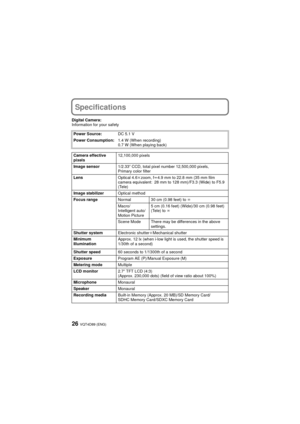

Specifications
Digital Camera:
Information for your safetyPower Source: DC 5.1 V
Power Consumption: 1.4 W (When recording)
0.7 W (When playing back)
Camera effective
pixels 12,100,000 pixels
Image sensor 1/2.33q CCD, total pixel number 12,500,000 pixels,
Primary color filter
Lens Optical 4.6kzoom, f l4.9 mm to 22.8 mm (35 mm film
camera equivalent: 28 mm to 128 mm)/F3.3 (Wide) to F5.9
(Tele)
Image stabilizer Optical method
Focus range Normal 30 cm (0.98 feet) to  ¶
Macro/
Intelligent...

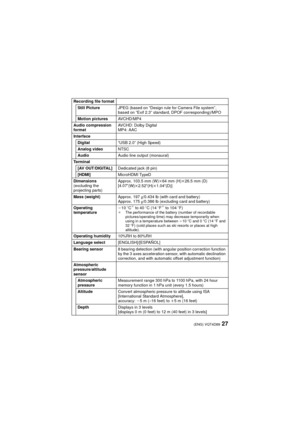

27(ENG) VQT4D89
Recording file formatStill Picture JPEG (based on “Design rule for Camera File system”,
based on “Exif 2.3” standard, DPOF corresponding)/MPO
Motion pictures AVCHD/MP4
Audio compression
format AVCHD: Dolby Digital
MP4: AAC
Interface
Digital “USB 2.0” (High Speed)
Analog video NTSC
Audio Audio line output (monaural)
Te r m i n a l [AV OUT/DIGITAL] Dedicated jack (8 pin)
[HDMI] MicroHDMI TypeD
Dimensions
(excluding the
projecting parts) Approx. 103.5 mm (W)
k64 mm (H) k26.5 mm (D)
[4.07...

VQT4D89 (ENG)28
Battery Charger (Panasonic DE-A59B):
Information for your safety
Equipment mobility:
Movable
Battery Pack (lithium-ion) (Panasonic DMW-BCF10PP):
Information for your safetyGPS
Reception frequency: 1575.42 MHz (C/A code)
Geographical coordinate system: WGS84
Waterproof
performance Equivalent to IEC 60529 “IPX8”.
[Usable for 60 minutes in 12 m (40 feet) water depth]
Crash resistance
perfomance The test method of the camera is in compliance with
“MIL-STD 810F Method 516.5-Shock”
¢.¢...

29(ENG) VQT4D89

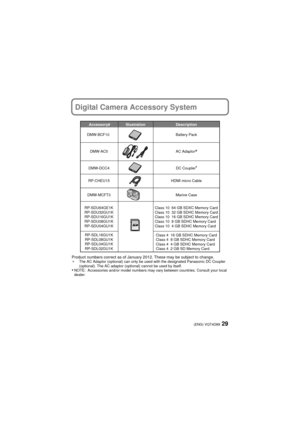

Digital Camera Accessory System
Product numbers correct as of January 2012. These may be subject to change.¢The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler
(optional). The AC adaptor (optional) cannot be used by itself.
•NOTE: Accessories and/or model numbers may vary between countries. Consult your local
dealer.
Class 10  64 GB SDXC Memory Card
Class 10  32 GB SDHC Memory Card
Class 10  16 GB SDHC Memory Card
Class 10  8 GB SDHC Memory Card
Class 10...

VQT4D89 (ENG)30

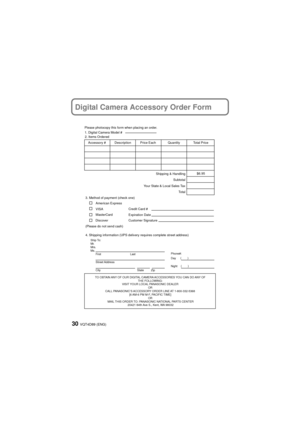

Digital Camera Accessory Order Form
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER  OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368  [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO: PANASONIC NATIONAL PARTS CENTER 20421 84th Ave S., Kent, WA 98032
Ship To:
Mr.
Mrs.
Ms.First Last
Street Address
City State Zip
Phone#:
Day ( )
Night ()
4. Shipping information (UPS delivery requires complete street...
