Panasonic Digital Camera Dmc Tz1 Operating Instructions
Here you can view all the pages of manual Panasonic Digital Camera Dmc Tz1 Operating Instructions . The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.
Page 31

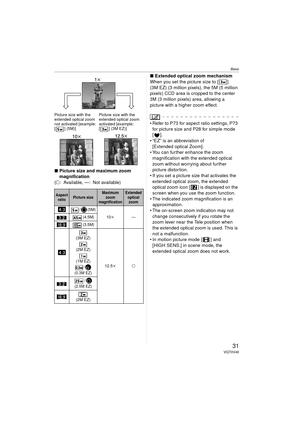

![Page 31
Basic
31VQT0V40
∫Picture size and maximum zoom
magnification
(± : Available, —: Not available) ∫
Extended optical zoom mechanism
When you set the picture size to [ ]
(3M EZ) (3 million pixels), the 5M (5 million
pixels) CCD area is cropped to the center
3M (3 million pixels) area, allowing a
picture with a higher zoom effect.
Refer to P73 for aspect ratio settings, P73 for picture size and P28 for simple mode
[].
“EZ” is an abbreviation of
[Extended optical Zoom].
You can further enhance...](http://img.usermanuals.tech/thumb/58/66005/w300_dmc-tz1_en_om_d-30.png "Page 31
Basic
31VQT0V40
∫Picture size and maximum zoom
magnification
(± : Available, —: Not available) ∫
Extended optical zoom mechanism
When you set the picture size to [ ]
(3M EZ) (3 million pixels), the 5M (5 million
pixels) CCD area is cropped to the center
3M (3 million pixels) area, allowing a
picture with a higher zoom effect.
Refer to P73 for aspect ratio settings, P73 for picture size and P28 for simple mode
[].
“EZ” is an abbreviation of
[Extended optical Zoom].
You can further enhance...")
Basic 31VQT0V40 ∫Picture size and maximum zoom magnification (± : Available, —: Not available) ∫ Extended optical zoom mechanism When you set the picture size to [ ] (3M EZ) (3 million pixels), the 5M (5 million pixels) CCD area is cropped to the center 3M (3 million pixels) area, allowing a picture with a higher zoom effect. Refer to P73 for aspect ratio settings, P73 for picture size and P28 for simple mode []. “EZ” is an abbreviation of [Extended optical Zoom]. You can further enhance...
Page 32

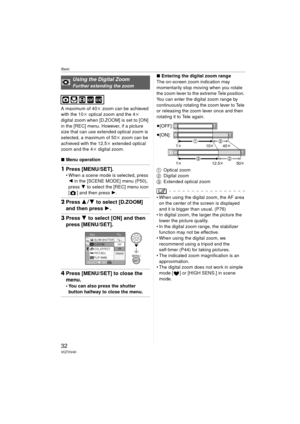

![Page 32
Basic
32VQT0V40
A maximum of 40k zoom can be achieved
with the 10 k optical zoom and the 4 k
digital zoom when [D.ZOOM] is set to [ON]
in the [REC] menu. However, if a picture
size that can use extended optical zoom is
selected, a maximum of 50 k zoom can be
achieved with the 12.5 k extended optical
zoom and the 4 k digital zoom.
∫ Menu operation
1Press [MENU/SET].
When a scene mode is selected, press
2 in the [SCENE MODE] menu (P50),
press 4 to select the [REC] menu icon
[ ] and then press...](http://img.usermanuals.tech/thumb/58/66005/w300_dmc-tz1_en_om_d-31.png "Page 32
Basic
32VQT0V40
A maximum of 40k zoom can be achieved
with the 10 k optical zoom and the 4 k
digital zoom when [D.ZOOM] is set to [ON]
in the [REC] menu. However, if a picture
size that can use extended optical zoom is
selected, a maximum of 50 k zoom can be
achieved with the 12.5 k extended optical
zoom and the 4 k digital zoom.
∫ Menu operation
1Press [MENU/SET].
When a scene mode is selected, press
2 in the [SCENE MODE] menu (P50),
press 4 to select the [REC] menu icon
[ ] and then press...")
Basic 32VQT0V40 A maximum of 40k zoom can be achieved with the 10 k optical zoom and the 4 k digital zoom when [D.ZOOM] is set to [ON] in the [REC] menu. However, if a picture size that can use extended optical zoom is selected, a maximum of 50 k zoom can be achieved with the 12.5 k extended optical zoom and the 4 k digital zoom. ∫ Menu operation 1Press [MENU/SET]. When a scene mode is selected, press 2 in the [SCENE MODE] menu (P50), press 4 to select the [REC] menu icon [ ] and then press...
Page 33

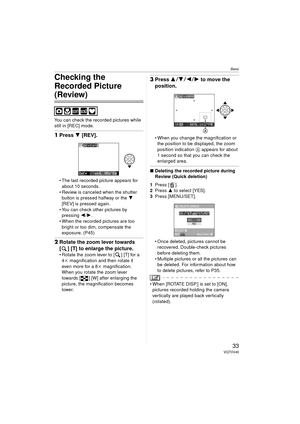

![Page 33
Basic
33VQT0V40
Checking the
Recorded Picture
(Review)
You can check the recorded pictures while
still in [REC] mode.
1Press 4 [REV].
The last recorded picture appears for
about 10 seconds.
Review is canceled when the shutter button is pressed halfway or the 4
[REV] is pressed again.
You can check other pictures by pressing 2/1.
When the recorded pictures are too
bright or too dim, compensate the
exposure. (P45)
2 Rotate the zoom lever towards
[ ] [T] to enlarge the picture.
Rotate...](http://img.usermanuals.tech/thumb/58/66005/w300_dmc-tz1_en_om_d-32.png "Page 33
Basic
33VQT0V40
Checking the
Recorded Picture
(Review)
You can check the recorded pictures while
still in [REC] mode.
1Press 4 [REV].
The last recorded picture appears for
about 10 seconds.
Review is canceled when the shutter button is pressed halfway or the 4
[REV] is pressed again.
You can check other pictures by pressing 2/1.
When the recorded pictures are too
bright or too dim, compensate the
exposure. (P45)
2 Rotate the zoom lever towards
[ ] [T] to enlarge the picture.
Rotate...")
Basic 33VQT0V40 Checking the Recorded Picture (Review) You can check the recorded pictures while still in [REC] mode. 1Press 4 [REV]. The last recorded picture appears for about 10 seconds. Review is canceled when the shutter button is pressed halfway or the 4 [REV] is pressed again. You can check other pictures by pressing 2/1. When the recorded pictures are too bright or too dim, compensate the exposure. (P45) 2 Rotate the zoom lever towards [ ] [T] to enlarge the picture. Rotate...
Page 34

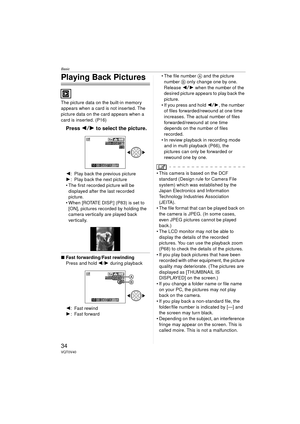

![Page 34
Basic
34VQT0V40
Playing Back Pictures
The picture data on the built-in memory
appears when a card is not inserted. The
picture data on the card appears when a
card is inserted. (P16)
Press 21 to select the picture.
2: Play back the previous picture
1 : Play back the next picture
The first recorded picture will be
displayed after the last recorded
picture.
When [ROTATE DISP.] (P83) is set to
[ON], pictures recorded by holding the
camera vertically are played back
vertically.
∫ Fast...](http://img.usermanuals.tech/thumb/58/66005/w300_dmc-tz1_en_om_d-33.png "Page 34
Basic
34VQT0V40
Playing Back Pictures
The picture data on the built-in memory
appears when a card is not inserted. The
picture data on the card appears when a
card is inserted. (P16)
Press 21 to select the picture.
2: Play back the previous picture
1 : Play back the next picture
The first recorded picture will be
displayed after the last recorded
picture.
When [ROTATE DISP.] (P83) is set to
[ON], pictures recorded by holding the
camera vertically are played back
vertically.
∫ Fast...")
Basic 34VQT0V40 Playing Back Pictures The picture data on the built-in memory appears when a card is not inserted. The picture data on the card appears when a card is inserted. (P16) Press 21 to select the picture. 2: Play back the previous picture 1 : Play back the next picture The first recorded picture will be displayed after the last recorded picture. When [ROTATE DISP.] (P83) is set to [ON], pictures recorded by holding the camera vertically are played back vertically. ∫ Fast...

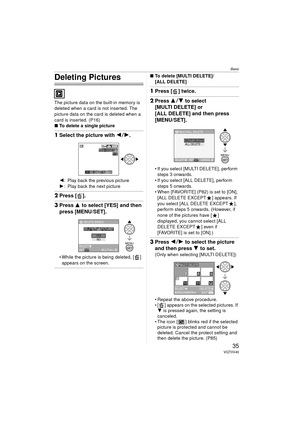

Page 35
![Page 35
Basic
35VQT0V40
Deleting Pictures
The picture data on the built-in memory is
deleted when a card is not inserted. The
picture data on the card is deleted when a
card is inserted. (P16)
∫To delete a single picture
1Select the picture with 2 1.
2: Play back the previous picture
1: Play back the next picture
2Press [ ].
3Press 3 to select [YES] and then
press [MENU/SET].
While the picture is being deleted, [ ]
appears on the screen.
∫ To delete [MULTI DELETE]/
[ALL DELETE]
1Press [ ] twice.
2Press...](http://img.usermanuals.tech/thumb/58/66005/w300_dmc-tz1_en_om_d-34.png "Page 35
Basic
35VQT0V40
Deleting Pictures
The picture data on the built-in memory is
deleted when a card is not inserted. The
picture data on the card is deleted when a
card is inserted. (P16)
∫To delete a single picture
1Select the picture with 2 1.
2: Play back the previous picture
1: Play back the next picture
2Press [ ].
3Press 3 to select [YES] and then
press [MENU/SET].
While the picture is being deleted, [ ]
appears on the screen.
∫ To delete [MULTI DELETE]/
[ALL DELETE]
1Press [ ] twice.
2Press...")
Basic 35VQT0V40 Deleting Pictures The picture data on the built-in memory is deleted when a card is not inserted. The picture data on the card is deleted when a card is inserted. (P16) ∫To delete a single picture 1Select the picture with 2 1. 2: Play back the previous picture 1: Play back the next picture 2Press [ ]. 3Press 3 to select [YES] and then press [MENU/SET]. While the picture is being deleted, [ ] appears on the screen. ∫ To delete [MULTI DELETE]/ [ALL DELETE] 1Press [ ] twice. 2Press...
Page 36

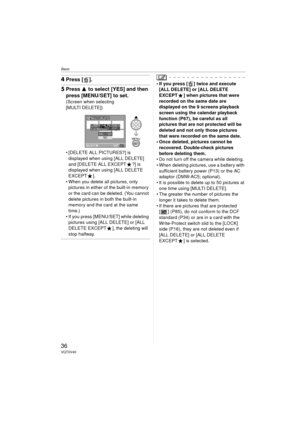

![Page 36
Basic
36VQT0V40
4Press [ ].
5Press 3 to select [YES] and then
press [MENU/SET] to set.
(Screen when selecting
[MULTI DELETE])
[DELETE ALL PICTURES?] is
displayed when using [ALL DELETE]
and [DELETE ALL EXCEPT ?] is
displayed when using [ALL DELETE
EXCEPT ].
When you delete all pictures, only pictures in either of the built-in memory
or the card can be deleted. (You cannot
delete pictures in both the built-in
memory and the card at the same
time.)
If you press [MENU/SET] while deleting...](http://img.usermanuals.tech/thumb/58/66005/w300_dmc-tz1_en_om_d-35.png "Page 36
Basic
36VQT0V40
4Press [ ].
5Press 3 to select [YES] and then
press [MENU/SET] to set.
(Screen when selecting
[MULTI DELETE])
[DELETE ALL PICTURES?] is
displayed when using [ALL DELETE]
and [DELETE ALL EXCEPT ?] is
displayed when using [ALL DELETE
EXCEPT ].
When you delete all pictures, only pictures in either of the built-in memory
or the card can be deleted. (You cannot
delete pictures in both the built-in
memory and the card at the same
time.)
If you press [MENU/SET] while deleting...")
Basic 36VQT0V40 4Press [ ]. 5Press 3 to select [YES] and then press [MENU/SET] to set. (Screen when selecting [MULTI DELETE]) [DELETE ALL PICTURES?] is displayed when using [ALL DELETE] and [DELETE ALL EXCEPT ?] is displayed when using [ALL DELETE EXCEPT ]. When you delete all pictures, only pictures in either of the built-in memory or the card can be deleted. (You cannot delete pictures in both the built-in memory and the card at the same time.) If you press [MENU/SET] while deleting...
Page 37

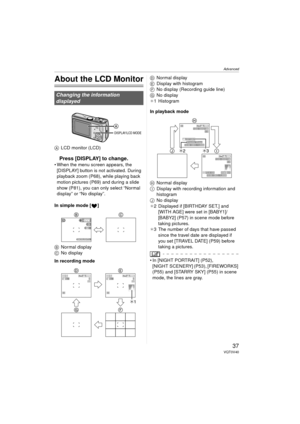

![Page 37
Advanced
37VQT0V40
Advanced
About the LCD Monitor
ALCD monitor (LCD)
Press [DISPLAY] to change.
When the menu screen appears, the
[DISPLAY] button is not activated. During
playback zoom (P68), while playing back
motion pictures (P69) and during a slide
show (P81), you can only select “Normal
display” or “No display”.
In simple mode [ ]
B Normal display
C No display
In recording mode D
Normal display
E Display with histogram
F No display (Recording guide line)
G No display
¢ 1 Histogram
In playback...](http://img.usermanuals.tech/thumb/58/66005/w300_dmc-tz1_en_om_d-36.png "Page 37
Advanced
37VQT0V40
Advanced
About the LCD Monitor
ALCD monitor (LCD)
Press [DISPLAY] to change.
When the menu screen appears, the
[DISPLAY] button is not activated. During
playback zoom (P68), while playing back
motion pictures (P69) and during a slide
show (P81), you can only select “Normal
display” or “No display”.
In simple mode [ ]
B Normal display
C No display
In recording mode D
Normal display
E Display with histogram
F No display (Recording guide line)
G No display
¢ 1 Histogram
In playback...")
Advanced 37VQT0V40 Advanced About the LCD Monitor ALCD monitor (LCD) Press [DISPLAY] to change. When the menu screen appears, the [DISPLAY] button is not activated. During playback zoom (P68), while playing back motion pictures (P69) and during a slide show (P81), you can only select “Normal display” or “No display”. In simple mode [ ] B Normal display C No display In recording mode D Normal display E Display with histogram F No display (Recording guide line) G No display ¢ 1 Histogram In playback...
Page 38

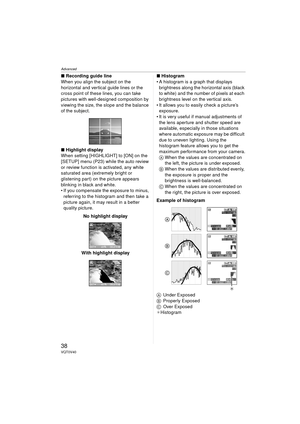

![Page 38
Advanced
38VQT0V40
∫Recording guide line
When you align the subject on the
horizontal and vertical guide lines or the
cross point of these lines, you can take
pictures with well-designed composition by
viewing the size, the slope and the balance
of the subject.
∫ Highlight display
When setting [HIGHLIGHT] to [ON] on the
[SETUP] menu (P23) while the auto review
or review function is activated, any white
saturated area (extremely bright or
glistening part) on the picture appears
blinking in black...](http://img.usermanuals.tech/thumb/58/66005/w300_dmc-tz1_en_om_d-37.png "Page 38
Advanced
38VQT0V40
∫Recording guide line
When you align the subject on the
horizontal and vertical guide lines or the
cross point of these lines, you can take
pictures with well-designed composition by
viewing the size, the slope and the balance
of the subject.
∫ Highlight display
When setting [HIGHLIGHT] to [ON] on the
[SETUP] menu (P23) while the auto review
or review function is activated, any white
saturated area (extremely bright or
glistening part) on the picture appears
blinking in black...")
Advanced 38VQT0V40 ∫Recording guide line When you align the subject on the horizontal and vertical guide lines or the cross point of these lines, you can take pictures with well-designed composition by viewing the size, the slope and the balance of the subject. ∫ Highlight display When setting [HIGHLIGHT] to [ON] on the [SETUP] menu (P23) while the auto review or review function is activated, any white saturated area (extremely bright or glistening part) on the picture appears blinking in black...
Page 39

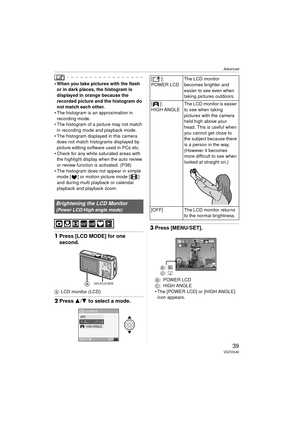

Advanced 39VQT0V40 When you take pictures with the flash or in dark places, the histogram is displayed in orange because the recorded picture and the histogram do not match each other. The histogram is an approximation in recording mode. The histogram of a picture may not match in recording mode and playback mode. The histogram displayed in this camera does not match histograms displayed by picture editing software used in PCs etc. Check for any white saturated areas with the highlight...

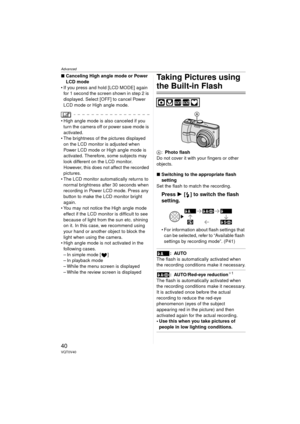

Page 40
![Page 40
Advanced
40VQT0V40
∫Canceling High angle mode or Power
LCD mode
If you press and hold [LCD MODE] again for 1 second the screen shown in step 2 is
displayed. Select [OFF] to cancel Power
LCD mode or High angle mode.
High angle mode is also canceled if you turn the camera off or power save mode is
activated.
The brightness of the pictures displayed on the LCD monitor is adjusted when
Power LCD mode or High angle mode is
activated. Therefore, some subjects may
look different on the LCD...](http://img.usermanuals.tech/thumb/58/66005/w300_dmc-tz1_en_om_d-39.png "Page 40
Advanced
40VQT0V40
∫Canceling High angle mode or Power
LCD mode
If you press and hold [LCD MODE] again for 1 second the screen shown in step 2 is
displayed. Select [OFF] to cancel Power
LCD mode or High angle mode.
High angle mode is also canceled if you turn the camera off or power save mode is
activated.
The brightness of the pictures displayed on the LCD monitor is adjusted when
Power LCD mode or High angle mode is
activated. Therefore, some subjects may
look different on the LCD...")
Advanced 40VQT0V40 ∫Canceling High angle mode or Power LCD mode If you press and hold [LCD MODE] again for 1 second the screen shown in step 2 is displayed. Select [OFF] to cancel Power LCD mode or High angle mode. High angle mode is also canceled if you turn the camera off or power save mode is activated. The brightness of the pictures displayed on the LCD monitor is adjusted when Power LCD mode or High angle mode is activated. Therefore, some subjects may look different on the LCD...
