Panasonic Digital Camera Dmc Zr1 Operating Instructions

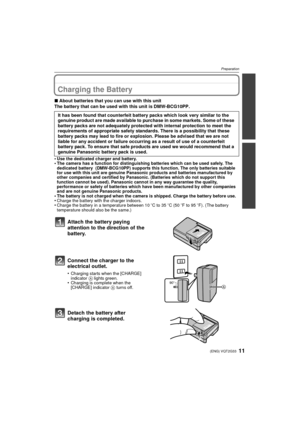

11(ENG) VQT2G33
Preparation
P reparationCharging the Battery
∫About batteries that you can use with this unit
The battery that can be used with this unit is DMW-BCG10PP.
•
Use the dedicated charger and battery.•The camera has a function for distinguishing batteries which can be used safely. The
dedicated battery  (DMW-BCG10PP) supports this function. The only batteries suitable
for use with this unit are genuine Panasonic products and batteries manufactured by
other companies and certified by...

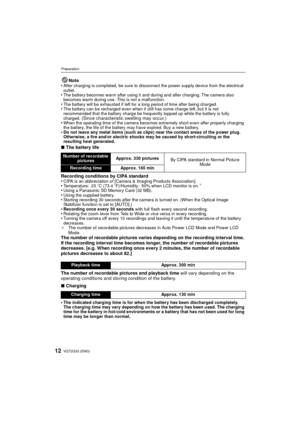

VQT2G33 (ENG)12
Preparation
Note
•After charging is completed, be sure to disconnect the power supply device from the electrical
outlet.
•The battery becomes warm after using it and during and after charging. The camera also
becomes warm during use. This is not a malfunction.
•The battery will be exhausted if left for a long period of time after being charged.•The battery can be recharged even when it still has some charge left, but it is not
recommended that the battery charge be frequently topped up...

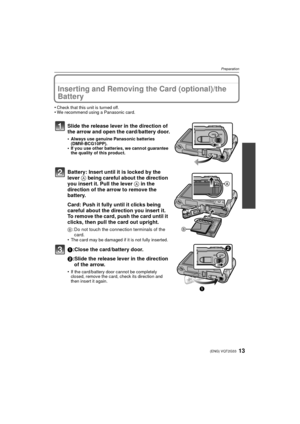

13(ENG) VQT2G33
Preparation
Inserting and Removing the Card (optional)/the
Battery
•Check that this unit is turned off.•We recommend using a Panasonic card.
Slide the release lever in the direction of
the arrow and open the card/battery door.
•Always use genuine Panasonic batteries
(DMW-BCG10PP).
•If you use other batteries, we cannot guarantee
the quality of this product.
Battery: Insert until it is locked by the
lever A being careful about the direction
you insert it. Pull the lever  A in the...

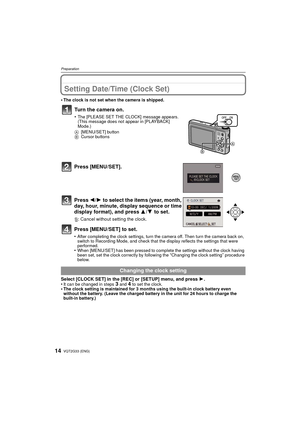

VQT2G33 (ENG)14
Preparation
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Press [MENU/SET].
Press 2/1 to select the items (year, month,
day, hour, minute, display sequence or time
display format), and press  3/4  to set.
‚: Cancel without setting the clock.
Press [MENU/SET] to set.
•After completing the clock settings, turn the camera off. Then turn the camera back on,
switch to Recording Mode, and check that the display reflects the settings that were
performed....

15(ENG) VQT2G33
Preparation
Setting the Menu
The camera comes with menus that allow you to choose the settings for taking pictures
and playing them back just as you like and menus that enable you to have more fun with
the camera and use it more easily.
In particular, the [SETUP] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
Here, the method for making settings in the normal picture mode is described,...

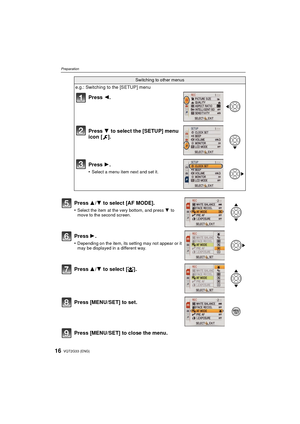

VQT2G33 (ENG)16
Preparation
Press [MENU/SET] to close the menu.
Switching to other menus
e.g.: Switching to the [SETUP] menu
Press 2.
Press  4 to select the [SETUP] menu
icon [ ].
Press  1.
•Select a menu item next and set it.
Press 3/4 to select [AF MODE].
•Select the item at the very bottom, and press  4 to
move to the second screen.
Press  1.
•Depending on the item, its setting may not appear or it
may be displayed in a different way.
Press  3/4 to select [ š].
Press [MENU/SET] to set....

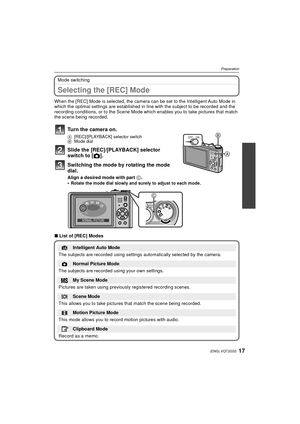

17(ENG) VQT2G33
Preparation
Mode switching
Selecting the [REC] Mode
When the [REC] Mode is selected, the camera can be set to the Intelligent Auto Mode in
which the optimal settings are established in line with the subject to be recorded and the
recording conditions, or to the Scene Mode which enables you to take pictures that match
the scene being recorded.
∫List of [REC] Modes
Turn the camera on.
A [REC]/[PLAYBACK] selector switch
B Mode dial
Slide the [REC]/[PLAYBACK] selector
switch to [ !]....

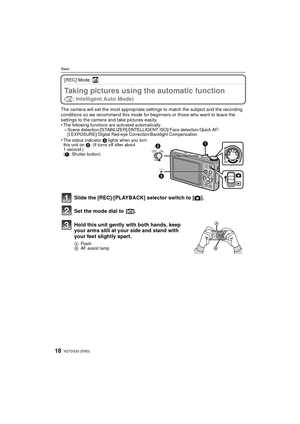

VQT2G33 (ENG)18
Basic
[REC] Mode: ñ
B asicTaking pictures using the automatic function
(ñ: Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
•
The following functions are activated automatically.–Scene detection /[STABILIZER] /[INTELLIGENT ISO]/ Face detection /Quick AF/
[I.EXPOSURE]/ Digital Red-eye...

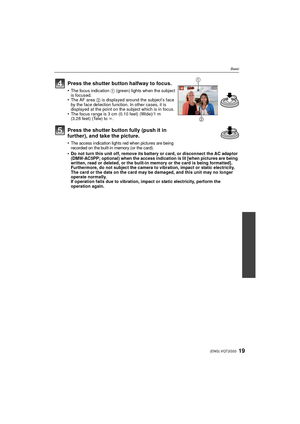

19(ENG) VQT2G33
Basic
•Do not turn this unit off, remove its battery or card, or disconnect the AC adaptor
(DMW-AC5PP; optional) when the access indication is lit [when pictures are being
written, read or deleted, or the built-in memory or the card is being formatted].
Furthermore, do not subject the camera to vibration, impact or static electricity.
The card or the data on the card may be damaged, and this unit may no longer
operate normally.
If operation fails due to vibration, impact or static...

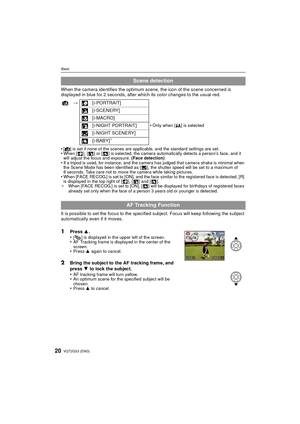

VQT2G33 (ENG)20
Basic
When the camera identifies the optimum scene, the icon of the scene concerned is
displayed in blue for 2 seconds, after which its color changes to the usual red.
•
[¦] is set if none of the scenes are applicable, and the standard settings are set.•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s face, and it
will adjust the focus and exposure. (Face detection)
•If a tripod is used, for instance, and the camera has judged that camera shake is minimal...
