Panasonic Digital Camera Dmc Zr3 Basic Operating Instructions
Here you can view all the pages of manual Panasonic Digital Camera Dmc Zr3 Basic Operating Instructions . The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

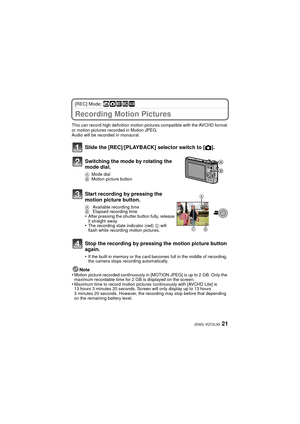

Page 21
![Page 21
21(ENG) VQT2L93
[REC] Mode: ñ· ¿
Recording Motion Pictures
This can record high definition motion pictures compatible with the AVCHD format
or motion pictures recorded in Motion JPEG.
Audio will be recorded in monaural.
Note
•Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the
maximum recordable time for 2 GB is displayed on the screen.
•Maximum time to record motion pictures continuously with [AVCHD Lite] is
13 hours 3 minutes 20 seconds. Screen will only display up to 13...](http://img.usermanuals.tech/thumb/58/66019/w300_dmc-zr3_en_om_d-20.png "Page 21
21(ENG) VQT2L93
[REC] Mode: ñ· ¿
Recording Motion Pictures
This can record high definition motion pictures compatible with the AVCHD format
or motion pictures recorded in Motion JPEG.
Audio will be recorded in monaural.
Note
•Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the
maximum recordable time for 2 GB is displayed on the screen.
•Maximum time to record motion pictures continuously with [AVCHD Lite] is
13 hours 3 minutes 20 seconds. Screen will only display up to 13...")
21(ENG) VQT2L93 [REC] Mode: ñ· ¿ Recording Motion Pictures This can record high definition motion pictures compatible with the AVCHD format or motion pictures recorded in Motion JPEG. Audio will be recorded in monaural. Note •Motion picture recorded continuously in [MOTION JPEG] is up to 2 GB. Only the maximum recordable time for 2 GB is displayed on the screen. •Maximum time to record motion pictures continuously with [AVCHD Lite] is 13 hours 3 minutes 20 seconds. Screen will only display up to 13...

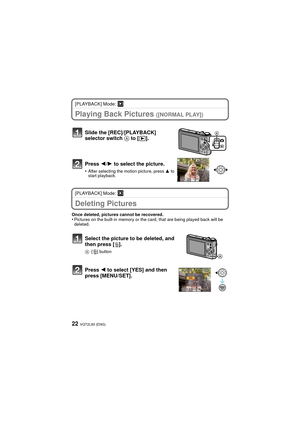

Page 22
![Page 22
VQT2L93 (ENG)22
[PLAYBACK] Mode: ¸
Playing Back Pictures ([NORMAL PLAY])
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.•Pictures on the built-in memory or the card, that are being played back will be
deleted.
Slide the [REC]/[PLAYBACK]
selector switch A to [(].
Press 2/ 1 to select the picture.
•After selecting the motion picture, press 3 to
start playback.
Select the picture to be deleted, and
then press [ ‚].
A [‚] button
Press 2 to select [YES] and then
press...](http://img.usermanuals.tech/thumb/58/66019/w300_dmc-zr3_en_om_d-21.png "Page 22
VQT2L93 (ENG)22
[PLAYBACK] Mode: ¸
Playing Back Pictures ([NORMAL PLAY])
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.•Pictures on the built-in memory or the card, that are being played back will be
deleted.
Slide the [REC]/[PLAYBACK]
selector switch A to [(].
Press 2/ 1 to select the picture.
•After selecting the motion picture, press 3 to
start playback.
Select the picture to be deleted, and
then press [ ‚].
A [‚] button
Press 2 to select [YES] and then
press...")
VQT2L93 (ENG)22 [PLAYBACK] Mode: ¸ Playing Back Pictures ([NORMAL PLAY]) [PLAYBACK] Mode: ¸ Deleting Pictures Once deleted, pictures cannot be recovered.•Pictures on the built-in memory or the card, that are being played back will be deleted. Slide the [REC]/[PLAYBACK] selector switch A to [(]. Press 2/ 1 to select the picture. •After selecting the motion picture, press 3 to start playback. Select the picture to be deleted, and then press [ ‚]. A [‚] button Press 2 to select [YES] and then press...

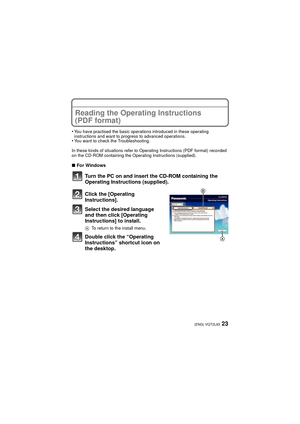

Page 23
23(ENG) VQT2L93 Reading the Operating Instructions (PDF format) •You have practised the basic operations introduced in these operating instructions and want to progress to advanced operations. •You want to check the Troubleshooting. In these kinds of situations refer to Operating Instructions (PDF format) recorded on the CD-ROM containing the Operating Instructions (supplied). ∫ For Windows Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied). Click the [Operating...

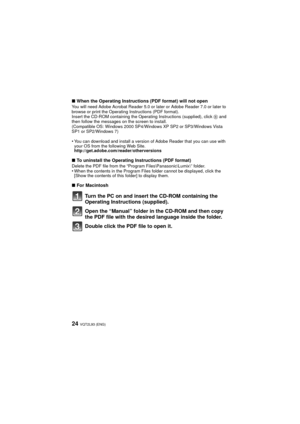

Page 24
VQT2L93 (ENG)24 ∫When the Operating Instructions (PDF format) will not openYou will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to browse or print the Operating Instructions (PDF format). Insert the CD-ROM containing the Operating Instructions (supplied), click B and then follow the messages on the screen to install. (Compatible OS: Windows 2000 SP4/Wi ndows XP SP2 or SP3/Windows Vista SP1 or SP2/Windows 7) •You can download and install a version of Adobe Reader that you can...

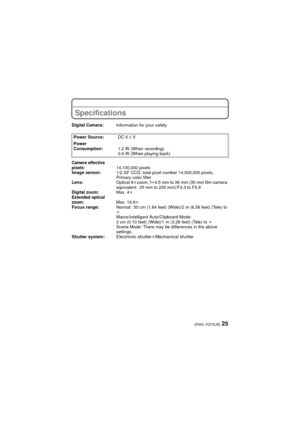

Page 25
25(ENG) VQT2L93 Specifications Digital Camera:Information for your safety Power Source: DC 5.1 V Power Consumption: 1.2 W (When recording) 0.6 W (When playing back) Camera effective pixels:14,100,000 pixels Image sensor: 1/2.33q CCD, total pixel number 14,500,000 pixels, Primary color filter Lens: Optical 8kzoom, f l4.5 mm to 36 mm (35 mm film camera equivalent: 25 mm to 200 mm)/F3.3 to F5.9 Digital zoom: Max. 4k Extended optical zoom: Max. 16.9k Focus range: Normal: 50 cm (1.64 feet) (Wide)/2 m...

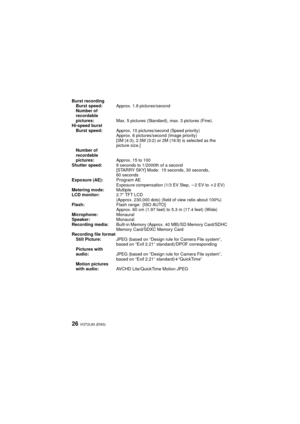

Page 26
![Page 26
VQT2L93 (ENG)26
Burst recordingBurst speed: Approx. 1.8 pictures/second
Number of
recordable
pictures: Max. 5 pictures (Standard), max. 3 pictures (Fine).
Hi-speed burst Burst speed: Approx. 10 pictures/second (Speed priority)
Approx. 6 pictures/second (Image priority)
[3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the
picture size.]
Number of
recordable
pictures: Approx. 15 to 100
Shutter speed: 8 seconds to 1/2000th of a second
[STARRY SKY] Mode: 15 seconds, 30 seconds,
60 seconds
Exposure...](http://img.usermanuals.tech/thumb/58/66019/w300_dmc-zr3_en_om_d-25.png "Page 26
VQT2L93 (ENG)26
Burst recordingBurst speed: Approx. 1.8 pictures/second
Number of
recordable
pictures: Max. 5 pictures (Standard), max. 3 pictures (Fine).
Hi-speed burst Burst speed: Approx. 10 pictures/second (Speed priority)
Approx. 6 pictures/second (Image priority)
[3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the
picture size.]
Number of
recordable
pictures: Approx. 15 to 100
Shutter speed: 8 seconds to 1/2000th of a second
[STARRY SKY] Mode: 15 seconds, 30 seconds,
60 seconds
Exposure...")
VQT2L93 (ENG)26 Burst recordingBurst speed: Approx. 1.8 pictures/second Number of recordable pictures: Max. 5 pictures (Standard), max. 3 pictures (Fine). Hi-speed burst Burst speed: Approx. 10 pictures/second (Speed priority) Approx. 6 pictures/second (Image priority) [3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the picture size.] Number of recordable pictures: Approx. 15 to 100 Shutter speed: 8 seconds to 1/2000th of a second [STARRY SKY] Mode: 15 seconds, 30 seconds, 60 seconds Exposure...

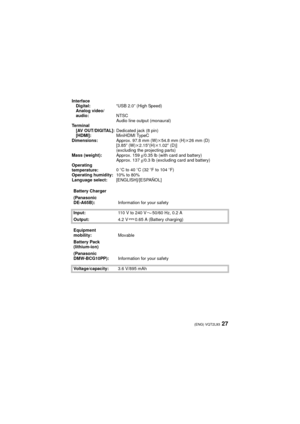

Page 27
![Page 27
27(ENG) VQT2L93
InterfaceDigital: “USB 2.0” (High Speed)
Analog video/
audio: NTSC
Audio line output (monaural)
Te r m i n a l [AV OUT/DIGITAL]: Dedicated jack (8 pin)
[HDMI]: MiniHDMI TypeC
Dimensions: Approx. 97.8 mm (W)k 54.8 mm (H)k26 mm (D)
[3.85 q (W) k2.15q (H)k1.02q (D)]
(excluding the projecting parts)
Mass (weight): Approx. 159g/0.35 lb (with card and battery)
Approx. 137 g/0.3 lb (excluding card and battery)
Operating
temperature: 0
oC to 40 oC (32 oF to 104 oF)
Operating humidity: 10% to...](http://img.usermanuals.tech/thumb/58/66019/w300_dmc-zr3_en_om_d-26.png "Page 27
27(ENG) VQT2L93
InterfaceDigital: “USB 2.0” (High Speed)
Analog video/
audio: NTSC
Audio line output (monaural)
Te r m i n a l [AV OUT/DIGITAL]: Dedicated jack (8 pin)
[HDMI]: MiniHDMI TypeC
Dimensions: Approx. 97.8 mm (W)k 54.8 mm (H)k26 mm (D)
[3.85 q (W) k2.15q (H)k1.02q (D)]
(excluding the projecting parts)
Mass (weight): Approx. 159g/0.35 lb (with card and battery)
Approx. 137 g/0.3 lb (excluding card and battery)
Operating
temperature: 0
oC to 40 oC (32 oF to 104 oF)
Operating humidity: 10% to...")
27(ENG) VQT2L93 InterfaceDigital: “USB 2.0” (High Speed) Analog video/ audio: NTSC Audio line output (monaural) Te r m i n a l [AV OUT/DIGITAL]: Dedicated jack (8 pin) [HDMI]: MiniHDMI TypeC Dimensions: Approx. 97.8 mm (W)k 54.8 mm (H)k26 mm (D) [3.85 q (W) k2.15q (H)k1.02q (D)] (excluding the projecting parts) Mass (weight): Approx. 159g/0.35 lb (with card and battery) Approx. 137 g/0.3 lb (excluding card and battery) Operating temperature: 0 oC to 40 oC (32 oF to 104 oF) Operating humidity: 10% to...

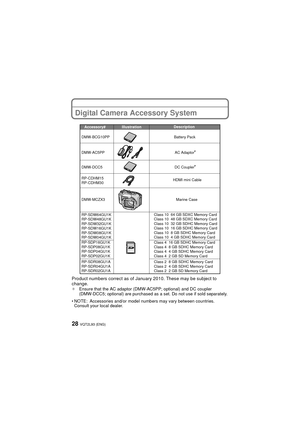

Page 28
VQT2L93 (ENG)28 Digital Camera Accessory System Product numbers correct as of January 2010. These may be subject to change. ¢Ensure that the AC adaptor (DMW-AC5PP; optional) and DC coupler (DMW-DCC5; optional) are purchased as a set. Do not use if sold separately. • NOTE: Accessories and/or model numbers may vary between countries. Consult your local dealer. Accessory# DMW-MCZX3 DMW-AC5PP DMW-BCG10PP DMW-DCC5 RP-SDW64GU1K RP-SDW48GU1K RP-SDW32GU1K RP-SDW16GU1K RP-SDW08GU1K RP-SDW04GU1K RP-SDP16GU1K...

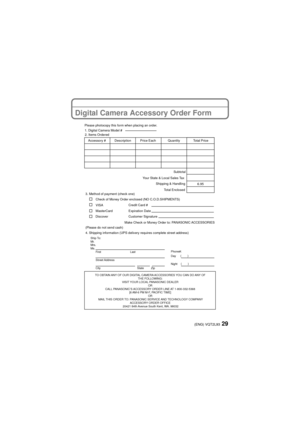

Page 29
![Page 29
29(ENG) VQT2L93
Digital Camera Accessory Order Form
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
Ship To:
Mr.
Mrs.
Ms. First Last
Street Address
City State Zip
Phone#:
Day ( )
Night ()
4. Shipping information (UPS...](http://img.usermanuals.tech/thumb/58/66019/w300_dmc-zr3_en_om_d-28.png "Page 29
29(ENG) VQT2L93
Digital Camera Accessory Order Form
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
Ship To:
Mr.
Mrs.
Ms. First Last
Street Address
City State Zip
Phone#:
Day ( )
Night ()
4. Shipping information (UPS...")
29(ENG) VQT2L93 Digital Camera Accessory Order Form TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING: VISIT YOUR LOCAL PANASONIC DEALER OR CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, PACIFIC TIME] OR MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE 20421 84th Avenue South Kent, WA. 98032 Ship To: Mr. Mrs. Ms. First Last Street Address City State Zip Phone#: Day ( ) Night () 4. Shipping information (UPS...

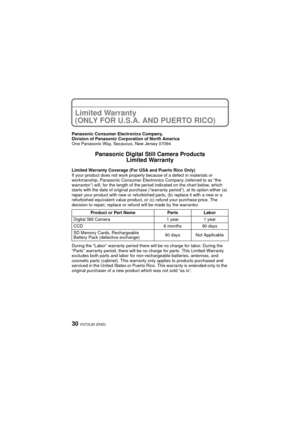

Page 30
VQT2L93 (ENG)30 Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO) Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus, New Jersey 07094 Panasonic Digital Still Camera ProductsLimited Warranty Limited Warranty Coverage (For USA and Puerto Rico Only) If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the length of the...
