Panasonic Digital Camera Dmc Zx3 Operating Instructions

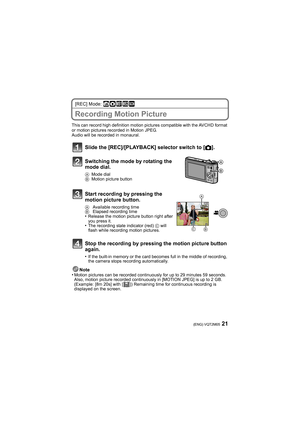

21(ENG) VQT2M05
[REC] Mode: ñ· ¿
Recording Motion Picture
This can record high definition motion pictures compatible with the AVCHD format
or motion pictures recorded in Motion JPEG.
Audio will be recorded in monaural.
Note
•Motion pictures can be recorded continuously for up to 29 minutes 59 seconds.
Also, motion picture recorded continuously in [MOTION JPEG] is up to 2 GB.
(Example: [8m 20s] with [ ]) Remaining time for continuous recording is
displayed on the screen.
Slide the [REC]/[PLAYBACK]...

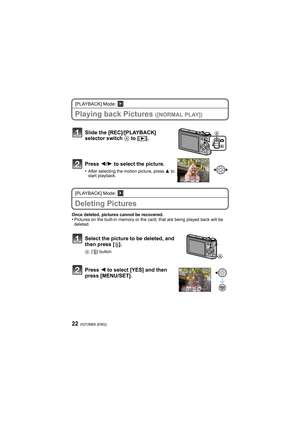

VQT2M05 (ENG)22
[PLAYBACK] Mode: ¸
Playing back Pictures ([NORMAL PLAY])
[PLAYBACK] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.•Pictures on the built-in memory or the card, that are being played back will be
deleted.
Slide the [REC]/[PLAYBACK]
selector switch A to [(].
Press 2/ 1 to select the picture.
•After selecting the motion picture, press  3 to
start playback.
Select the picture to be deleted, and
then press [ ‚].
A [‚] button
Press 2 to select [YES] and then
press...

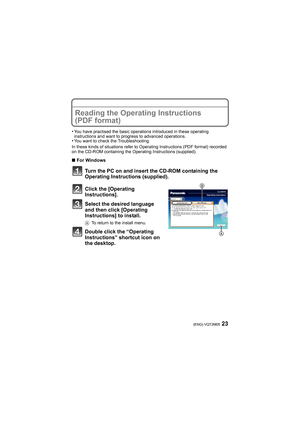

23(ENG) VQT2M05
Reading the Operating Instructions
(PDF format)
•You have practised the basic operations introduced in these operating
instructions and want to progress to advanced operations.
•You want to check the Troubleshooting.
In these kinds of situations refer to Operating Instructions (PDF format) recorded
on the CD-ROM containing the Operating Instructions (supplied).
∫ For Windows
Turn the PC on and insert the CD-ROM containing the
Operating Instructions (supplied).
Click the [Operating...

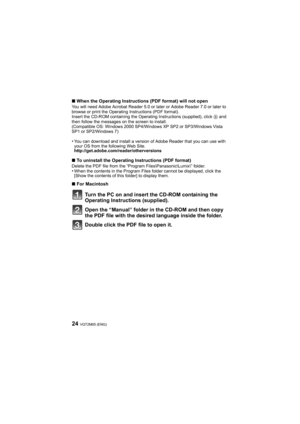

VQT2M05 (ENG)24
∫When the Operating Instructions (PDF format) will not openYou will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to
browse or print the Operating Instructions (PDF format).
Insert the CD-ROM containing the Operating Instructions (supplied), click B and
then follow the messages on the screen to install.
(Compatible OS: Windows 2000 SP4/Windows XP SP2 or SP3/Windows Vista
SP1 or SP2/Windows 7)
•You can download and install a version of Adobe Reader that you can use...

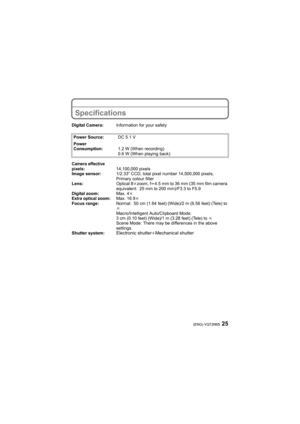

25(ENG) VQT2M05
Specifications
Digital Camera:Information for your safety
Power Source:DC 5.1 V
Power
Consumption:1.2 W (When recording)
0.6 W (When playing back)
Camera effective
pixels:14,100,000 pixels
Image sensor:1/2.33q CCD, total pixel number 14,500,000 pixels,
Primary colour filter
Lens:Optical 8kzoom, fl4.5 mm to 36 mm (35 mm film camera
equivalent: 25 mm to 200 mm)/F3.3 to F5.9
Digital zoom:Max. 4k
Extra optical zoom:Max. 16.9k
Focus range:Normal: 50 cm (1.64 feet) (Wide)/2 m (6.56 feet)...

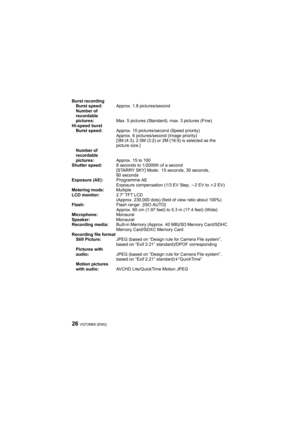

VQT2M05 (ENG)26
Burst recording
Burst speed:Approx. 1.8 pictures/second
Number of
recordable
pictures:Max. 5 pictures (Standard), max. 3 pictures (Fine).
Hi-speed burst
Burst speed:Approx. 10 pictures/second (Speed priority)
Approx. 6 pictures/second (Image priority)
[3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the
picture size.]
Number of
recordable
pictures:Approx. 15 to 100
Shutter speed:8 seconds to 1/2000th of a second
[STARRY SKY] Mode: 15 seconds, 30 seconds,
60 seconds
Exposure (AE):...

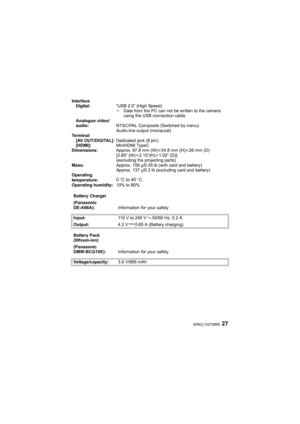

27(ENG) VQT2M05
InterfaceDigital: “USB 2.0” (High Speed)
¢Data from the PC can not be written to the camera
using the USB connection cable.
Analogue video/
audio: NTSC/PAL Composite (Switched by menu)
Audio line output (monaural)
Te r m i n a l [AV OUT/DIGITAL]: Dedicated jack (8 pin)
[HDMI]: MiniHDMI TypeC
Dimensions: Approx. 97.8 mm (W)k54.8 mm (H) k26 mm (D)
[3.85 q (W) k2.15q (H)k1.02q  (D)]
(excluding the projecting parts)
Mass: Approx. 159g/0.35 lb (with card and battery)
Approx. 137 g/0.3 lb...

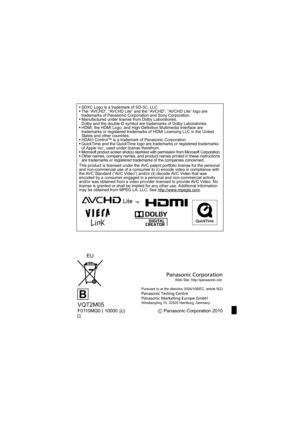

•SDXC Logo is a trademark of SD-3C, LLC.
 The “AVCHD”, “AVCHD Lite” and the “AVCHD”, “AVCHD Lite” logo are
trademarks of Panasonic Corporation and Sony Corporation.
 Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
 HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
 HDAVI Control™ is a trademark of Panasonic...
