Page 11
11SQT1380 (ENG) Preparations Before use ■ Camera handling ●
Page 12
12 Preparations SQT1380 (ENG) Standard accessories

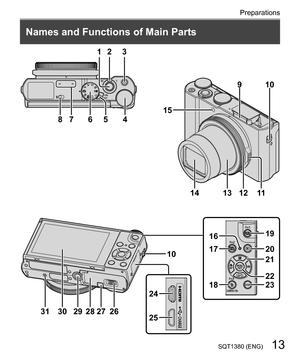

Page 13
13SQT1380 (ENG) Preparations Names and Functions of Main Parts 1 2 3 4 5 6 7 8 9 12 13 14 15 23 17 18 19 21 20 22 16 24 25 26 27 28 29 30 31 10 10 11

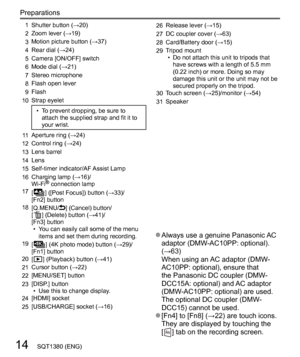

Page 14
![Page 14
14
Preparations
SQT1380 (ENG)
1 Shutter button (→20)
2 Zoom lever (→19)
3 Motion picture button (→37)
4 Rear dial (→24)
5 Camera [ON/OFF] switch
6 Mode dial (→21)
7 Stereo microphone
8 Flash open lever
9 Flash
10 Strap eyelet
• To prevent dropping, be sure to
attach the supplied strap and fit it to
your wrist.
11 Aperture ring (→24)
12 Control ring (→24)
13 Lens barrel
14 Lens
15 Self-timer indicator/AF Assist Lamp
16 Charging lamp (→16)/
Wi-Fi
®...](http://img.usermanuals.tech/thumb/58/65902/w300_dmc_lx10_en_om_d-13.png "Page 14
14
Preparations
SQT1380 (ENG)
1 Shutter button (→20)
2 Zoom lever (→19)
3 Motion picture button (→37)
4 Rear dial (→24)
5 Camera [ON/OFF] switch
6 Mode dial (→21)
7 Stereo microphone
8 Flash open lever
9 Flash
10 Strap eyelet
• To prevent dropping, be sure to
attach the supplied strap and fit it to
your wrist.
11 Aperture ring (→24)
12 Control ring (→24)
13 Lens barrel
14 Lens
15 Self-timer indicator/AF Assist Lamp
16 Charging lamp (→16)/
Wi-Fi
®...")
14 Preparations SQT1380 (ENG) 1 Shutter button (→20) 2 Zoom lever (→19) 3 Motion picture button (→37) 4 Rear dial (→24) 5 Camera [ON/OFF] switch 6 Mode dial (→21) 7 Stereo microphone 8 Flash open lever 9 Flash 10 Strap eyelet • To prevent dropping, be sure to attach the supplied strap and fit it to your wrist. 11 Aperture ring (→24) 12 Control ring (→24) 13 Lens barrel 14 Lens 15 Self-timer indicator/AF Assist Lamp 16 Charging lamp (→16)/ Wi-Fi ®...

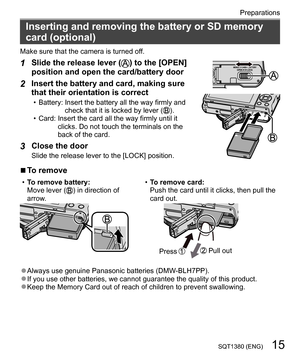

Page 15
![Page 15
15SQT1380 (ENG)
Preparations
Inserting and removing the battery or SD memory
card (optional)
Make sure that the camera is turned off.
1
Slide the release lever () to the [OPEN]
position and open the card/battery door
2
Insert the battery and card, making sure
that their orientation is correct
• Battery: Insert the battery all the way firmly and
check that it is locked by lever ().
• Card: Insert the card all the way firmly until it
clicks. Do not touch the terminals on the...](http://img.usermanuals.tech/thumb/58/65902/w300_dmc_lx10_en_om_d-14.png "Page 15
15SQT1380 (ENG)
Preparations
Inserting and removing the battery or SD memory
card (optional)
Make sure that the camera is turned off.
1
Slide the release lever () to the [OPEN]
position and open the card/battery door
2
Insert the battery and card, making sure
that their orientation is correct
• Battery: Insert the battery all the way firmly and
check that it is locked by lever ().
• Card: Insert the card all the way firmly until it
clicks. Do not touch the terminals on the...")
15SQT1380 (ENG) Preparations Inserting and removing the battery or SD memory card (optional) Make sure that the camera is turned off. 1 Slide the release lever () to the [OPEN] position and open the card/battery door 2 Insert the battery and card, making sure that their orientation is correct • Battery: Insert the battery all the way firmly and check that it is locked by lever (). • Card: Insert the card all the way firmly until it clicks. Do not touch the terminals on the...

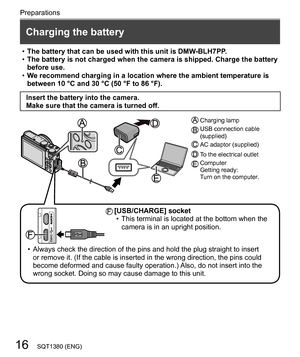

Page 16
16 Preparations SQT1380 (ENG) • The battery that can be used with this unit is DMW-BLH7PP. •
Page 17

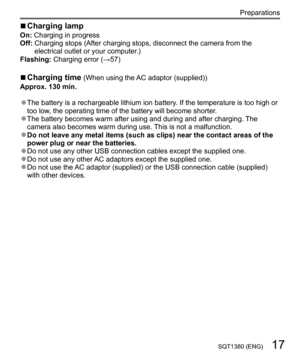

17SQT1380 (ENG) Preparations ■ Charging lamp On: Charging in progress Off:

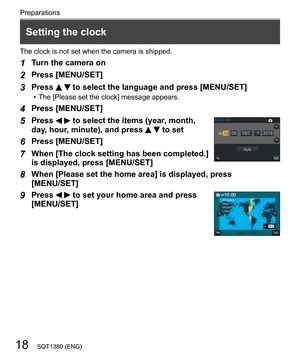

Page 18
![Page 18
18
Preparations
SQT1380 (ENG)
The clock is not set when the camera is shipped.
1
Turn the camera on
2
Press [MENU/SET]
3
Press to select the language and press [MENU/SET] • The [Please set the clock] message appears.
4
Press [MENU/SET]
5
Press to select the items (year, month,
day, hour, minute), and press to set
6
Press [MENU/SET]
7
When [The clock setting has been completed.]
is displayed, press [MENU/SET]
8](http://img.usermanuals.tech/thumb/58/65902/w300_dmc_lx10_en_om_d-17.png "Page 18
18
Preparations
SQT1380 (ENG)
The clock is not set when the camera is shipped.
1
Turn the camera on
2
Press [MENU/SET]
3
Press to select the language and press [MENU/SET] • The [Please set the clock] message appears.
4
Press [MENU/SET]
5
Press to select the items (year, month,
day, hour, minute), and press to set
6
Press [MENU/SET]
7
When [The clock setting has been completed.]
is displayed, press [MENU/SET]
8")
18 Preparations SQT1380 (ENG) The clock is not set when the camera is shipped. 1 Turn the camera on 2 Press [MENU/SET] 3 Press to select the language and press [MENU/SET] • The [Please set the clock] message appears. 4 Press [MENU/SET] 5 Press to select the items (year, month, day, hour, minute), and press to set 6 Press [MENU/SET] 7 When [The clock setting has been completed.] is displayed, press [MENU/SET] 8

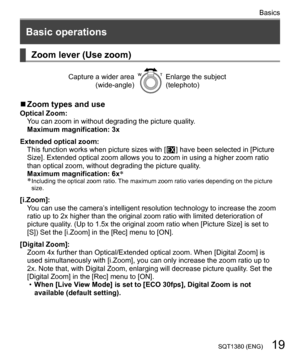

Page 19
![Page 19
19SQT1380 (ENG)
Basics
Basic operations
Zoom lever (Use zoom)
Capture a wider area
(wide-angle)
Enlarge the subject
(telephoto)
■
Zoom types and use
Optical Zoom:
Y.
Maximum magnification: 3x
Extended optical zoom:
This function works when picture sizes with [ ] have been selected in [Picture](http://img.usermanuals.tech/thumb/58/65902/w300_dmc_lx10_en_om_d-18.png "Page 19
19SQT1380 (ENG)
Basics
Basic operations
Zoom lever (Use zoom)
Capture a wider area
(wide-angle)
Enlarge the subject
(telephoto)
■
Zoom types and use
Optical Zoom:
Y.
Maximum magnification: 3x
Extended optical zoom:
This function works when picture sizes with [ ] have been selected in [Picture")
19SQT1380 (ENG) Basics Basic operations Zoom lever (Use zoom) Capture a wider area (wide-angle) Enlarge the subject (telephoto) ■ Zoom types and use Optical Zoom: Y. Maximum magnification: 3x Extended optical zoom: This function works when picture sizes with [ ] have been selected in [Picture

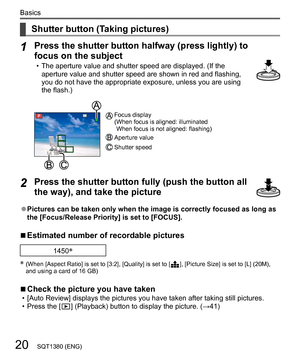

Page 20
20
Basics
SQT1380 (ENG)
Shutter button (Taking pictures)
1
