Panasonic Digital Hd Plasma Tv Th 50xvs30 Operating Instructions

English
TQBC2074
Before connecting, operating or adjusting this product, please read these instructions completely.
Please keep this manual for future reference.
TVMENUR-TUNE
PIP MIN
REWPIP MAX
FF
PLAYPROGEXITVCRDVDDBSRCVRCBLLIGHTTV/VIDEOA -ANTENNA - BSAP
1234567809
AU XASPECTAMUTERECALLBBE
STOPPA U S EFREEZE
TV/VCR
PIP SPLIT MOVESWAPSEARCHOPEN/CLOSESPLIT CH
DVD/VCR CHREC
CH
VO L
CHVOLOK
POWER
Operating Instructions
Digital High Definition Plasma TV
System No. TH-50XVS30UM
Model No.
•TH-50XVS30M :...

2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to
qualified service personnel.
2)Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin
grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the...

3
  1) Read these instructions.
  2) Keep these instructions.
  3) Heed all warnings.
  4) Follow all instructions.
  5) Do not use this apparatus near water.
  6) Clean only with dry cloth.
  7) Do not block any ventilation openings. Install in accordance with the manufacturer ’s instructions.
  8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
  9) Do not defeat the safety purpose of the polarized or...

4
Dear Panasonic Customer
Trademark Credits
• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Computer, USA.
• S-VGA is a registered trademark of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment
from your new Plasma TV.
To obtain...

5

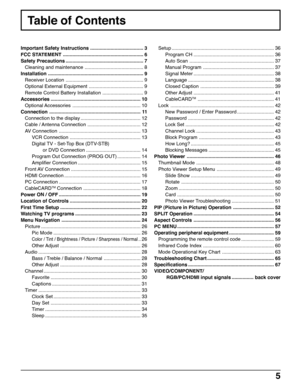

Table of Contents
Important Safety Instructions ....................................... 3
FCC STATEMENT ........................................................... 6
Safety Precautions ......................................................... 7
Cleaning and maintenance ........................................... 8
Installation ...................................................................... 9
Receiver Location ......................................................... 9
Optional External Equipment...

6

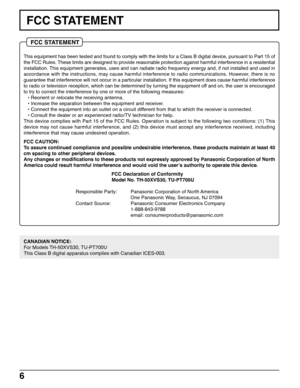

FCC STATEMENT
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee...

7

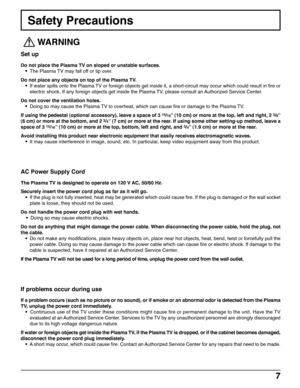

Safety Precautions

WARNING
Set up
Do not place the Plasma TV on sloped or unstable surfaces.
• The Plasma TV may fall off or tip over.
Do not place any objects on top of the Plasma TV.
• If water spills onto the Plasma TV or foreign objects get inside it, a short-circuit may occur which could result in fire or
electric shock. If any foreign objects get inside the Plasma TV, please consult an Authorized Service Center.
Do not cover the ventilation holes.
• Doing so may cause the Plasma TV to overheat,...

8

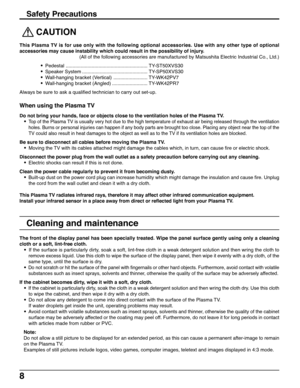

CAUTION
This Plasma TV is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)
• Pedestal ............................................................ TY-ST50XVS30
• Speaker System ................................................ TY-SP50XVS30
• Wall-hanging bracket (Vertical)...

9
The Video/Audio connection between components can be made with shielded video and audio cables. For best performance,
video cables should utilize 75 ohm coaxial shielded wire. Cables are available from your dealer or electronic supply store.
Before you purchase any cables, be sure you know what type of output and input connectors your various components
require. Also determine the length of cable you will need.
Installation
Receiver Location
This unit is intended to be used with an optional stand or...

10
CH
VOL
CHVOLOK
TV/VIDEOCBL
1234567809PIP MIN
REWPIP MAX
FF
PIPMOVEFREEZE
TV/VCR
SPLITSWAPSEARCHOPEN/CLOSESPLIT CH
DVD/VCR CH
TV
MENU
PLAY
PROG
EXIT
VCRDVDDBSRCVRLIGHTA -ANTENNA - B
SAPAUXASPECTMUTERECALLBBE
STOPPAU S EREC
D
IG
IT
AL M
E
DIA R
EC
EIVER

TU
-P
T
70
0US
D
 C
AR
D
POWER

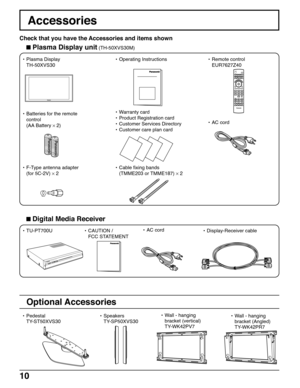

Accessories
Check that you have the Accessories and items shown
•Operating Instructions • Remote control
EUR7627Z40
•Warranty card
•Product Registration card
•Customer Services Directory
•Customer care plan card•AC...
