Panasonic Digital High Definition Plasma Television Th 37px50 Operating Instructions

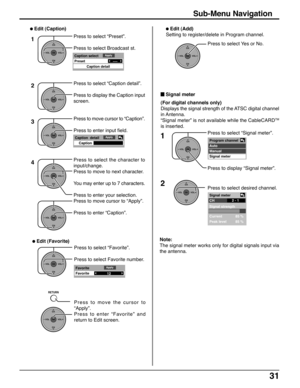

31
Press to select “Signal meter”.
Press to display “Signal meter”. Press to select “Preset”.
Press to select Broadcast st.
Press to select “Caption detail”.
Press to display the Caption input
screen.
Press to move cursor to “Caption”.
Press to enter input field.
Press to select the character to
input/change.
Press to move to next character.
You may enter up to 7 characters.
Press to enter your selection.
Press to move cursor to “Apply”.
Press to enter “Caption”.
Sub-Menu Navigation
 Edit (Caption)...

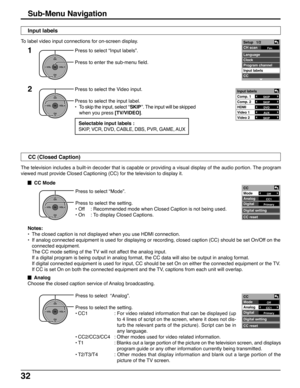

32
Press to select “Input labels”.
Press to enter the sub-menu field.
Press to select the Video input.
Press to select the input label.
•To skip the input, select ‘‘SKIP’’. The input will be skipped
when you press [TV/VIDEO]. To label video input connections for on-screen display.1
2
OK
CH
VOL
CHVOL
+-
Fav.
Setup   1/2
CH scan

Language
Clock
Program channel
Input labels
CC
The television includes a built-in decoder that is capable or providing a visual display of the audio portion. The program
viewed...

33

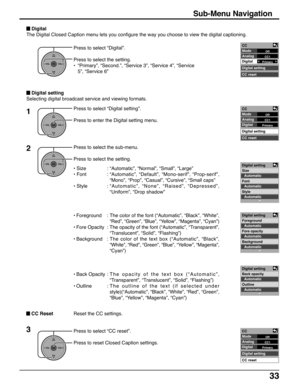

Sub-Menu Navigation
Press to select “Digital”.
Press to select the setting.
•“Primary”, “Second.”, “Service 3”, “Service 4”, “Service
5”, “Service 6”
• Size : “Automatic”, “Normal”, “Small”, “Large”
• Font :“Automatic”, “Default”, “Mono-serif”, “Prop-serif”,
“Mono”, “Prop”, “Casual”, “Cursive”, “Small caps”
• Style :“Automatic”, “None”, “Raised”, “Depressed”,
“Uniform”, “Drop shadow”
•Foreground : The color of the font (“Automatic”, “Black”, “White”,
“Red”, “Green”, “Blue”, “Yellow”, “Magenta”,...

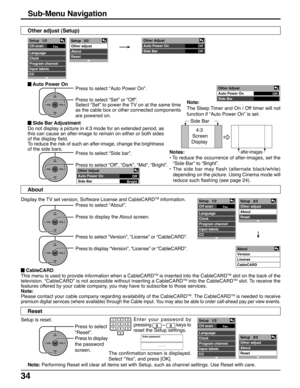

34
Sub-Menu Navigation
 Auto Power On
Other adjust (Setup)
Press to select “Auto Power On”.
Press to select “Set” or “Off”.
Select “Set” to power the TV on at the same time
as the cable box or other connected components
are powered on.
OKCH
VOL
CHVOL+-
Off Other Adjust
Auto Power On
Side Bar
 Side Bar Adjustment
Do not display a picture in 4:3 mode for an extended period, as
this can cause an after-image to remain on either or both sides
of the display field.
To reduce the risk of such an after-image,...

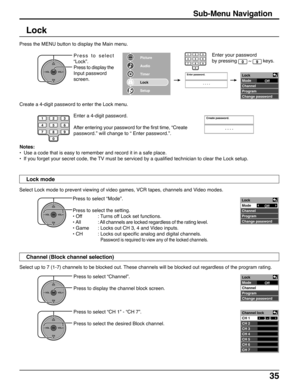

35
Sub-Menu Navigation
Lock
Select Lock mode to prevent viewing of video games, VCR tapes, channels and Video modes.
Press to select “Mode”.
Press to select the setting.
• Off : Turns off Lock set functions.
• All: All channels are locked regardless of the rating level.
• Game : Locks out CH 3, 4 and Video inputs.
• CH : Locks out specific analog and digital channels.
Password is required to view any of the locked channels.
Lock mode
Press the MENU button to display the Main menu.
Press to select...

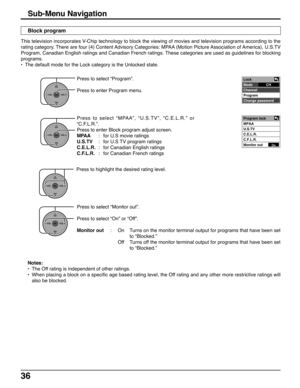

36
Sub-Menu Navigation
This television incorporates V-Chip technology to block the viewing of movies and television programs according to the
rating category. There are four (4) Content Advisory Categories: MPAA (Motion Picture Association of America), U.S.TV
Program, Canadian English ratings and Canadian French ratings. These categories are used as guidelines for blocking
programs.
•The default mode for the Lock category is the Unlocked state.
Press to select “MPAA”, “U.S.TV”, “C.E.L.R.” or
“C.F.L.R.”....

37
Sub-Menu Navigation

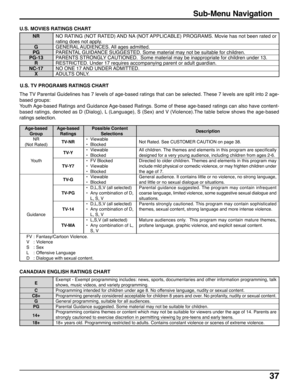

U.S. MOVIES RATINGS CHART
U.S. TV PROGRAMS RATINGS CHART
CANADIAN ENGLISH RATINGS CHART
Description
Not Rated. See CUSTOMER CAUTION on page 38.
All children. The themes and elements in this program are specifically
designed for a very young audience, including children from ages 2-6.
Directed to older children. Themes and elements in this program may
include mild physical or comedic violence, or may frighten children under
the age of 7.
General audience. It contains little or no...

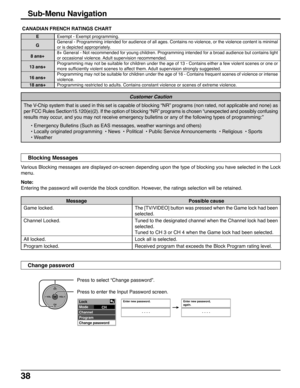

38
Sub-Menu Navigation
Various Blocking messages are displayed on-screen depending upon the type of blocking you have selected in the Lock
menu.
Note:
Entering the password will override the block condition. However, the ratings selection will be retained.
Blocking Messages
Message
Game locked.
Channel Locked.
All locked.
Program locked. CANADIAN FRENCH RATINGS CHART
Exempt - Exempt programming.
General - Programming intended for audience of all ages. Contains no violence, or the violence content is...

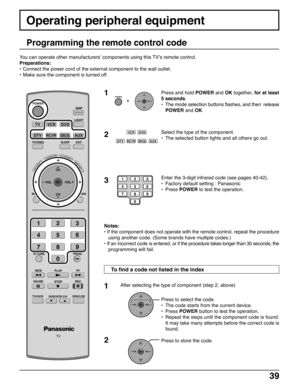

39
Operating peripheral equipment
Programming the remote control code
Press and hold POWER and OK together, for at least
5 seconds.
•The mode selection buttons flashes, and then  release
POWER and OK.
Select the type of the component.
•The selected button lights and all others go out.
Enter the 3-digit infrared code (see pages 40-42).
•Factory default setting : Panasonic
•Press POWER to test the operation.
Notes:
• If the component does not operate with the remote control, repeat the procedure
using...

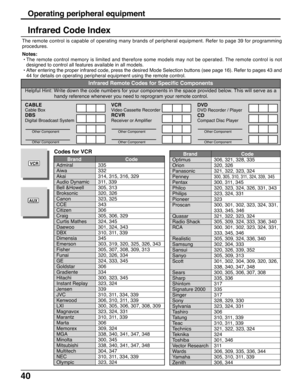

40
Operating peripheral equipment
Infrared Code Index
Infrared Remote Codes for Specific Components
Helpful Hint: Write down the code numbers for your components in the space provided below. This will serve as a
handy reference whenever you need to reprogram your remote control.
CABLE
Cable Box
DBS
Digital Broadcast System
Other Component
Other Component
VCRVideo Cassette Recorder
RCVR
Receiver or Amplifier
Other Component
Other Component
DVD
DVD Recorder / Player
CD
Compact Disc Player
Other Component...
