Panasonic Digital Photo Printer Sv-ap10u Operating Instructions

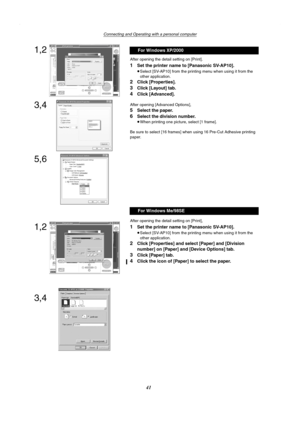

Connecting and Operating with a personal computer
41
After opening the detail setting on [Print].
1Set the printer name to [Panasonic SV-AP10].
≥Select [SV-AP10] from the printing menu when using it from the
other application.
2Click [Properties].
3Click [Layout] tab.
4Click [Advanced].
After opening [Advanced Options],
5Select the paper.
6Select the division number.
≥When printing one picture, select [1 frame].
Be sure to select [16 frames] when using 16 Pre-Cut Adhesive printing
paper.
After opening...

Connecting and Operating with a personal computer
42

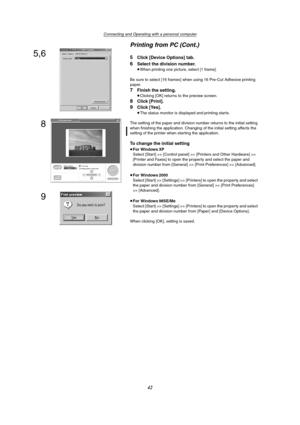

Printing from PC (Cont.)
5Click [Device Options] tab.
6Select the division number.
≥When printing one picture, select [1 frame].
Be sure to select [16 frames] when using 16 Pre-Cut Adhesive printing
paper.
7Finish the setting.
≥Clicking [OK] returns to the preview screen.
8Click [Print].
9Click [Yes].
≥The status monitor is displayed and printing starts.
The setting of the paper and division number returns to the initial setting
when finishing the...

Connecting and Operating with a personal computer
43

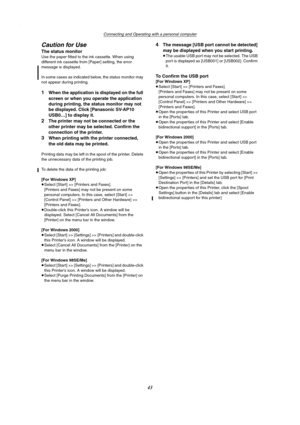

Caution for Use
The status monitor
Use the paper fitted to the ink cassette. When using
different ink cassette from [Paper] setting, the error
message is displayed.
In some cases as indicated below, the status monitor may
not appear during printing.
1When the application is displayed on the full
screen or when you operate the application
during printing, the status monitor may not
be displayed. Click [Panasonic SV-AP10
USB0…] to display it....

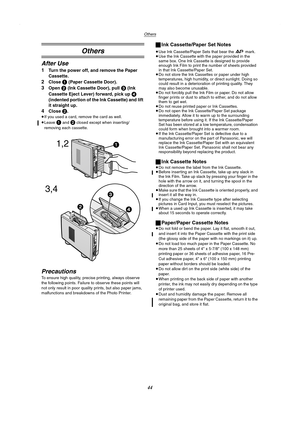

Others
44
Others
After Use
1Turn the power off, and remove the Paper
Cassette.
2Close 1 (Paper Cassette Door).
3Open 2 (Ink Cassette Door), pull 3 (Ink
Cassette Eject Lever) forward, pick up
 4
(indented portion of the Ink Cassette) and lift
it straight up.
4Close 2.
≥If you used a card, remove the card as well.
≥Leave
 1 and 2 closed except when inserting/
removing each cassette.
Precautions
To ensure high quality, precise printing, always observe
the following points. Failure to observe these...

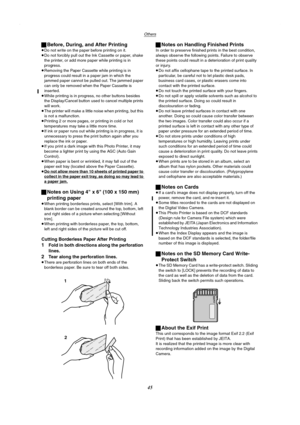

Others
45 ªBefore, During, and After Printing
≥Do not write on the paper before printing on it.
≥Do not forcibly pull out the Ink Cassette or paper, shake
the printer, or add more paper while printing is in
progress.
≥Removing the Paper Cassette while printing is in
progress could result in a paper jam in which the
jammed paper cannot be pulled out. The jammed paper
can only be removed when the Paper Cassette is
inserted.
≥While printing is in progress, no other buttons besides
the Display/Cancel...

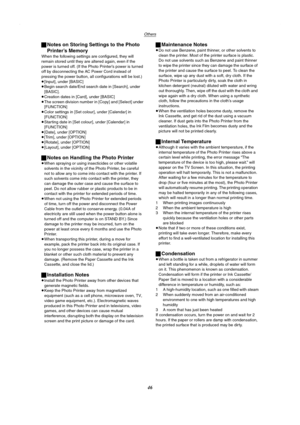

Others
46 ªNotes on Storing Settings to the Photo
Printer’s Memory
When the following settings are configured, they will
remain stored until they are altered again, even if the
power is turned off. (If the Photo Printer’s power is turned
off by disconnecting the AC Power Cord instead of
pressing the power button, all configurations will be lost.)
≥[Input], under [BASIC]
≥Begin search date/End search date in [Search], under
[BASIC].
≥Creation dates in [Card], under [BASIC]
≥The screen division...

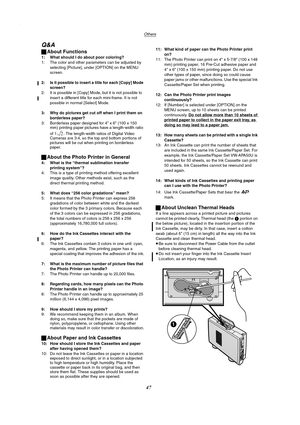

Others
47
Q&A
ªAbout Functions
1: What should I do about poor coloring?
1: The color and other parameters can be adjusted by
selecting [Picture], under [OPTION] on the MENU
screen.
2: Is it possible to insert a title for each [Copy] Mode
screen?
2: It is possible in [Copy] Mode, but it is not possible to
insert a different title for each mini-frame. It is not
possible in normal [Select] Mode.
3: Why do pictures get cut off when I print them on
borderless paper?
3: Borderless paper designed for 4 x...

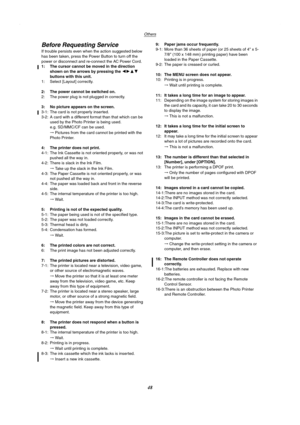

Others
48
Before Requesting Service
If trouble persists even when the action suggested below
has been taken, press the Power Button to turn off the
power or disconnect and re-connect the AC Power Cord.
1: The cursor cannot be moved in the direction
shown on the arrows by pressing the 2134
buttons with this unit.
1: Select [Layout] correctly.
2: The power cannot be switched on.
2: The power plug is not plugged in correctly.
3: No picture appears on the screen.
3-1: The card is not properly inserted....

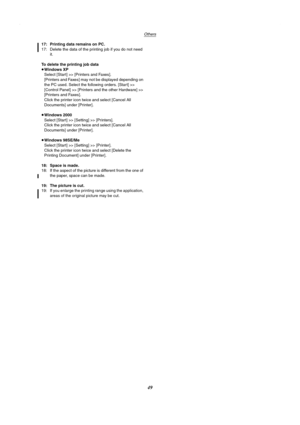

Others
49
17: Printing data remains on PC.
17: Delete the data of the printing job if you do not need
it.
To delete the printing job data
≥Windows XP
Select [Start] >> [Printers and Faxes].
[Printers and Faxes] may not be displayed depending on
the PC used. Select the following orders. [Start] >>
[Control Panel] >> [Printers and the other Hardware] >>
[Printers and Faxes].
Click the printer icon twice and select [Cancel All
Documents] under [Printer].
≥Windows 2000
Select [Start] >> [Setting] >>...

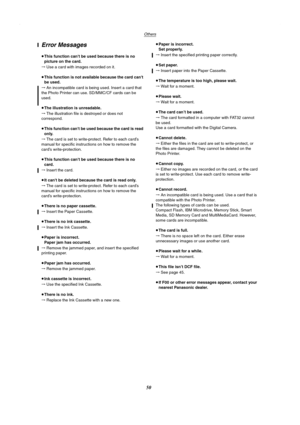

Others
50
Error Messages
≥This function cant be used because there is no
picture on the card.
→Use a card with images recorded on it.
≥This function is not available because the card cant
be used.
→An incompatible card is being used. Insert a card that
the Photo Printer can use. SD/MMC/CF cards can be
used.
≥The illustration is unreadable.
→The illustration file is destroyed or does not
correspond.
≥This function cant be used because the card is read
only.
→The card is set to write-protect. Refer...
