Panasonic Digital Progressive Wide Plasma Television Th 42pd50 Operating Instructions

41

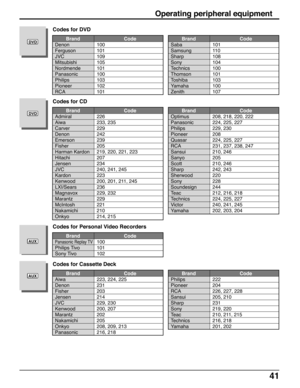

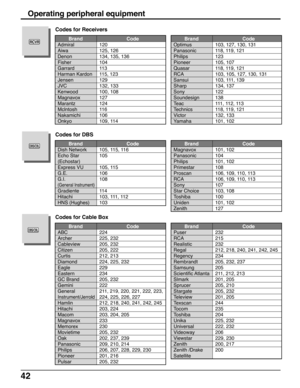

Operating peripheral equipment
        Brand Code
Panasonic Replay TV100
Philips Tivo 101
Sony Tivo 102
Codes for Personal Video Recorders
        Brand Code
Denon 100
Ferguson 101
JVC 109
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102
RCA 101
        Brand Code
Saba 101
Samsung 110
Sharp 108
Sony 104
Technics 100
Thomson 101
Toshiba 103
Yamaha 100
Zenith 107
        Brand Code
Admiral 226
Aiwa 233, 235
Carver 229
Denon 242
Emerson 239
Fisher 205
Harman Kardon 219, 220, 221, 223...

42
Operating peripheral equipment
        Brand Code
Admiral 120
Aiwa 125, 126
Denon 134, 135, 136
Fisher 104
Garrard 113
Harman Kardon 115, 123
Jensen 129
JVC 132, 133
Kenwood 100, 108
Magnavox 127
Marantz 124
Mclntosh 116
Nakamichi 106
Onkyo 109, 114
Codes for Receivers
        Brand Code
Optimus 103, 127, 130, 131
Panasonic 118, 119, 121
Philips 123
Pioneer 105, 107
Quasar 118, 119, 121
RCA 103, 105, 127, 130, 131
Sansui 103, 111, 139
Sharp 134, 137
Sony 122
Soundesign 138
Teac 111, 112, 113
Technics...

43
Operating peripheral equipment

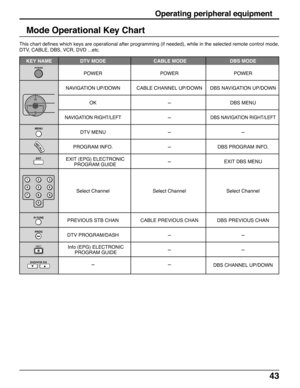

Mode Operational Key Chart
This chart defines which keys are operational after programming (if needed), while in the selected remote control mode,
DTV, CABLE, DBS, VCR, DVD ...etc.
   KEY NAME DTV MODE  CABLE MODE DBS MODE
POWER POWER POWER
NAVIGATION UP/DOWN CABLE CHANNEL UP/DOWN DBS NAVIGATION UP/DOWN
OK-DBS MENU
NAVIGATION RIGHT/LEFT-DBS NAVIGATION RIGHT/LEFT
DTV MENU--
PROGRAM INFO.-DBS PROGRAM INFO.
-EXIT DBS MENU
Select Channel Select Channel Select Channel...

44

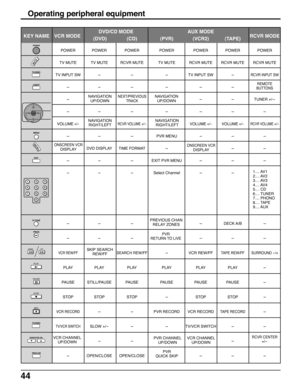

Operating peripheral equipment
POWER POWER POWER POWER POWER POWER POWER
TV MUTE TV MUTE RCVR MUTE TV MUTE RCVR MUTE RCVR MUTE RCVR MUTE
TV INPUT SW-- -TV INPUT SW-RCVR INPUT SW
-- - - - -
---TUNER +/-
-- - ----
VOLUME +/-RCVR VOLUME +/-VOLUME +/-VOLUME +/-RCVR VOLUME +/-
-- -PVR MENU---
DVD DISPLAY TIME FORMAT---
-- -EXIT PVR MENU---
-- -
Select Channel--
-- - -DECK A/B-
-- ----
VCR REW/FFSEARCH REW/FF-VCR REW/FFTAPE REW/FF SURROUND -/+
PLAY PLAY PLAY PLAY PLAY PLAY-
PAUSE STILL/PAUSE PAUSE PAUSE...

45

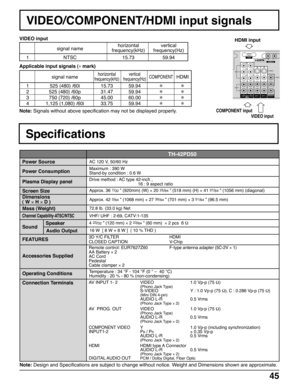

AV  IN
R           LAUDIO IN
IN
S VIDEO
VIDEO
LL
R RY
VIDEO
AUDIO
PB
PR
PB
PR
YY
PROGOUTTO AUDIO AMPCOMPONENT VIDEO
 INPUT 12 INPUT 2  INPUT 1
AV INPUT 1- 2 VIDEO 1.0 Vp-p (75 Ω)(Phono Jack Type)S-VIDEO Y : 1.0 Vp-p (75 Ω), C : 0.286 Vp-p (75 Ω)(Mini DIN 4-pin)AUDIO L-R 0.5 Vrms(Phono Jack Type × 2)
AV  PROG. OUT VIDEO 1.0 Vp-p (75 Ω)(Phono Jack Type)AUDIO L-R 0.5 Vrms(Phono Jack Type × 2)
COMPONENT VIDEOY1.0 Vp-p (including synchronization)
INPUT1-2 PB / PR± 0.35 Vp-p
AUDIO L-R 0.5 Vrms
(Phono Jack...

46

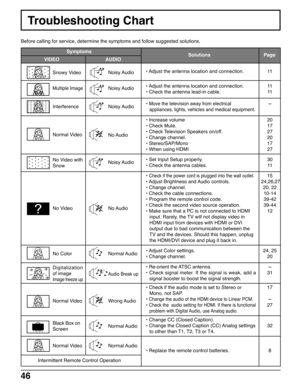

Troubleshooting Chart
Before calling for service, determine the symptoms and follow suggested solutions.
11
11
11
-
20
17
27
20
17
27
30
11
15
 24,26,27
20, 22
10-14
39-42
39-44
12
24, 25
20
-
31
17
-
27
32
8 Digitalization
of image
Image freeze up
Audio Break up
Page
Noisy Audio
Noisy Audio
Noisy Audio
No Audio
Noisy Audio
No Audio
Normal Audio
Wrong Audio
Normal Audio
Normal Audio Snowy Video
Multiple Image
Interference
Normal Video
No Video with
Snow
No Video
No Color
Normal Video
Black Box on...

47

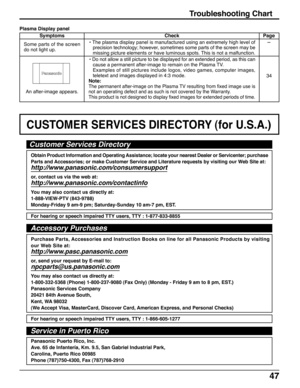

Troubleshooting Chart
Symptoms
Some parts of the screen
do not light up.
An after-image appears. Plasma Display panel
Check
• The plasma display panel is manufactured using an extremely high level of
precision technology; however, sometimes some parts of the screen may be
missing picture elements or have luminous spots. This is not a malfunction.
• Do not allow a still picture to be displayed for an extended period, as this can
cause a permanent after-image to remain on the Plasma TV.
Examples of...

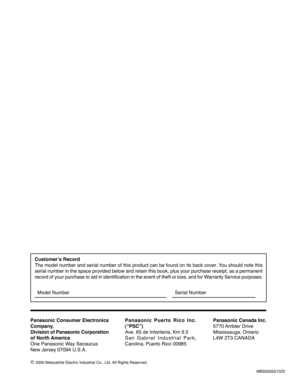

Customer’s Record
The model number and serial number of this product can be found on its b\
ack cover. You should note this
serial number in the space provided below and retain this book, plus you\
r purchase receipt, as a permanent
record of your purchase to aid in identification in the event of theft o\
r loss, and for Warranty Service purposes.Model Number Serial Number
