Panasonic DLP Projector PT-DZ680U PT-DZ680UL Operating Instructions

ENGLISH - 61

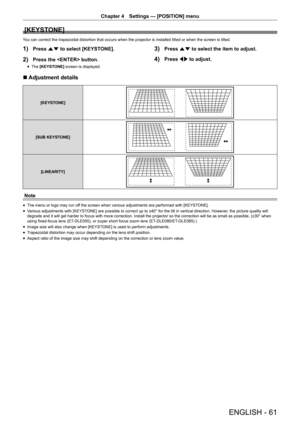

Chapter 4 Settings — [POSITION] menu
[KEYSTONE]
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [KEYSTONE].
2) Press the  button.
r
f The
[KEYSTONE]  screen is displayed.
3) Press as to select the item to adjust.
4) Press qw to adjust.
r
r Adjustment details
[KEYSTONE]
[SUB KEYSTONE]
[LINEARITY]
Note
r
f The menu or logo may run off the screen when various adjustments are performed with...

62 - ENGLISH

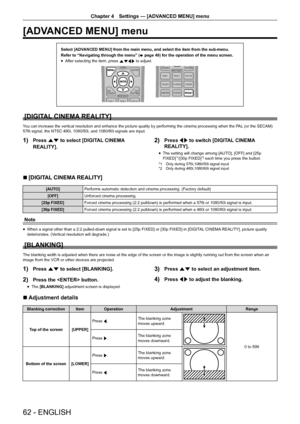

Chapter 4 Settings — [ADVANCED MENU] menu
[ADVANCED MENU] menu
Select [ADVANCED MENU] from the main menu, and select the item from the sub-menu.
Refer to “Navigating through the menu” (
x page 49) for the operation of the menu screen.
r
f After selecting the item, press
asqw to adjust.
[DIGITAL CINEMA REALITY]
You can increase the vertical resolution and enhance the picture quality by performing the cinema processing when the PAL (or the SECAM)
576i signal, the NTSC 480i, 1080/50i, and...

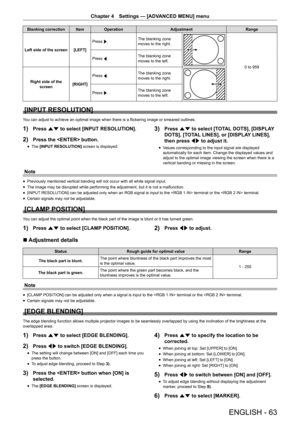

ENGLISH - 63
Chapter 4 Settings — [ADVANCED MENU] menu
Blanking correction ItemOperation Adjustment Range
Left side of the screen [LEFT]Press
w. The blanking zone
moves to the right.
0 to 959
Press
q. The blanking zone
moves to the left.
Right side of the  screen [RIGHT]Press
q. The blanking zone
moves to the right.
Press
w. The blanking zone
moves to the left.
[INPUT RESOLUTION]
You can adjust to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press as to select...

64 - ENGLISH

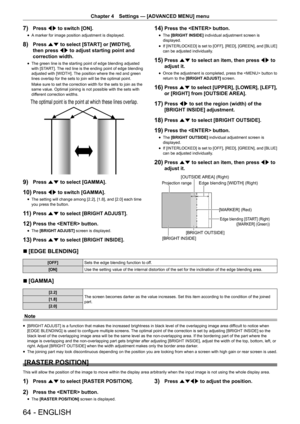

Chapter 4 Settings — [ADVANCED MENU] menu
7) Press qw to switch [ON].
r
f A marker for image position adjustment is displayed.
8) Press as to select [START] or [WIDTH],
then press qw to adjust starting point and
correction width.
r
f The green line is the starting point of edge blending adjusted
with [START]. The red line is the ending point of edge blending
adjusted with [WIDTH]. The position where the red and green
lines overlap for the sets to join will be the optimal point.
Make...

ENGLISH - 65
Chapter 4 Settings — [DISPLAY LANGUAGE] menu
[DISPLAY LANGUAGE] menu
Select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu.
Refer to “Navigating through the menu” (
x page 49) for the operation of the menu screen.
r
f Press
as to select a language, and press the  button to set.
Changing the display language
You can select the language of the on-screen display.
Ô
ÔŠ
DISPLA Y LANGUAGE
r
f Various menus, settings, adjustment screens, control button names, etc., are...

66 - ENGLISH

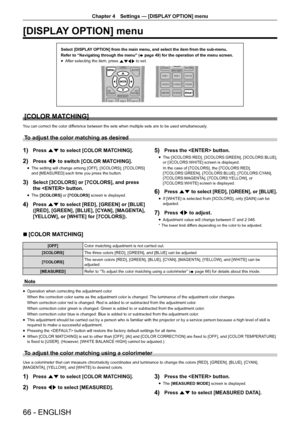

Chapter 4 Settings — [DISPLAY OPTION] menu
[DISPLAY OPTION] menu
Select [DISPLAY OPTION] from the main menu, and select the item from the sub-menu.
Refer to “Navigating through the menu” (
x page 49) for the operation of the menu screen.
r
f After selecting the item, press
asqw to set.
[COLOR MATCHING]
You can correct the color difference between the sets when multiple sets are to be used simultaneously.
To adjust the color matching as desired
1) Press as to select [COLOR MATCHING].
2)...

ENGLISH - 67
Chapter 4 Settings — [DISPLAY OPTION] menu
5) Press the  button.
r
f The
[MEASURED DATA]  screen is displayed.
6) Measure the current luminance (Y) and the
chromaticity coordinates (x, y) using the
colorimeter.
7) Press as to select a color, then press qw to
adjust the value.
8) Once all the input is completed, press the
 button.
r
f The
[MEASURED MODE]  screen is displayed.
9) Press as to select [TARGET DATA].
10) Press the  button.
r
f The
[TARGET DATA]  screen is displayed.
11)...

68 - ENGLISH
Chapter 4 Settings — [DISPLAY OPTION] menu
[AUTO SIGNAL]
Set automatic execution of auto setup.
The screen display position or signal level can be adjusted automatically without pressing the  button on the remote control on
each occasion if you input unregistered signals frequently at meetings, etc.
1) Press as to select [AUTO SIGNAL].2) Press qw to switch [AUTO SIGNAL].
r
f The setting will change between [OFF] and [ON] each time you
press the button.
r
r [AUTO SIGNAL]
[OFF]
Set input...

ENGLISH - 69
Chapter 4 Settings — [DISPLAY OPTION] menu
6) Press qw to switch [DVI SIGNAL LEVEL].
r
f The setting will change between [0-255:PC] and [16-235] each
time you press the button.
r
r [DVI EDID]
[EDID3]
Switch between fine settings for a moving image and for a still image.
[EDID1] Select mainly when an external device that outputs movie-type image signals (such as a blu-ray disk
player) is connected to the  terminal.
[EDID2:PC] Select mainly when an external device that outputs still...

70 - ENGLISH
Chapter 4 Settings — [DISPLAY OPTION] menu
r
r [ON-SCREEN DISPLAY]
[OSD POSITION] [2]
Set the position of the menu screen (OSD) to the center left of the screen.
[3] Set the position of the menu screen (OSD) to the bottom left of the screen.
[4] Set the position of the menu screen (OSD) to the top center of the screen.
[5] Set the position of the menu screen (OSD) to the center of the screen.
[6] Set the position of the menu screen (OSD) to the bottom center of the screen.
[7] Set the...
