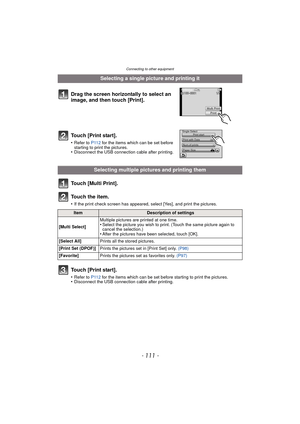

- 111 -
Connecting to other equipment
Touch [Multi Print].
To u c h  t h e  i t e m .
•If the print check screen has appeared, select [Yes], and print the pictures.
Touch [Print start].
•Refer to P112 for the items which can be set before starting to print the pictures.•Disconnect the USB connecti on cable after printing.
Selecting a single picture and printing it
Drag the screen horizontally to select an
image, and then touch [Print].
Touch [Print start].
•Refer to  P112 for the items which can be set...

Connecting to other equipment

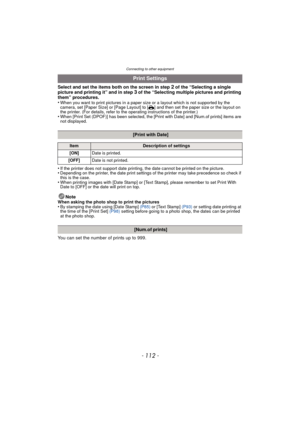

- 112 -
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures in a paper size or a layout which is not supported by the
camera, set [Paper Size] or [Page Layout] to [ {] and then set the paper size or the layout on
the printer. (For details, refer to the operating instructions of the printer.)
•When [Print...

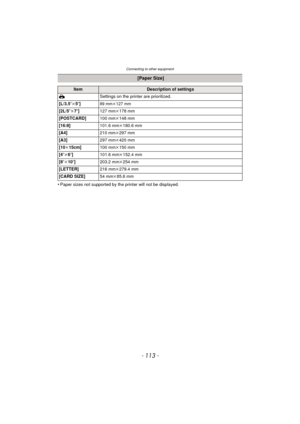

- 113 -
Connecting to other equipment
•Paper sizes not supported by the printer will not be displayed.
 [Paper Size]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm

Connecting to other equipment

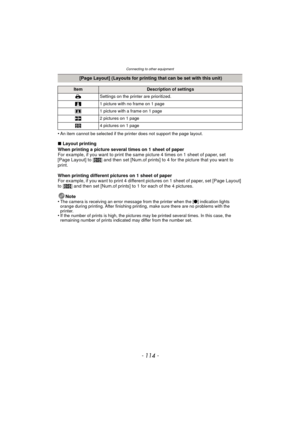

- 114 -
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[Page Layout] to [ ä] and then set [Num.of prints] to 4 for the picture that you want to
print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...

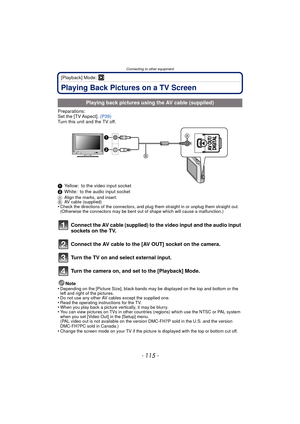

- 115 -
Connecting to other equipment
[Playback] Mode: ¸
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV Aspect]. (P39)
Turn this unit and the TV off.
1 Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
•Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause a malfunction.)
Connect the AV cable (supplied) to the...

Connecting to other equipment

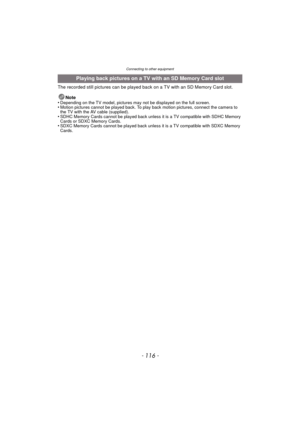

- 116 -
The recorded still pictures can be played back on a TV with an SD Memory Card slot.Note
•
Depending on the TV model, pictures may  not be displayed on the full screen.•Motion pictures cannot be played back. To play back motion pictures, connect the camera to
the TV with the AV cable (supplied).
•SDHC Memory Cards cannot be played back unles s it is a TV compatible with SDHC Memory
Cards or SDXC Memory Cards.
•SDXC Memory Cards cannot be played back unle ss it is a...

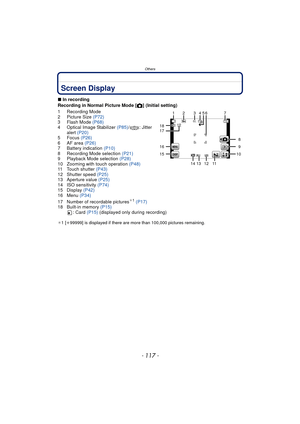

- 117 -
Others
OthersScreen Display
∫In recording
Recording in Normal Picture Mode [ !] (Initial setting)
1 Recording Mode
2 Picture Size (P72)
3 Flash Mode  (P68)
4 Optical Image Stabilizer (P85) /: Jitter
alert  (P20)
5 Focus  (P26)
6 AF area  (P26)
7 Battery indication  (P10)
8 Recording Mode selection (P21)
9 Playback Mode selection  (P28)
10 Zooming with touch operation  (P48)
11 Touch shutter  (P43)
12 Shutter speed  (P25)
13 Aperture value  (P25)
14 ISO sensitivity (P74)
15 Display  (P42)
16 Menu...

Others

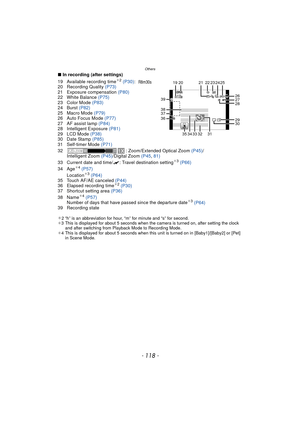

- 118 -
∫In recording (after settings)
19 Available recording time¢ 2 (P30) :
20 Recording Quality  (P73)
21 Exposure compensation  (P80)
22 White Balance  (P75)
23 Color Mode  (P83)
24 Burst  (P82)
25 Macro Mode  (P79)
26 Auto Focus Mode  (P77)
27 AF assist lamp (P84)
28 Intelligent Exposure  (P81)
29 LCD Mode  (P38)
30 Date Stamp  (P85)
31 Self-timer Mode  (P71)
32 : Zoom/Extended Optical Zoom (P45)/
Intelligent Zoom  (P45)/Digital Zoom  (P45, 81)
33 Current date and time/ “: Travel destination...

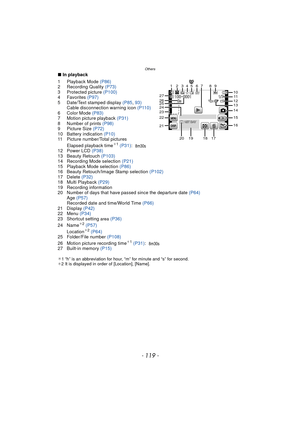

- 119 -
Others
∫In playback
1 Playback Mode  (P86)
2 Recording Quality  (P73)
3 Protected picture  (P100)
4 Favorites  (P97)
5 Date/Text stamped display  (P85, 93)
Cable disconnection warning icon  (P110)
6 Color Mode  (P83)
7 Motion picture playback  (P31)
8 Number of prints  (P98)
9 Picture Size (P72)
10 Battery indication  (P10)
11 Picture number/Total pictures
Elapsed playback time
¢1 (P31) :
12 Power LCD  (P38)
13 Beauty Retouch  (P103)
14 Recording Mode selection  (P21)
15 Playback Mode selection...

Others

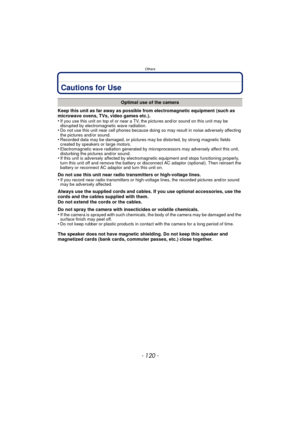

- 120 -
Cautions for Use
Keep this unit as far away as possible from electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
•
If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be
disrupted by electromagnetic wave radiation.
•Do not use this unit near cell phones because doing so may result in noise adversely affecting
the pictures and/or sound.
•Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields...
