Panasonic Dmc Fp1 Operating Instructions Manual

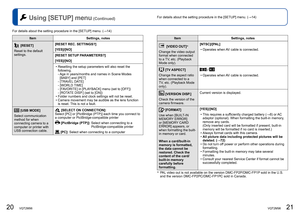

20   VQT2M98VQT2M98   21
For details about the setting procedure in the [SETUP] menu. (→14)  Using [SETUP] menu (Continued)
 [RESET]
Reset to the default
settings.[RESET REC. SETTINGS?]
[YES]/[NO]
[RESET SETUP PARAMETERS?]
[YES]/[NO]
  • Resetting the setup parameters will also reset the
following.
-  Age in years/months and names in Scene Modes
[BABY] and [PET]
- [TRAVEL DATE]
- [WORLD TIME]
- [FAVORITE] in [PLAYBACK] menu (set to [OFF])
- [ROTATE DISP.] (set to [ON])
  • Folder numbers and clock...

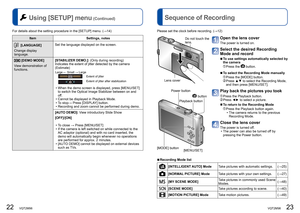

22   VQT2M98VQT2M98   23
  Using [SETUP] menu (Continued)
 [LANGUAGE]
Change display
language.Set the language displayed on the screen.
 [DEMO MODE]
View demonstration of
functions.[STABILIZER DEMO.]: (Only during recording)
Indicates the extent of jitter detected by the camera
(Estimate)
Extent of jitter
Extent of jitter after stabilization
Large ← Small → Large
  • When the demo screen is displayed, press [MENU/SET]
to switch the Optical Image Stabilizer between on and
off.
  • Cannot be displayed...

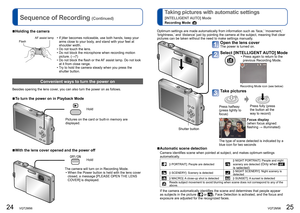

24   VQT2M98VQT2M98   25
  Taking pictures with automatic settings
[INTELLIGENT AUTO] Mode
Recording Mode:
Sequence of Recording (Continued)
  ■Holding the camera
FlashAF assist lamp  • If jitter becomes noticeable, use both hands, keep your
arms close to your body, and stand with your feet at
shoulder width.
  • Do not touch the lens.
  • Do not block the microphone when recording motion
picture. (→7)
  • Do not block the flash or the AF assist lamp. Do not look
at it from close range.
  • Try to...

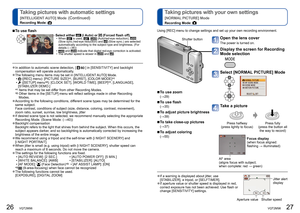

26   VQT2M98VQT2M98   27
  Taking pictures with your own settings
[NORMAL PICTURE] Mode
Recording Mode:
Taking pictures with automatic settings
[INTELLIGENT AUTO] Mode (Continued)
Recording Mode:
  ■To use flash
Select either  (i Auto) or  (Forced flash off).  • When  is used, ,  (Auto/red-eye reduction),
(Slow sync./red-eye reduction) and  (Slow sync.) are selected
automatically according to the subject type and brightness. (For
details (→36))
  •
 and  indicate that digital red-eye correction is...

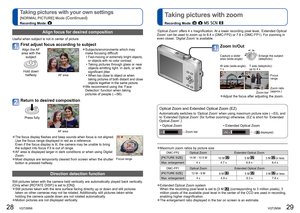

28   VQT2M98VQT2M98   29
  Taking pictures with your own settings
[NORMAL PICTURE] Mode (Continued)
Recording Mode:

Taking pictures with zoom
Recording Mode:
Align focus for desired composition
Useful when subject is not in center of picture.
First adjust focus according to subject
Hold down
halfway
Align the AF
area with the
subject
AF area
  ●Subjects/environments which may
make focusing difficult:
  •
Fast-moving or extremely bright objects,
or objects with no color contrast.
  •...

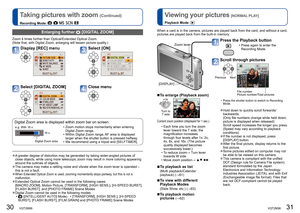

30   VQT2M98VQT2M98   31
Taking pictures with zoom (Continued)
Recording Mode:
  Viewing your pictures [NORMAL PLAY]
Playback Mode:

Enlarging further  [DIGITAL ZOOM]
Zoom 4 times further than Optical/Extended Optical Zoom.
(Note that, with Digital Zoom, enlarging will lessen picture quality.)
Display [REC] menuSelect [ON]
Select [DIGITAL ZOOM]Close menu
Digital Zoom area is displayed within zoom bar on screen.
Digital Zoom area16 x
e.g. With 16 x  • Zoom motion stops momentarily when entering...

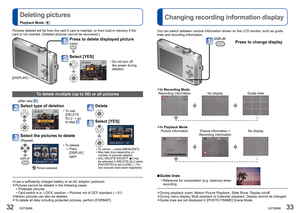

32   VQT2M98VQT2M98   33
  Changing recording information display   Deleting pictures
Playback Mode:
Select type of deletion
  • To use
[DELETE
ALL] → go
to step
Select the pictures to delete
(Repeat)
 Picture selected
  •To release
→  Press
[DISPLAY]
again
Pictures deleted will be from the card if card is inserted, or from built-in memory if the
card is not inserted. (Deleted pictures cannot be recovered.)
Press to delete displayed picture
Select [YES]
  • Do not turn off
the power during...

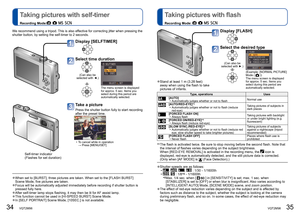

34   VQT2M98VQT2M98   35
  Taking pictures with flash
Recording Mode:

Taking pictures with self-timer
Recording Mode:
Display [FLASH]
Select the desired type
(Can also be
selected with ►.)
(Example: [NORMAL PICTURE]
Mode (  ))
The menu screen is displayed
for approx. 5 sec. Items you
select during this period are
automatically selected.
Type, operations Uses[AUTO]
  • Automatically judges whether or not to flashNormal use
[AUTO/RED-EYE]∗1  • Automatically judges whether or not to...

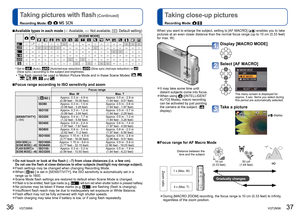

36   VQT2M98VQT2M98   37
  Taking pictures with flash (Continued)
Recording Mode:

Taking close-up pictures
Recording Mode:
  ■Available types in each mode (○: Available, —: Not available, ○: Default setting)
[SCENE MODE]
○○∗
○○○○○-○--○○○--○○○○-○○○○-----○------○○-○○○○○-○--○○○○○○○○---------○○---------------○-○○--------○○○○○○○○○○○○○○-○○○○
∗  Set to  (Auto),  (Auto/red-eye reduction),  (Slow sync./red-eye reduction) or
(Slow sync.) according to the subject and brightness.
  • The flash cannot...

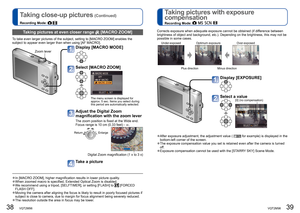

38   VQT2M98VQT2M98   39
Taking close-up pictures (Continued)
Recording Mode:
  Taking pictures with exposure
compensation
Recording Mode:
  ●In [MACRO ZOOM], higher magnification results in lower picture quality.  ●When zoomed macro is specified, Extended Optical Zoom is disabled.   ●We recommend using a tripod, [SELFTIMER], or setting [FLASH] to  [FORCED
FLASH OFF].
  ●Moving the camera after aligning the focus is likely to result in poorly focused pictures if
subject is close to camera,...
