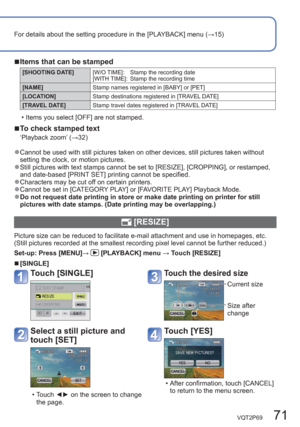

VQT2P69   71
For details about the setting procedure in the [PLAYBACK] menu (→15)
  ■Items that can be stamped
[SHOOTING DATE][W/O TIME]:     Stamp the recording date
[WITH TIME]:   Stamp the recording time
[NAME]Stamp names registered in [BABY] or [PET]
[LOCATION]Stamp destinations registered in [TRAVEL DATE]
[TRAVEL DATE]Stamp travel dates registered in [TRAVEL DATE]
  • Items you select [OFF] are not stamped.
  ■To check stamped text
‘Playback zoom’ (→32)
  ●Cannot be used with still pictures taken on...

72   VQT2P69

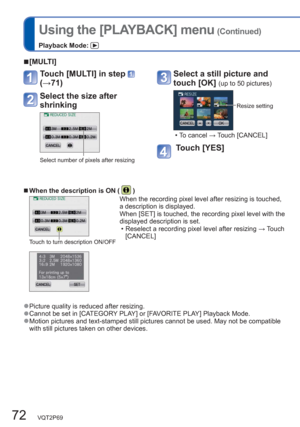

Using the [PLAYBACK] menu (Continued)
Playback Mode:
  ■When the description is ON (  )
When the recording pixel level after resizing is touched,
a description is displayed.
When [SET] is touched, the recording pixel level with the
displayed description is set.
  • Reselect a recording pixel level after resizing → Touch
[CANCEL]
Touch to turn description ON/OFF
  ●Picture quality is reduced after resizing.  ●Cannot be set in [CATEGORY PLAY] or [FAVORITE PLAY] Playback Mode.  ●Motion...

VQT2P69   73
For details about the setting procedure in the [PLAYBACK] menu (→15)

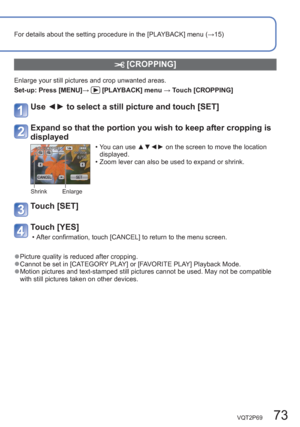

 [CROPPING]
Enlarge your still pictures and crop unwanted areas.
Set-up:  Press [MENU]→
 [PLAYBACK] menu → Touch [CROPPING]
Use ◄► to select a still picture and touch [SET]
Expand so that the portion you wish to keep after cropping is
displayed
Shrink Enlarge
  • You can use ▲▼◄► on the screen to move the location
displayed.
  • Zoom lever can also be used to expand or shrink.
Touch [SET]
Touch [YES]
  • After...

74   VQT2P69
Using the [PLAYBACK] menu (Continued)
Playback Mode:

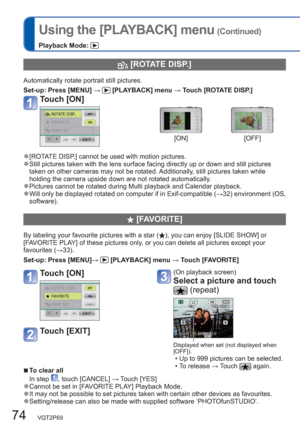

  [ROTATE DISP.]
Automatically rotate portrait still pictures.
Set-up:  Press [MENU] →
 [PLAYBACK] menu → Touch [ROTATE DISP.]
Touch [ON]
[ON] [OFF]
  ●[ROTATE DISP.] cannot be used with motion pictures.  ●Still pictures taken with the lens surface facing directly up or down and still pictures
taken on other cameras may not be rotated. Additionally, still pictures taken while
holding the camera upside down are not rotated...

VQT2P69   75
For details about the setting procedure in the [PLAYBACK] menu (→15)

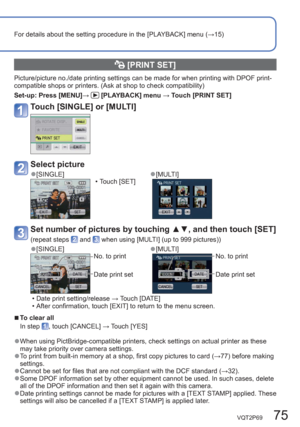

  [PRINT SET]
Picture/picture no./date printing settings can be made for when printing with DPOF print-
compatible shops or printers. (Ask at shop to check compatibility)
Set-up:  Press [MENU]→
 [PLAYBACK] menu → Touch [PRINT SET]
Touch [SINGLE] or [MULTI]
Select picture
  ●[SINGLE]  ●[MULTI]  • Touch [SET]
Set number of pictures by touching ▲▼, and then touch [SET]
(repeat steps  and  when using [MULTI] (up to 999...

76   VQT2P69
Using the [PLAYBACK] menu (Continued)
Playback Mode:

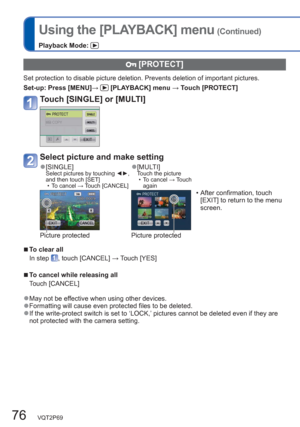

  [PROTECT]
Set protection to disable picture deletion. Prevents deletion of important pictures.
Set-up:  Press [MENU]→
 [PLAYBACK] menu → Touch [PROTECT]
Touch [SINGLE] or [MULTI]
Select picture and make setting
  ●[SINGLE]Select pictures by touching ◄►,
and then touch [SET]
  • To cancel → Touch [CANCEL]   ●[MULTI]Touch the picture
  • To cancel → Touch
again
  • After confirmation, touch
[EXIT] to return to the menu
screen....

VQT2P69   77
For details about the setting procedure in the [PLAYBACK] menu (→15)

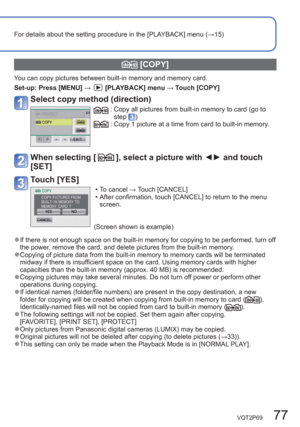

  [COPY]
You can copy pictures between built-in memory and memory card.
Set-up:  Press [MENU] →
[PLAYBACK] menu → Touch [COPY]
Select copy method (direction)
:  Copy all pictures from built-in memory to card (go to
step ):  Copy 1 picture at a time from card to built-in memory.
When selecting [], select a picture with ◄► and touch
[SET]
Touch [YES]
  • To cancel → Touch [CANCEL]
  • After confirmation, touch [CANCEL]...

78   VQT2P69

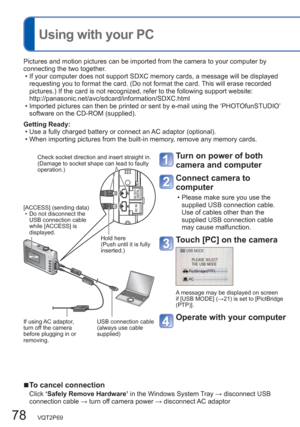

  Using with your PC
  ■To cancel connection
Click ‘Safely Remove Hardware’ in the Windows System Tray → disconnect USB
connection cable → turn off camera power → disconnect AC adaptor
Turn on power of both
camera and computer
Connect camera to
computer
  • Please make sure you use the
supplied USB connection cable.
Use of cables other than the
supplied USB connection cable
may cause malfunction.
Touch [PC] on the camera
A message may be displayed on screen
if [USB MODE] (→21) is set...

VQT2P69   79

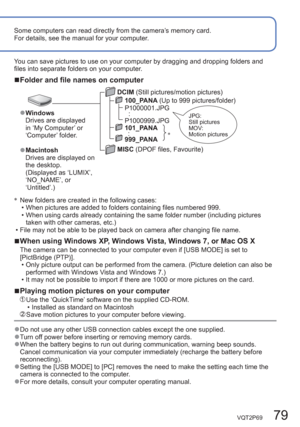

Some computers can read directly from the camera’s memory card.
For details, see the manual for your computer.
∗
  New folders are created in the following cases:
  • When pictures are added to folders containing files numbered 999.
  • When using cards already containing the same folder number (including pictures
taken with other cameras, etc.)
  • File may not be able to be played back on camera after changing file name.
  ■When using Windows XP, Windows Vista, Windows 7, or Mac OS X
The...

80   VQT2P69

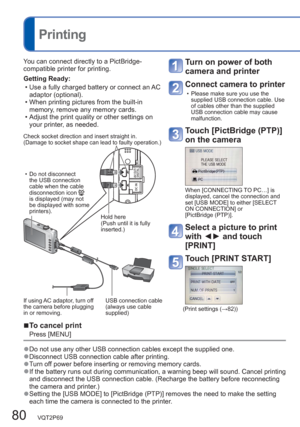

  Printing
  ■To cancel print
Press [MENU]
  ●Do not use any other USB connection cables except the supplied one.  ●Disconnect USB connection cable after printing.  ●Turn off power before inserting or removing memory cards.  ●If the battery runs out during communication, a warning beep will sound. Cancel printing
and disconnect the USB connection cable. (Recharge the battery before reconnecting
the camera and printer.)
  ●Setting the [USB MODE] to [PictBridge (PTP)] removes the need to...
