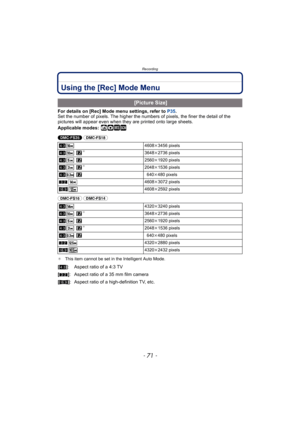

- 71 -
Recording
Using the [Rec] Mode Menu
For details on [Rec] Mode menu settings, refer to P35.
Set the number of pixels. The higher the nu mbers of pixels, the finer the detail of the
pictures will appear even when they  are printed onto large sheets.
Applicable modes:
 ñ· ¿
(DMC-FS35)  (DMC-FS18)
(DMC-FS16) (DMC-FS14)
¢ This item cannot be set in the Intelligent Auto Mode.
 [Picture Size]
X4608k 3456 pixels
X ¢3648k2736 pixels
X  2560k1920 pixels
X ¢2048k1536 pixels
X  640k480 pixels
Y4608k 3072...

Recording
- 72 -
Note
• A digital picture is made of numerous dots called pixels. The higher the numbers of pixels, the finer the picture will be when it is printed on  a large piece of paper or displayed on a PC
monitor.
• The Extra Optical Zoom does not work when [Macro Zoom] is set or in [Transform],  [High Sens.], [Hi-Speed Burst], [Flash Burst], [Pin Hole] and [Photo Frame] in Scene Mode so
the Picture Size for [ ] is not displayed.
• Pictures may appear mosaic depending on the subject and the...

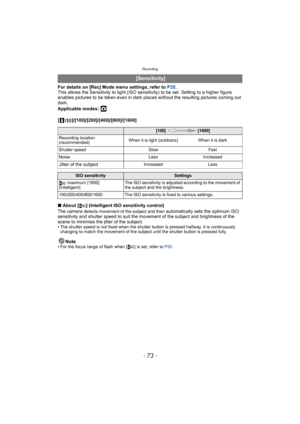

- 73 -
Recording
For details on [Rec] Mode menu settings, refer to P35.
This allows the Sensitivity to light (ISO sensit ivity) to be set. Setting to a higher figure
enables pictures to be taken even in dark plac es without the resulting pictures coming out
dark.
Applicable modes:
·
[ ]/[100]/[200]/[400]/[800]/[1600]
∫ About [ ] (Intelligent ISO sensitivity control)
The camera
detects movement of the subject and then automatically sets the optimum ISO
sensitivity and shutter speed to suit the...

Recording

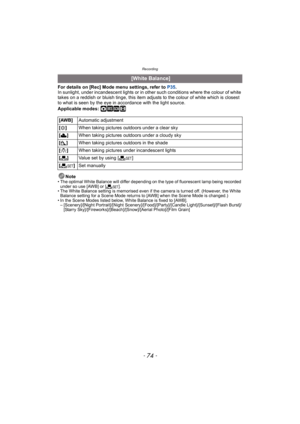

- 74 -
For details on [Rec] Mode menu settings, refer to P35.
In sunlight, under incandescent lights or in other such conditions where the colour of white
takes on a reddish or bluish tinge, this item adjusts to the colour of white which is closest
to what is seen by the eye in accordance with the light source.
Applicable modes:
·¿n
Note• The optimal White Balance will differ depending on the type of fluorescent lamp being recorded  under so use [AWB] or [ Ó].
• The White Balance setting is...

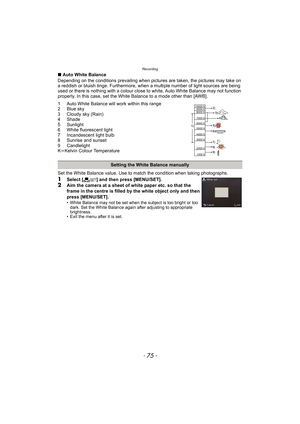

- 75 -
Recording
∫Auto White Balance
Depending on the conditions prevailing when pictures  are taken, the pictures may take on
a reddish or bluish tinge. Furthermore, when a multiple number of light sources are being
used or there is nothing with a colour close to white, Auto White Balance may not function
properly. In this case, set the White Balance to a mode other than [AWB].
1 Auto White Balance will work within this range
2 Blue sky
3 Cloudy sky (Rain)
4 Shade
5 Sunlight
6 White fluorescent...

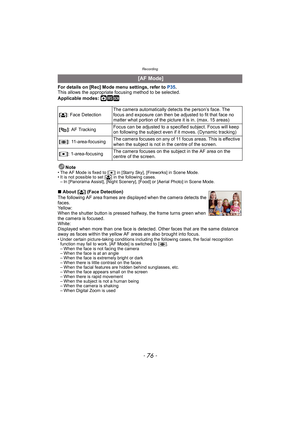

Recording
- 76 -
For details on [Rec] Mode menu settings, refer to P35.
This allows the appropriate focusing method to be selected.
Applicable modes:
·¿
Note• The AF Mode is fixed to [ Ø] in [Starry Sky], [Fireworks] in Scene Mode.
• It is not possible to set [š] in the following cases.
– In [Panorama Assist], [Night Scenery], [Food] or [Aerial Photo] in Scene Mode.
∫ About [ š] (Face Detection)
The following AF area frames are displayed when the camera detects the
faces.
Yellow:
When the shutter...

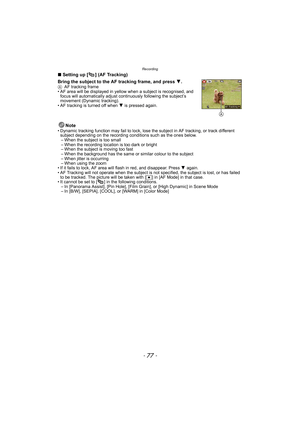

- 77 -
Recording
∫Setting up [ ] (AF Tracking)
Bring the subject to the AF tracking frame, and press  4.
AAF tracking frame
• AF area will be displayed in yellow when a subject is recognised, and  focus will automatically adjust continuously followi ng the subject’s
movement (Dynamic tracking).
• AF tracking is turned off when  4 is pressed again.
Note• Dynamic tracking function may fail to lock, lose the subject in AF tracking, or track different
subject depending on the recording conditions such as...

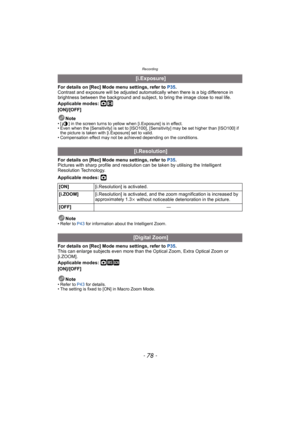

Recording
- 78 -
For details on [Rec] Mode menu settings, refer to P35.
Contrast and exposure will be adjusted automatically when there is a big difference in
brightness between the background and subject,  to bring the image close to real life.
Applicable modes:
·n
[ON]/[OFF]
Note
• [ ] in the screen turns to yellow when [i.Exposure] is in effect.
• Even when the [Sensitivity] is set to [ISO100], [Sensitivity] may be set higher than [ISO100] if the picture is taken with [i.Exposure] set to valid.
•...

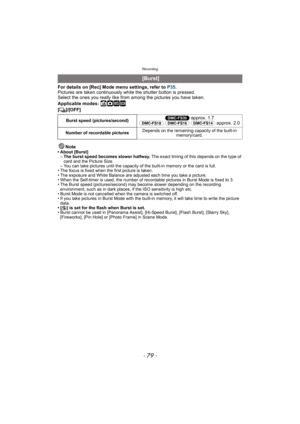

- 79 -
Recording
For details on [Rec] Mode menu settings, refer to P35.
Pictures are taken continuously wh ile the shutter button is pressed.
Select the ones you really like from  among the pictures you have taken.
Applicable modes:
ñ· ¿
[˜ ]/[OFF]
Note
• About [Burst] – The burst speed becomes slower halfway.  The exact timing of this depends on the type of
card and the Picture Size.
– You can take pictures until the capacity of the built-in memory or the card is full.
• The focus is fixed when the...

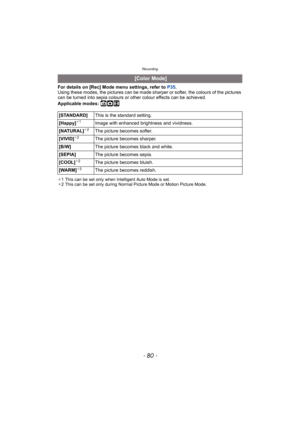

Recording
- 80 -
For details on [Rec] Mode menu settings, refer to P35.
Using these modes, the pictures can be made shar per or softer, the colours of the pictures
can be turned into sepia colours or ot her colour effects can be achieved.
Applicable modes:
ñ·n
¢ 1 This can be set only when Intelligent Auto Mode is set.
¢ 2 This can be set only during Normal Picture Mode or Motion Picture Mode.
 [Color Mode]
[STANDARD] This is the standard setting.
[Happy]
¢ 1Image with enhanced brightness and...
