Panasonic Dmc Fs7 Operating Instructions Manual

21VQT2C70
Preparation

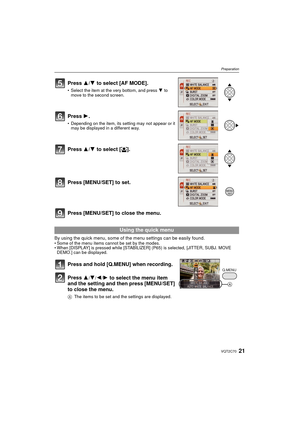

Press [MENU/SET] to close the menu.
By using the quick menu, some of the menu settings can be easily found.• Some of the menu items cannot be set by the modes.
• When [DISPLAY] is pressed while [STABILIZER] (P65) is selected, [JITTER, SUBJ. MOVE DEMO.] can be displayed.
Press  3/4 to select [AF MODE].
• Select the item at the very bottom, and press  4 to
move to the second screen.
Press  1.
• Depending on the item, its setting may not appear or it
may be displayed in a different...

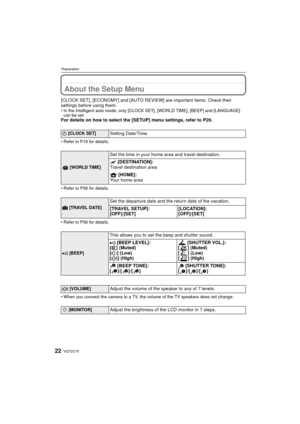

VQT2C7022
Preparation
About the Setup Menu
[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their
settings before using them.
• In the Intelligent auto mode, only [CLOCK SET], [WORLD TIME], [BEEP] and [LANGUAGE] can be set.
For details on how to select the [SETUP] menu settings, refer to P20.
• Refer to P18 for details.
• Refer to P58 for details.
• Refer to P56 for details.
• When you connect the camera to a TV, the volume of the TV speakers does not change.
U  [CLOCK SET]Setting...

23VQT2C70
Preparation

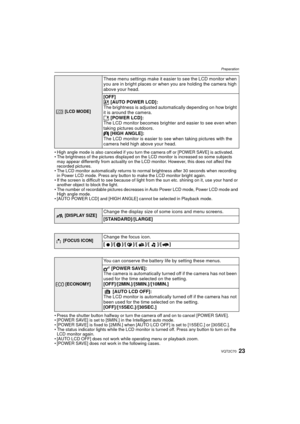

• High angle mode is also canceled if you turn the camera off or [POWER SAVE] is activated.
• The brightness of the pictures displayed on the LCD monitor is increased so some subjects may appear differently from actuality on the LCD monitor. However, this does not affect the
recorded pictures.
• The LCD monitor automatically returns to normal brightness after 30 seconds when recording  in Power LCD mode. Press any button to make the LCD monitor bright again.
• If the screen is...

VQT2C7024
Preparation

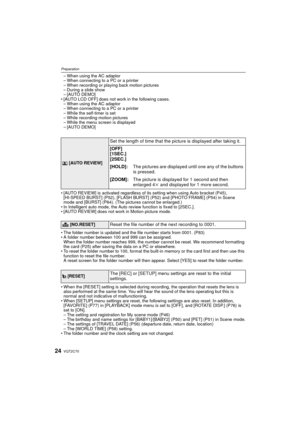

– When using the AC adaptor
– When connecting to a PC or a printer
– When recording or playing back motion pictures
– During a slide show
–[AUTO DEMO]
• [AUTO LCD OFF] does not work in the following cases. – When using the AC adaptor
– When connecting to a PC or a printer
– While the self-timer is set
– While recording motion pictures
– While the menu screen is displayed
–[AUTO DEMO]
• [AUTO REVIEW] is activated regardless of its setting when using Auto bracket (P45),  [HI-SPEED...

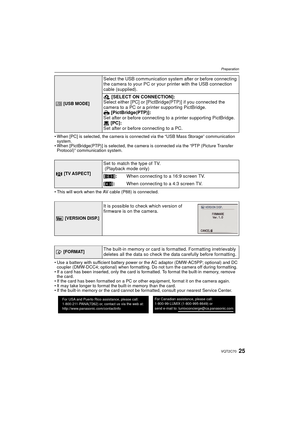

25VQT2C70
Preparation
• When [PC] is selected, the camera is connected via the “USB Mass Storage” communication system.
• When [PictBridge(PTP)] is selected, the camera is connected via the “PTP (Picture Transfer  Protocol)” communication system.
• This will work when the AV cable (P88) is connected.
• Use a battery with sufficient battery power or the AC adaptor (DMW-AC5PP; optional) and DC  coupler (DMW-DCC4; optional) when formatting. Do not turn the camera off during formatting.
• If a card has been...

VQT2C7026
Preparation

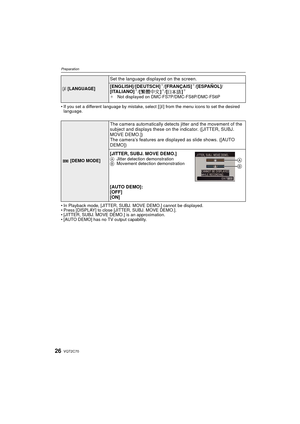

• If you set a different language by mistake, select [~] from the menu icons to set the desired
language.
• In Playback mode, [JITTER, SUBJ. MOVE DEMO.] cannot be displayed.
• Press [DISPLAY] to close [JITTER, SUBJ. MOVE DEMO.].
• [JITTER, SUBJ. MOVE DEMO.] is an approximation.
• [AUTO DEMO] has no TV output capability.
~  [LANGUAGE]
Set the language displayed on the screen.
[ENGLISH]/[DEUTSCH]¢/[FRANÇAIS]¢/[ESPAÑOL]/
[ITALIANO]¢/[ 繁體中文 ]¢/[¢ ]¢
¢Not displayed on...

27VQT2C70
Preparation

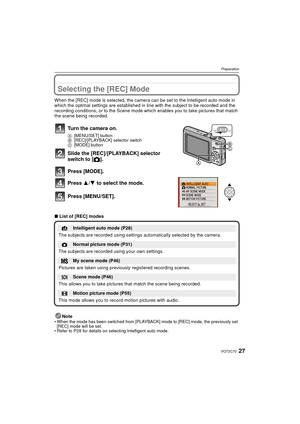

Selecting the [REC] Mode
When the [REC] mode is selected, the camera can be set to the Intelligent auto mode in
which the optimal settings are established in line with the subject to be recorded and the
recording conditions, or to the Scene mode which enables you to take pictures that match
the scene being recorded.
∫List of [REC] modes
Note
• When the mode has been switched from [PLAYBACK] mode to [REC] mode, the previously set [REC] mode will be set.
• Refer to P28 for details...

VQT2C7028
Basic
[REC] mode: ñ

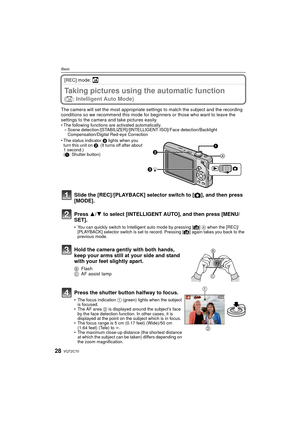

BasicTaking pictures using the automatic function
(ñ: Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the recording
conditions so we recommend this mode for beginners or those who want to leave the
settings to the camera and take pictures easily.
• The following functions are activated automatically. – Scene detection /[STABILIZER] /[INTELLIGENT ISO]/ Face detection/Backlight Compensation/Digital Red-eye Correction
Slide...

29VQT2C70
Basic

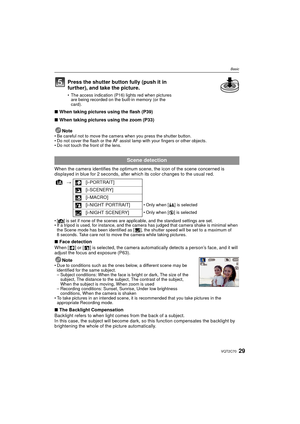

∫When taking pictures using the flash (P39)
∫ When taking pictures using the zoom (P33)
Note
• Be careful not to move the camera when you press the shutter button.
• Do not cover the flash or the AF assist lamp with your fingers or other objects.
• Do not touch the front of the lens.
When the camera identifies the optimum scene, the icon of the scene concerned is
displayed in blue for 2 seconds, after wh ich its color changes to the usual red.
•[¦] is set if none of the scenes are...

VQT2C7030
Basic

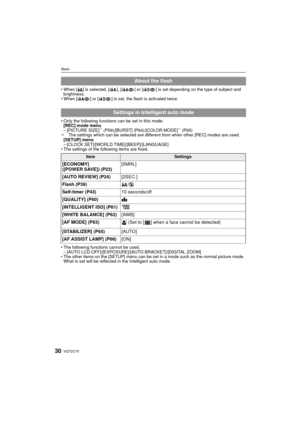

• When [‡] is selected, [ ], [ ] or [ ] is set depending on the type of subject and
brightness.
• When [ ] or [ ] is set, the flash is activated twice.
• Only the following functions can be set in this mode. [REC] mode menu
– [PICTURE SIZE]
¢ (P59)/[BURST] (P64)/[COLOR MODE]¢ (P65)
¢ The settings which can be selected are different from when other [REC] modes are used.
[SETUP] menu
– [CLOCK SET]/[WORLD TIME]/[BEEP]/[LANGUAGE]
• The settings of the following items are fixed.
• The...
