Advanced (Recording pictures)

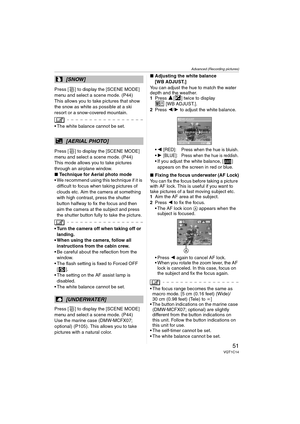

51VQT1C14
Press [ ] to display the [SCENE MODE]
menu and select a scene mode. (P44)
This allows you to take pictures that show
the snow as white as possible at a ski
resort or a snow-covered mountain.
 The white balance cannot be set.
Press [ ] to display the [SCENE MODE]
menu and select a scene mode. (P44)
This mode allows you to take pictures
through an airplane window.
∫Technique for Aerial photo mode
 We recommend using this technique if it is
difficult to focus...

Advanced (Recording pictures)

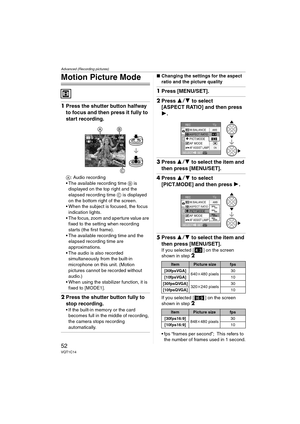

52VQT1C14
Motion Picture Mode
1Press the shutter button halfway
to focus and then press it fully to
start recording.
A: Audio recording
 The available recording time B is
displayed on the top right and the
elapsed recording time C is displayed
on the bottom right of the screen.
 When the subject is focused, the focus
indication lights.
 The focus, zoom and aperture value are
fixed to the setting when recording
starts (the first frame).
 The available recording time...

Advanced (Recording pictures)

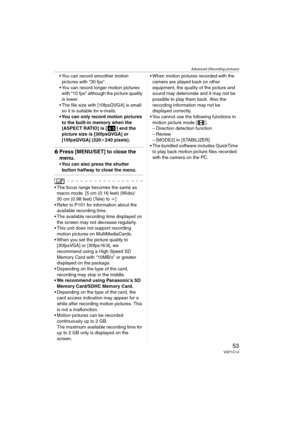

53VQT1C14
 You can record smoother motion
pictures with “30 fps”.
 You can record longer motion pictures
with “10 fps” although the picture quality
is lower.
 The file size with [10fpsQVGA] is small
so it is suitable for e-mails.
 You can only record motion pictures
to the built-in memory when the
[ASPECT RATIO] is [ ] and the
picture size is [30fpsQVGA] or
[10fpsQVGA] (320k240 pixels).
6Press [MENU/SET] to close the
menu.
 You can also press the shutter
button...

Advanced (Recording pictures)

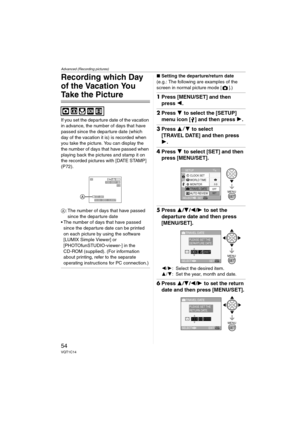

54VQT1C14
Recording which Day
of the Vacation You
Take the Picture
If you set the departure date of the vacation
in advance, the number of days that have
passed since the departure date (which
day of the vacation it is) is recorded when
you take the picture. You can display the
the number of days that have passed when
playing back the pictures and stamp it on
the recorded pictures with [DATE STAMP]
(P72).
A: The number of days that have passed
since the departure...

Advanced (Recording pictures)

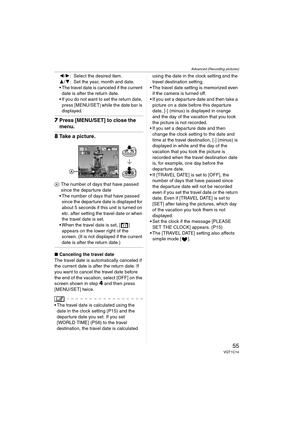

55VQT1C14
2/1: Select the desired item.
3/4: Set the year, month and date.
 The travel date is canceled if the current
date is after the return date.
 If you do not want to set the return date,
press [MENU/SET
] while the date bar is
displayed.
7Press [MENU/SET] to close the
menu.
8Take a picture.
A: The number of days that have passed
since the departure date
 The number of days that have passed
since the departure date is displayed for
about 5 seconds if this unit...

Advanced (Recording pictures)

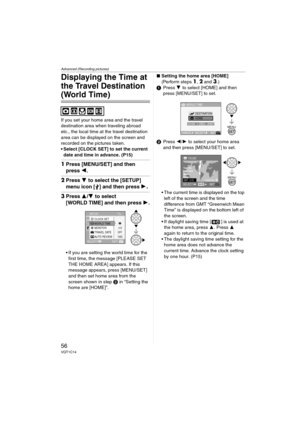

56VQT1C14
Displaying the Time at
the Travel Destination
(World Time)
If you set your home area and the travel
destination area when traveling abroad
etc., the local time at the travel destination
area can be displayed on the screen and
recorded on the pictures taken.
 Select [CLOCK SET] to set the current
date and time in advance. (P15)
1Press [MENU/SET] and then
press 2.
2Press 4 to select the [SETUP]
menu icon [ ] and then press 1
.
3Press 3/4 to select
[WORLD...

Advanced (Recording pictures)

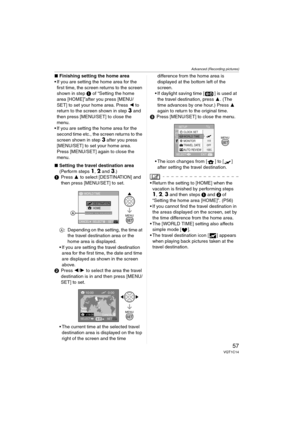

57VQT1C14
∫Finishing setting the home area
• If you are setting the home area for the  first time, the screen returns to the screen
shown in step  1 of “Setting the home
area [HOME]”after you press [MENU/
SET] to set your home area. Press  2 to
return to the screen shown in step
3 and
then press [MENU/SET] to close the
menu.
 If you are setting the home area for the
second time etc., the screen returns to the
screen shown in step
3 after you press
[MENU/SET] to...

Advanced (Recording pictures)

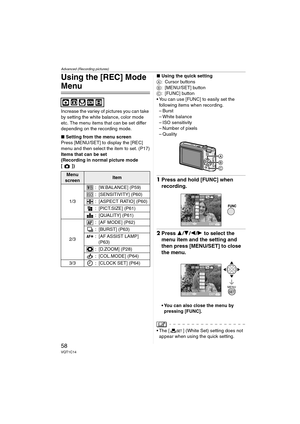

58VQT1C14
Using the [REC] Mode
Menu
Increase the variey of pictures you can take
by setting the white balance, color mode
etc. The menu items that can be set differ
depending on the recording mode.
∫Setting from the menu screen
Press [MENU/SET] to display the [REC]
menu and then select the item to set. (P17)
Items that can be set
(Recording in normal picture mode
[])∫Using the quick setting
A: Cursor buttons
B: [MENU/SET] button
C: [FUNC] button
 You can use [FUNC] to...

Advanced (Recording pictures)

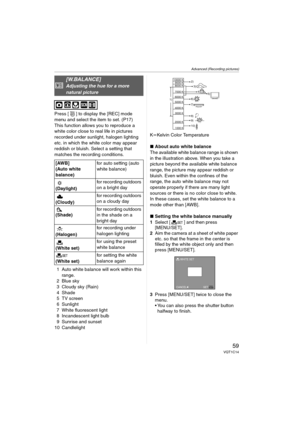

59VQT1C14
Press [ ] to display the [REC] mode
menu and select the item to set. (P17)
This function allows you to reproduce a
white color close to real life in pictures
recorded under sunlight, halogen lighting
etc. in which the white color may appear
reddish or bluish. Select a setting that
matches the recording conditions.
1 Auto white balance will work within this
range.
2 Blue sky
3 Cloudy sky (Rain)
4 Shade
5 TV screen
6 Sunlight
7 White fluorescent light
8...

Advanced (Recording pictures)

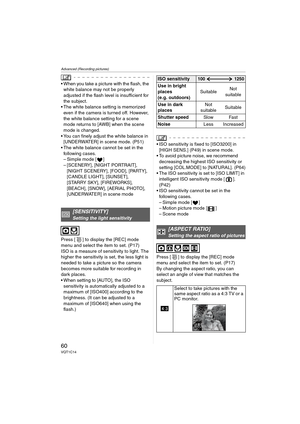

60VQT1C14
 When you take a picture with the flash, the
white balance may not be properly
adjusted if the flash level is insufficient for
the subject.
 The white balance setting is memorized
even if the camera is turned off. However,
the white balance setting for a scene
mode returns to [AWB] when the scene
mode is changed.
 You can finely adjust the white balance in
[UNDERWATER] in scene mode. (P51)
 The white balance cannot be set in the
following cases.
– Simple...
